Features

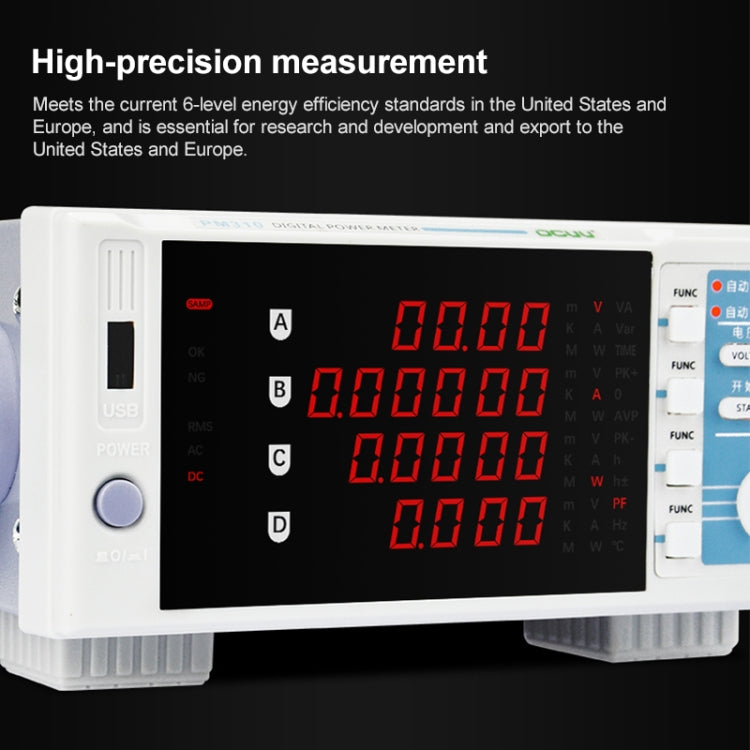

1. Accurate power measurement: The digital power meter is equipped with advanced technology to provide accurate and reliable power measurement, ensuring accurate results for various applications.
2. Wide voltage range: This digital power meter can handle a wide range of power supply voltages, from 1V to 600V, making it suitable for a variety of electrical systems and environments.
3. Flexibility of frequency: The allowed power supply frequency range is 45Hz to 65Hz, which can be used in different countries and regions with different frequency standards.
4. User-friendly interface: The device has a user-friendly interface that is easy to operate and navigate, allowing users to easily obtain accurate readings and perform various functions.

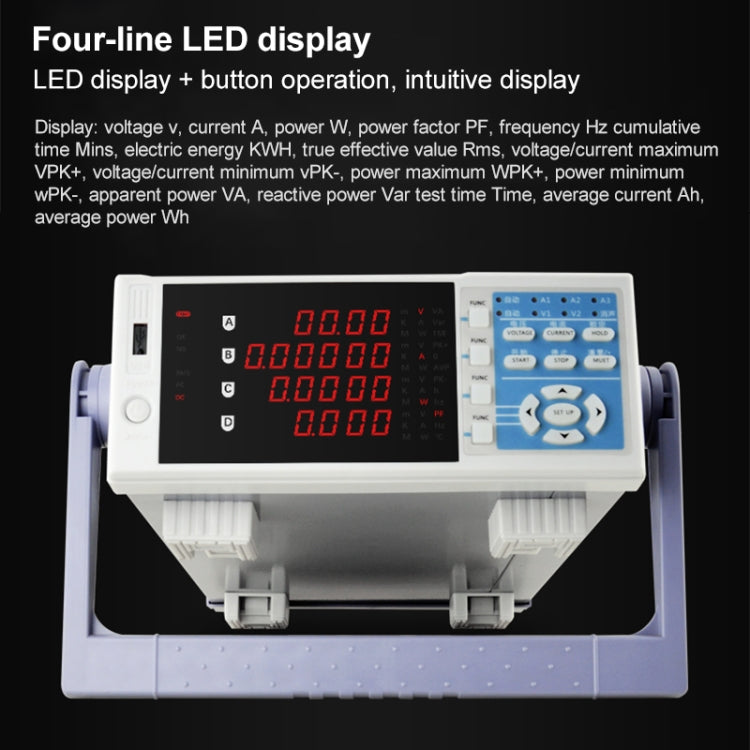

5. Adopt LED display + button operation, intuitive display
6. Display: Voltage V, current A, power W, power factor PF, frequency Hz, cumulative time Mins, electric energy KWH, true effective value Rms, voltage/current maximum value VPK+, voltage/current minimum value VPK-, power maximum value WPK+, power minimum value WPK-, apparent power VA, reactive power Var, test time Time, average current Ah, average power Wh
Specifications
1. Measurement Mode: AC and DC
2. Measure Voltage: 1V~600V
3. Measure Current: 0.1mA~30A
4. Power Factor: 0.000~1.000
5. Electrical Energy: +/-0-999.999kWh
6. Test Speed: 5 times/second
7. Frequency: DC/AC: 45Hz~65Hz/400 Hz Bandwidth: 5KHz
8. Measurement Accuracy: +/- (0.1% reading + 0.1% range + 1 word)

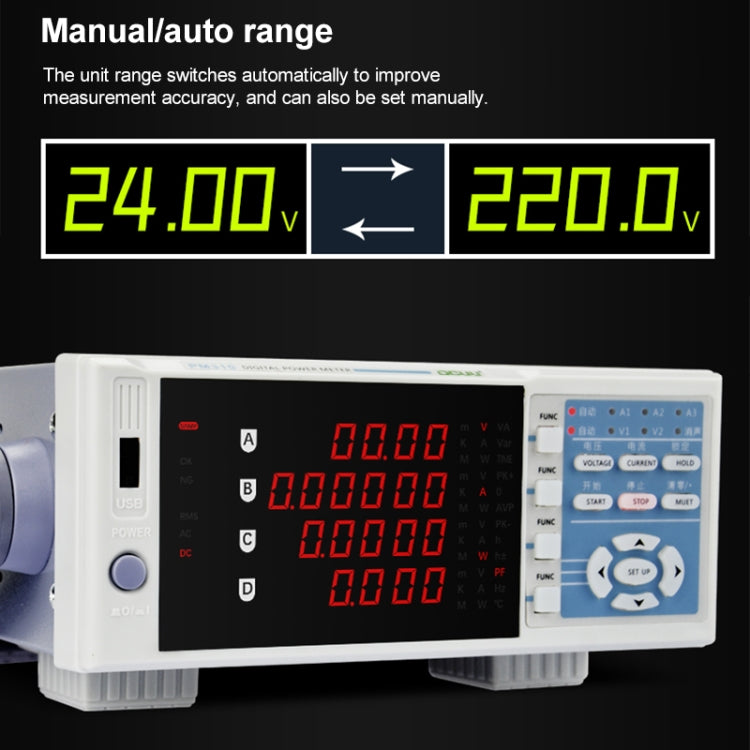

9. Range Switching: Automatic/manual range

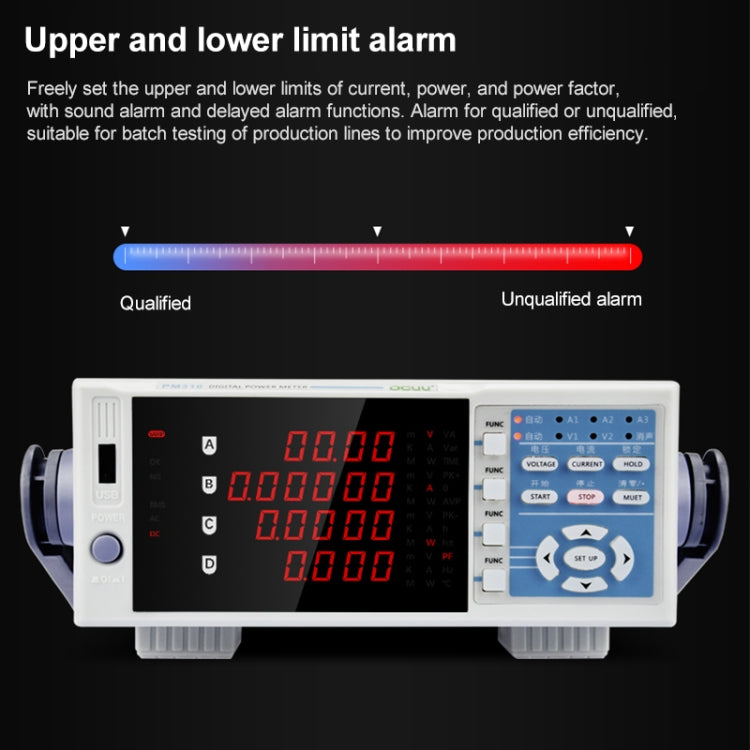

10. Alarm Function: With current and power upper and lower limit setting, judgment and alarm functions, it is very suitable for production line measurement
11. Latch Function: Lock the data to avoid misjudgment of data due to fluctuations
12. Communication Interface: USB communication
13. PC Software: Electrical parameter measurement system
14. Signal Output: Passive signal output as standard
15. Dimensions & Weight: Dimensions (width x height x depth): 213 x 104 x 470mm / net weight: 2.5kg
Package List
1. Host x 1
2. Power cord x 1
3. Product manual x 1
4. Product certificate x 1
