1. Small size, easy to operate
2. High current resistance, anti-reverse connection, safe wiring
3. Set parameters, power off, long-term memory
4. Support acceleration and deceleration functions can be set through the menu
5. Scope of application: motor

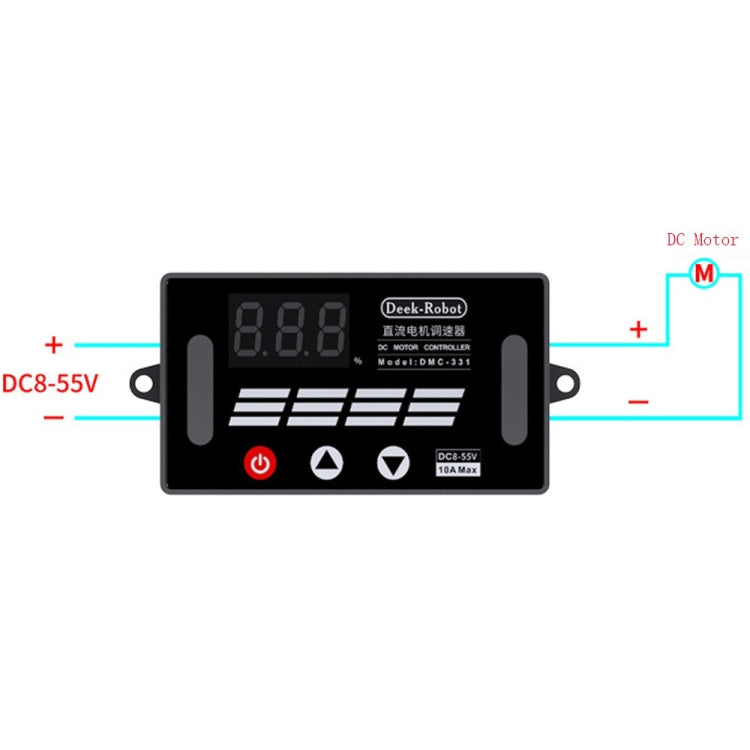

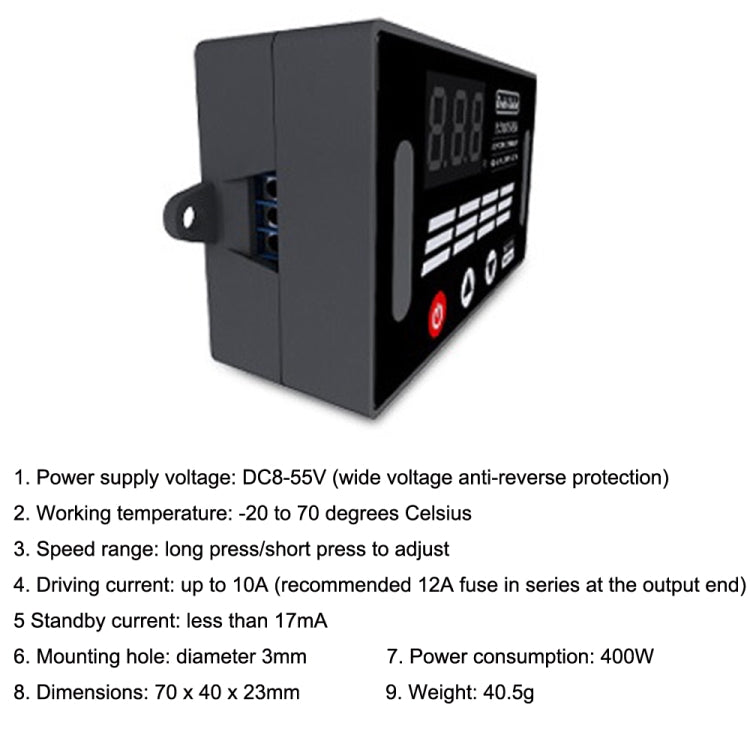

8. Power supply voltage: DC8-55V (wide voltage anti-reverse protection)
9. Working temperature: -20 to 70 degrees Celsius
10. Speed range: long press/short press to adjust
11. Driving current: up to 10A (recommended 12A fuse in series at the output end)
12. Standby current: less than 17mA
13. Mounting hole: diameter 3mm
14. Power consumption: 400W

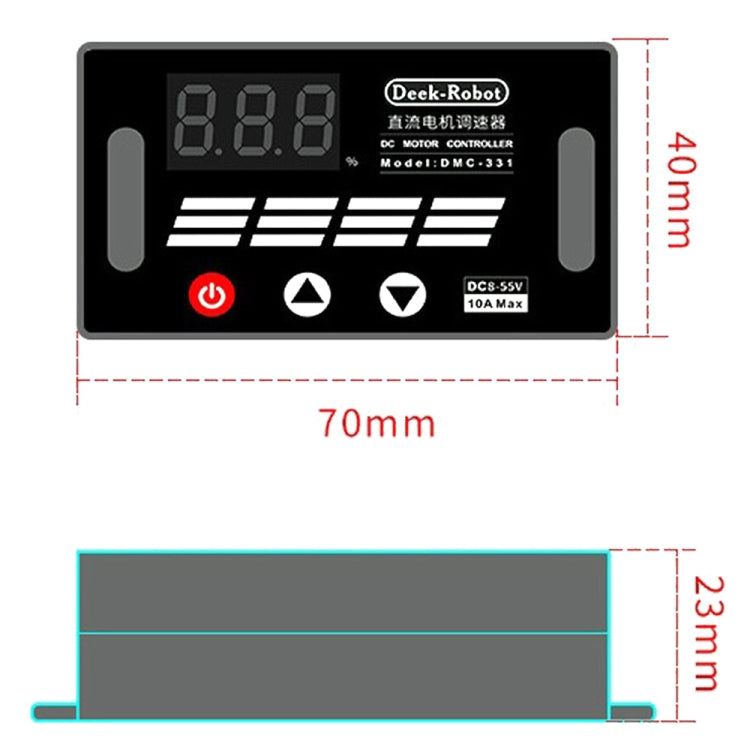

15. Dimensions: 70 x 40 x 23mm
16. Weight: 40.5g
