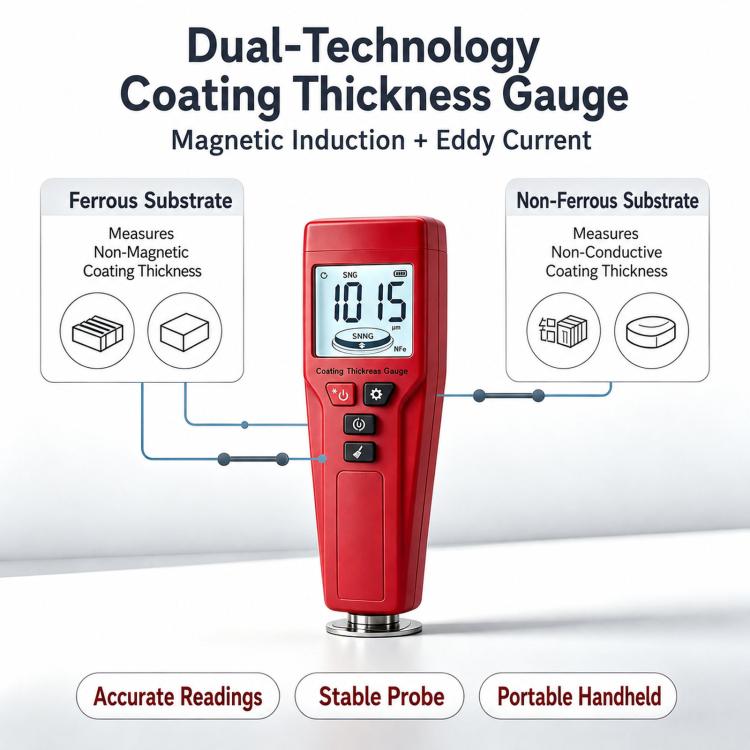

1. Adopts dual measurement principles of Magnetic Induction (Fe) and Eddy Current (NFe), automatically identifying ferromagnetic and non-magnetic aluminum substrates. No manual switching required, detecting paint thickness on hoods, doors, and fenders in one second.

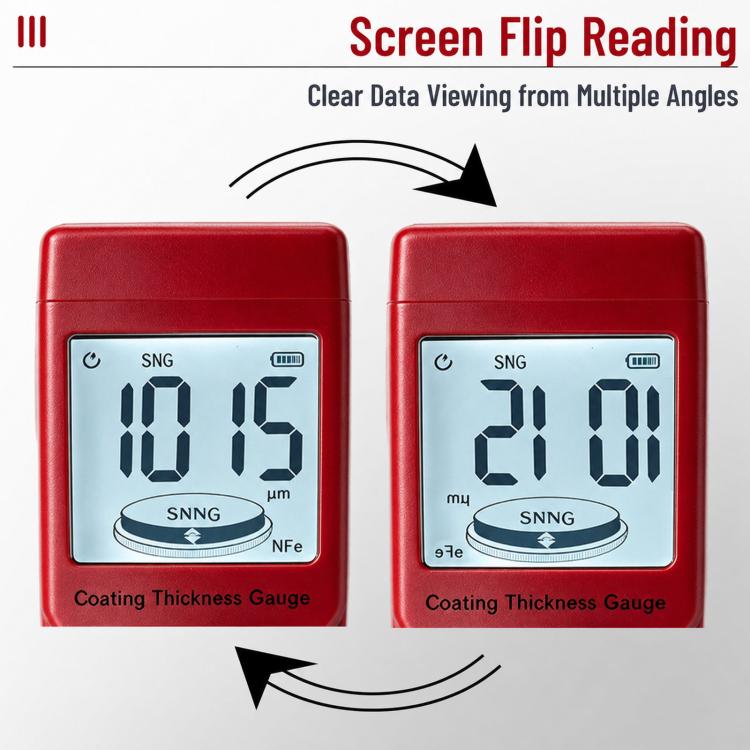

2. The screen features a 180-degree image flip function, allowing accurate readings without looking upside down when measuring roofs, undercarriages, or narrow angles. Built-in LCD backlight enables easy viewing in dim underground garages or on cloudy days.
3. Measurement range up to 0-1500 um (0-59 mil), resolution up to 0.1 um / 0.01 mil, with measurement error controlled within +/- (3% + 1 um). Supports one-key switching between micrometers (um) and mils (mil) to meet different industry standards.
4. Supports two operating modes: Single Measurement (SNG) and Continuous Measurement (CTN). In continuous mode, sliding the probe smoothly along the body panel pinpoints repainted areas, body filler, or over-polished spots, with an audio prompt feedback for each reading.
5. Supports one-key zero calibration on raw substrates to ensure long-term data stability and accuracy. Automatically powers off after 3 minutes of inactivity to save power. Ergonomically designed body provides a comfortable grip, making it a handy tool for used car inspection, auto detailing, and industrial quality control.
Specifications:
1. Automatic Recognition: Sensor automatically identifies substrate type
2. Minimum Convex Curvature Radius: 5mm
3. Minimum Concave Curvature Radius: 50mm
4. Minimum Measurement Area Diameter: 20mm
5. Measurement Modes: Single measurement / Continuous measurement
6. Units: Micrometers (um) / Mils (mil)
7. Data Hold: Automatically retains the last measurement data
8. Backlight: Yes, can be turned on in dark environments
9. Audio Prompt: Sound prompts for measurements and alarms
10. Screen Flip: Manual setting (0 degree / 180 degree in two directions)
11. Auto Power-Off: Automatically powers off after 3 minutes of inactivity
12. Power Source: 2 x 1.5V AAA alkaline batteries (batteries not included)
13. Storage Environment: -20 to 60 degrees C, less than or equal to 75% RH
14. Operating Environment: Altitude less than 2000m, -10 to 50 degrees C, less than or equal to 80% RH
