1. Input voltage range: 6.00-60.00V
2. Adjustable output voltage range: 0-50.00V
3. Output power range: 0-1000W
4. Adjustable output current range: 0-20.00A

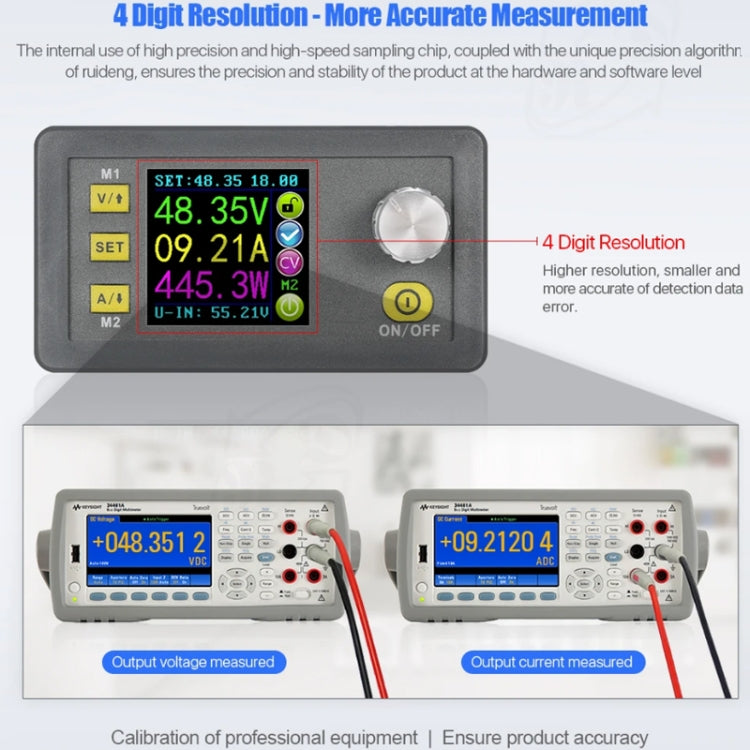

5. Output voltage resolution: 0.01V
6. Output current resolution: 0.01A
7. With power-down storage function, it can store 10 sets of preset values, and can quickly extract two sets of stored values.

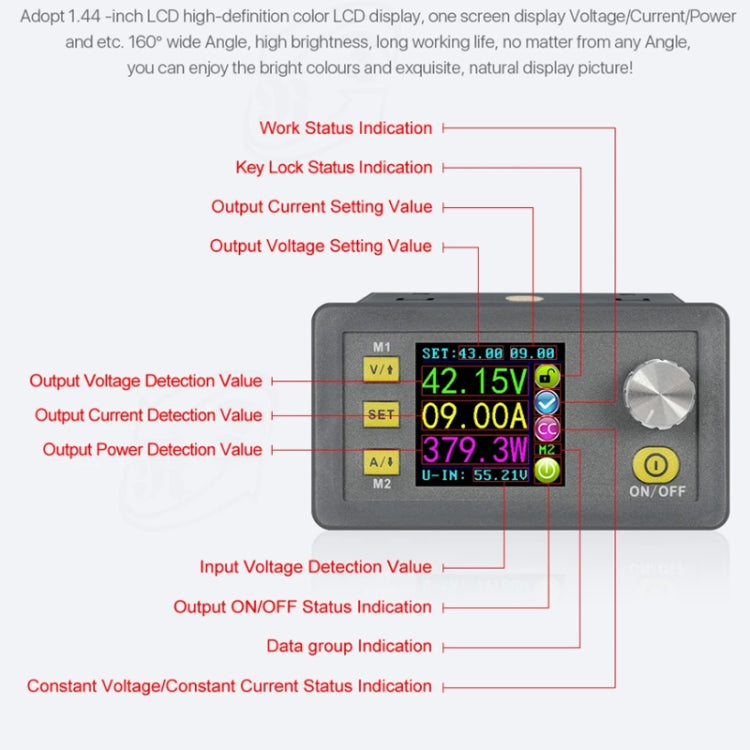

8. The LCD display on the module has digital voltmeter and ammeter functions
9. In the output status reminder area, you can check the preset voltage, input voltage, output voltage, preset current, output current, output power, etc., you can see whether the output is on or not, the constant voltage and constant current status, whether the output is normal, and whether the key is pressed. lock, the data group currently in use
10. In the setting data interface, you can adjust the overvoltage value, overcurrent value, overpower value, data setting and LCD brightness
11. The module has the advantages of small size, advanced functions, good visual effects, high operability, high precision, independent use, embedded equipment, and wide application.
12. Fixing hole center distance: 86mm, 64mm
13. Display module size: 79x43x41mm
14. Opening size: 71x39mm
15. Power module size: 93x71x41mm
16. Cable length: 200mm
17. Product weight: about 222
