1. Input voltage range: 6-40V
2. Output voltage adjustment range: 0-32V (input must be greater than output)
3. Output current adjustment range: 0-3A
4. Input protection mode: reverse connection/overvoltage protection
5. Output protection mode: (Ovp) overvoltage, (Ocp) overcurrent, (Opp) overpower
6. Output power: 0-60W
7. Output voltage setting resolution: 10mV
8. Output current setting resolution: 1mA
9. Output ripple: less than 100mVpp (input 35V, output 12V, current 2A)
10. 100Hz fluctuation transmission ratio: less than 1/10000
11. Storage operation: There are 10 groups of parameters stored in M0-M9
12. Cooling method: onboard radiator and cooling fan
13. Cooling fan startup conditions: output current greater than 0.5A or output power greater than 25W

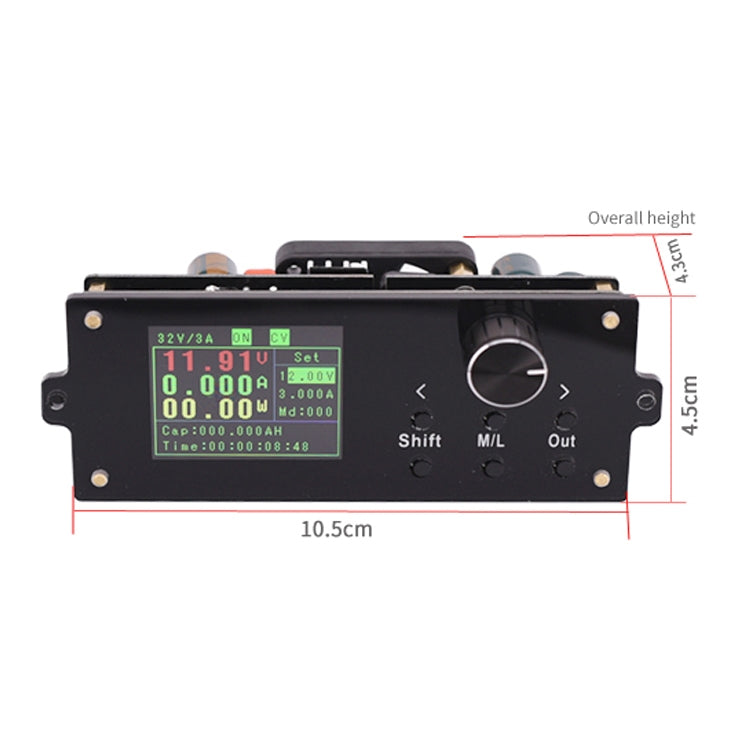

14. Size: about 10.5x4.5x4.3 cm
15. Weight: about 95g
Features:
1. Using a microprocessor, the output voltage and current can be accurately adjusted and displayed

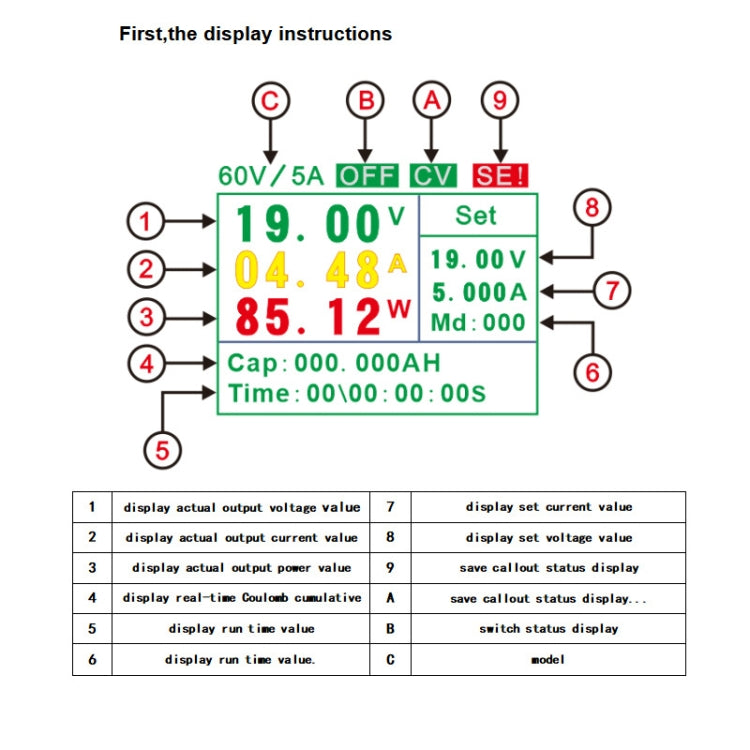

2. Adopt 1.8-inch color LCD display, which can display the working status of voltage, current, capacity, time and power supply in real time
3. It is convenient and quick to adjust and read parameters through buttons and knobs, and it is convenient to save and recall parameters
4. The output overvoltage (Ovp), overcurrent (Ocp), and overpower protection (Opp) can be set, and the output can be turned off when the output exceeds the set value
5. The built-in cooling fan ensures that the power device will not be damaged due to overheating
6. It can output constant voltage and constant current
7. With input reverse connection protection function, it can prevent damage to the power supply due to input reverse connection
