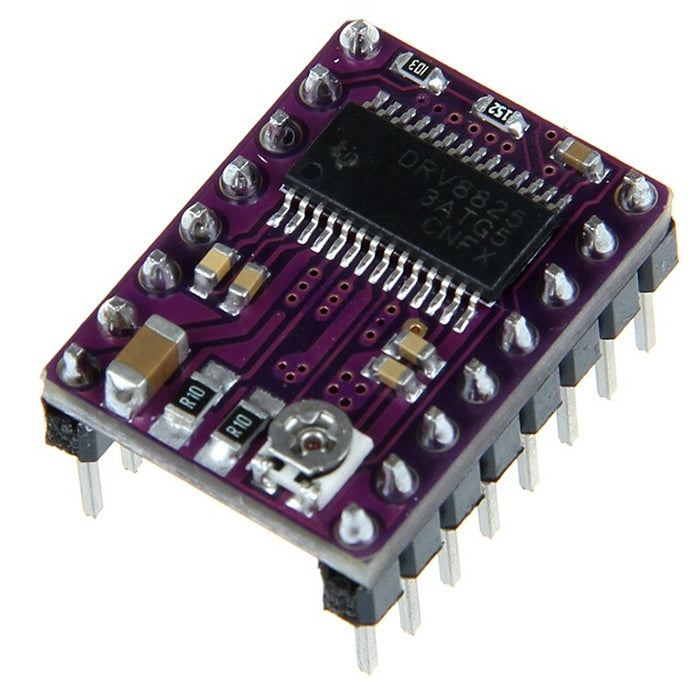

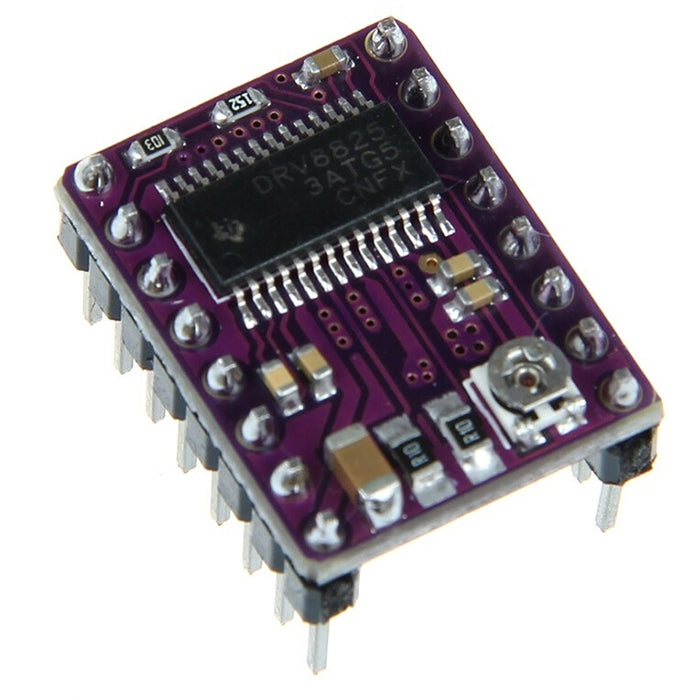

1. The DRV8825 stepper motor driver carrier is a breakout board for TI DRV8825 microstepping bipolar stepper motor driver.
2. Simple step and direction control interface.
3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
4. Can interface directly with 3.3 V and 5 V systems.
5. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
6. Short-to-ground and shorted-load protection.
7. 4-layer, 2 oz copper PCB for improved heat dissipation.

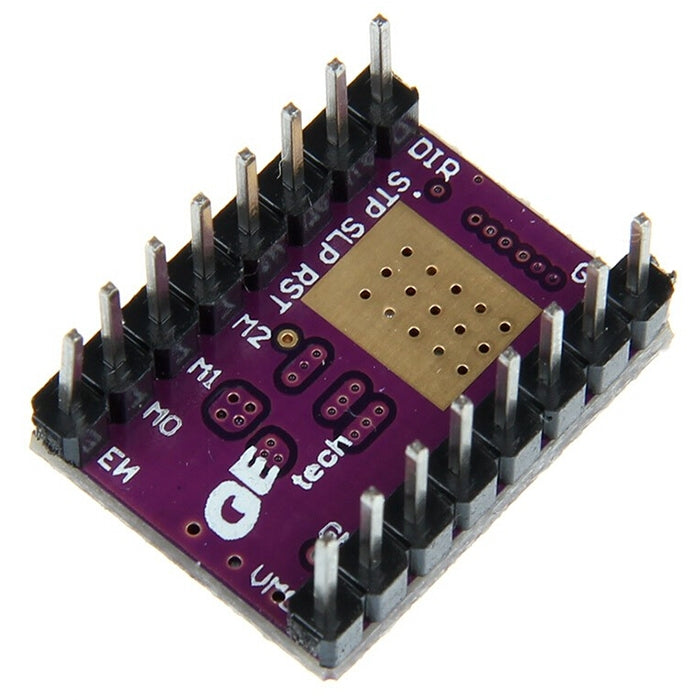

8. Exposed solderable ground pad below the driver IC on the bottom of the PCB.
