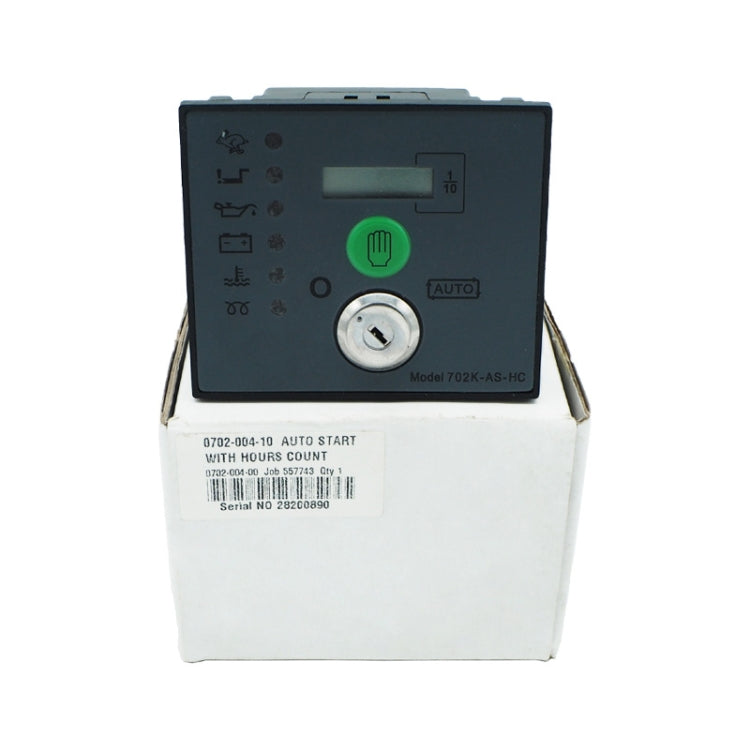

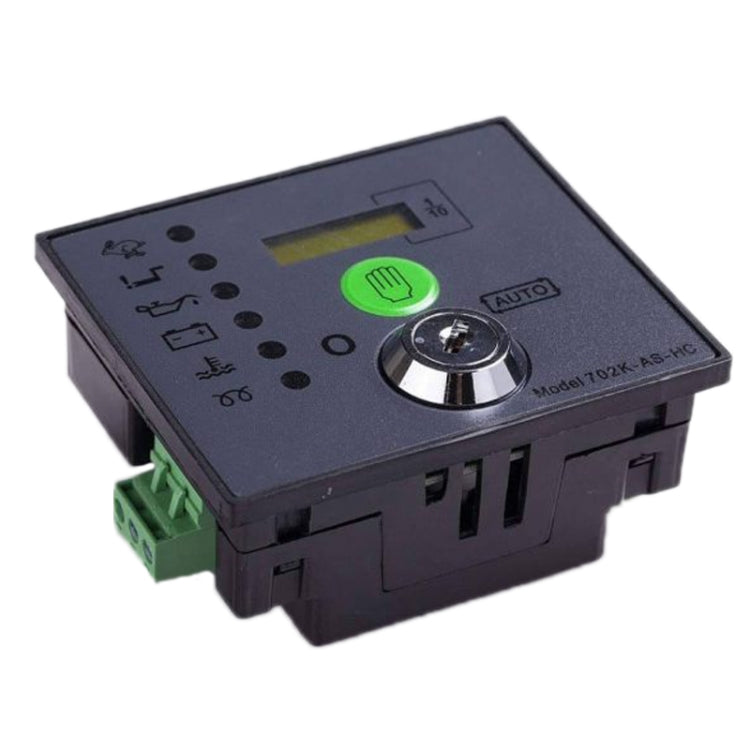

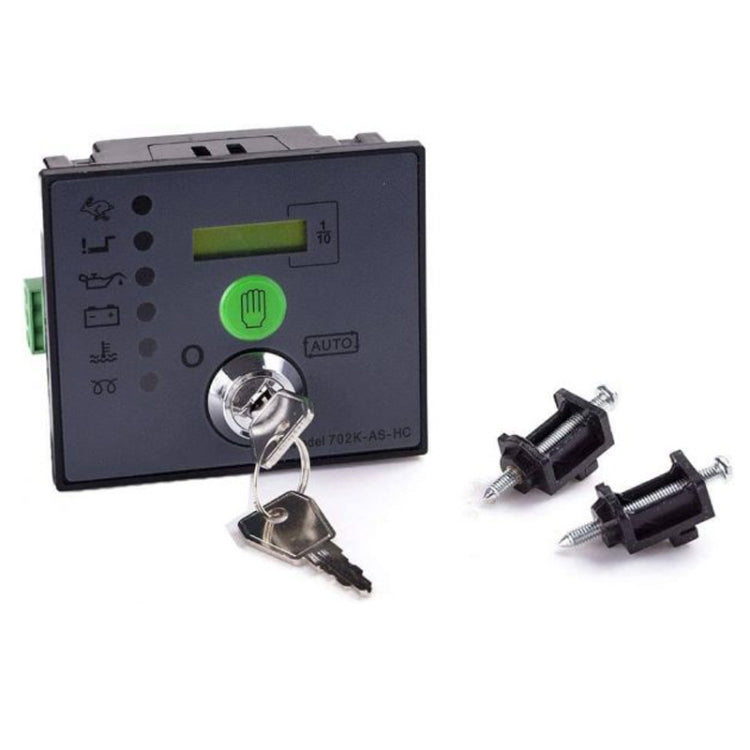

1. The DSE702 generator controller provides an excellent range of engine monitoring and protection functions
2. Generator manual start control provides input to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input
3. The auto-start version also includes input options for starting signals from a remote location

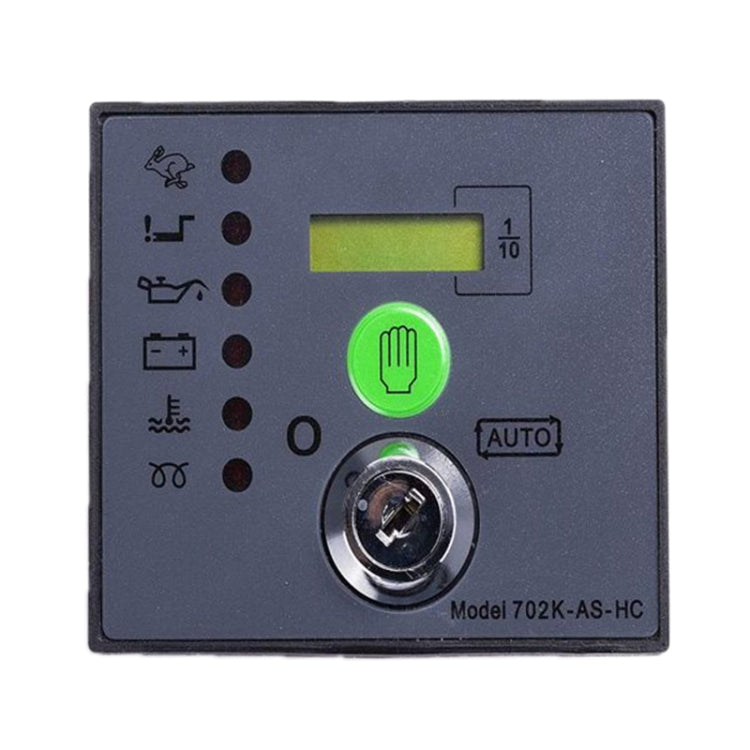

When the generator manual control detects any of the above faults it will illuminate the warning LED on the front panel
4. The DSE702AS controller also has the ability to monitor battery charging using the WL terminal on the charging alternator and will light up the warning LED on the front panel when a battery charging failure is detected
5. Continuous rated voltage: 8V to 35V continuous
6. Voltage range: 15V ~ 33V ac (l-n)
7. Frequency range: 3.5 Hz ~ 75hz
8. Dimensions: 72x72x38mm excluding key switch
9. Panel thickness: 8 mm
