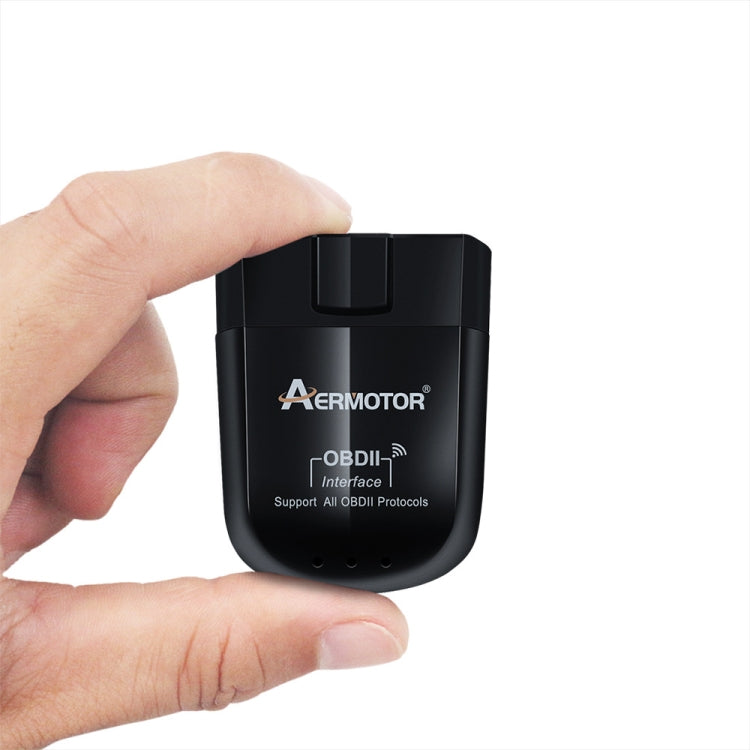

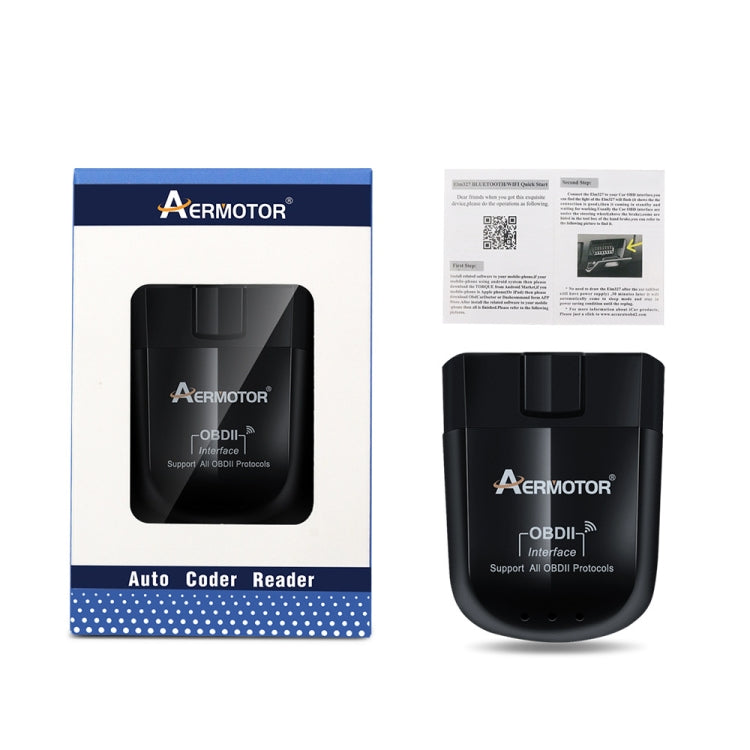

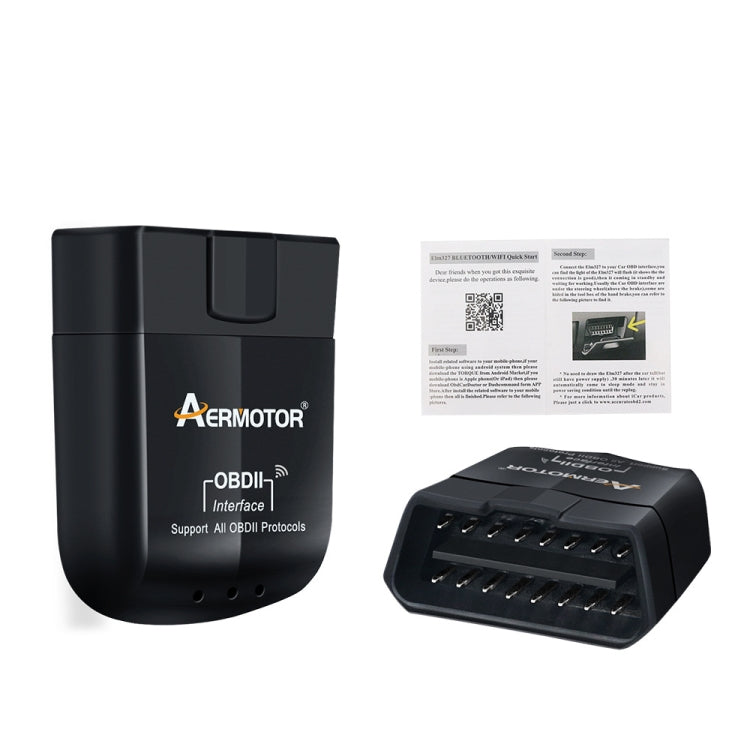

ELM327WIFI V1.5 OBD2 Car Fault Diagnostic Tool PIC18F25K80 Chip

Functions
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages / associated short term fuel trims
17. Fuel System status
18. Fuel Pressure

Specifications
1. Software version: V2.1 (depending on software)
2. Hardware version: V1.5
3. Works with all OBD-II compliant vehicles
4. Support Four operating platforms (IOS, Android, Symbian, Windows)
5. SSID: WiFi_OBDII
6. IP: 192.168.0.10
7. Port: 35000
8. Communication: WIFI
9. Master chip: ST
10. Working voltage: 9~16V
11. Working current: 65mA
12. Standby current: 45mA
13. Operating temperature: -40~85 degree Celsius
14. Working Humidity: less than 60%
15. Size: 45mm x 25mm x 75mm
16. Compatible systems: Windows XP, Windows 7/8, IOS, Android, Symbian.
17. Supported protocols:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
