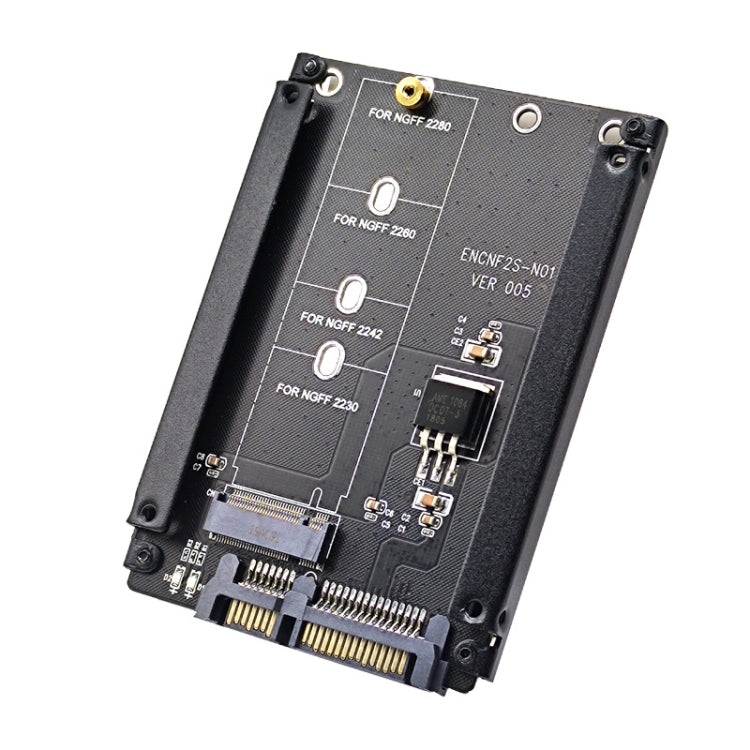

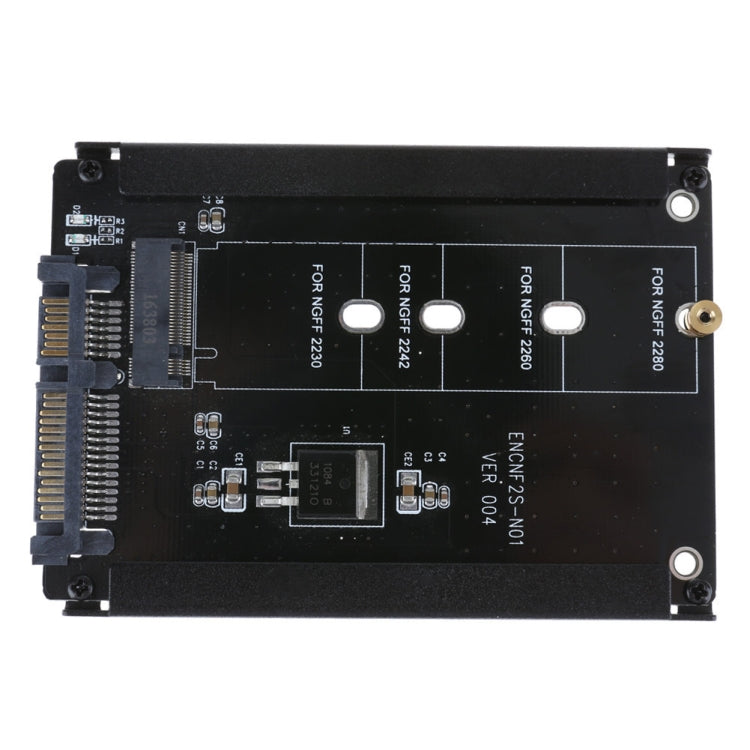

1. Connect the M.2 hard disk defined by KEY-B-M SATA on the motherboard to the SATA 22PIN interface. This adapter board only connects the signal from the M.2 hard disk to the SATA 22PIN connector, so the adapter card does not need a driver.

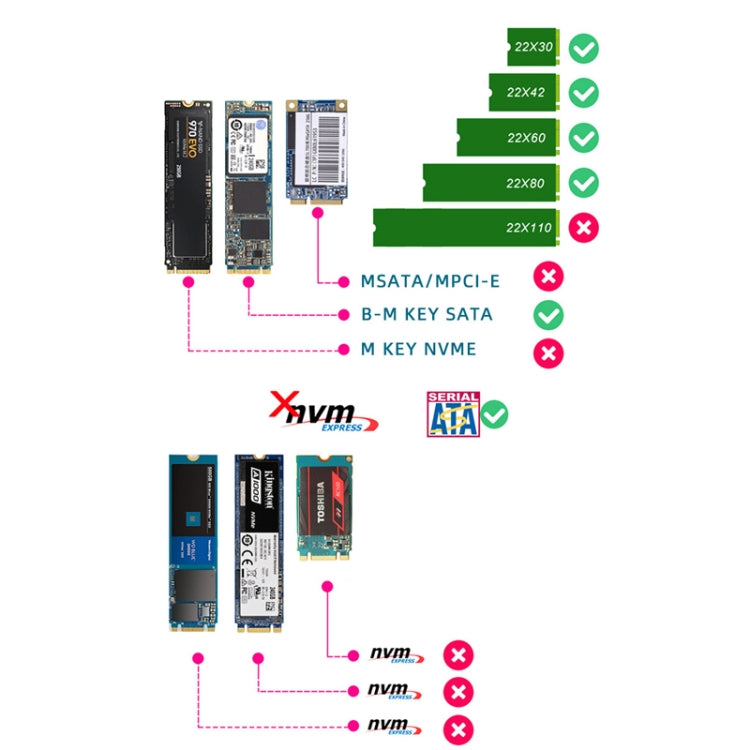

2. Support all SATA standard M2.SSD, do not support NVME M2.SSD, do not support PCI-E M2 SSD
3. This card is suitable for 4 different SSD hard disk lengths, suitable for different M2 (NGFF) SSD hard disk lengths such as 3cm, 4.2cm, 6cm, and 8cm.
Using ceramic filter capacitors, high-power LDO voltage regulator control chip, stable performance
The riser card only changes the interface form of the solid state drive, and does not change any performance of your hard drive. What are the parameters of your original hard drive, with the riser card, the performance of the output interface will not change.
Product interface: M.2 NGFF SATA 22PIN
Support system: WinXP/Vista/Win7/Win8 32-bit/64-bit MAC/LINUX
Note: The product is only a riser card, not including a hard disk
