Feature

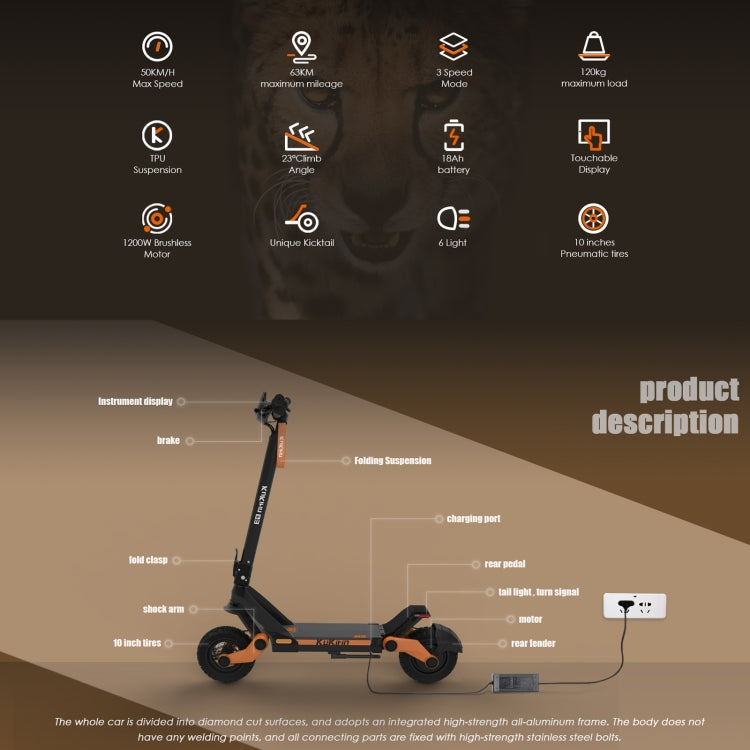

1. Crafted from high-strength aluminum alloy, the frame boasts a seamless one-piece construction without any unsightly welds. This results in a solid and aesthetically pleasing build. The all-in-one design enhances durability, making it an ideal choice for your off-road adventures.
2. Thanks to its robust power supply, it is adept at tackling a variety of terrains, including steep uphill slopes of up to 23 degree.

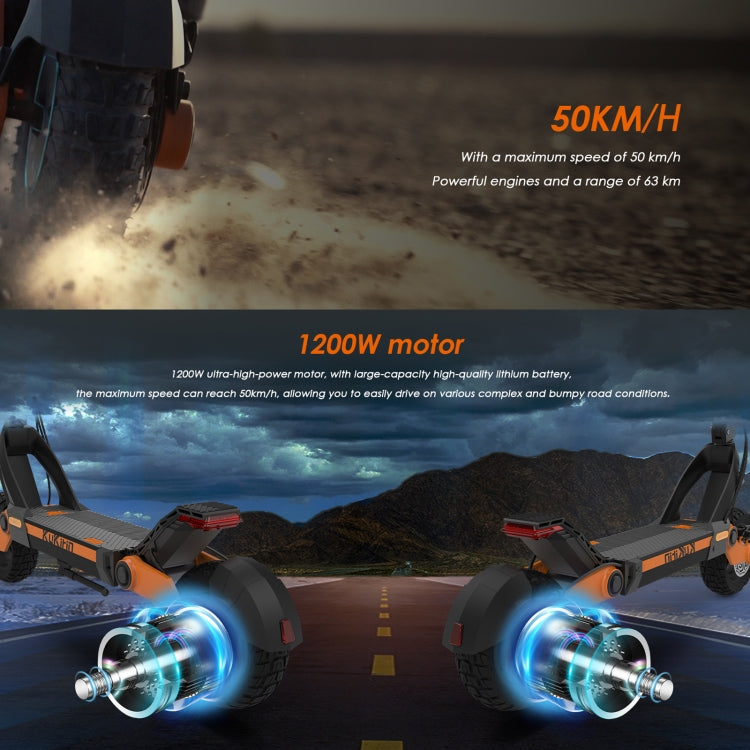

3. It is equipped with a formidable 1200W motor featuring dual heat dissipation technology. This motor provides a consistent and potent power output, propelling the e-scooter to speeds of up to 50km/h. The motor adopts a dual heat dissipation structure to maintain peak performance for longer.

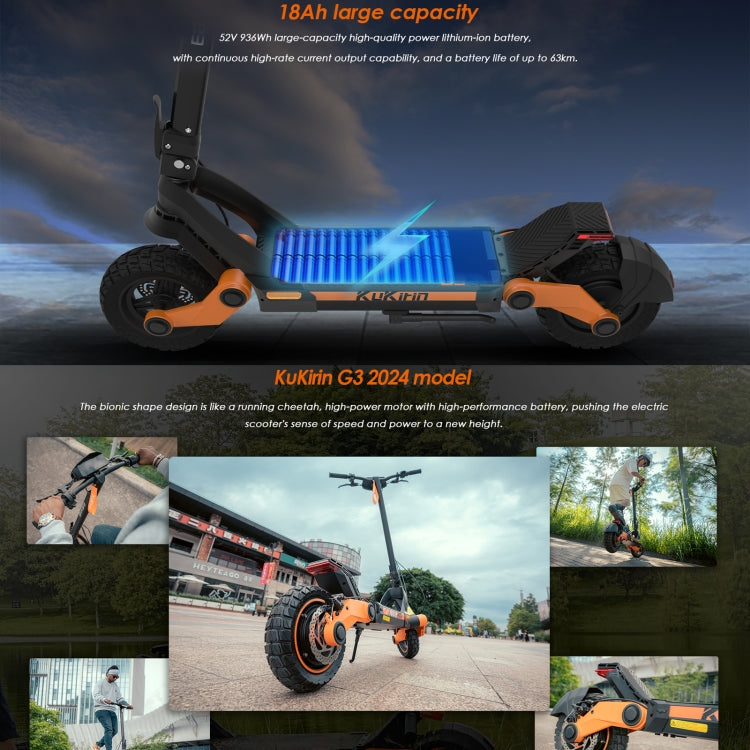

4. Fitted with a spacious 52V 18Ah lithium-ion battery pack, it can cover up to 63km on a single full charge. This generous battery capacity makes it an excellent companion for extended journeys, ensuring you won not run out of power.

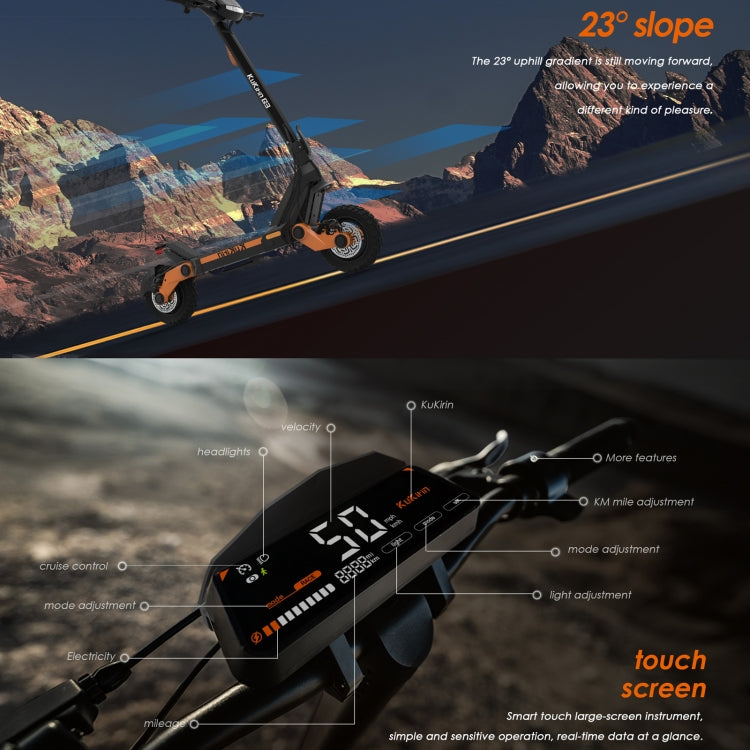

5. It boasts LED touch display that provides real-time information such as speed and battery status. Additionally, it offers multi-function control options, enhancing the intelligence, ease, and enjoyment of your ride.
Specifications
1. Dimensions:
Unfolded body size: 1200x660x1290mm

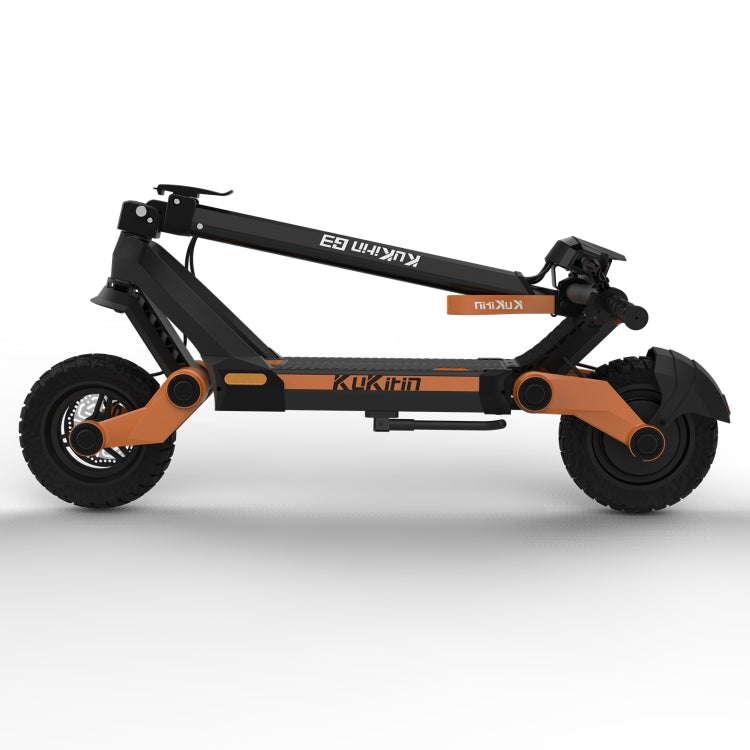

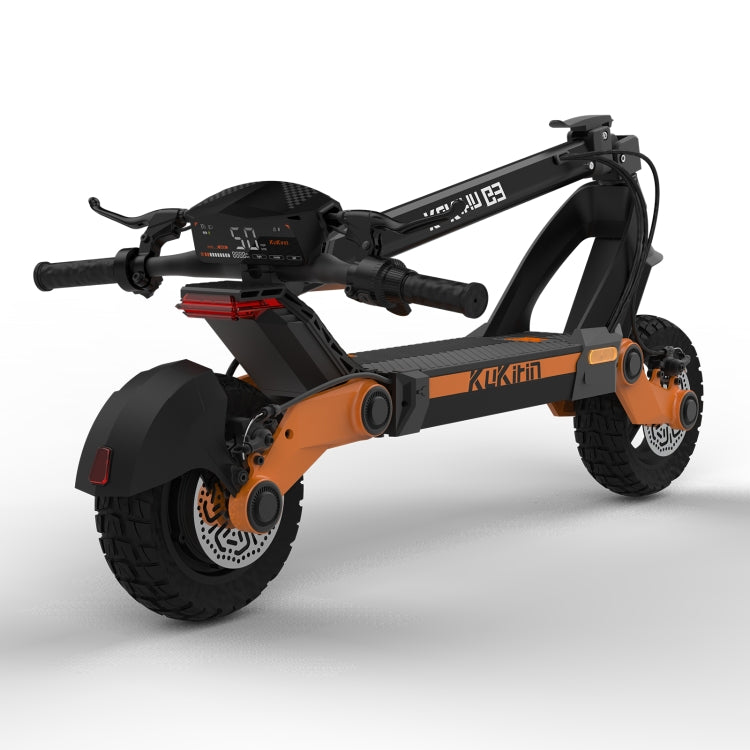

Folded body size: 1200x660x550mm
Crossbar size: 660mm
Pedal size: 490x190mm
Pedal to handlebar size: 990mm
Chassis height: 180mm
2. Load-bearing capacity: 120kg max
3. Speed: 50km/h max
1st, 2nd, 3rd gear (idling): 25km/h, 35km/h, 52km/h
1st, 2nd, 3rd gear (65kg load): 25km/h, 35km/h, 50km/h
4. Medium speed endurance: (65kg load) 63km
5. Performance:
Gradability: 23% slope
Brake system: front and rear disc brakes, power-off brake
Braking distance: 8-12m
Waterproof rating: IP54
6. Motor:
Motor type: integrated hub motor (rear wheel single drive)
Voltage: 48V
Acceleration mode: sine wave
Power data:
a. Rated power: 1200W
b. Instantaneous power: 1450W max
c. Rated speed: 1270 rpm
d. Torque: 38 Nm max
7. Battery: 18650 lithium battery
Voltage: 52V
Capacity:
a. Single cell capacity: 2500mAh
b. Battery pack capacity: 18Ah
Standard power consumption: 1.2kWh
Battery protection system: battery protection board (BMS)
8. Charger:
Input voltage: 180-240VAC~50/60Hz
Input current: 2A Max
Output voltage: 58.8V
Output current: 2A
Charging time: 9-10h

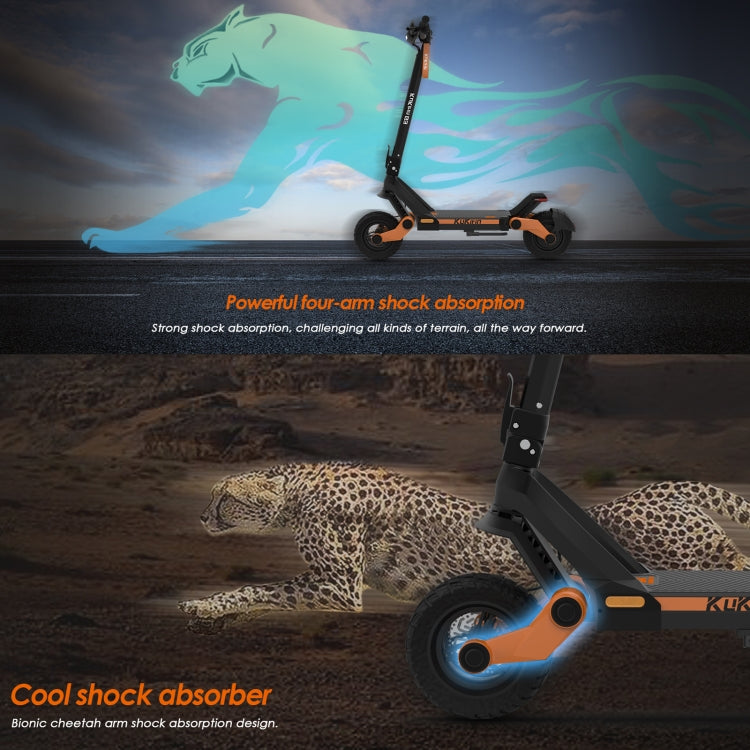

9. Shock absorption system:
Front shock absorption: shock absorption rocker arm
Rear shock absorption: shock absorption rocker arm

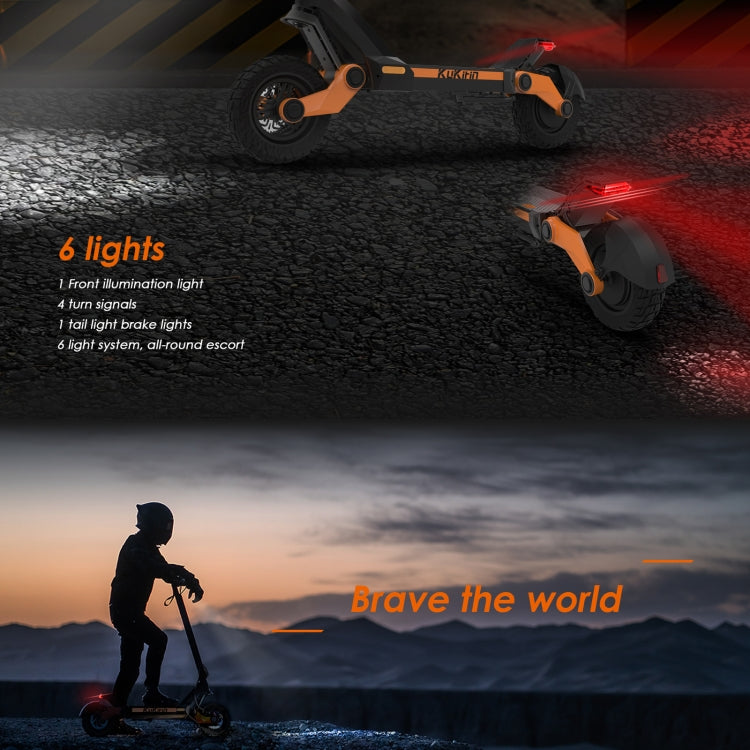

10. Lighting system:
Headlight type: LED
Headlight power: 6W
Headlight angle: 45 degrees
Headlight area: 8 square meters
Turn signal: Yes
Taillight: Yes, taillight is on when headlight is on; taillight flashes when braking
11. Tire:
Size: 10 inches (10x2.75-6.5)
Type: Off-road vacuum tire
Tire pressure: 350kPa (50psi)
12. Display:
Type: LED
Instrument material: instrument case ABS/instrument bracket PA6
Size: 155x55mm
Display content: speed, power, mileage, cruise control, speed mode, start mode, light mode, mileage unit mode, etc.
