Feature
1. It showcases a sleek hollow design that maintains its original sectional distinction. With its compact yet robust body, it radiates speed and strength, pushing the boundaries of aesthetics. This design not only enhances its appearance but also improves aerodynamics, taking the power and speed of high-performance electric scooters to new heights.
2. The whole vehicle adopts high-strength steel-aluminum mixed materials, die-cast front axle, integrated design, high-strength forged folding parts, and all connecting parts are fixed with stainless steel bolts.

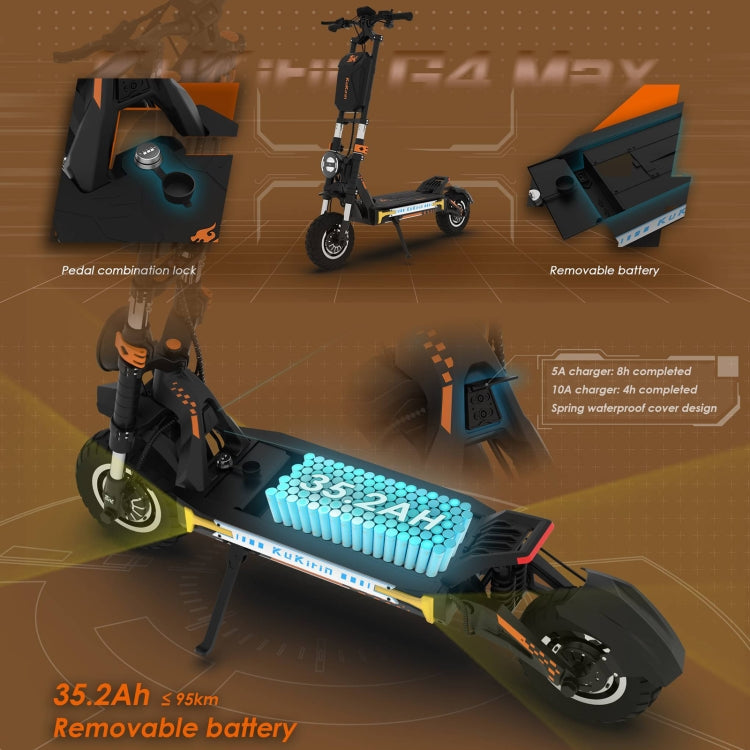

3. The 60V/35.2Ah large lithium battery has a range of up to 95km, which can provide you with ultra-long battery life while continuously outputting high-rate current. The design of the detachable lithium battery makes it easy to remove and install the battery, which is convenient for users to charge or replace the battery at any time, providing users with a more flexible and convenient use experience.

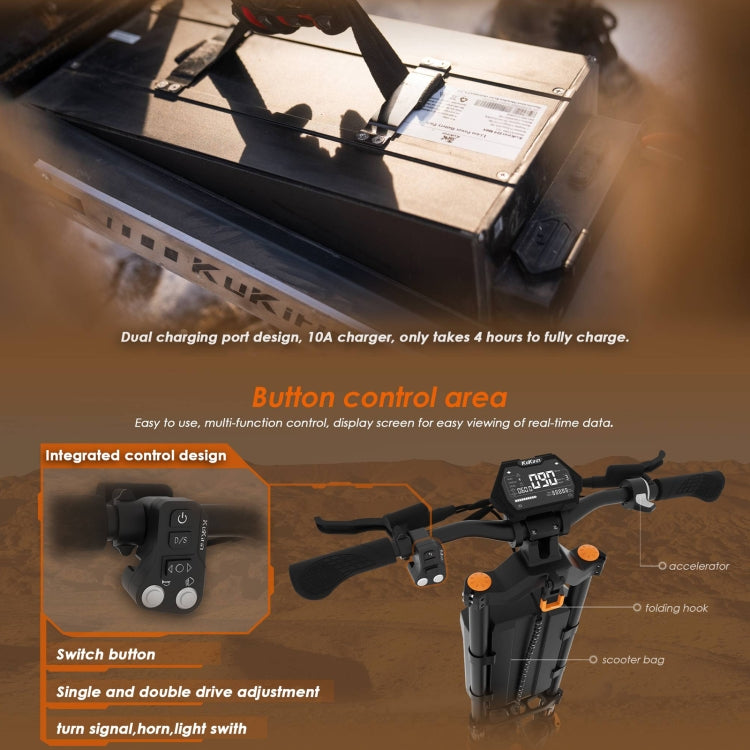

4. The multi-functional smart display integrates multiple functions into one, including speed display, power indicator, fault diagnosis, mileage recording, etc. This display also supports a variety of personalized settings, such as backlight brightness adjustment, start-up mode adjustment, etc., to meet the usage habits and needs of different drivers.

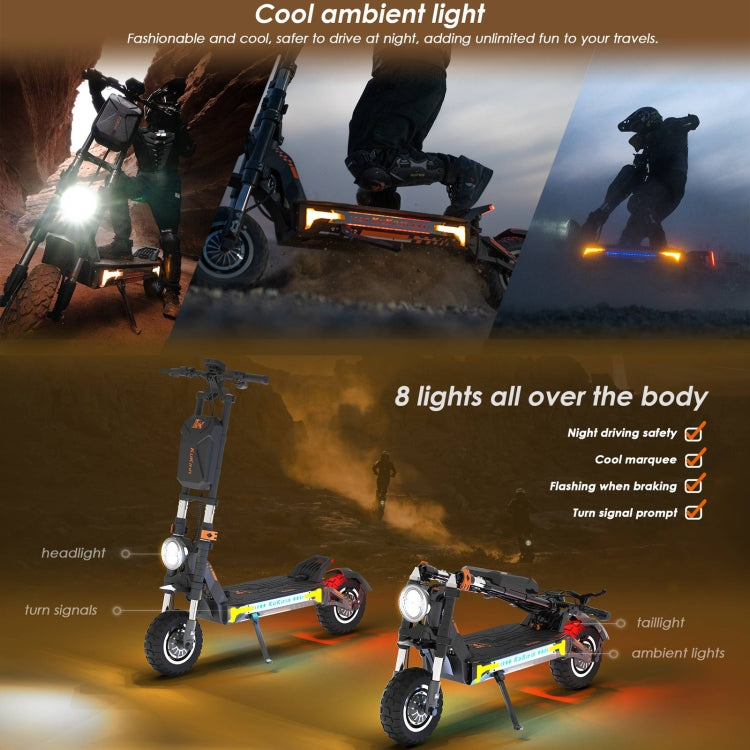

5. High-brightness LED headlights, taillights, turn signals with cool ambient lights not only provide good lighting, but also ensure driving safety.
6. The front and rear hydraulic damping shock absorption systems can better cope with bumpy and uneven roads, reducing the impact on the driver. The damping size is adjusted in real time according to the road conditions to provide a smoother and more natural driving experience, improve driving stability and comfort.
7. The 12-inch ultra-wide off-road pneumatic tire has a wider tread and off-road tread pattern, which can provide better grip and traction, shock absorption and buffering effects, absorb vibrations caused by uneven roads, reduce the impact on the driver, and improve driving comfort.
Specifications
1. Dimensions:
Unfolded body size: 1425x640x1340mm

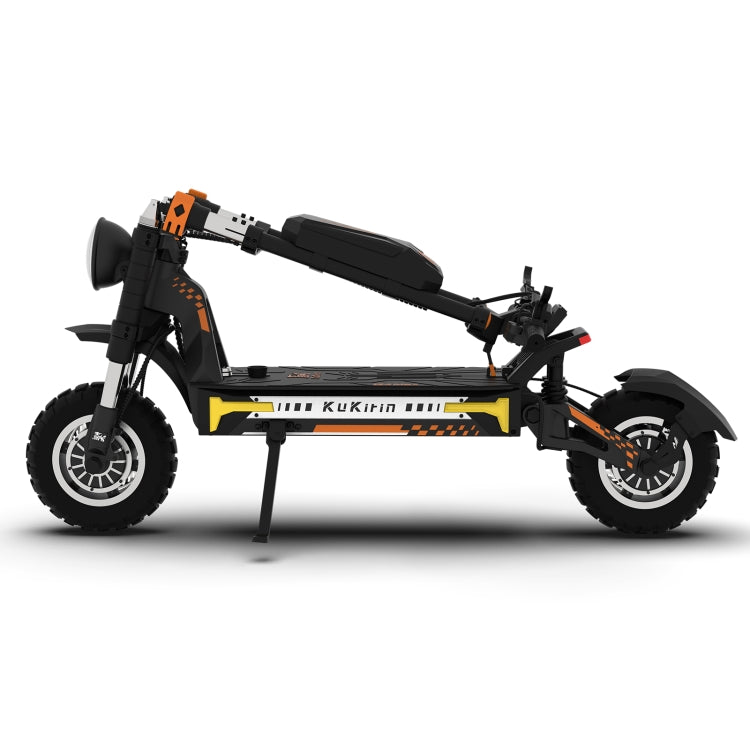

Folded body size: 1425x640x668mm
Handlebar length: 122mm
Crossbar length: 640mm
Chassis height: 210mm
Pedal to handlebar size: 1035mm
Pedal size: 640x305mm
Pedal step size: 495x305mm
2. Load-bearing capacity: 150kg max
3. Speed:
1st, 2nd, 3rd (single drive): 36km/h 66km/h 68km/h
1st, 2nd, 3rd (dual drive): 38km/h 70km/h 86km/h
4. Medium speed endurance: 95km
5. Performance:
Climbing grade: about 38 degree slope
Brake system: front and rear four-piston oil brake
Braking distance: 6-8m
Waterproof grade: IP54
6. Motor:
Motor type: DC brushless hub motor
Voltage: 60V
Acceleration mode: sine wave
Power data:
a. Rated power: 1600W
b. Instantaneous power: 2000W max
c. Rated speed: 1900 rpm
d. Torque: 41Nm max
7. Battery:
Voltage: 60V
Capacity:
a. Single cell capacity: 4400mAh
b. Battery pack capacity: 35.2Ah
Standard power consumption: 2112KW.H
Battery protection system: protection board
Charging time: 6-7H
8. Charger:
Input voltage: AC200-240V~50/60Hz
Input current: 5A Max
Output voltage: 67.2V
Output current: 5A
9. LED headlight:
Number of lamp beads: 2
Power: 6W
10. Disc brake disc:
Outer diameter: 160mm
Inner diameter of thread: 4.2mm
11. Display screen:
Type: LED
Size: 133MMx76MM
Function: km/mile selection setting, voltage level setting, wheel diameter setting, speed measurement magnetic pole number setting, cruise selection setting, zero start non-zero start setting, speed limit setting, sleep time setting, start force setting, ODO reset setting
12. Inner tire:
Size: 90-65-6.5
Type: 90 degree bend mouth
Material: Butyl rubber
13. Outer tire:
Size: 105/75/6.5
Type: off-road pneumatic tire
Tire pressure: 41psi
Material: rubber
14. Shock absorption system:
Front shock absorption: hydraulic inverted shock absorption
Rear shock absorption: hydraulic shock absorption
