1. Image sensor: PC2052 chip
2. TV system: standard PAL system
3. Effective pixels: 1280 x 720P, switchable to CVBS (720 x 480P) signal,

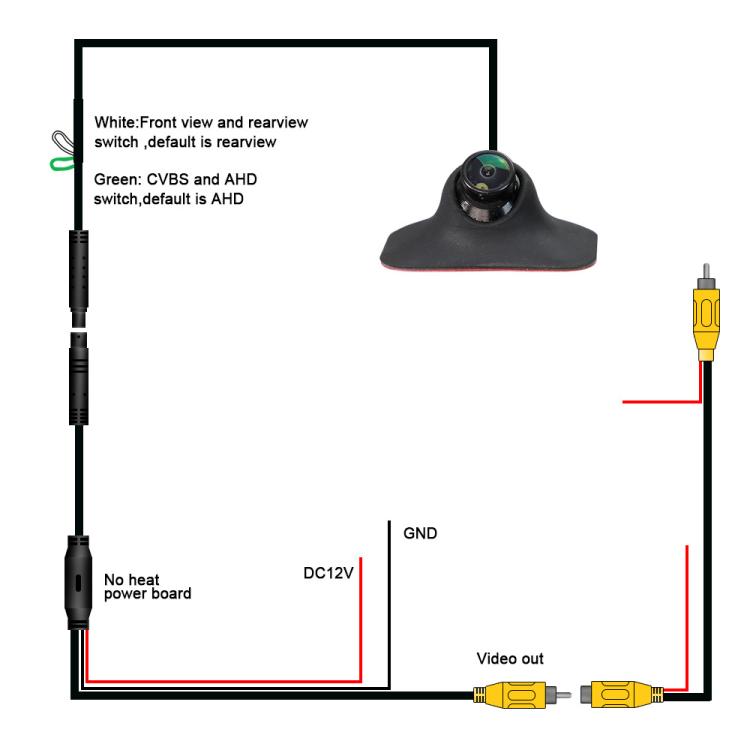

4. Green line switches CVBS & AHD signal, white line switches front and rear view
5. Horizontal resolution: 1000 TV lines

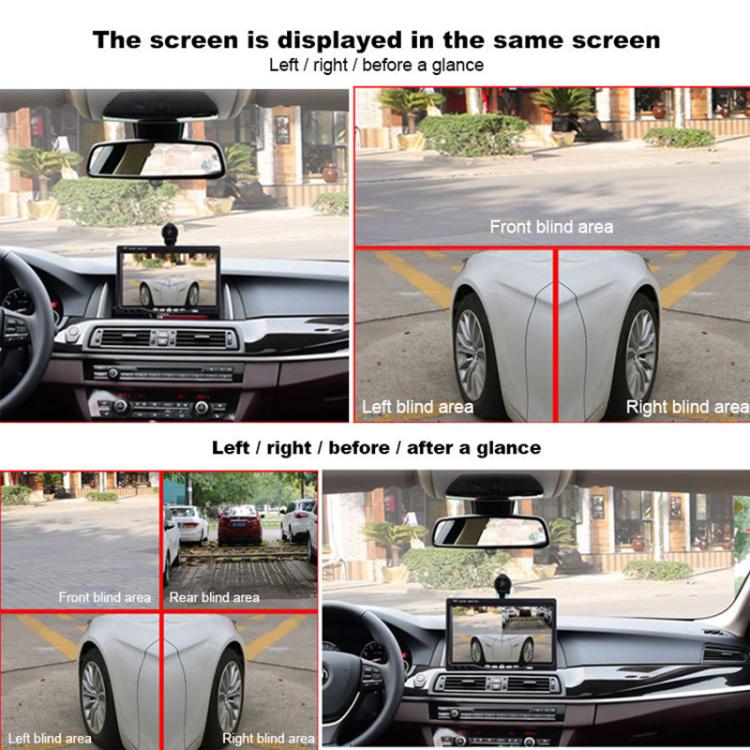

6. Camera viewing angle: wide angle: 170 degrees, horizontal angle: 140 degrees

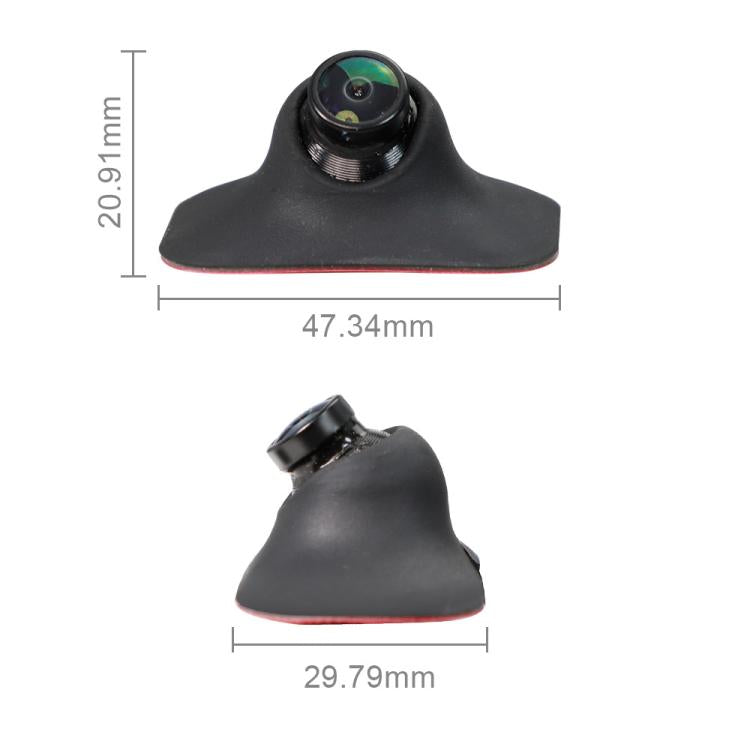

7. Sensing area: 3.8mm x 2.9mm
8. Shutter speed: 1-1 / 12000
9. Gamma value: 0.45
10. Low illumination: 0.01 Lux / F equals 1.2 (0 Lux turns on IR)
11. Video output: RCA interface
12. Power consumption: 130mA
13. Power supply: DC 12V
14. Operating temperature: -20 degrees Celsius to 75 degrees Celsius, RH 95% Max
15. Storage temperature: -40 degrees Celsius to 80 degrees Celsius, RH95% Max
16. Waterproof level: IP67
17. Good image clarity to ensure that the driver can see clearly
18. Simple and easy to install to reduce the trouble and time consumption during installation
