Features:
1. 8.29M megapixel high quality CMOS sensor
2. Up to 4K 30fps , presenting ultra clear and vivid image

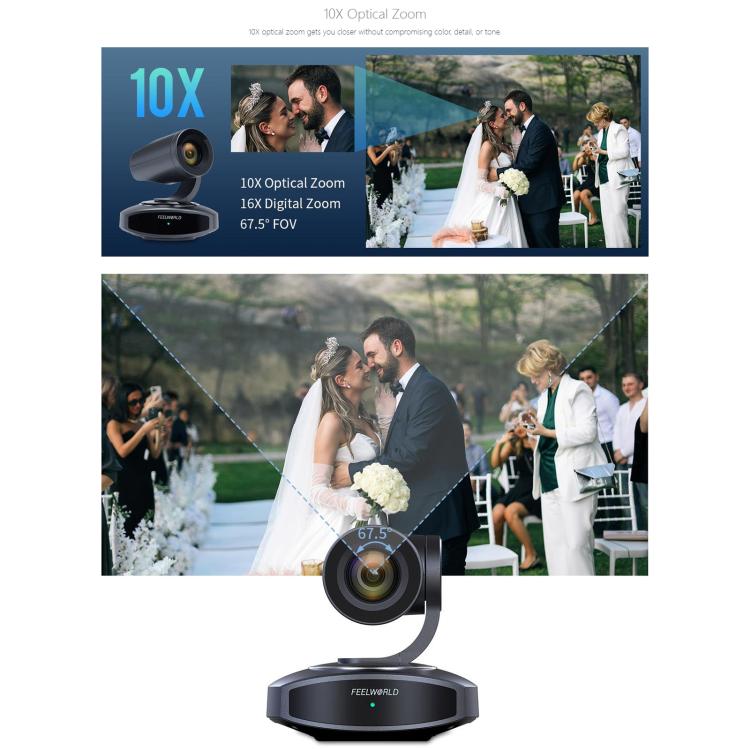

3. 10X optical zoom lens and 67.5 degree wide angle lens
4. Simultaneous HDMI-compatible, USB3.0, IP Streaming video out, easily for professional video production

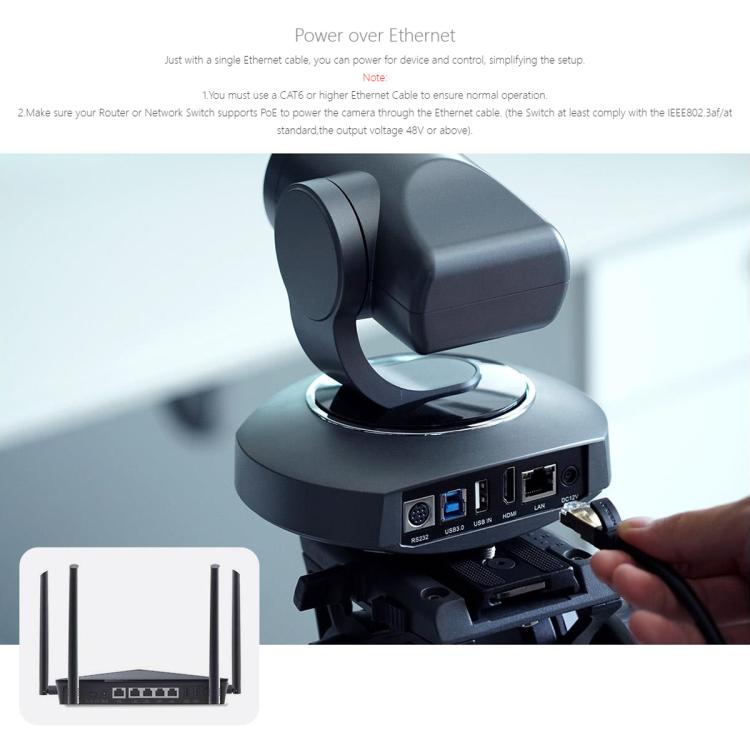

5. PoE(Power over Ethernet) supported
6. Auto focus, smart frame capture everyone
7. Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
9. High speed and silent pan/tilt, capture all the actions
10. Multiple control protocol and network protocol

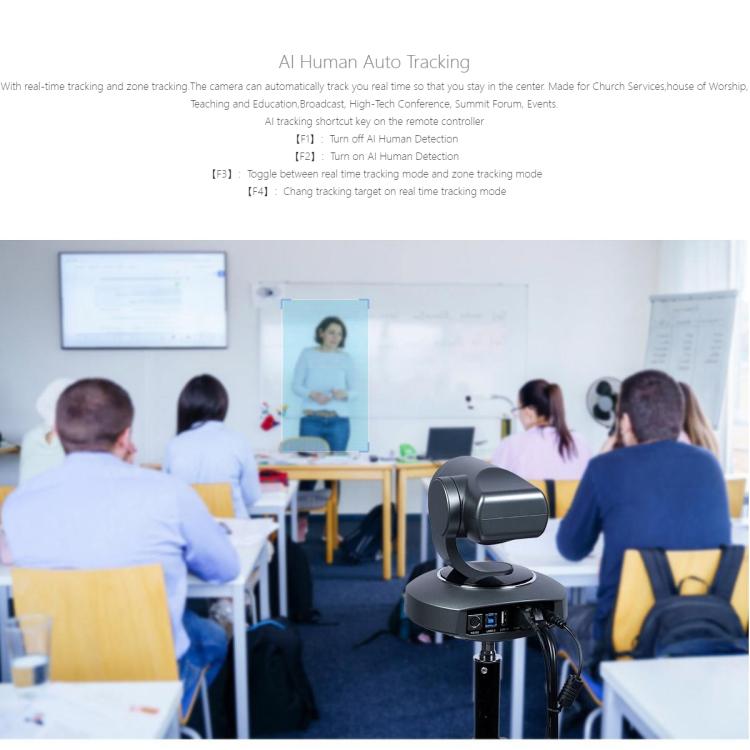

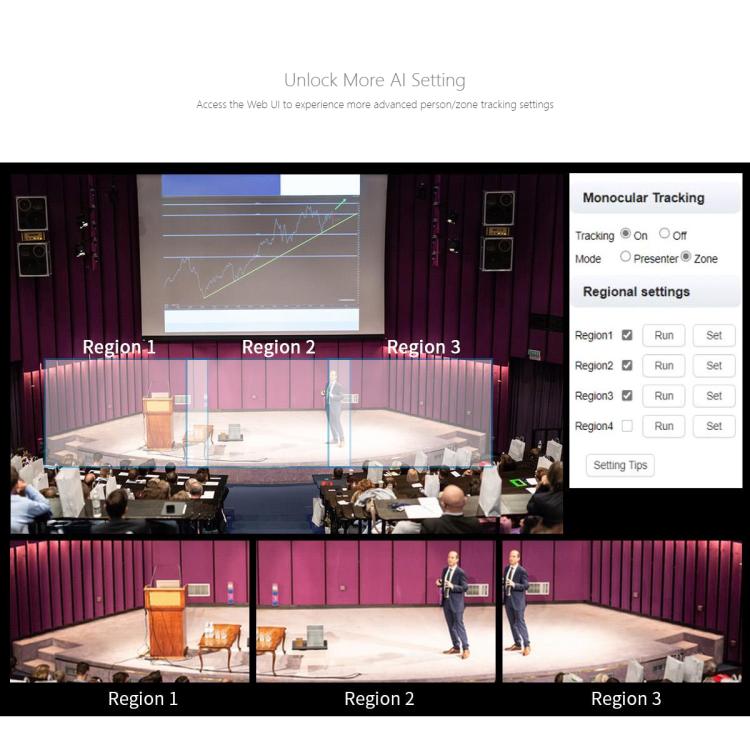

11. Support real-time AI tracking and zone tracking

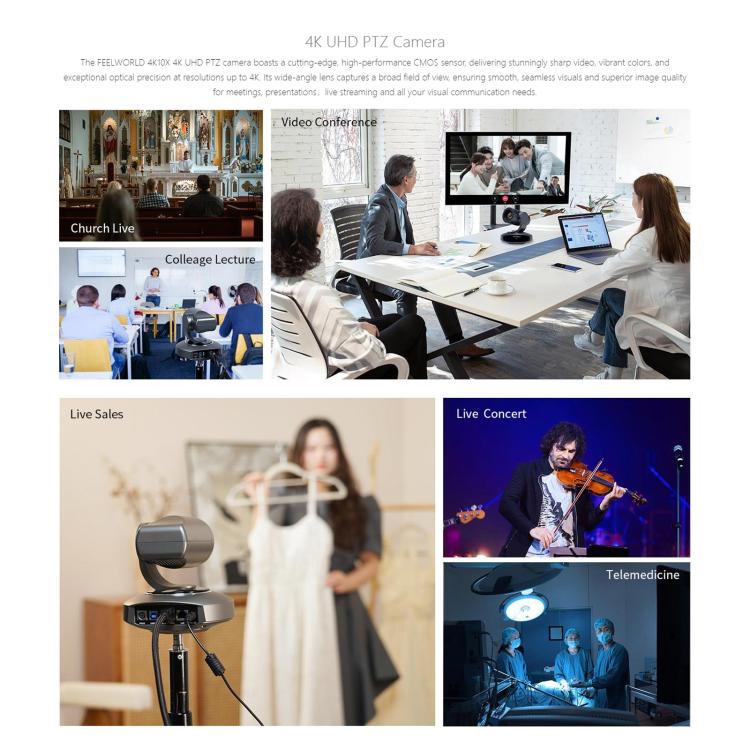

12. Ideal for online education, live streaming, video conference, Tele-medicine, etc.
Specifications:
Camera Parameters

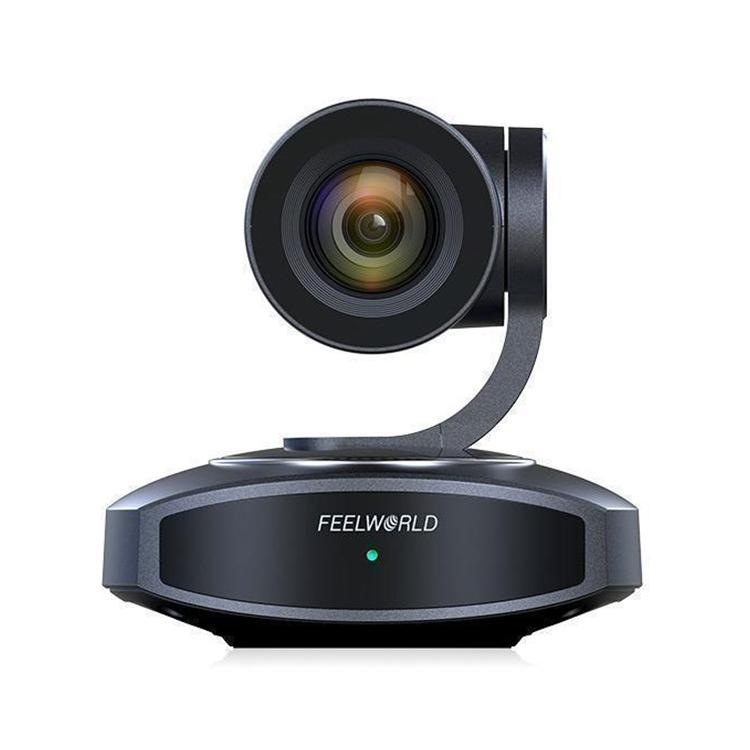

1. Model: 4K10X
2. Sensor: 1/2.8 inch high quality CMOS sensor
3. Effective Pixels: 8.29 megapixel, 16：9
4. View Angle: H：7.6 degree(N)~67.5 degree(W)
5. Iris: F1.76 ~ F3.0+/-5%
6. Digital Zoom: 16X
7. Optical Zoom: 10X
8. Minimum Illumination: 0.5Lux(F1.8, AGC ON)
9. DNR: 2D & 3D
10. White Balance: Auto/Manual/One-push/Specified Color Temperature
11. Focus: Auto/Manual/One-push
12. Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
13. Iris Mode: F1.8 ~ F11, CLOSE
14. Shutter Speed: 1/25~1/20000
15. BLC: On/Off
16. Dynamic Range: Off, 1 ~ 8
17. Video Adjustment: Brightness, Contrast, Saturation, W&B Mode, Horizontal flip, vertical flip, Digital Zoom, Minimum Illumination
18. SNR: Greater than 50dB
Input/output Interface

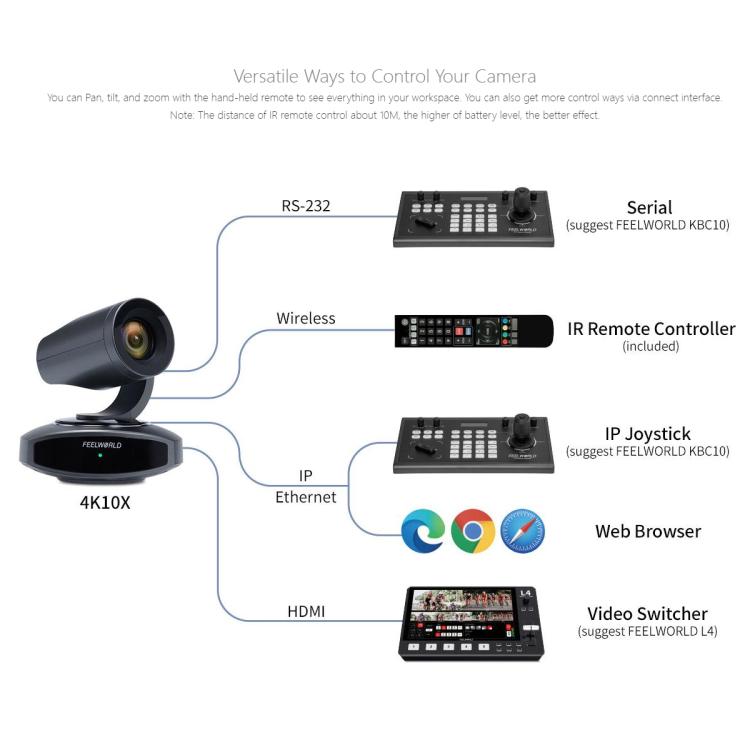

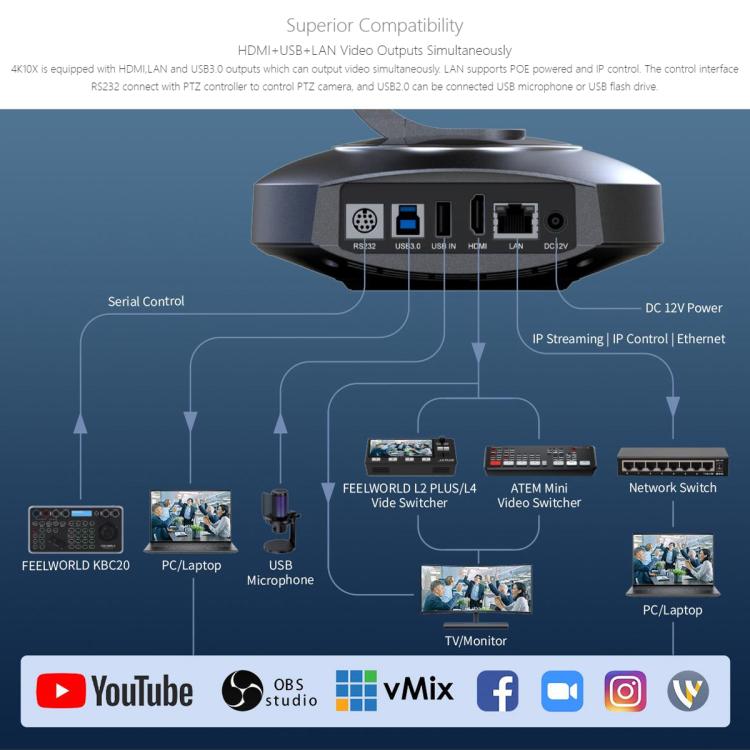

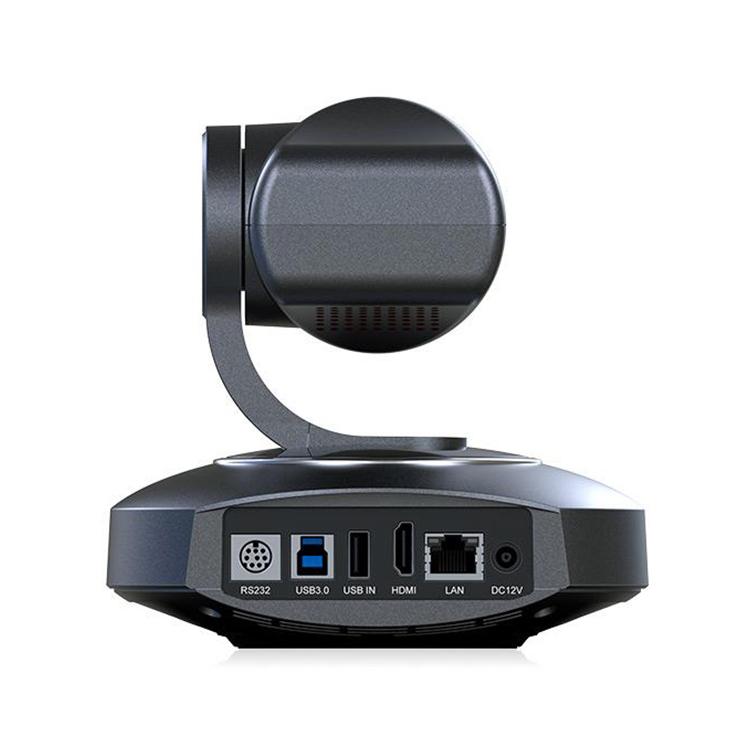

1. Interface: HDMI-compatible, LAN(POE), USB3.0, USB2.0, RS232-IN, DC12V Power Supply
2. Video Output: HDMI-compatible, USB3.0, LAN(support PoE)
3. Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
4. Audio Compression Format: AAC
5. LAN Interface: 100M Ethernet port, support POE power supply, support audio and video output
6. Control Interface: RS232-IN
7. Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P；Baud Rate 115200/38400/9600/4800/2400
8. USB Communication Protocols: UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
9. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT，support remote upgrade, remote restart, remote reset
10. Power Supply: HEC3800 Power Socket(DC12V)
PTZ Parameters

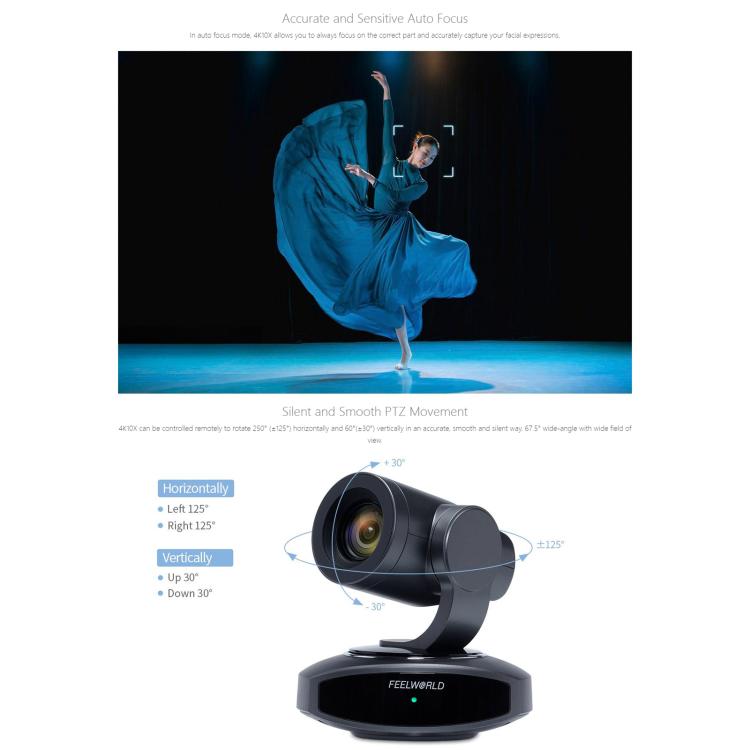

1. Pan Rotation: -125 degree ~+125 degree
2. Tilt Rotation: -30 degree ~+30 degree
3. Pan Control Speed: 0.1 ~65 degree /sec
4. Tilt Control Speed: 0.1~35 degree /sec
5. Preset Speed: Pan: 65 degree /sec, Tilt: 35 degree /sec
6. Preset Number: 255 presets(10 via remote control)
Video Signal
1. HDMI-compatible: 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50
2. LAN Main Stream: 1920x1080/1280x720/640x480 30/25/20/15/10/5 fps;
3. LAN Sub-Stream: 1280x720/640x360/640x480/320x240/320x180 30/25/20/15/10/5fps
4. USB Main Stream: YUY2/NV12:1920x1080/1280x720/1024x576/800x600/800x448/640x360/640x480/480x270/320x180 30/25/20/15/10/5fps;
5. USB Main Stream: MJPG/H264:3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x360/640x480/480x270/352x288/320x240 30/25/20/15/10/5fps
6. USB Sub-stream: YUY2/NV12:1920x1080/1280x720/1024x576/800x600/800x448/640x360/640x480/480x270/320x180 25/20/15/10/5fps
7. USB Sub-stream: MJPG/H264: 3840x2160/2560x1440/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x360/640x480/480x270/352x288/320x240 30/25/20/15/10/5fps
Other Parameters
1. Input Voltage: 12V
2. Input Current: Less than 1.2A
3. Power Consumption: Less than equal to 13.3W
4. Stored Temperature: -10 degree C~+70 degree C
5. Storage Humidity: 20%~95%
6. Working Temperature: -10 degree C~+50 degree C
7. Working Humidity: 20%~80%
8. Dimension (WxHxD): 152x155x126mm
9. Unit Weight: 0.9kg
Package List:
1. PTZ Camera x 1
2. Power Adapter x 1

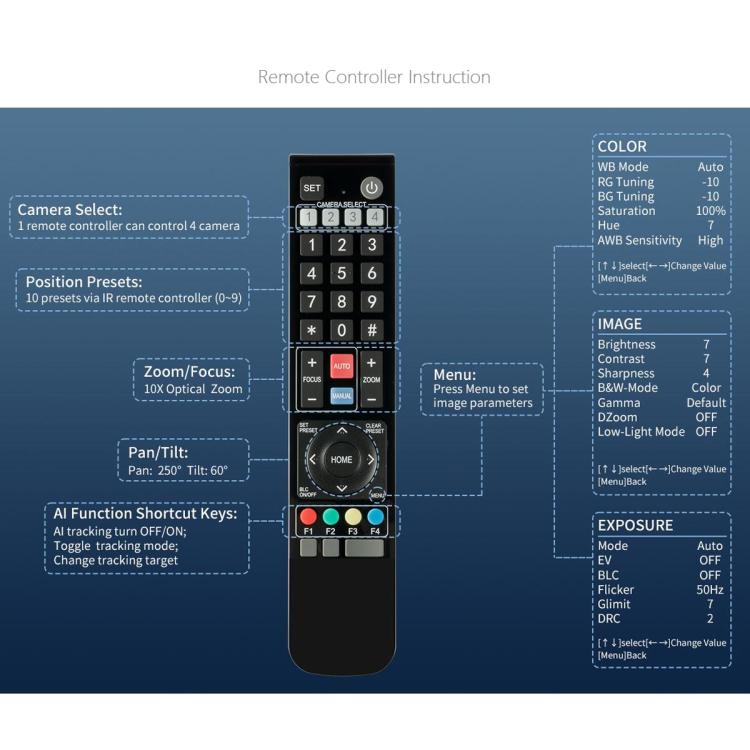

3. Remote Control x 1
4. USB3.0 Cable x 1
5. RS232 Serial Cable x 1

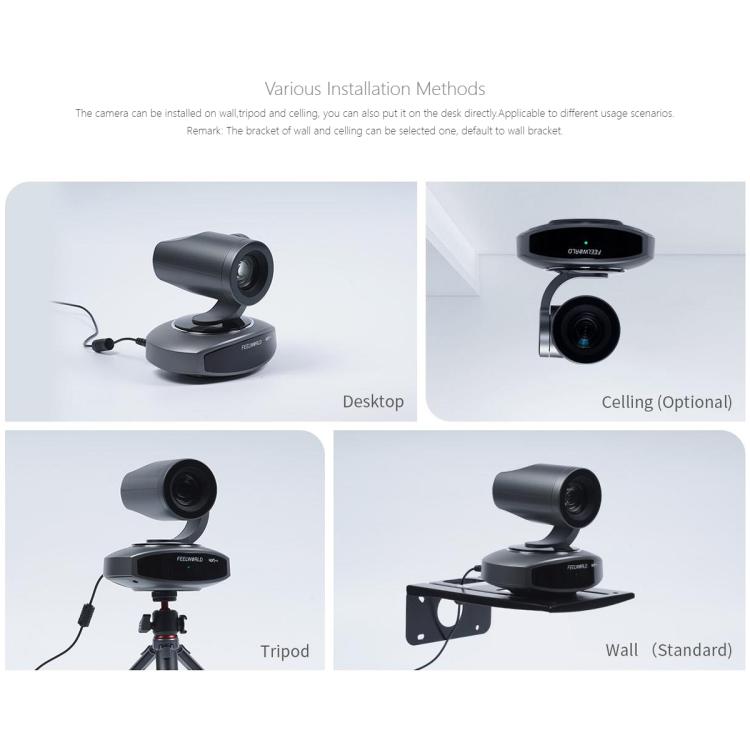

6. Wall Mount Bracket x 1
7. Quick Start Guide x 1
