Panel characteristics
1. Screen size: 7 inches IPS
2. Resolution: 1920x1200 pixels
3. Dot pitch: 0.07875 (H)x0.07875 (W) (mm)
4. Screen ratio: 16:10
5. Brightness: 500cd/square meter
6. Contrast ratio: 1200:1
7. Backlight source: LED
8. Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)
enter:
1. 1x HDMI: HDMI
Output:
1. 1x HDMI: HDMI
2. 1x DC DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can power SLR or mirrorless camera)
Audio:
1. Audio: headphone jack
HDMI input/output format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840×2160p (60/50/30/29.97/25/24/23.98), 4096×2160p (24Hz)
Other specifications:
1. Input voltage: DC7-24V
2. Power consumption: greater than or equal to 9W
3. Working temperature: -20-50 degrees Celsius
4. Storage temperature: -30-60 degrees Celsius
5. Installation method: 1/4-20 standard quick installation screw holes (top, left, right, bottom)
6. Stand-alone size: 175Lx105Hx22D (mm)
7. Stand-alone weight: 330g
8. Note: You need to press the power button when shutting down, and you cannot unplug the power cord directly
feature:
1. Touch screen menu operation
2. F970 external power supply design can be used for external equipment installation and power supply, easy to install and disassemble, simplify the photography equipment
3. Full HD 1920x1200, high contrast: 1200:1, highlight: 500cd/m2, 160 degree ultra-wide-angle IPS, good visual experience, full color reproduction display
4. Support up to 4K@60Hz HDMI input and output
5. Support HDR monitoring
6. 3D LUT Log gray film conversion Rec.709, support user 3D LUT upload

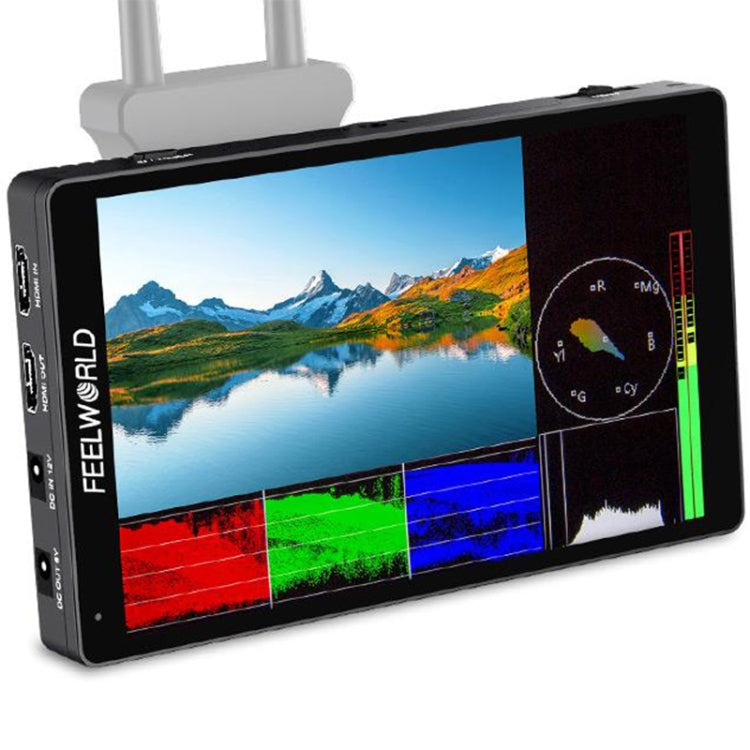

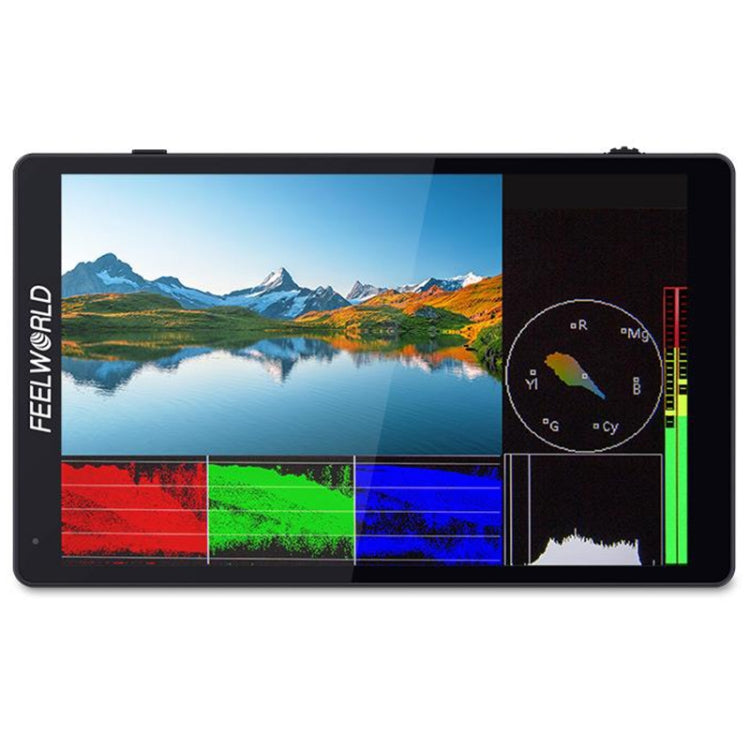

7. Full waveform display, waveform graph, vector diagram, RGB histogram, brightness histogram, auxiliary focus, zebra pattern, center mark and other functions, can help accurate focus and exposure, suitable for pre-shooting, post-production and color calibration
8. Headphone stereo output for easy monitoring
9. Support DC 8V power output to power SLR or mirrorless camera

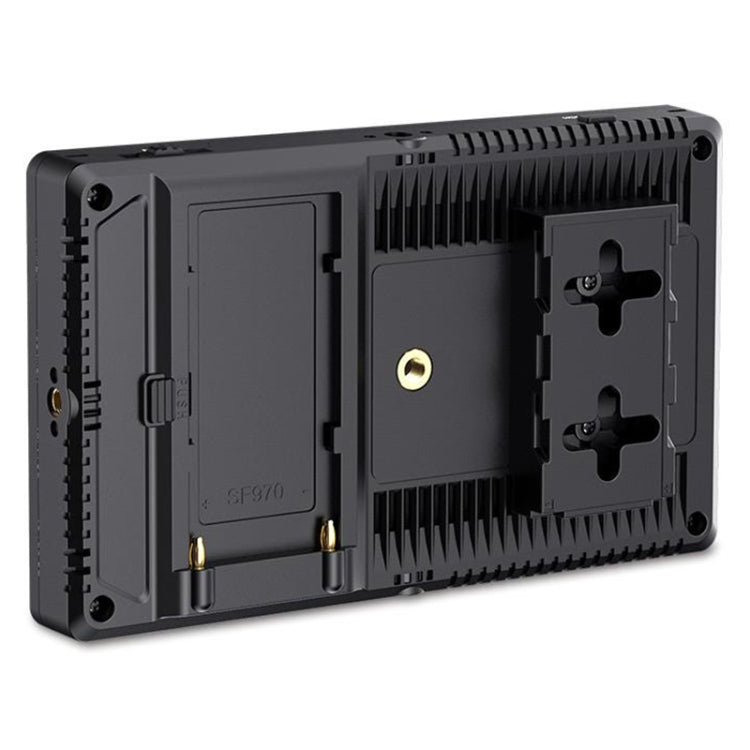

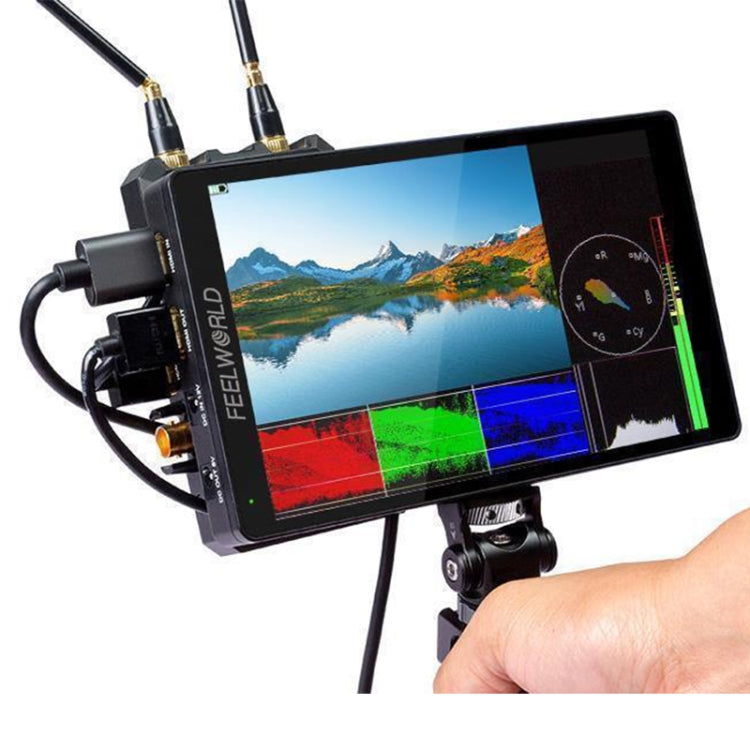

10. Usually, monitors, wireless image transmission, photography lights and other equipment are often used in film and television crews. There are so many equipments and all kinds of cables have to be connected, which is really troublesome. The FEELWORLD F7 PRO 7-inch monitor has a full HD LCD touch screen, supports HDMI signals up to 4K 60Hz, professional and rich auxiliary composition tools, etc. The special feature of F7 PRO is the F970 external power supply kit on the back of it, which can plug in devices with Sony F970 battery gusset and supply power to it, such as wireless image transmission, LED lights, etc. This design not only saves the trouble of arranging various cables, but also can combine the monitor and wireless video transmission, which is more suitable for the supervision of the crew director and the photographers assistant to follow the focus.
11. F7 PRO provides clear images, which is very suitable for focusing and image analysis on site. The 7-inch 16:9 display has 1920x1200 resolution, 500cd/m2 brightness and 1200:1 contrast ratio, providing excellent details, allowing you to enjoy clearer and richer color images. The wide viewing angle of IPS 160 degrees is convenient for monitoring from multiple angles.
12. The innovative LCD touch screen user interface can provide you with comprehensive and detailed control. No buttons are required, all operations can be easily realized with the touch or swipe of your fingertips.
13. Adopt the Rec.709 high-definition color standard trusted by various professional fields, use professional color correction technology, use algorithms, and factory calibration of professional instruments, accurately restore the colors in the film, without distortion and color cast, display real images, and let your shooting Like a tiger with wings.
Standard configuration:
1. Micro HDMI cable x1
2. Snail gimbal x1
3. Sun visor x1
4. Manual x1
