Features
1. 6 inch 1920x1080 Full HD IPS screen
2. New menu interface, more intuitive and easy to use

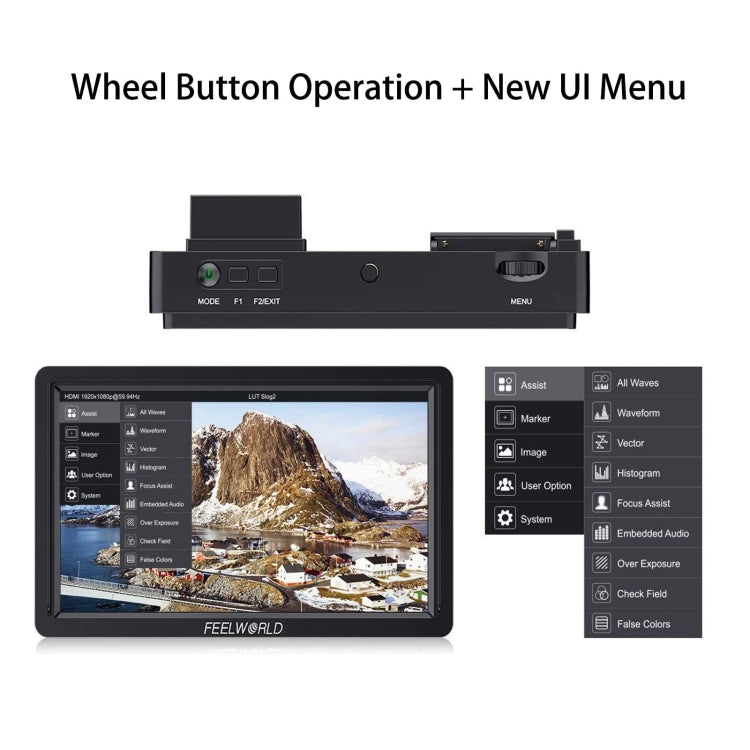

3. Roller button operation, one button can complete all operations

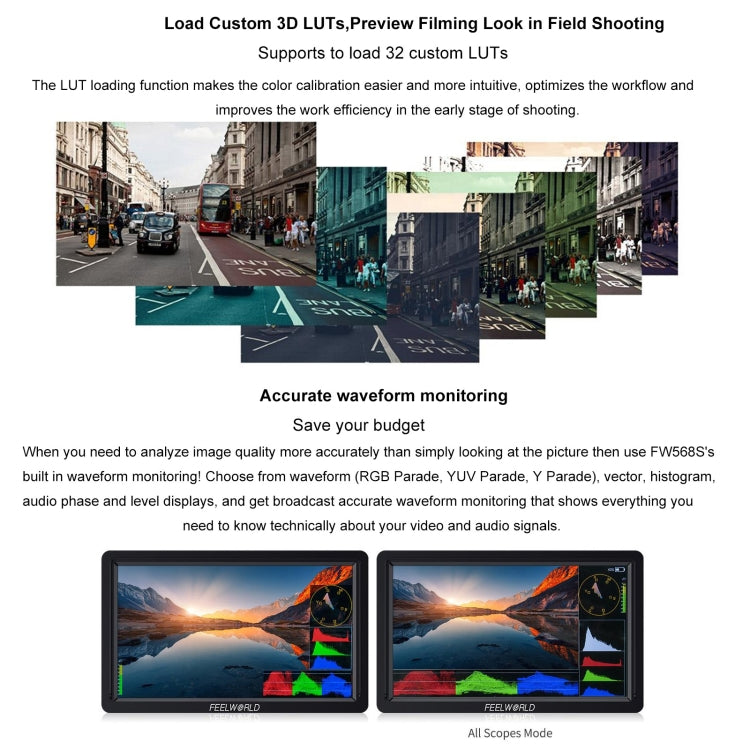

4. 3D LUT Log gray film conversion Rec.709, support user 3D LUT upload (up to 32)

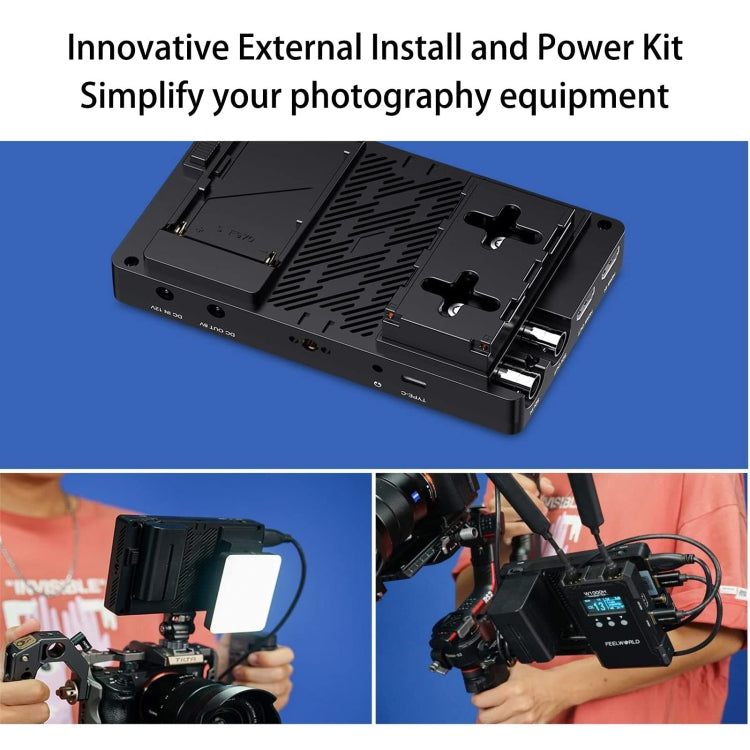

5. The F970 external power supply kit can supply power and install wireless video transmission and other equipment

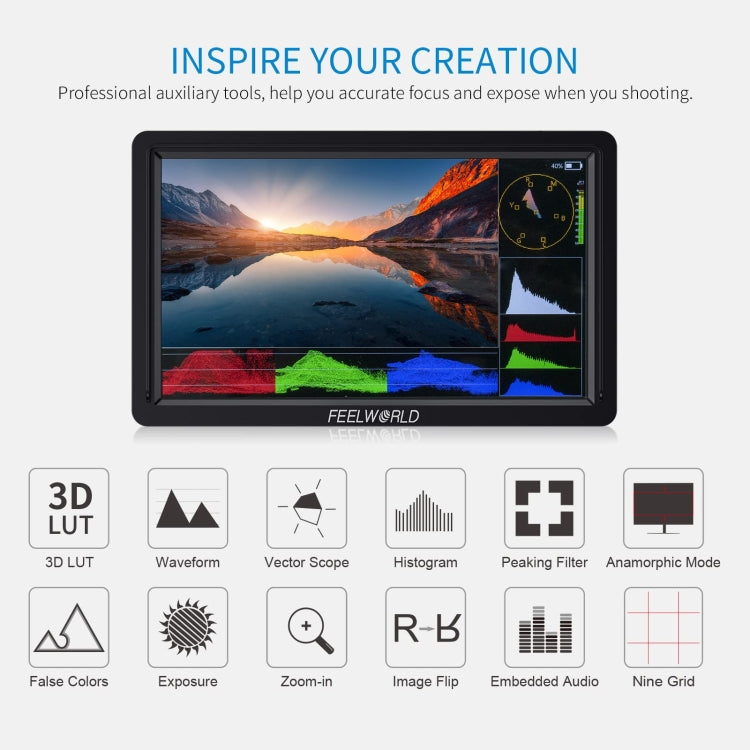

6. Full waveform display, waveform diagram, vector diagram, RGB histogram, brightness histogram, focus assist, zebra pattern, center mark and other functions can help accurate focus and exposure, suitable for pre-shooting, post-production and color calibration
7. Multiple power supply methods: DC 12V power input, Type-C 5V input, NP-F battery plate, to meet different choices.
8. Headphone stereo output for easy monitoring

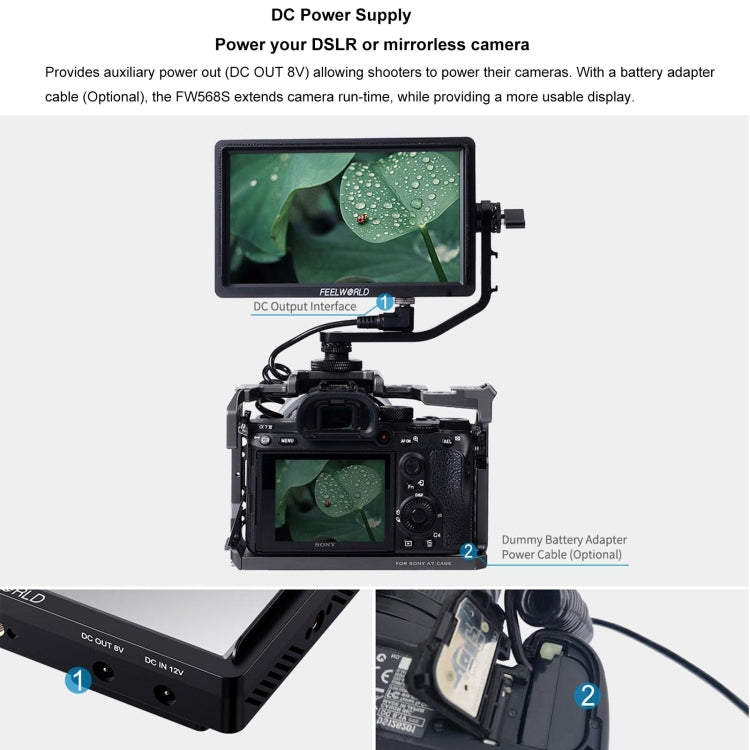

9. Support DC 8V power output to power SLR or mirrorless cameras
Specifications
Panel Features:
1. Model: FW568S
2. Screen size: 6 inch IPS
3. Resolution: 1920x1080 pixels
4. Dot pitch: 0.069 (H) x 0.069 (V) (mm)
5. Screen ratio: 16:9
6. Brightness: 450cd/m2
7. Contrast ratio: 1000:1
8. Backlight: LED
9. Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)

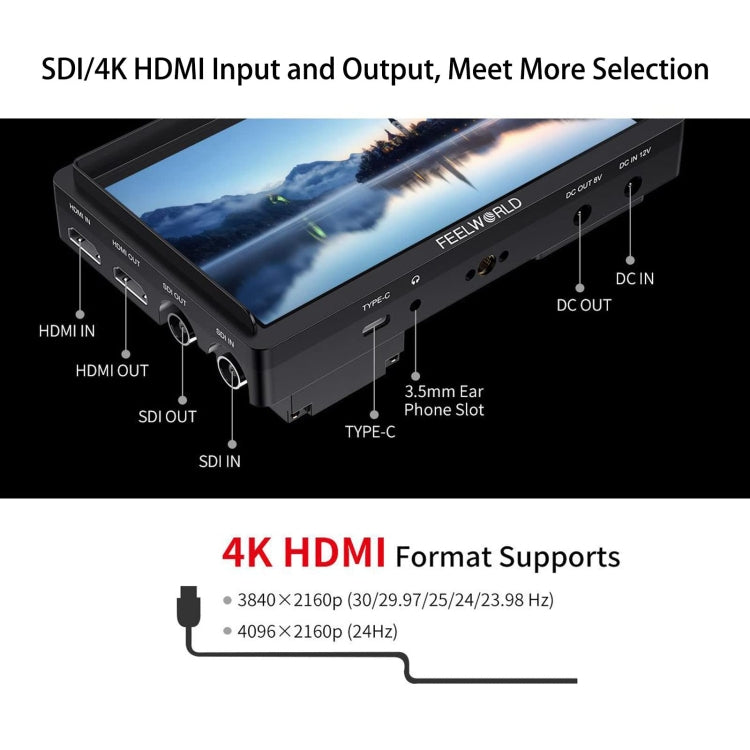

10. Enter:
- 1 X BNC: 3G-SDI
- 1 X HDMI: HDMI
- 1 X Type-C: 5V Type-C (Note: Please use 5V/2A or above (including 2A) Type-C power supply for power supply)
11. Output
- 1 X BNC: 3G-SDI
- 1 X HDMI: HDMI
- 1 X DC: DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can supply power to SLR or mirrorless cameras)
12. Audio: headphone jack
13. SDI supported formats:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
14. HDMI support format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840x2160p (30/29.97/25/24/23.98 Hz)
- 4096x2160p(24Hz)
Other specifications
1. Input voltage: DC7~24V
2. Power consumption: Less than or equal to 9W
3. Working temperature: -20 degree C~50 degree C
4. Storage temperature: -30 degree C~60 degree C

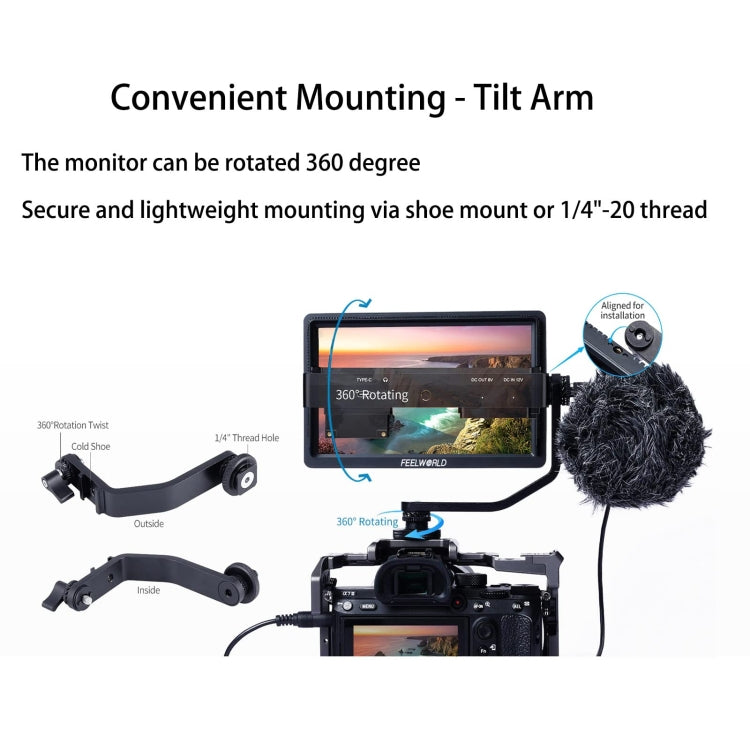

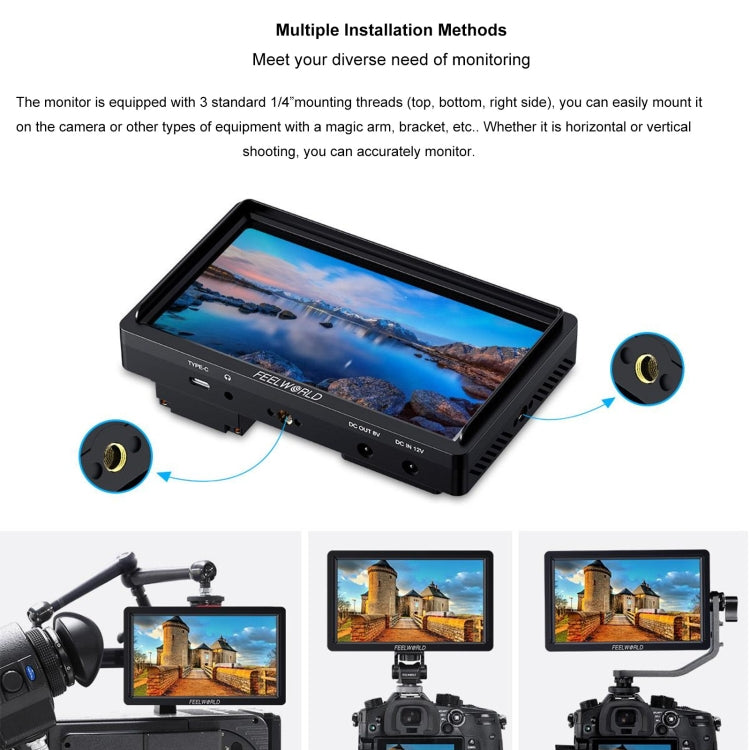

5. Installation method: 1/4-20 standard quick-release screw holes (right, top, bottom)

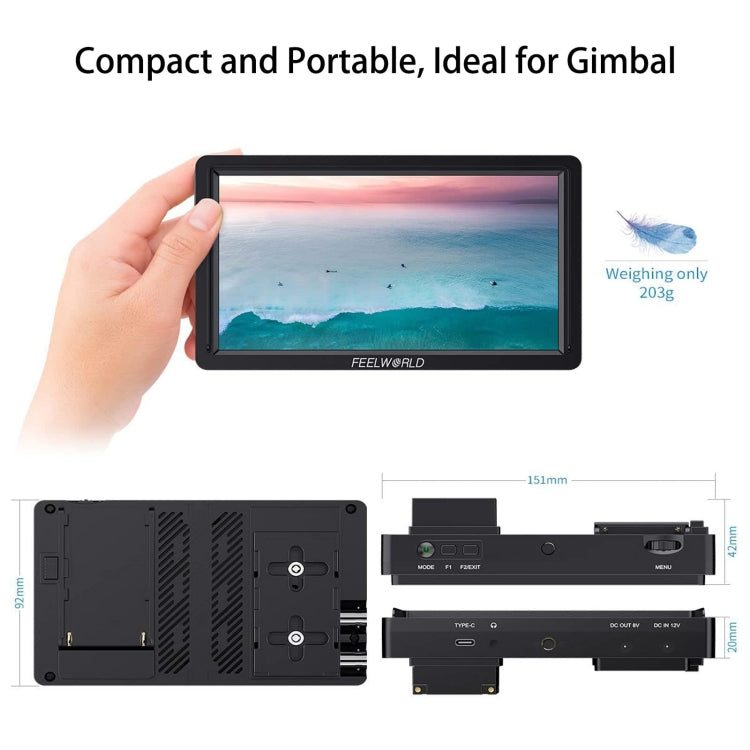

6. Stand-alone size: 151Lx92Hx31.4D (mm)
7. Stand-alone weight: 203g
Note: You need to press the power button when shutting down, and you cannot directly pull out the power cord
Functions
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. Parade (RGB, YUV, Y)
3. All Waves
4. Vector
5. RGB Histogram
6. Brightness Histogram
7. Embedded Audio
8. Peaking Focus (red, green, blue,three peaking colors optional; 1~10 peaking level adjustable)
9. False Colors
10. Zebra Exposure (1 percent~100 percents adjustable)
11. Check Field (Red, Green, Blue, Mono)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG)
14. Image Flip (H, V, H/V)
15. Image Freeze
16. Center Marker
17. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
19. Marker Color (red, green, blue, white, black, yellow)
20. Color Temperature Adjustment (5600K, 6500K, 9300K, user)
21. Nine Grid
22. Zoom (100 percents~200 percents)
23. Aspect Ratio
24. Pixel to Pixel
Package List
1. Monitor x 1
2. Micro HDMI cable x 1
3. L-shaped mounting bracket x 1
4. Hood x 1
5. Type-C to USB x 1
6. Instruction manual x 1
