Features:
1. 1/2.8 inch High quality sensor, resolution is up to 1920x1080 with frame rate up to 60fps
2. 10X optical zoom lens and 68.8 wide angle lens

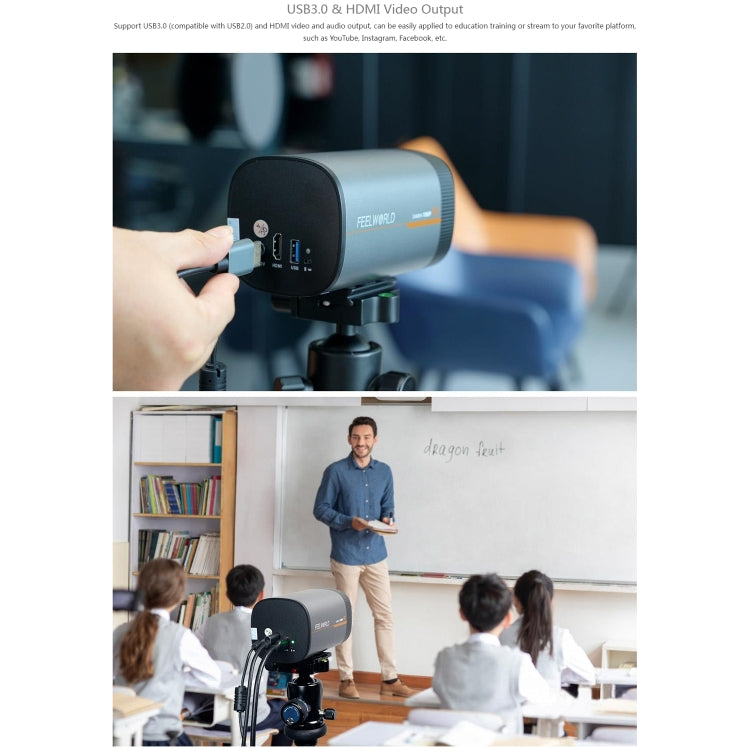

3. HDMI, USB3.0; Simultaneously output audio and video signal
4. Fast, accurate and stable auto focusing technology

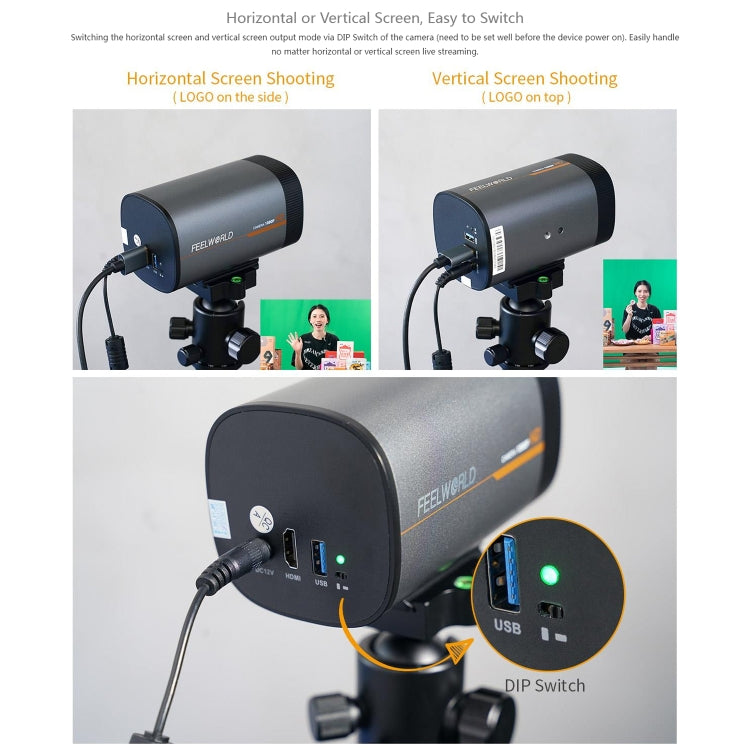

5. Support to switch the horizontal screen and vertical screen output mode via DIP Switch, to better meet customers demands

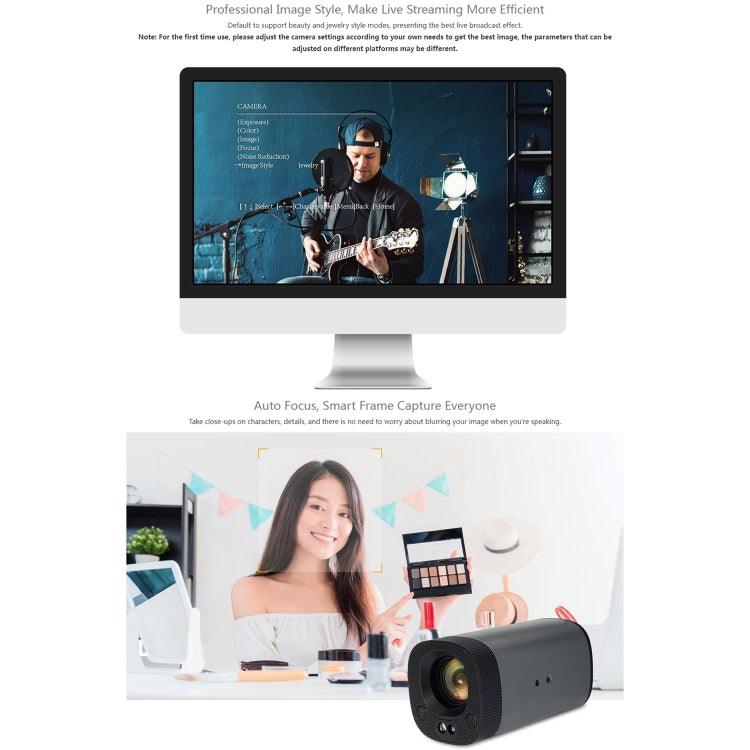

6. Support the beauty and jewelry style mode, and adjust the best image effect for live scenes.
7. Multiple video encoding YUV、NV12、MJPG、H.264, making video playback smoother
8. Built-in 2 mics, the unique noise suppression algorithm makes your voice perfectly presented.
9. Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
10. No need to download drivers, USB output is plug and play, with a convenient and concise user experience.
Specifications:

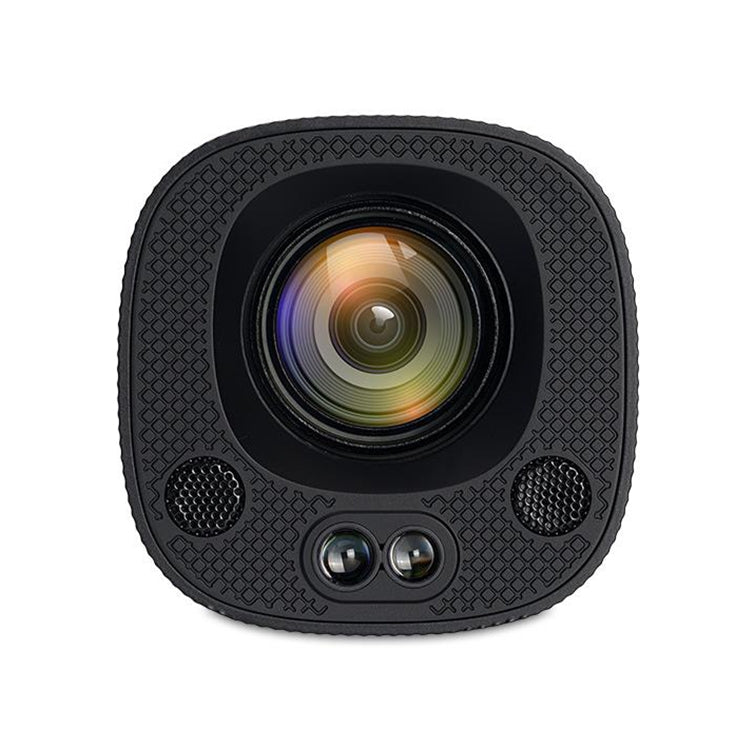

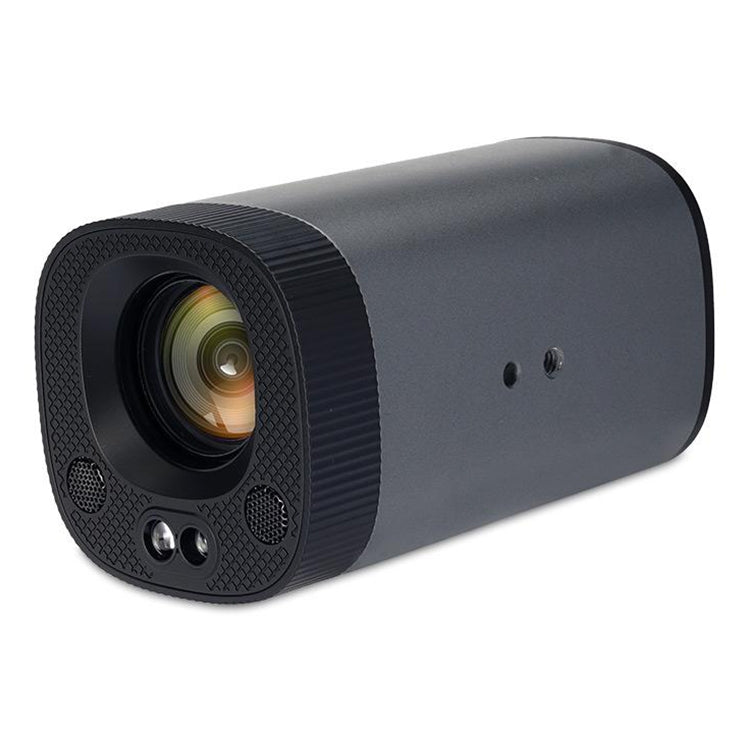

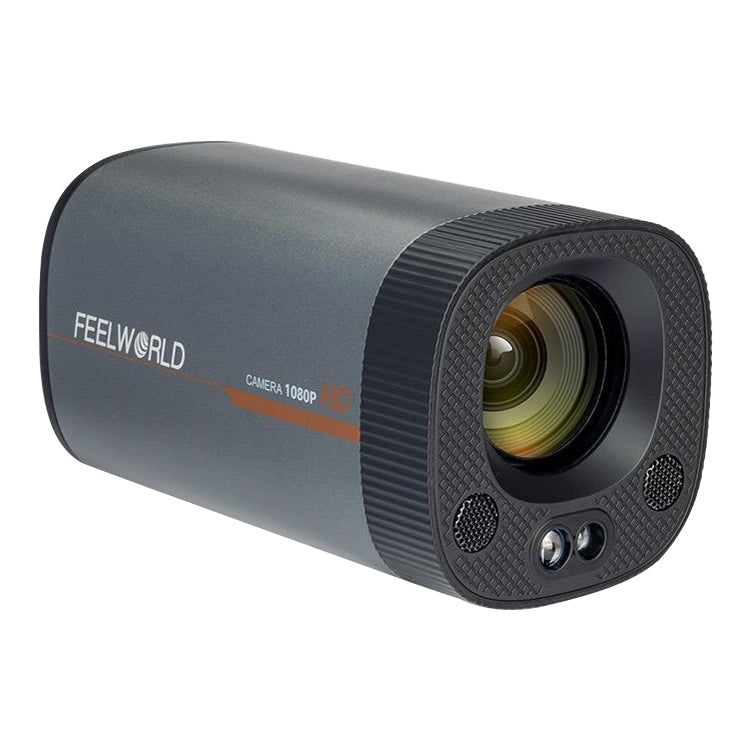

1. Model: HV10X
2. Sensor: 1/2.8inch sensor
3. Effective Pixels: 2.07 megapixel, 16:9
4. View Angle: 8.8 degree~68 degree;
5. Focus Length: f=4.34mm~41.66mm
6. AV: F1.85~F2.63
7. Optical Zoom: 10X
8. Minimum Illumination: 0.1Lux (F1.8, AGC ON)
9. DNR: 2D&3D DNR
10. Super Auto Noise Reduction: On/Off
11. White Balance: Auto / Manual/ One Push Specified Temperate (2400k-7100k)
12. Focus: Auto/Manual/One Push Focus
13. Exposure: Auto/Manual/Shutter priority/Aperture priority/Brightness priority
14. Backlight Contrast: On/Off
15. SNR: Greater than 50dB
16. Vertical Screen Swith: On/Off
17. Focus Assist: Greater than On/Off
18. Minimum Object Distance: Greater than 10cm(W)~100cm(N)
Input/output Interface
1. Video Output: USB (support audio signal ouput); HDMI (support audio and video output)
2. Video Compression Format: YUV, NV12, MJPG, H.264
3. Audio Input: Built-in 2 MIC
4. Control Interface: USB
HDMI Video Format
1. 720p (60/59.94/50)
2. 1080p (60/59.94/50/30/29.97/25)
USB Video Format
1. Horizontal Screen: YUY2/NV12:1920x1080/1280x720/1024x576/960x540/800x600/800x448/640x480/640x360/480x270 30/25/20/15/10/5fps
2. Horizontal Screen: MJPG/H264: 1920x1080/1600x896/1280x720/1024x576/800x600/800x448/720x576/720x480/640x480/640x360/352x288 30/25/20/15/10/5fps
3. Vertical Screen YUY2/NV12: 1080x1920/720x1280/576x1024/600x800/448x800/480x640/360x640/270x480/180x320 30/25/20/15/10/5fps
4. Vertical Screen: MPJPG/H264: 1080x1920/896x1600/720x1280/576x1024/600x800/448x800/576x720/480x720/480x640/360x640/288x352 30/25/20/15/10/5fps
Other Parameters
1. Input Voltage: Power Adapter 12V; USB 5V
2. Power Current: Power Adapter 0.425A; USB 1A(max)
3. Power Consumption: 5W(Max.)
4. Dimension: 78x137.5x78mm
5. Unit Weight: 0.6kg
Package List:
1. Streaming Camera x 1
2. Power Adapter x 1
3. USB 3.0 Cable x 1

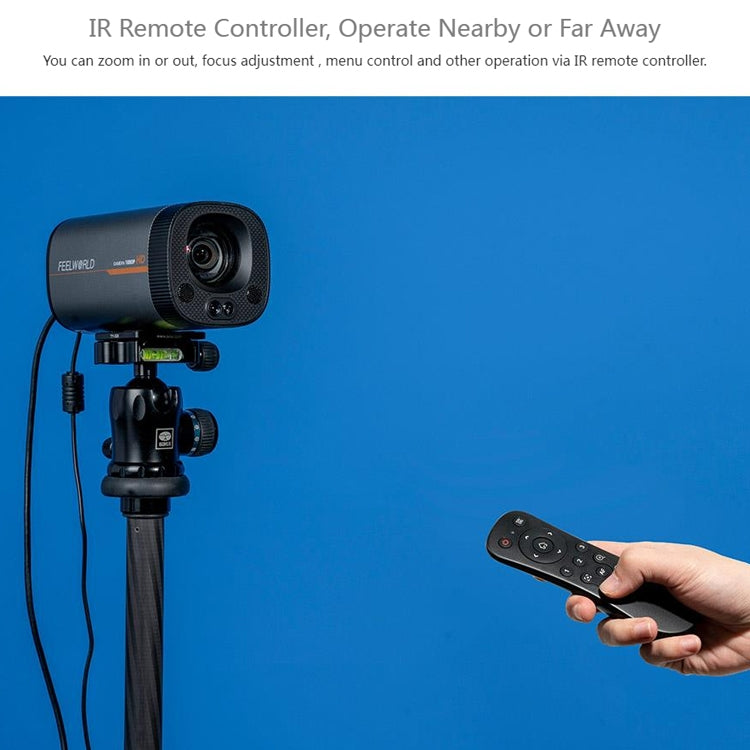

4. Remote Control x 1
5. Manual x 1
