Features
1. Supports multiple control and network protocol, compatible with any PTZ cameras
2. LCD screen real-time display working status, improve efficiency

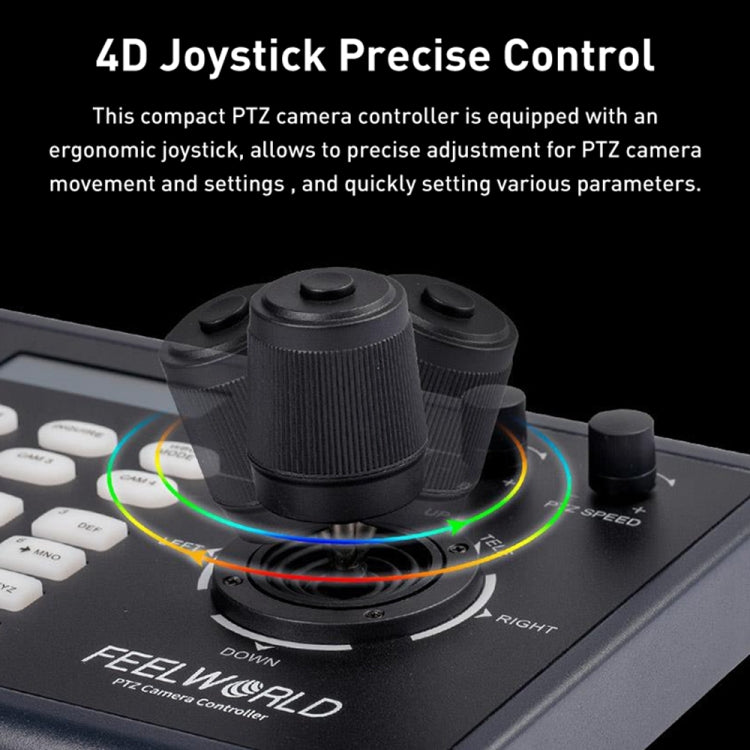

3. Reasonable button layout, easily handle any live video production
4. 4D Joystick precise speed control

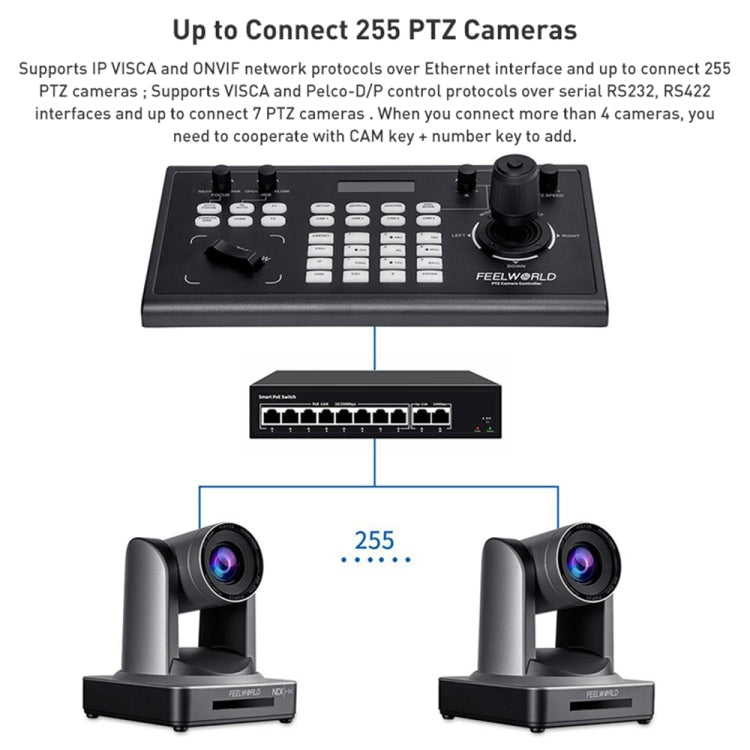

5. Custom button setting, more flexible for controlling
6. Multiple control connectors, up to connect 255 cameras
7. Supports POE (Power over Ethernet)
Specifications
1. Model: KBC10

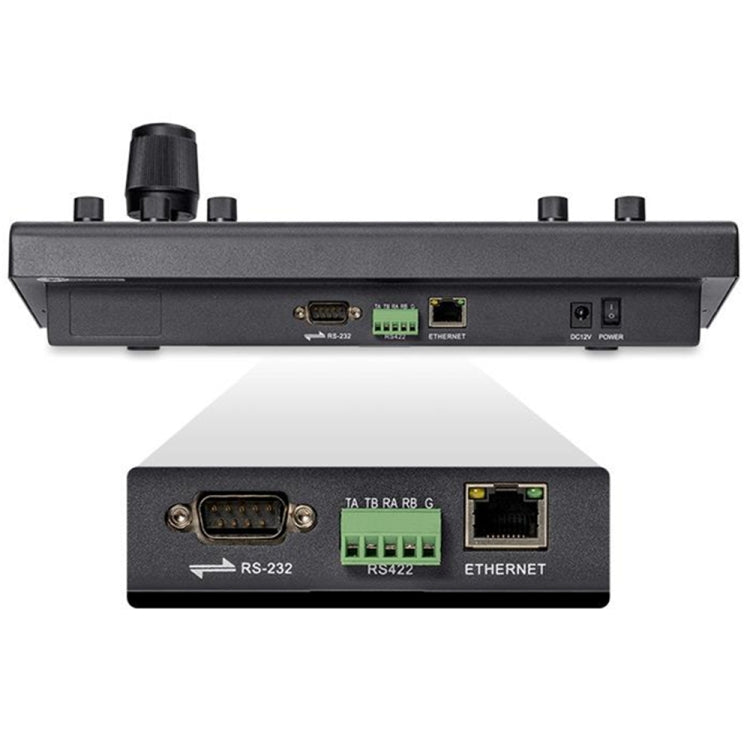

2. RS232: 1 x DB15
3. RS422 (RS485): 1 x 5 Pin Terminal
4. Ethernet: 1 x RJ45
5. Control Protocol: VISCA, Pelco-D, Pelco-P
6. Network Protocol: ONVIF, VISCA
7. Baud Rate(dps): 2400, 4800, 9600, 19200, 38400, 115200
8. Display: LCD Screen
9. Key Tone: ON/OFF
10. Joystick: Four dimensions (control: up, down, left, right, zoom, rotation)
11. Upgrade: WEB upgrade
12. Input Voltage: DC 12V
13. Power Consumption: 0.6W
14. Temperature: 0~50 degree C
15. Humidity: 0%~90%
1. Supports multiple control and network protocol, compatible with any PTZ cameras
2. LCD screen real-time display working status, improve efficiency
3. Reasonable button layout, easily handle any live video production
4. 4D Joystick precise speed control
5. Custom button setting, more flexible for controlling
6. Multiple control connectors, up to connect 255 cameras
7. Supports POE (Power over Ethernet)
Specifications
1. Model: KBC10
2. RS232: 1 x DB15
3. RS422 (RS485): 1 x 5 Pin Terminal
4. Ethernet: 1 x RJ45
5. Control Protocol: VISCA, Pelco-D, Pelco-P
6. Network Protocol: ONVIF, VISCA
7. Baud Rate(dps): 2400, 4800, 9600, 19200, 38400, 115200
8. Display: LCD Screen
9. Key Tone: ON/OFF
10. Joystick: Four dimensions (control: up, down, left, right, zoom, rotation)
11. Upgrade: WEB upgrade
12. Input Voltage: DC 12V
13. Power Consumption: 0.6W
14. Temperature: 0~50 degree C
15. Humidity: 0%~90%
