Features
1. 10.1-inch 1920x1200 full HD IPS screen

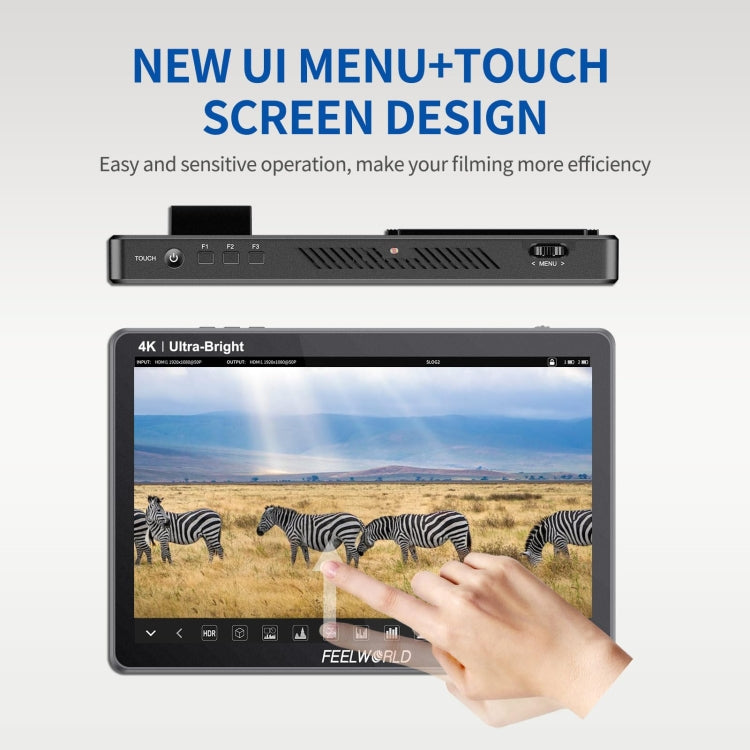

2. Touch screen menu operation, improve shooting efficiency

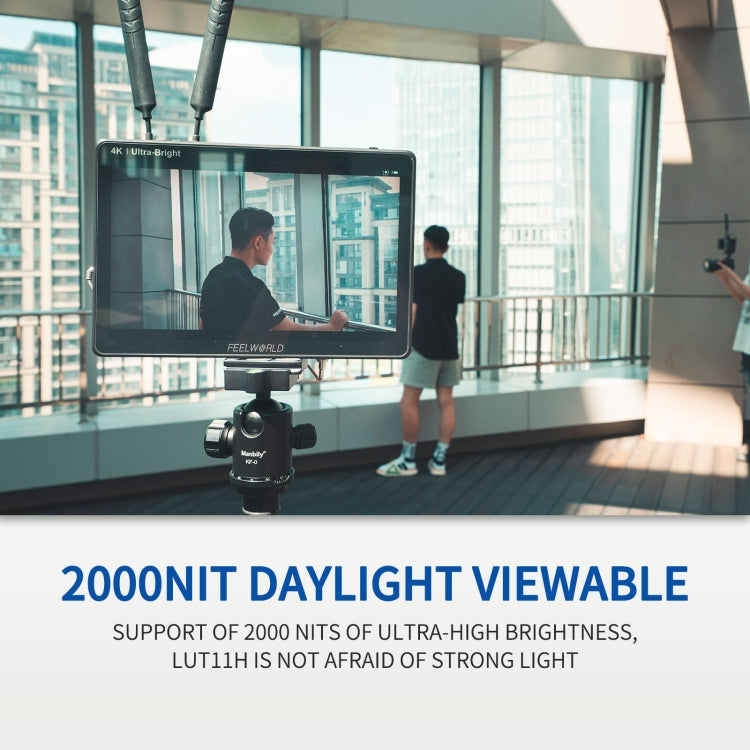

3. Ultra-bright 2000nit, clearly visible in the sun
4. Light sensor auto dimming
5. Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
6. Supports HDR monitoring, what you see is what you get

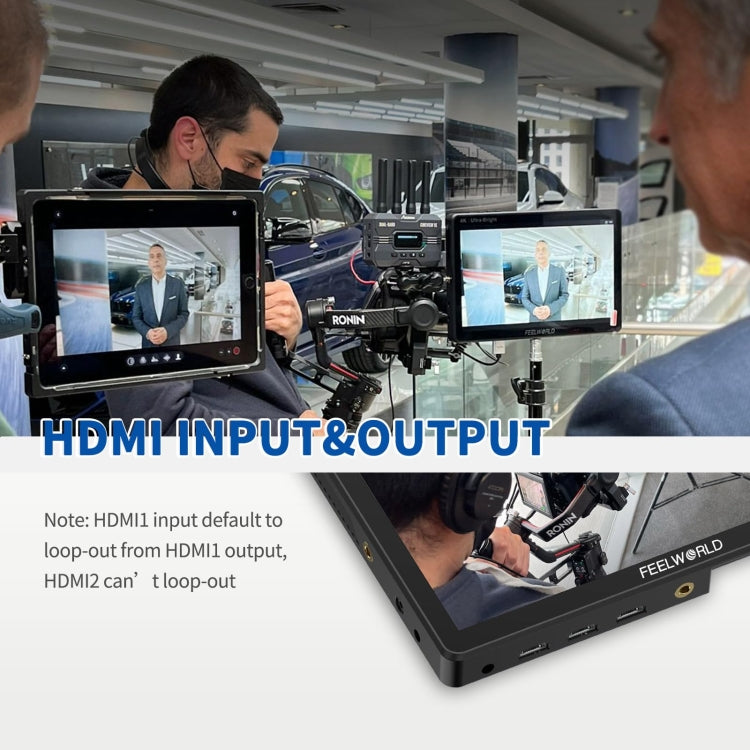

7. Dual HDMI inputs support up to 4K 60Hz
8. F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment

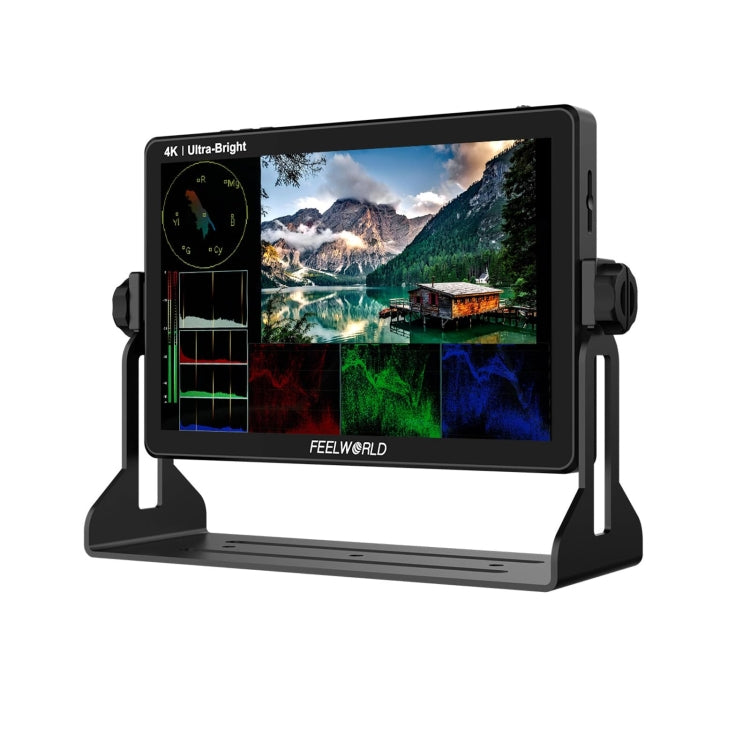

9. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

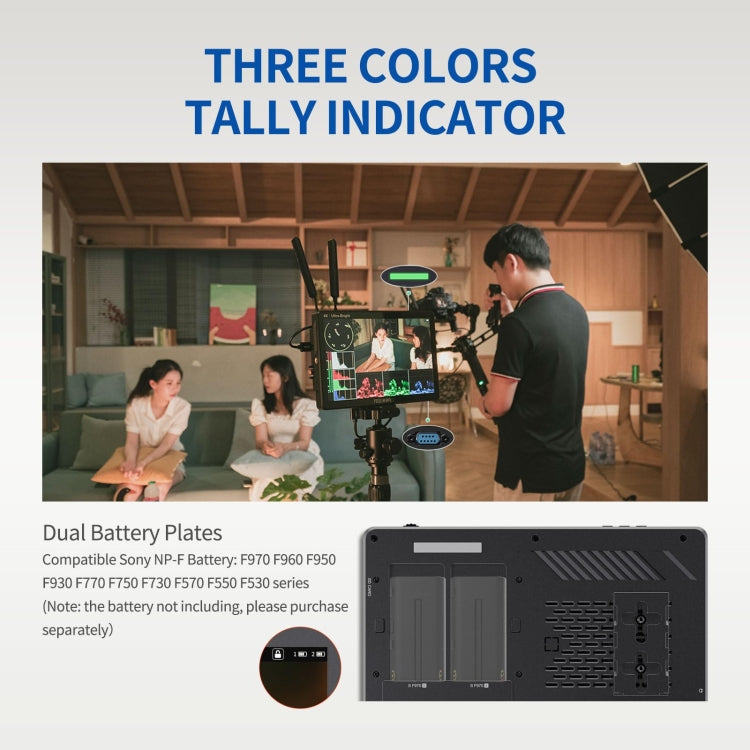

10. Built-in Tally Indicators (Red, Green, Yellow)
11. Stereo Earphone output

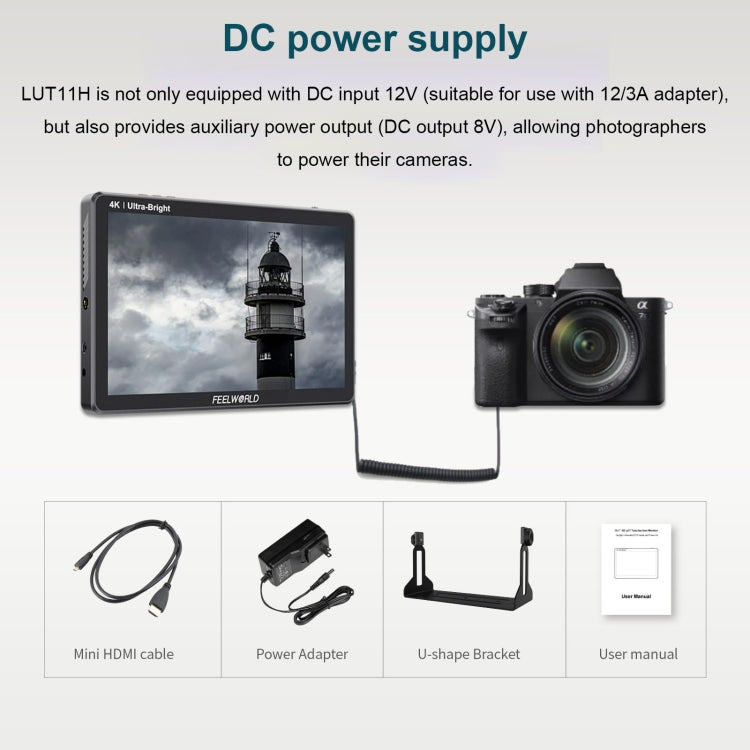

12. DC 8V power out to power your DSLR camera or mirrorless camera
Specifications
Display Spec.:
1. Model: LUT11H
2. Screen Size: 10.1 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.113(W) x 0.113(H) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 2000cd/m2
7. Contrast Ratio: 800:1
8. Backlight: LED
9. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)
Input:
1. 2 X HDMI: HDMI
2. 1 X Tally: 9 Pin Connect
Output:
1. 1 X HDMI: HDMI
2. 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Media:
1. Audio: 3.5mm Stereo Headphone
2. HDMI Input/ Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (60/50/30/29.97/25/24/23.98)
4096x2160p (60/50/30/29.97/25/24/23.98)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 26W
3. Working Temperature: -10 degrees C~50 degrees C
4. Storage Temperature: -20 degrees C~60 degrees C
5. Install Way: 1/4-20 Thread Socket (Left, Right, Bottom)
6. Unit Size: 242Lx156Hx23D(mm)
7. Unit Weight: 810g
Advanced Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. Support Touch Menu
3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio
9. Peaking Focus (Yellow, Magenta, Cyan, Red, Green, Blue, White seven peaking colors optional; 1~8 peaking level adjustable)
10. False Colors (Spectrum, ARRI)
11. Zebra Exposure (1%~100% adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16: 1.85:1, 2.35:1)
19. Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.9:1, 5:4, 1:1.9)
20. Marker Color ( Yellow, Magenta, Cyan, Red, Green, Blue, White)
21. Color Temperature Adjustment (5600K, 6500K, 9300K, user)
22. Nine Grid
23. Zoom (1.0x~5.0x)
24. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
25. Pixel to Pixel
Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. Power Adapter x 1
4. U-shape Bracket x 1
5. Manual x 1
