Features
1. 5.5-inch 1920x1080 full HD IPS screen
2. Touch screen menu operation, improve shooting efficiency
3. Ultra-bright 3000nit, clearly visible in the sun

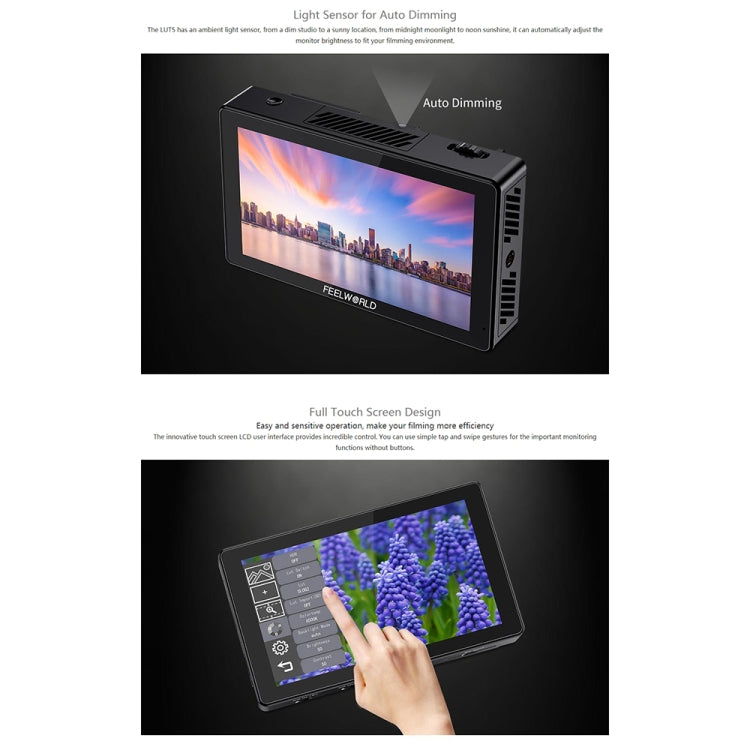

4. Light sensor auto dimming
5. Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
6. Support HDR monitoring, what you see is what you get

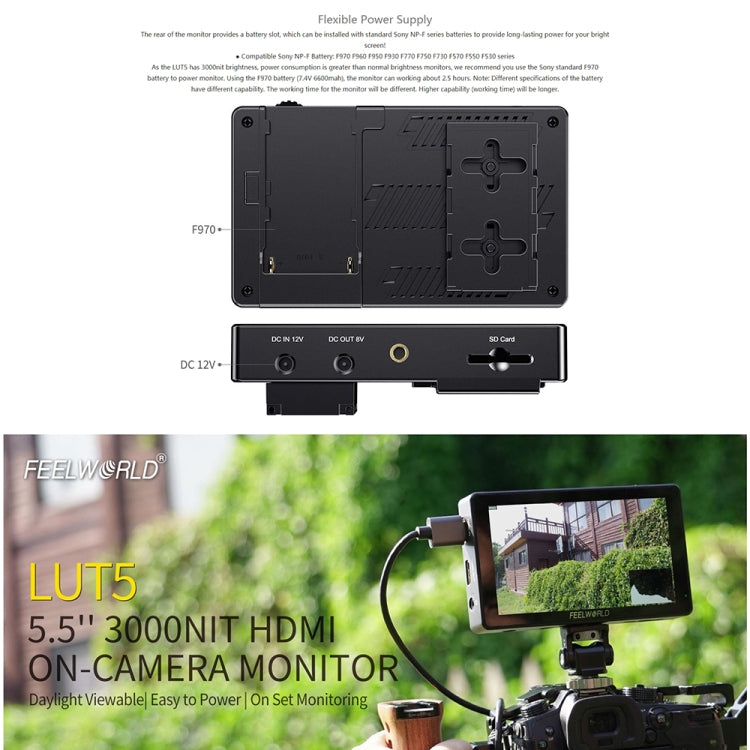

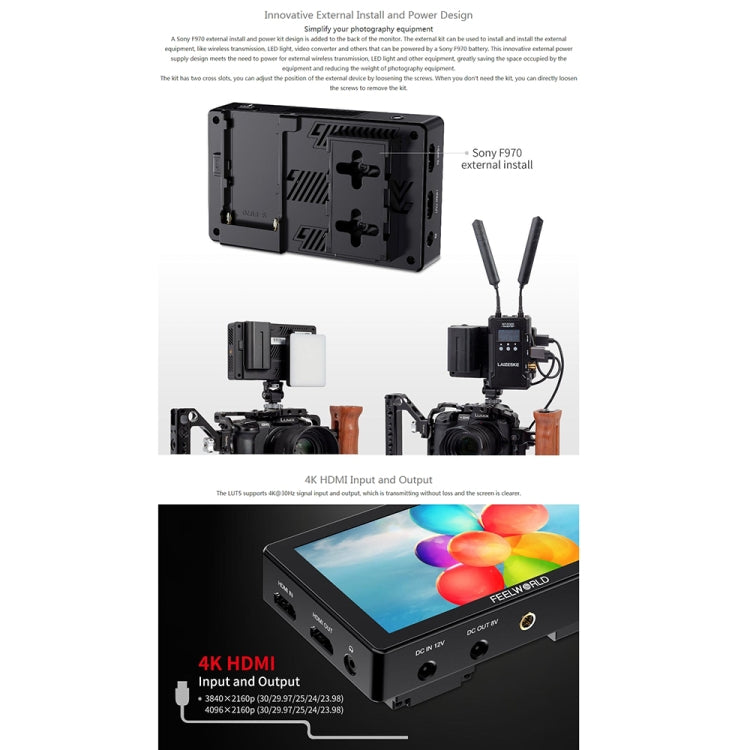

7. F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment (not included battery)
8. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
9. Stereo Earphone output

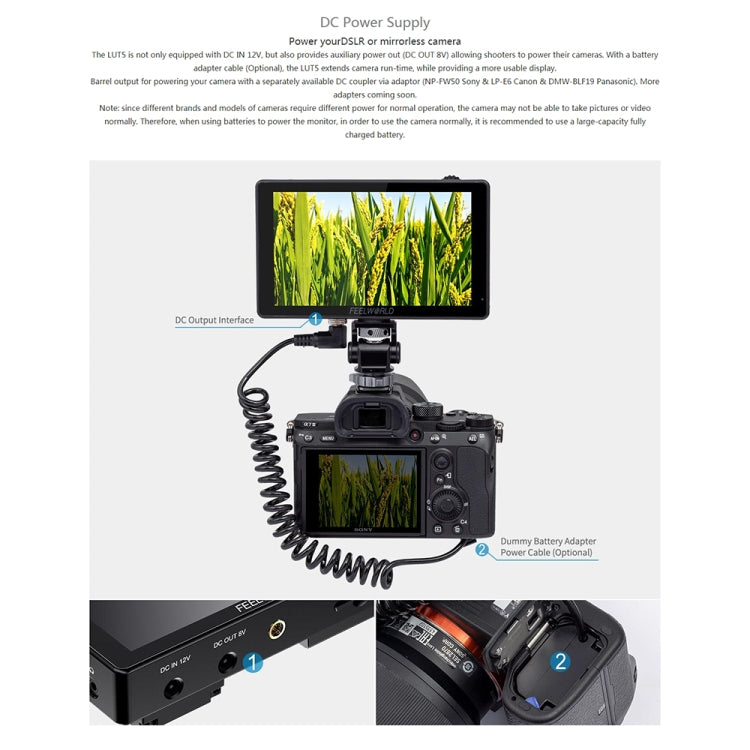

10. DC 8V power out to power your DSLR camera or mirrorless camera
Specifications
Display:
1. Model: LUT5

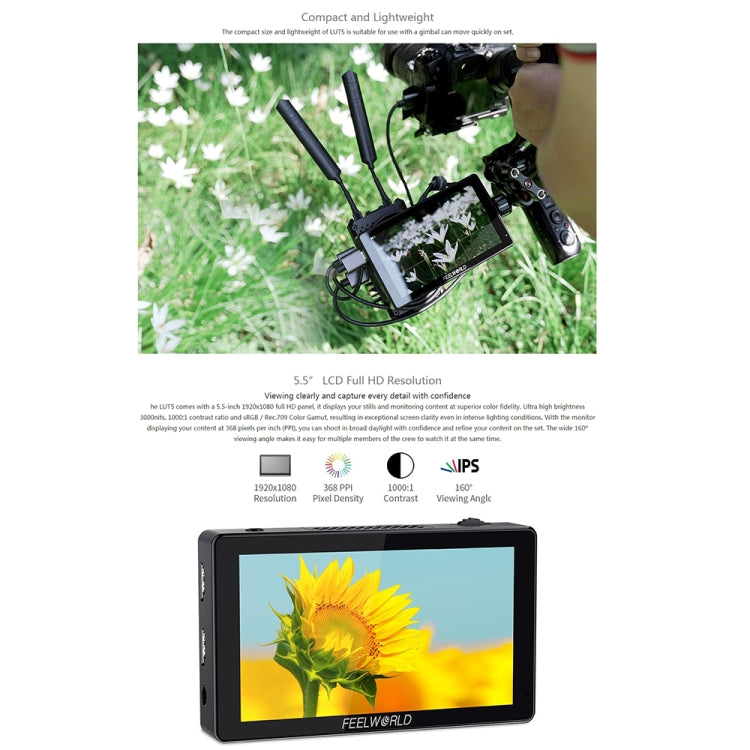

2. Screen Size: 5.5 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (L) x 0.069(W) (mm)
5. Aspect Ratio: 16:9
6. Brightness: 3000cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree(L/R) 80 degree /80 degree (U/D)

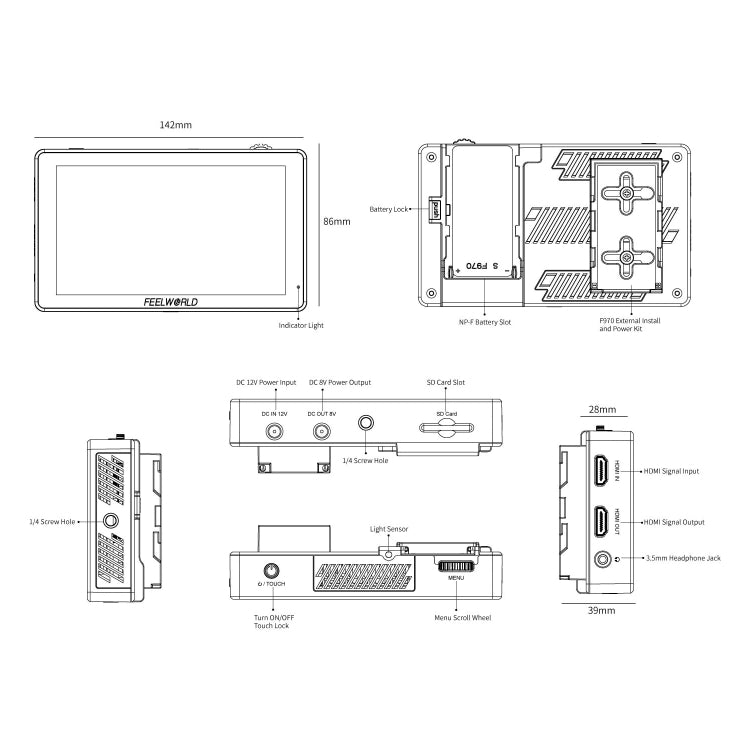

Input
- 1 x HDMI: HDMI
Output
- 1 x HDMI: HDMI
- 1 x DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
- Audio: 3.5mm Stereo Headphone
HDMI Input/ Output Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)
General
1. Input Voltage: DC7???24V
2. Power Consumption: Less than or equal 20W
3. Working Temperature: -20 degree C~70 degree C
4. Storage Temperature: -30 degree C~80 degree C
5. Install Way: 1/4 inch -20 Thread Socket ( Right, Bottom)
Functions

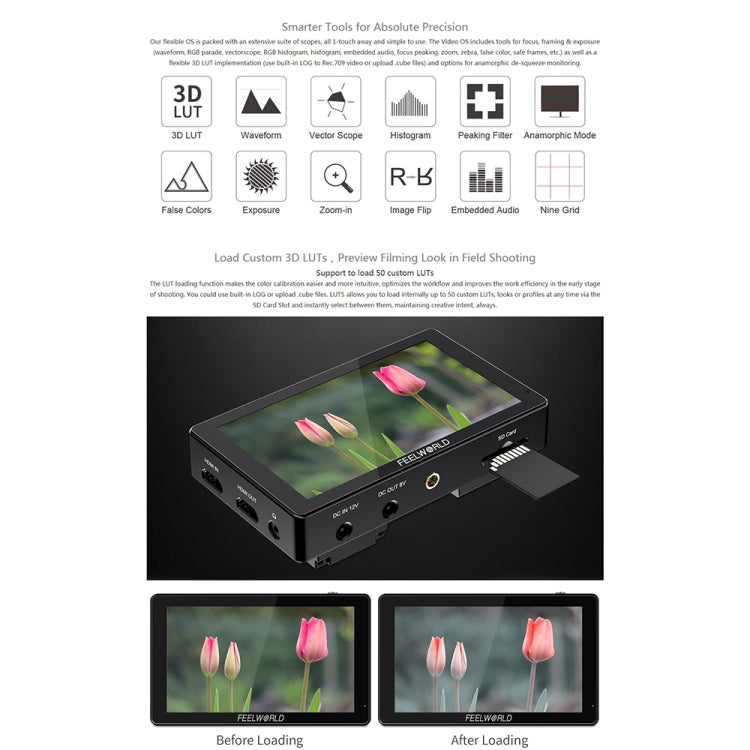

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. Support Touch Menu
3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio
9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
10. False Colors
11. Zebra Exposure (1 percent~100 percent adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
19. Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. Marker Color (red, green, blue, white, black, yellow)
21. Color Temperature Adjustment (5600K, 6500K, 9300K, user)
22. Nine Grid
23. Zoom (1x~5x)
24. Aspect Ratio
25. Pixel to Pixel
