Display Spec.

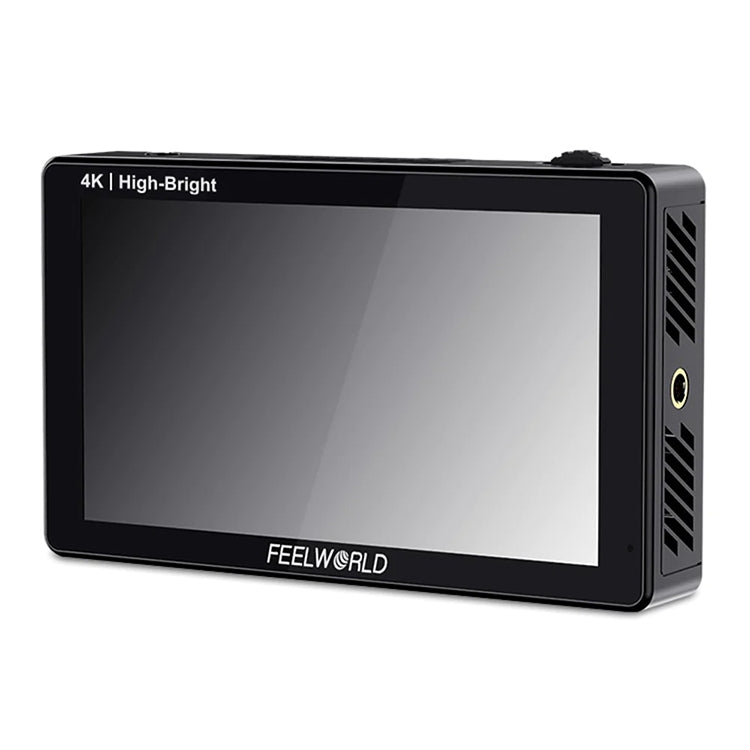

1. Model: LUT5E

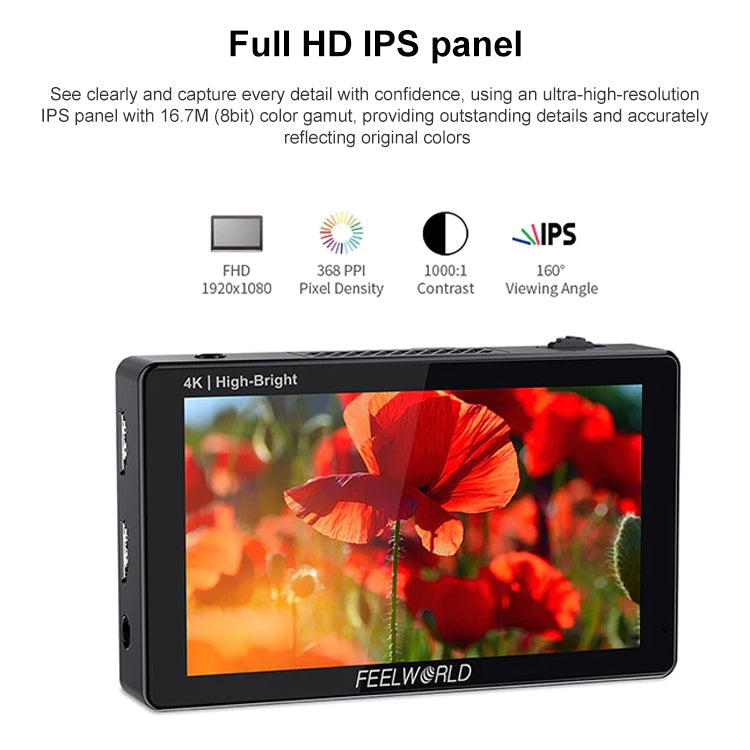

2. Screen Size: 5.5 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (L) x 0.069(W) (mm)
5. Aspect Ratio: 16:9
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input
- 1 x HDMI: HDMI
Output
1. 1 x HDMI: HDMI

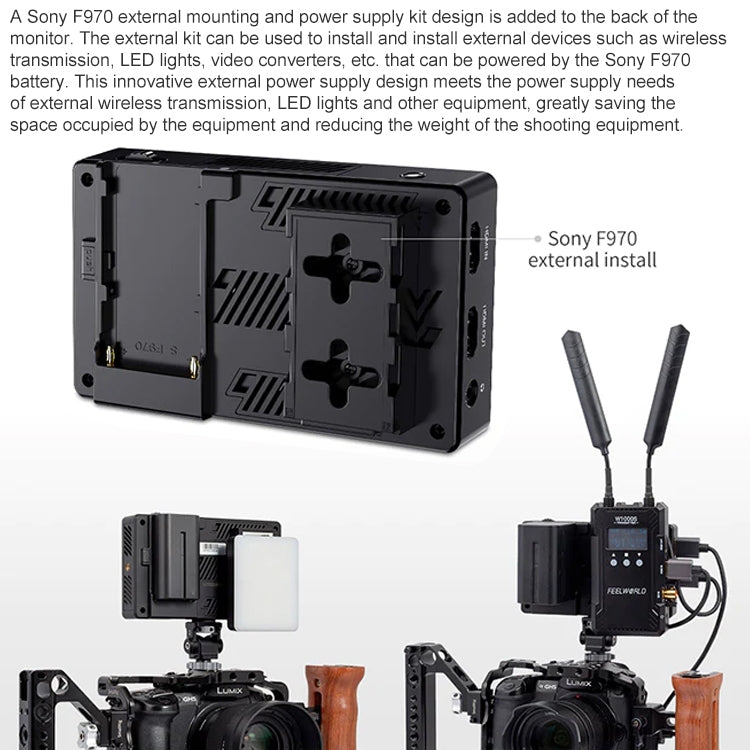

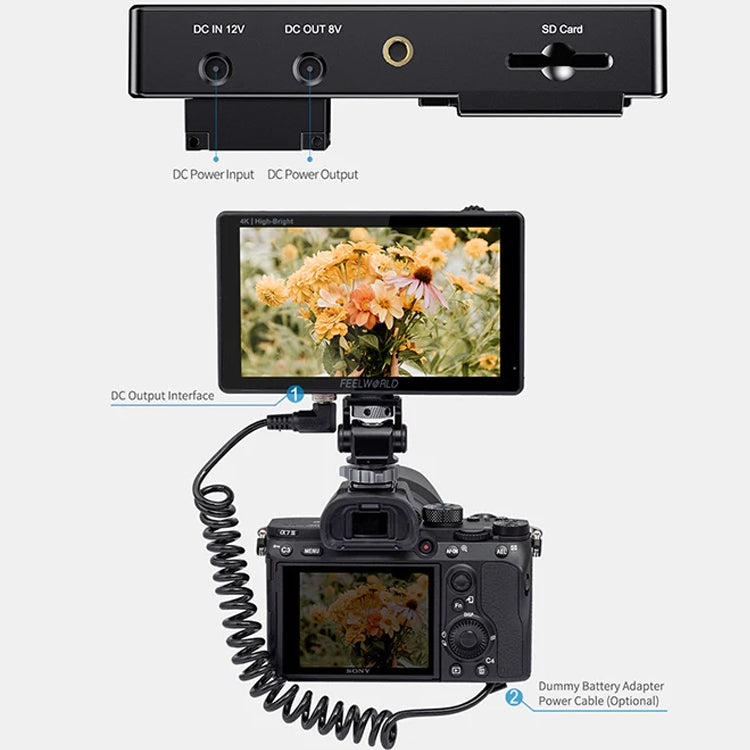

2. 1 x DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
- Audio: 3.5mm Stereo Headphone

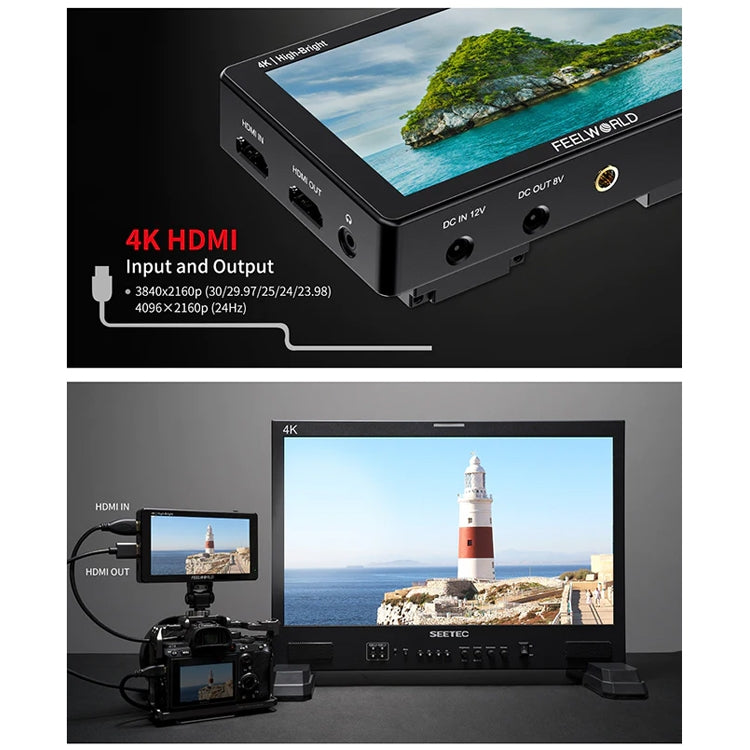

HDMI Input / Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 9W
3. Install Way: 1/4-20 Thread Socket ( Right, Bottom)
4. Unit Size: 142Lx86Hx28D(mm)
5. Unit Weight: 270g
Note: When you turn off the monitor, you need to press the power button, and you cant pull out the power cable directly.
Advanced Features

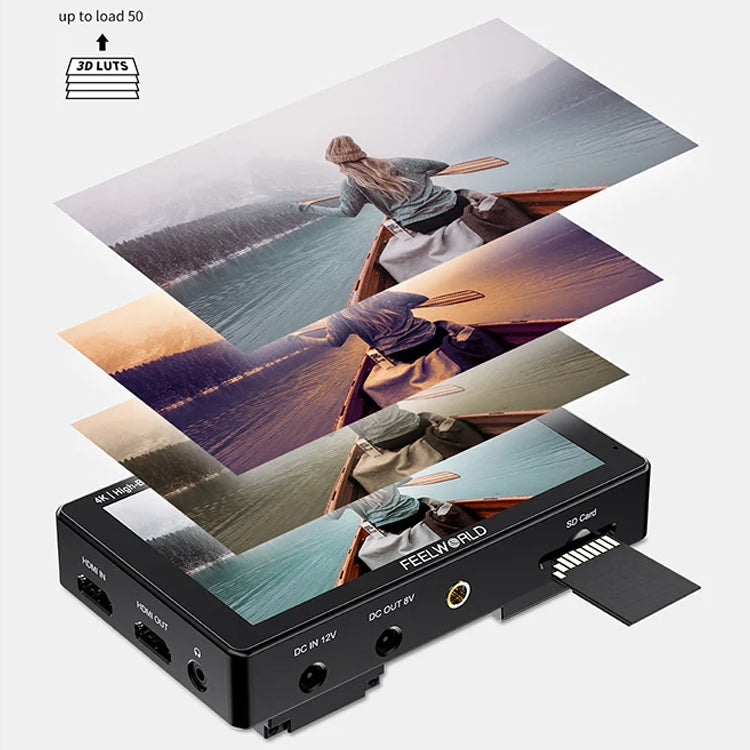

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload

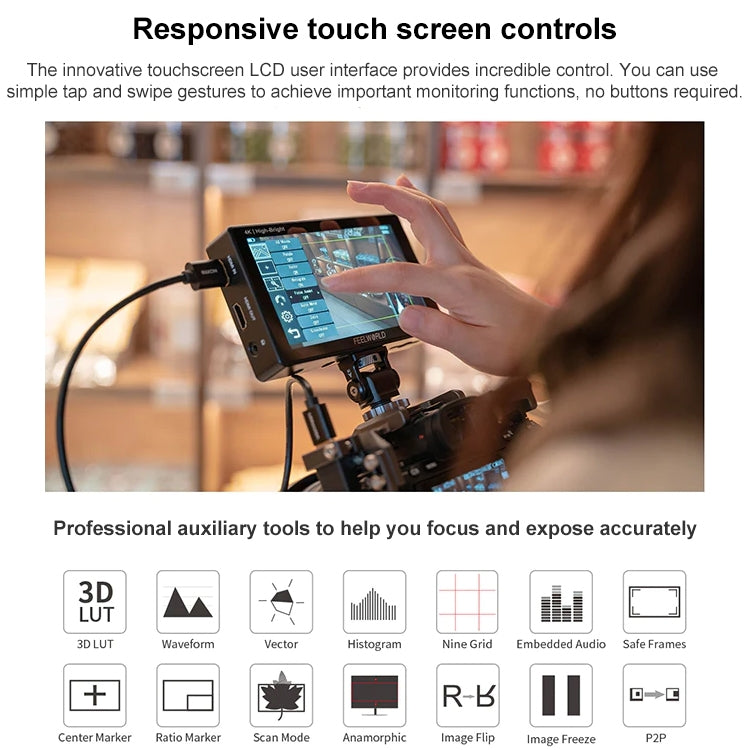

2. Support Touch Menu

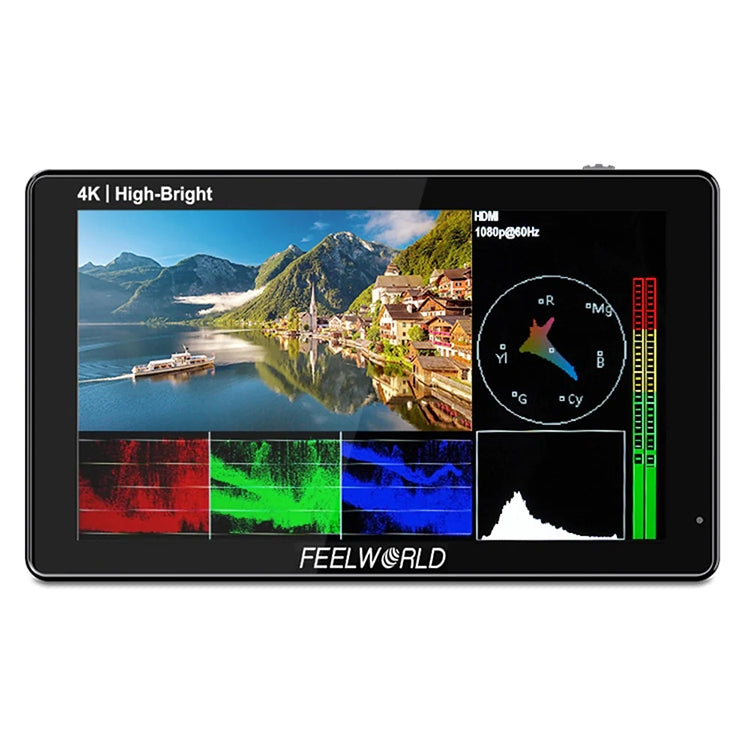

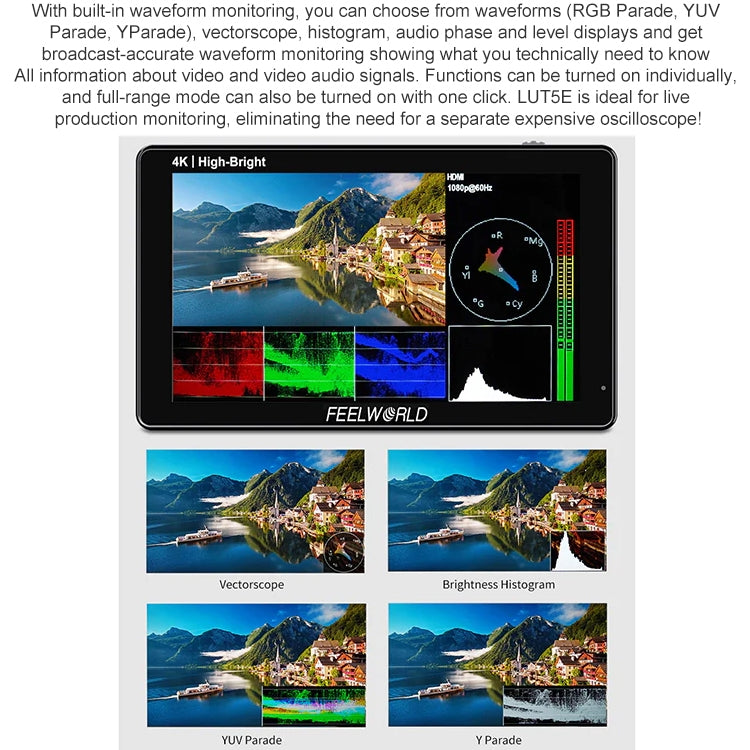

3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio

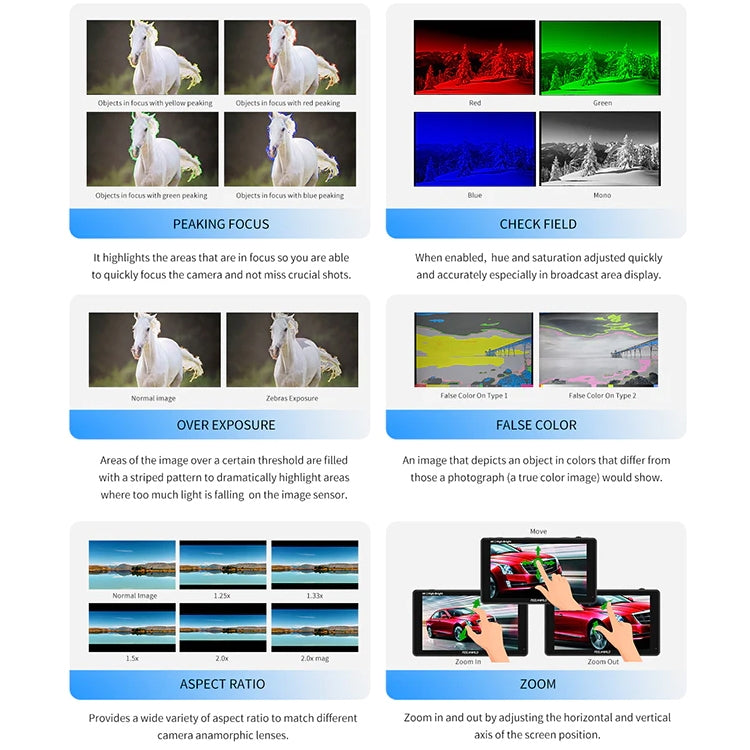

9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
10. False Colors
11. Zebra Exposure (1%~100% adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
19. Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. Marker Color (red, green, blue, white, black, yellow)
21. Color Temperature Adjustment (5600K, 6500K, 9300K, user)
22. Nine Grid
23. Zoom (100%~500%)
24. Aspect Ratio
Package List:
1. Monitor x 1
2. Micro HDMI Cable x 1

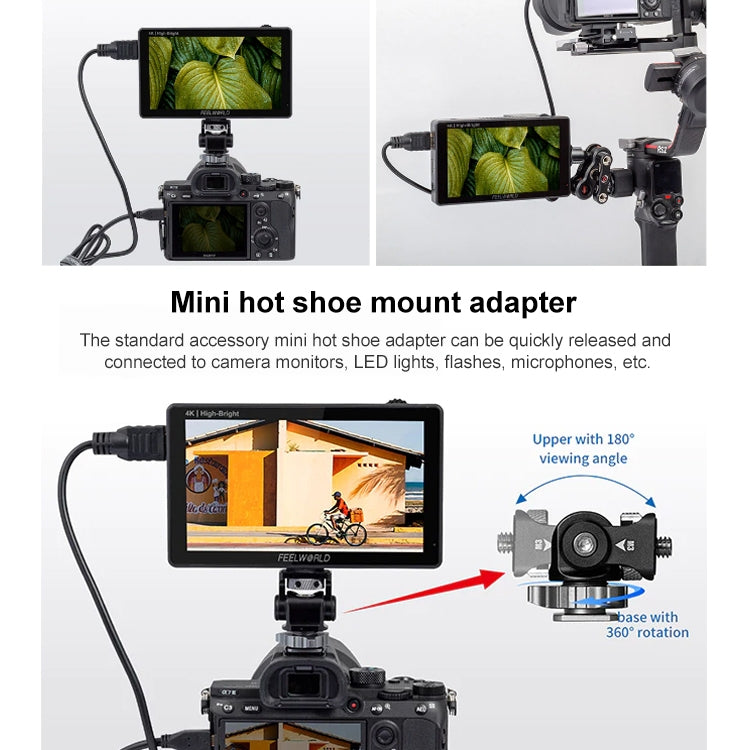

3. Mini hot shoe mount+Hex wrench x 1
4. Manual x 1
