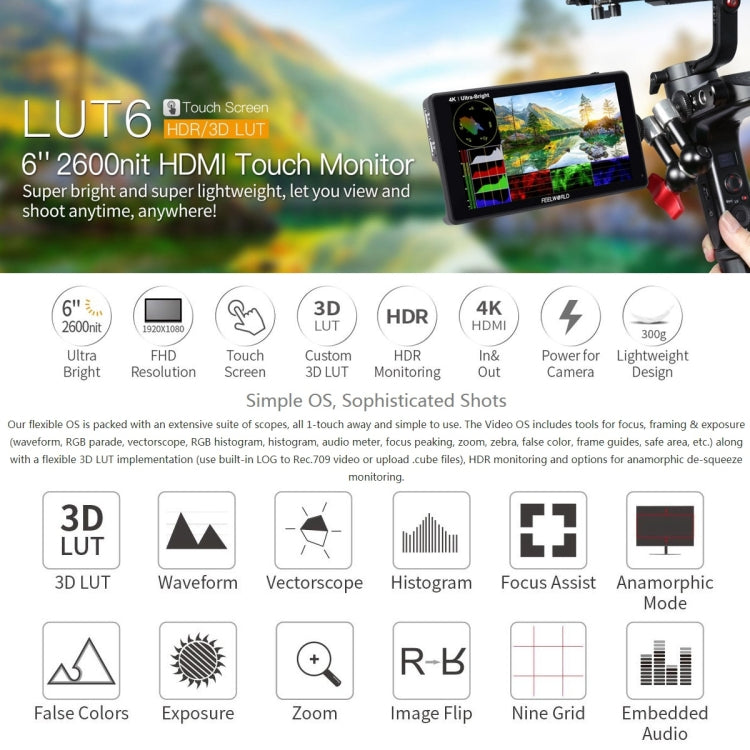

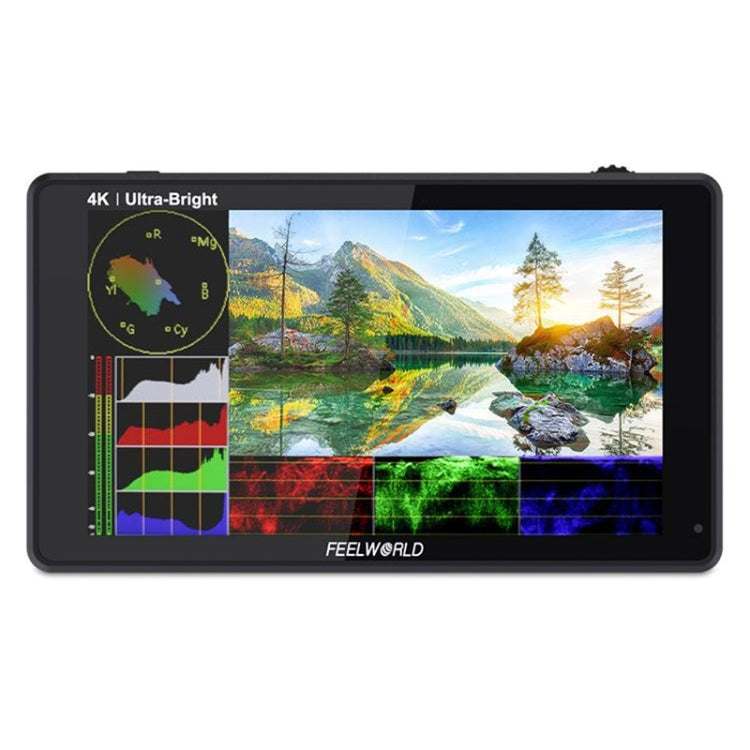

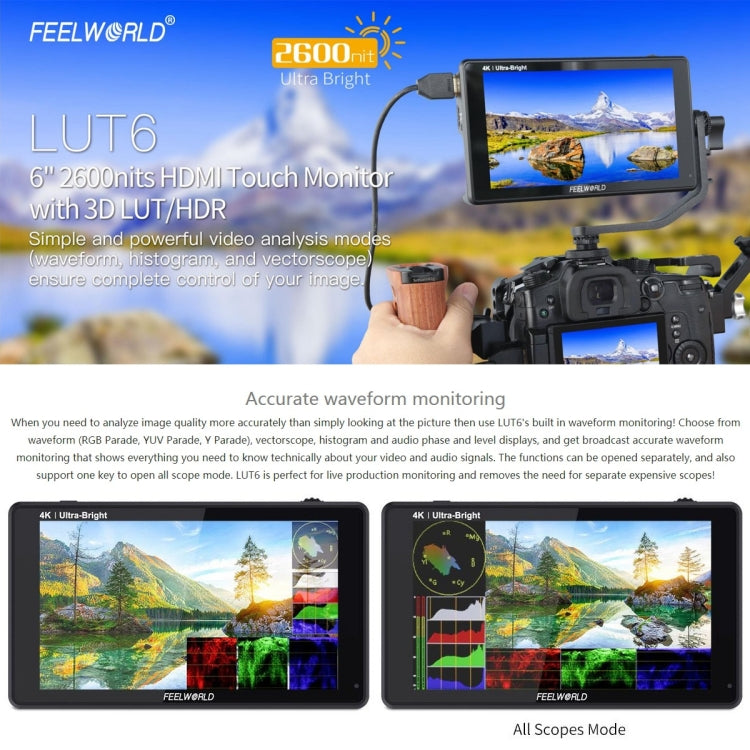

1. With a complete set of tools with simple operation and professional functions, all operations can be completed with one touch. Video assistance functions include focusing, composition and exposure tools (waveform, vector diagram, RGB histogram, brightness histogram, audio column, peak focus, zoom, zebra pattern, pseudo color, safety frame, etc.) and a flexible 3D LUT loading Tools (both 2. You can use the built-in LUT, or you can customize the upload of the .cube file), HDR monitoring and anamorphic widescreen recovery functions

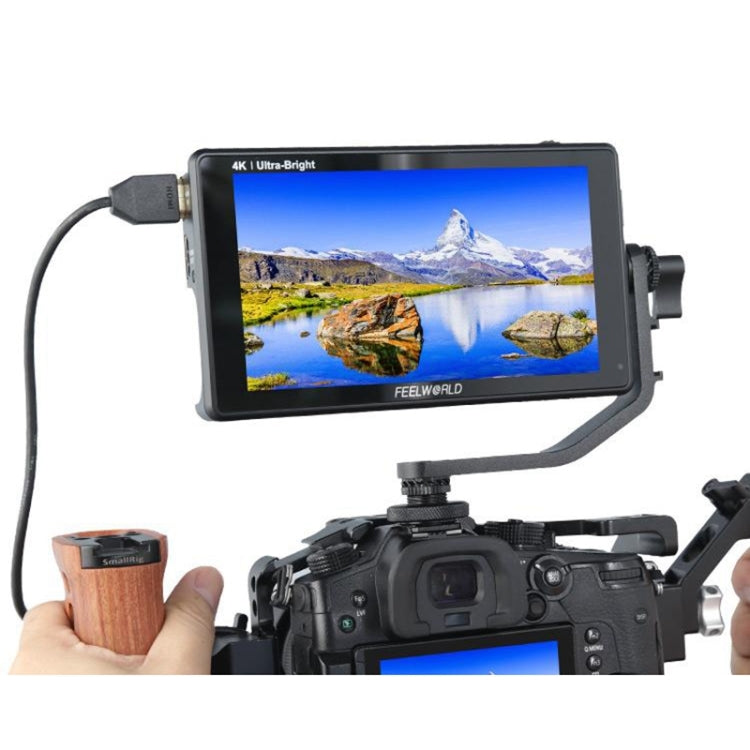

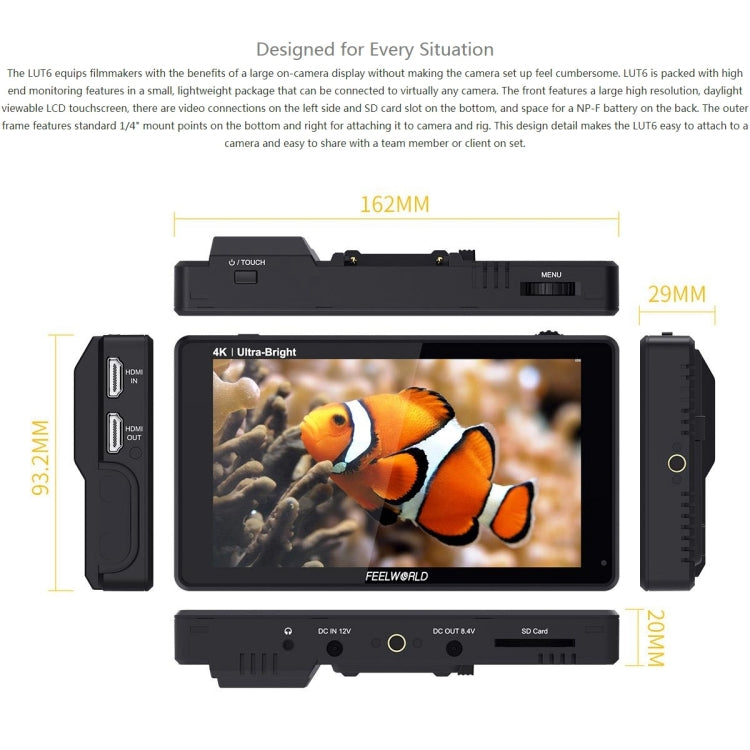

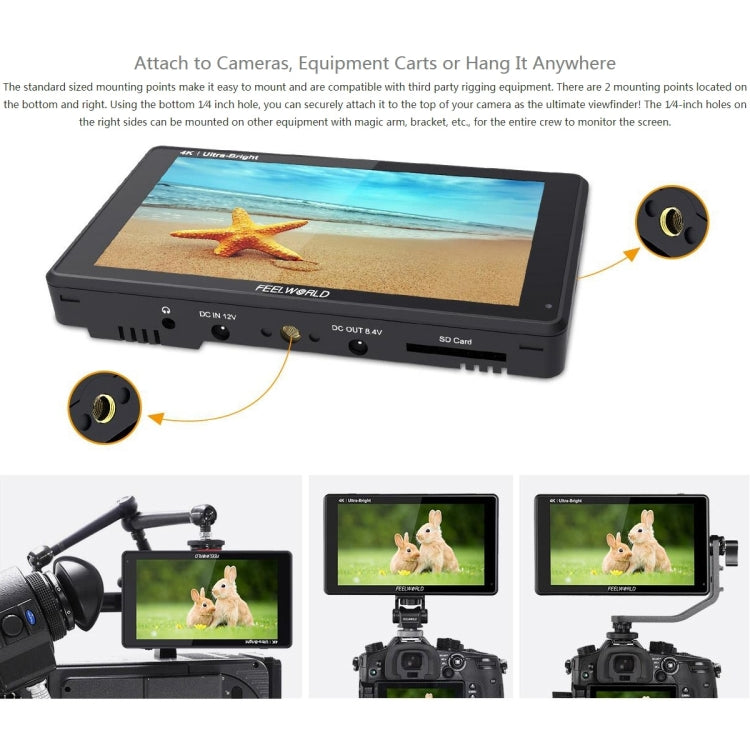

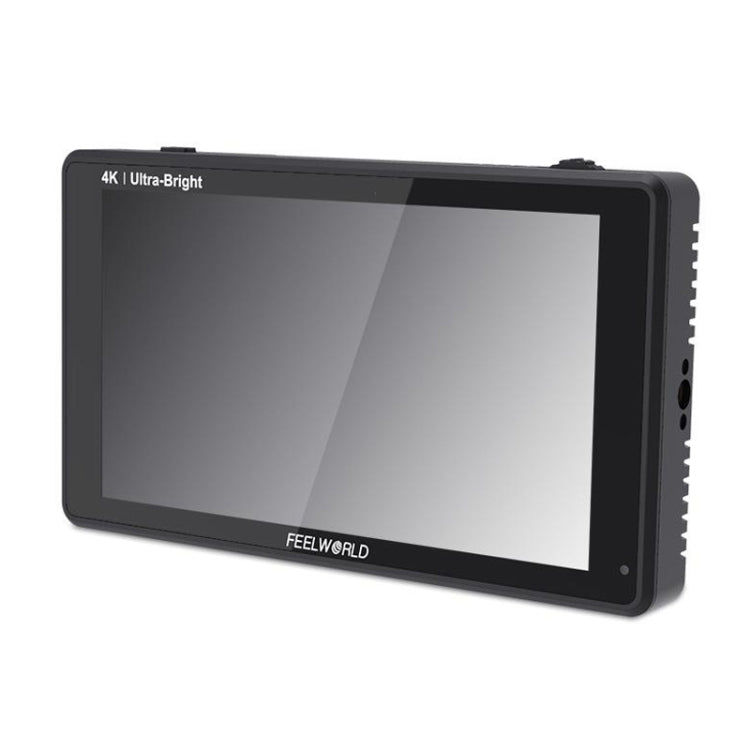

There is a large bright touch screen on the front, a signal interface on the left, an SD card slot at the bottom, and an NP-F battery on the back. There are standard 1/4-inch mounting points on the bottom and right side, which can be used to mount to cameras and other equipment

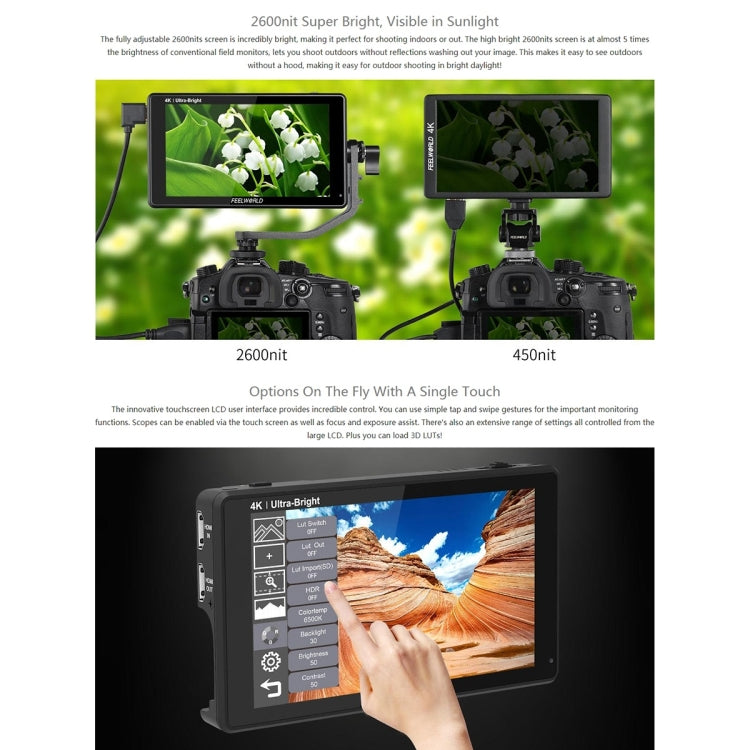

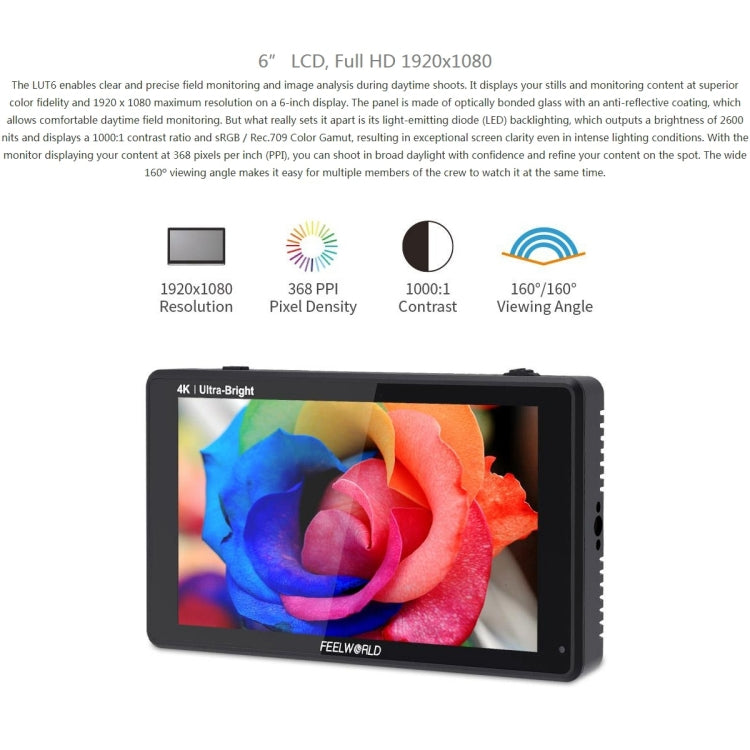

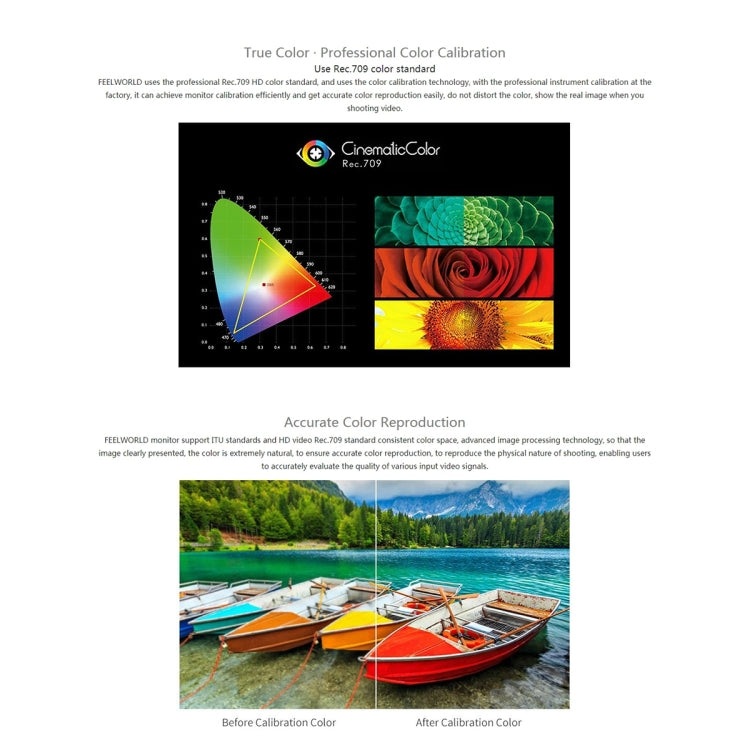

3. The 6-inch 1920x1080 full HD panel displays images and videos with excellent color reproduction. The panel has an anti-glare coating, so you can comfortably monitor outdoors during the day. 2600 nits, 1000:1 contrast ratio and sRGB/Rec.709 color gamut provide excellent screen clarity even under strong light. The 160-degree wide viewing angle of the display can also provide a clear picture view for multiple crew members at the same time

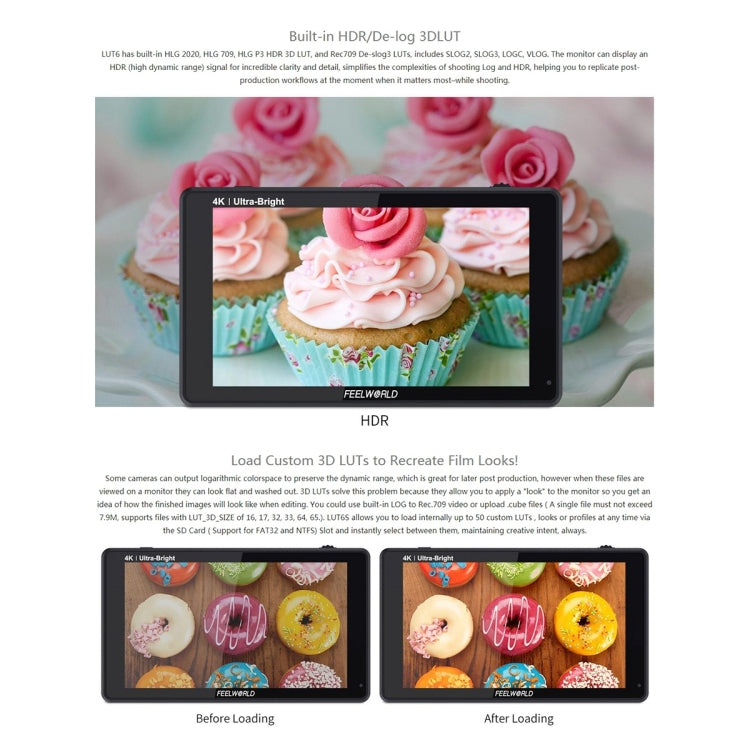

4. Built-in HLG 2020, HLG 709, HLG P3 HDR LUT table, as well as the camera log to standard Rec709 LUT table, support SLOG2, SLOG3, LOGC, VLOG log conversion. Display HDR (High Dynamic Range) signals, provide incredible clarity and detail, and through precise control in the early stage, greatly simplify the post-production process and improve efficiency

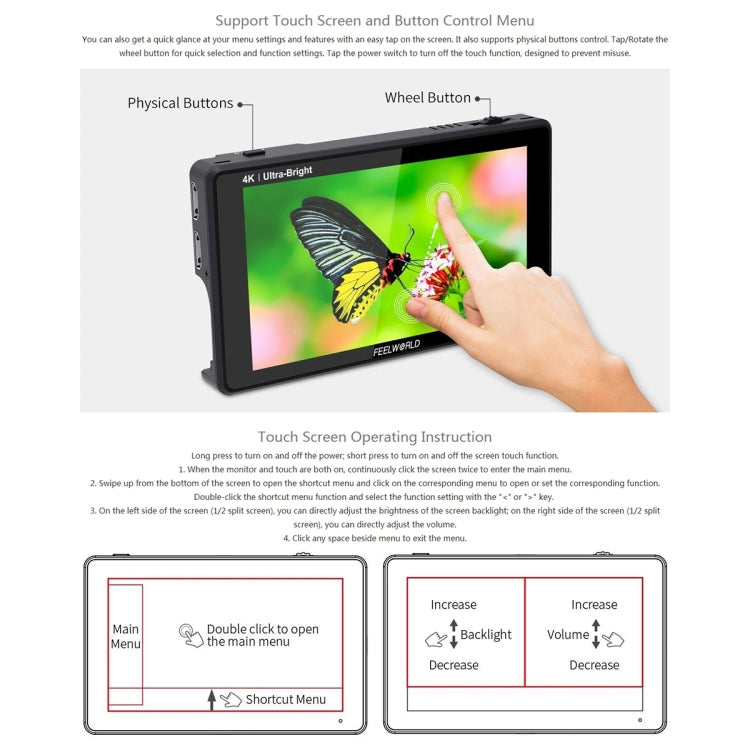

5. You can use two-finger zoom gestures to easily and intuitively zoom in and out of the shooting screen. You can also quickly browse the menu settings and functions by simply tapping the screen. Also supports physical button control menu. Quick selection and function setting can be realized by clicking/rotating the wheel button. Tap the power switch to turn off the touch function, thoughtful design to prevent misoperation

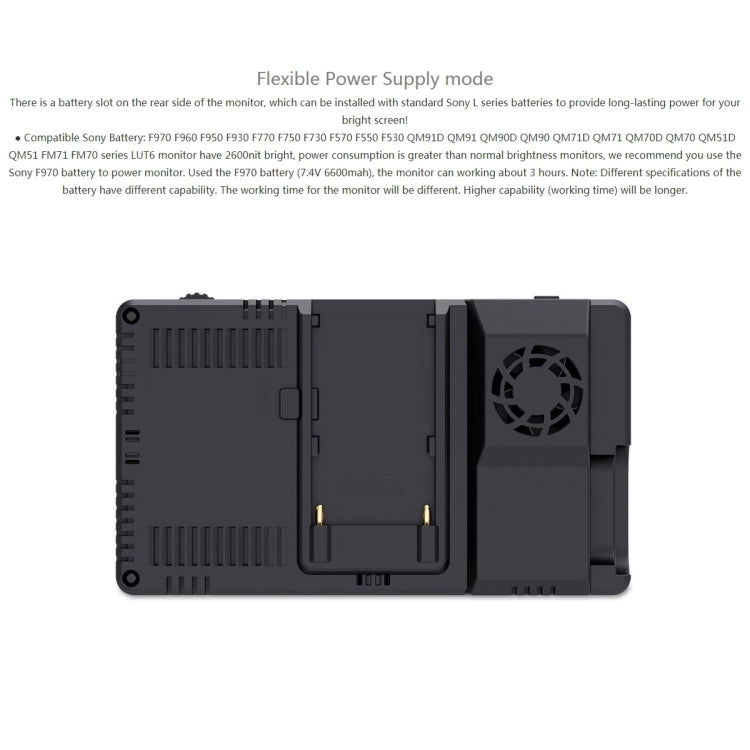

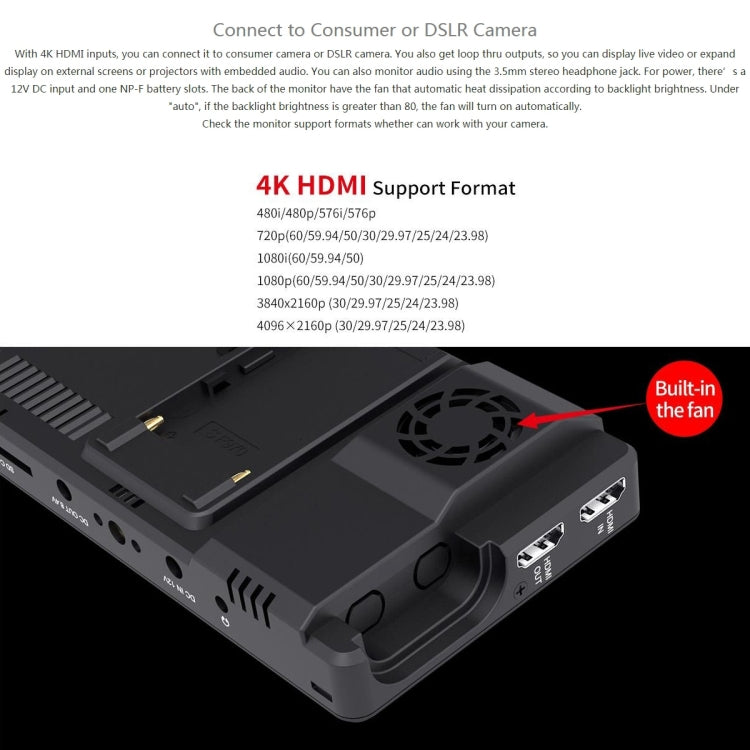

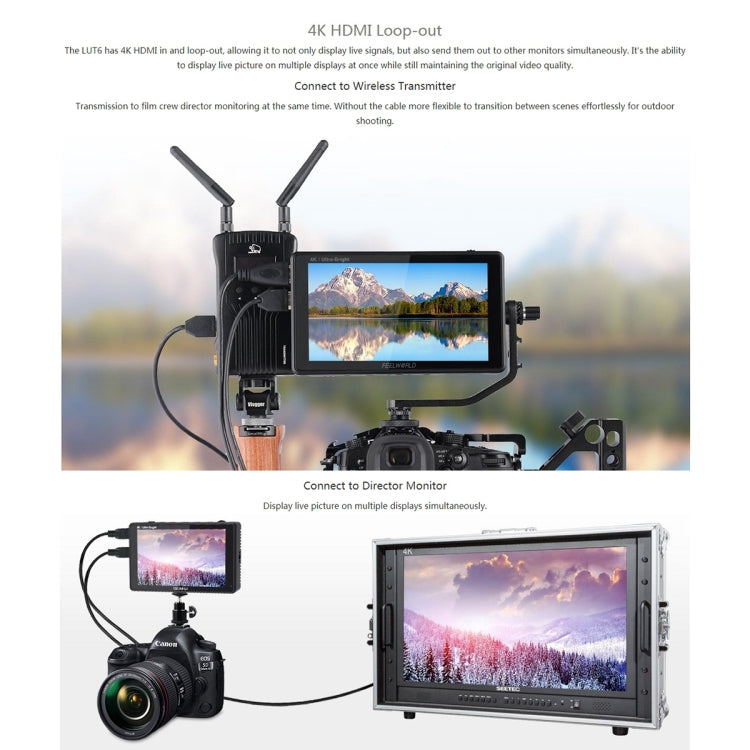

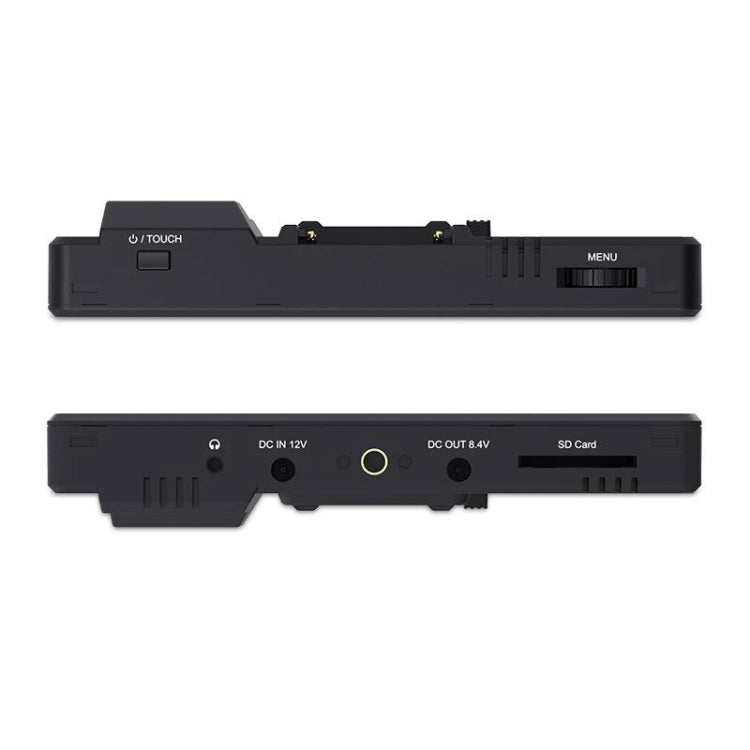

6. Through the 4K HDMI input of the monitor, it can be connected to various consumer cameras or digital SLRs. You can use its loop-through output interface to display live video or external display extensions and clips on the projector, with embedded audio. In addition, you can monitor audio through the 3.5mm stereo headphone jack. In terms of power supply, it has a 12V DC input interface and a NP-F battery slot. The back is equipped with a fan design, which can automatically dissipate heat according to the brightness of the backlight

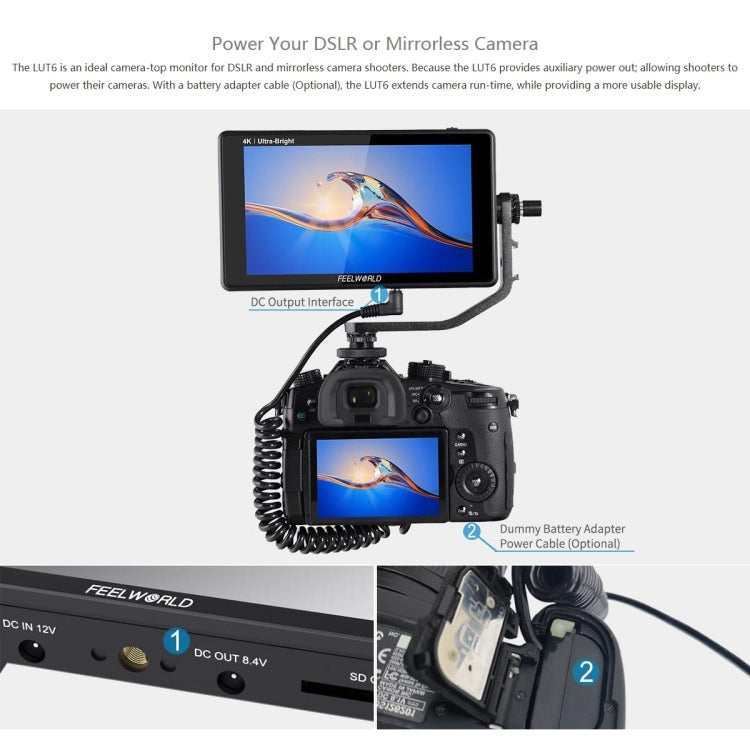

7. Designed for shooting and monitoring with SLR or mirrorless camera. It is equipped with a DC power output interface, you can connect an additional optional dummy battery power cord to power the SLR camera or mirrorless camera to extend the camera shooting time

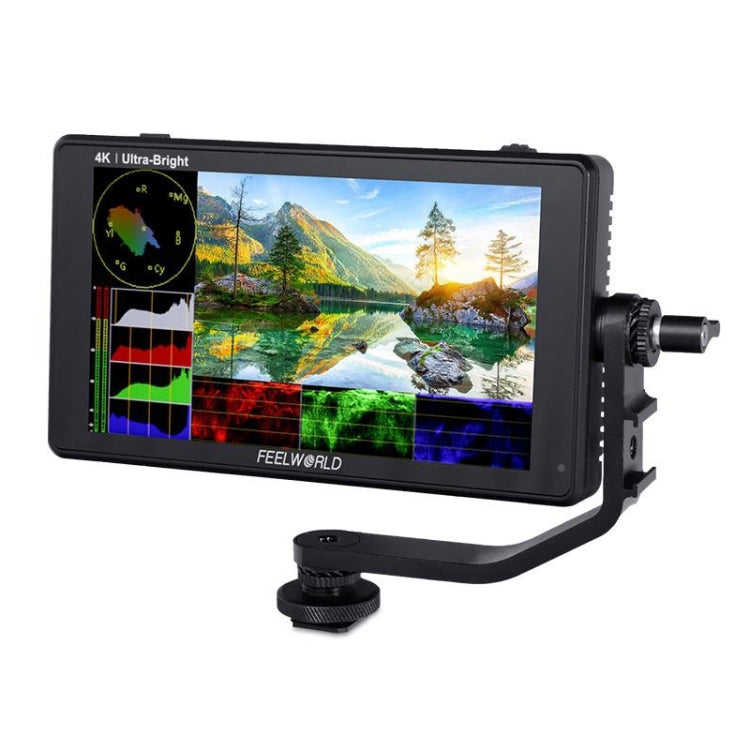

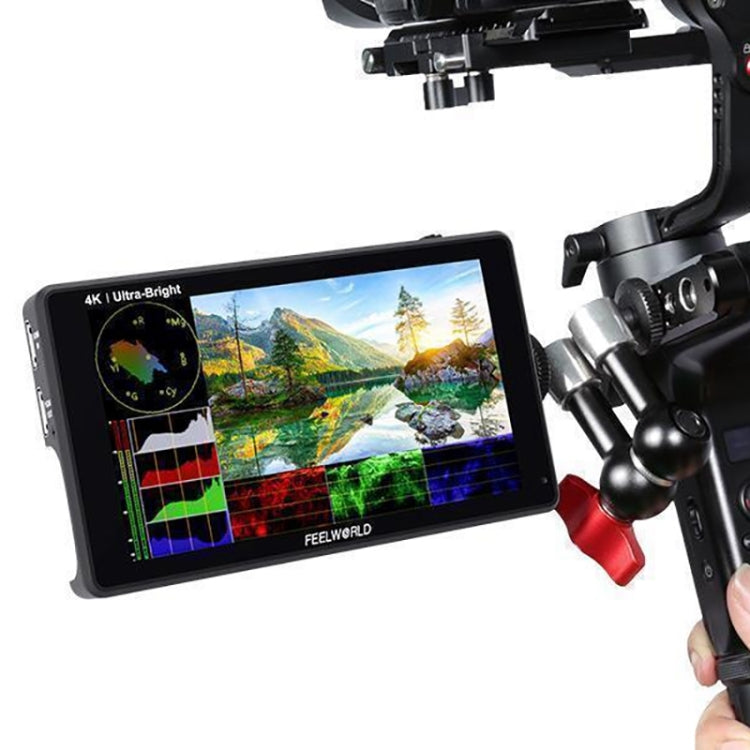

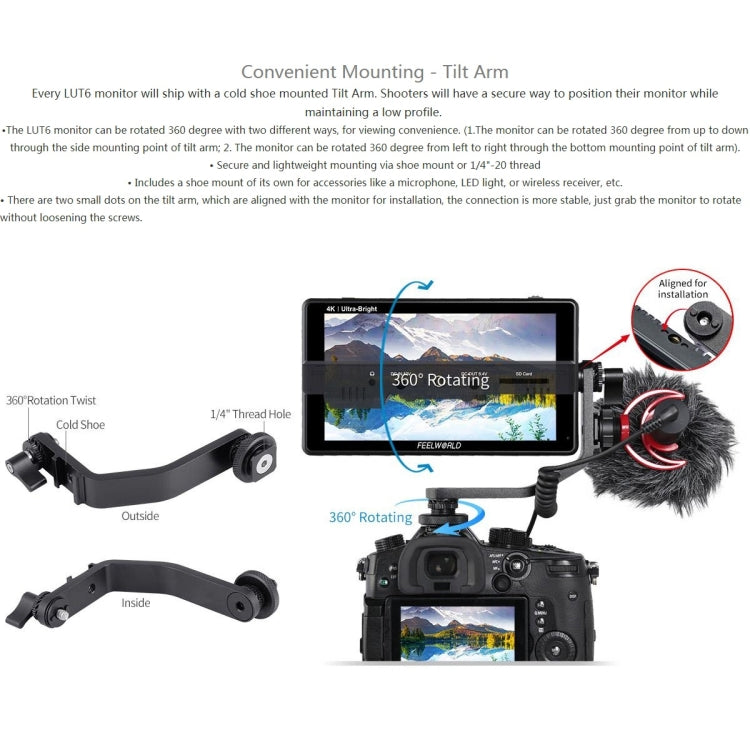

8. It can be rotated 360 degrees, which is convenient for users to monitor from any angle
9. There is a cold shoe seat on the bracket, which can be used to install various equipment, such as microphones, LED lights, wireless receivers, etc.
10. Input signal: HDMI
11. Output signal: HDMI, headphone jack, DC
12. Size: 162x93.2x29(mm)
13. Accessories: 1*HDMI TypeA to Mini&Micro HDMI cable, 1*mounting bracket, 1*instruction
