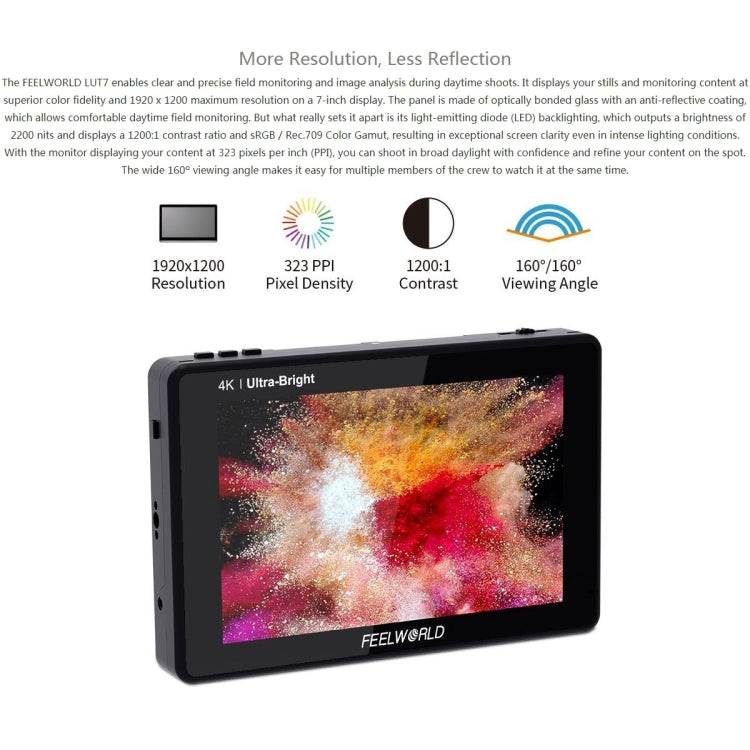

1. The 7-inch 1920x1200 Full HD panel displays images and videos with excellent color reproduction. The panel has an anti-glare coating, so you can comfortably monitor outdoors during the day. The important point is its brightness of 2200 nits, 1200:1 contrast ratio and sRGB/Rec.709 color gamut, which can provide excellent screen clarity even in bright light. The monitor display content reaches 323 pixels per inch (PPI), so you can rest assured to shoot in broad daylight and optimize the content on the spot. The 160-degree wide viewing angle of the display can also provide a clear picture view for multiple crew members at the same time

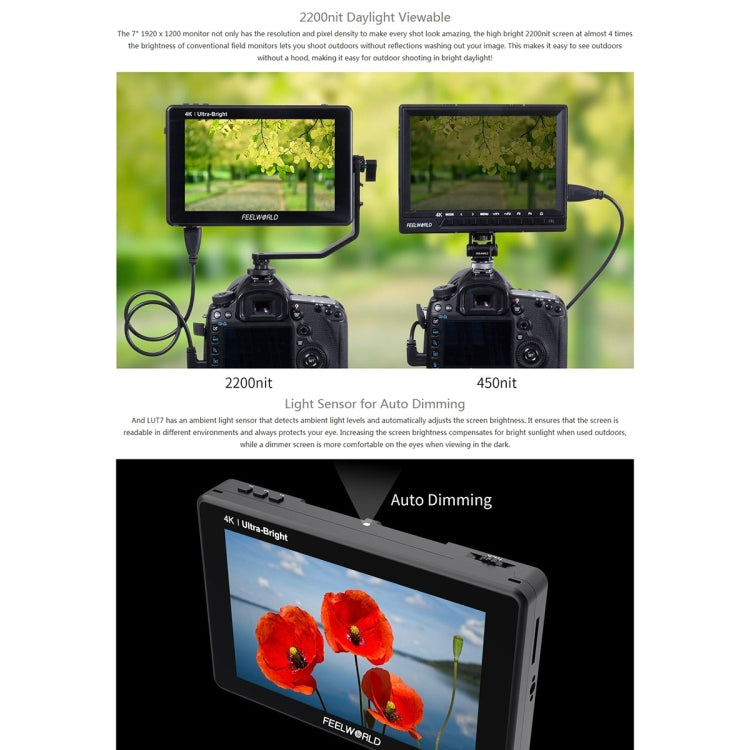

2. It has a light sensor that can automatically adjust the screen brightness according to the ambient light. It ensures the readability of the screen in different environments and also protects your eye safety at all times. It will automatically increase the screen brightness under strong outdoor light, and automatically decrease the screen brightness in dark environments

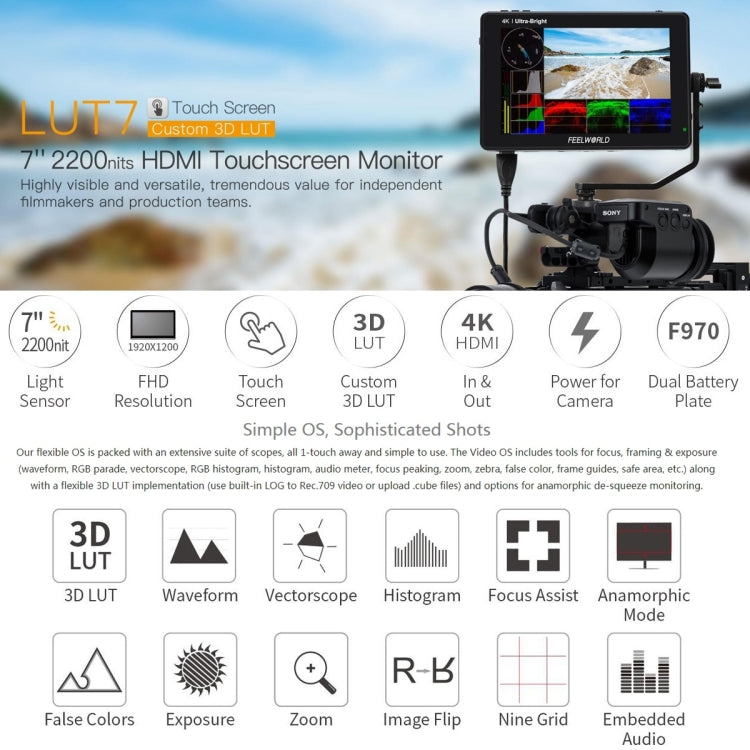

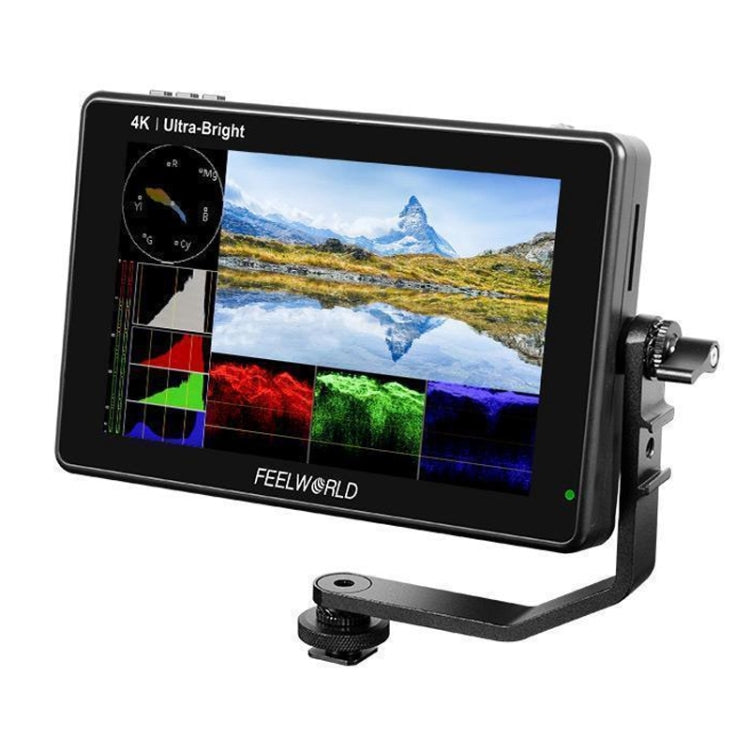

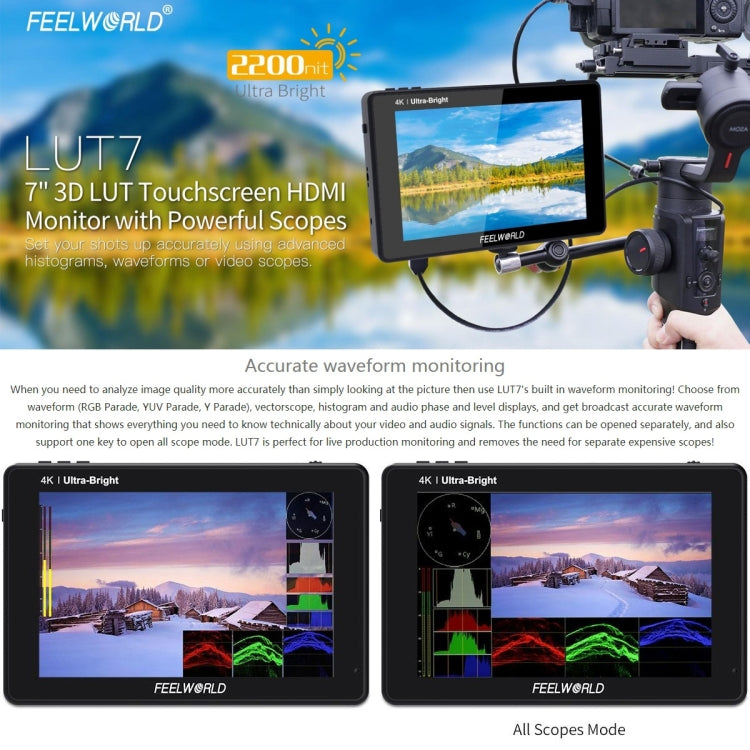

3. When you need to analyze the image quality more accurately instead of simply watching the screen, you can use the built-in waveform monitoring function of LUT7S! You can choose waveforms (RGB/ YUV/ Y), vector diagrams, RGB histograms, brightness histograms, and audio phase and level displays, perform broadcast-level precision waveform monitoring, and get everything you need to know about professional video and audio signals Information and functions can be opened individually, and full waveform mode can also be opened with one key

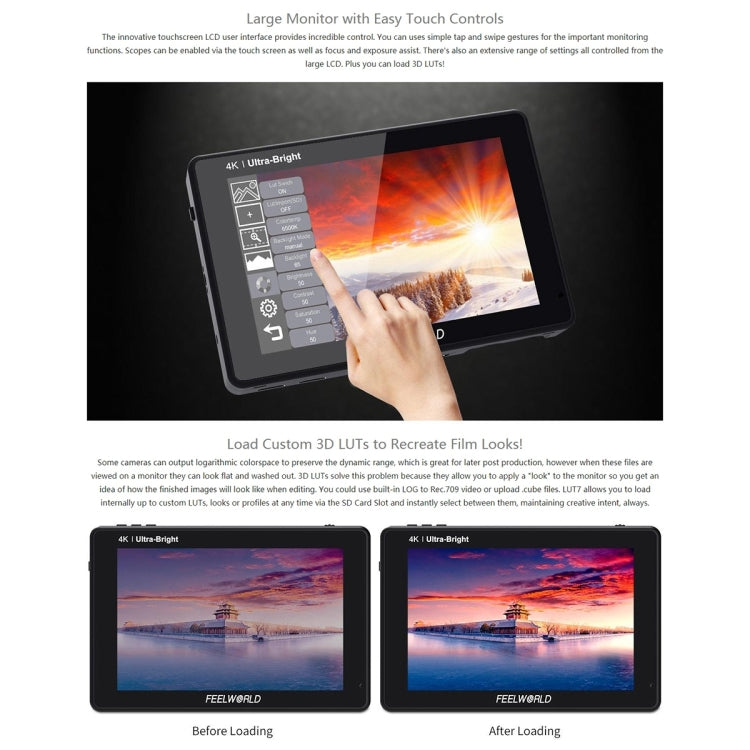

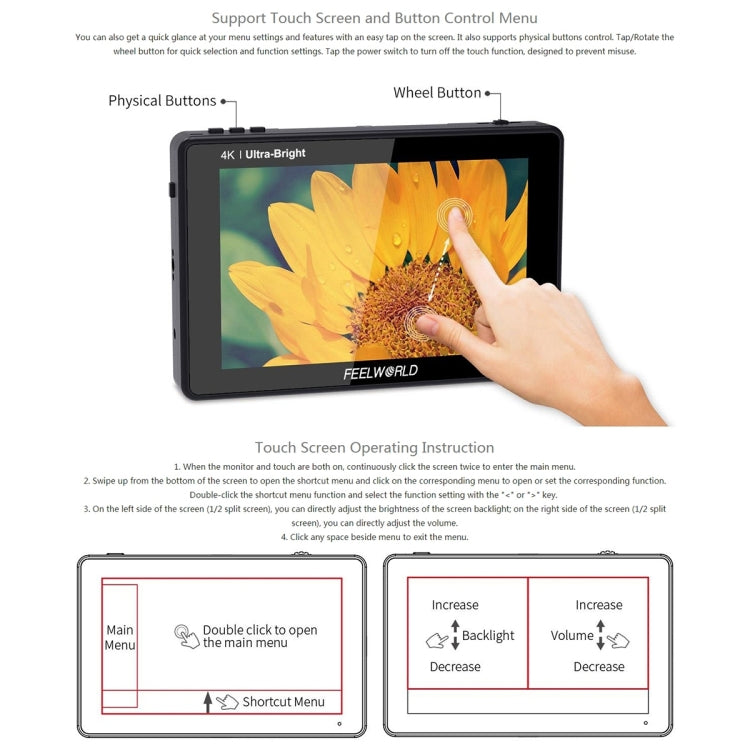

4. You can use two-finger zoom gestures to easily and intuitively zoom in and out of the shooting screen. You can also quickly browse the menu settings and functions by simply tapping the screen. Also supports physical button control menu. Quick selection and function setting can be realized by clicking/rotating the wheel button. Tap the power switch to turn off the touch function, thoughtful design to prevent misoperation

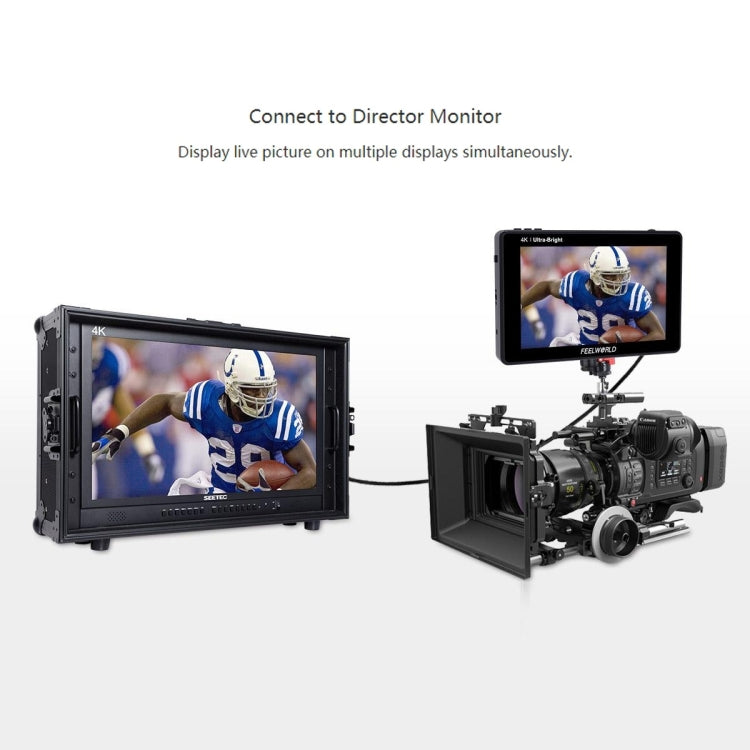

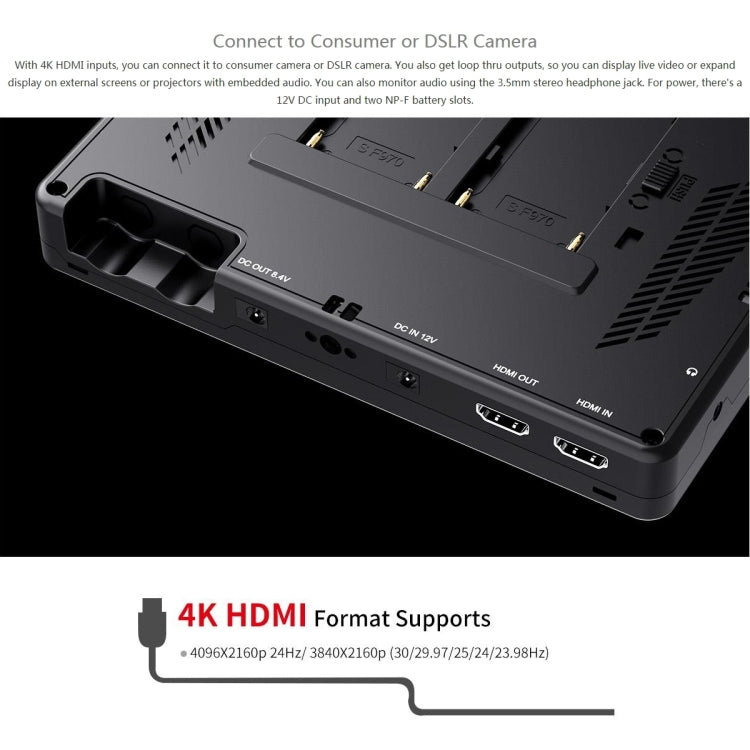

5. Through the monitor 3G-SDI and 4K HDMI inputs, it can connect to various consumer cameras, broadcast cameras and even digital SLRs. You can use its loop-through output interface to display live video or external display extensions and clips on the projector, with embedded audio. In addition, you can monitor audio through the 3.5mm stereo headphone jack or the built-in speakers on the front panel.

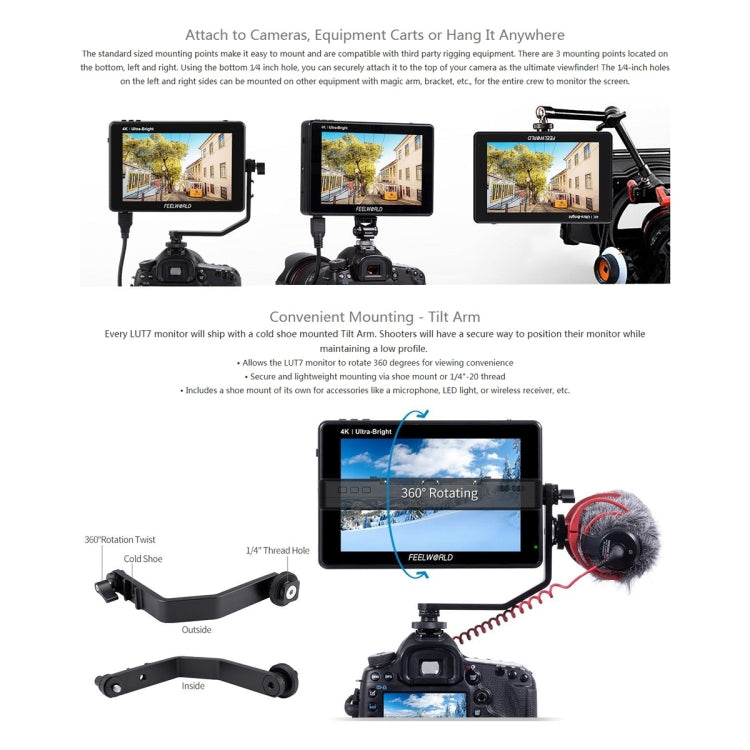

6. There are installation points on the bottom and left and right sides respectively. With the 1/4-inch mounting hole at the bottom, you can firmly mount it on the top of the camera as an ideal viewfinder! The 1/4-inch mounting holes on the left and right sides can be installed on other equipment with strange hands, brackets, etc., so as to assist the entire crew to monitor the screen
7. Point pitch: 0.07875x0.07875(mm)
8. Screen ratio: 16:10
9. Brightness: 2200cd/square meter (light sensor)

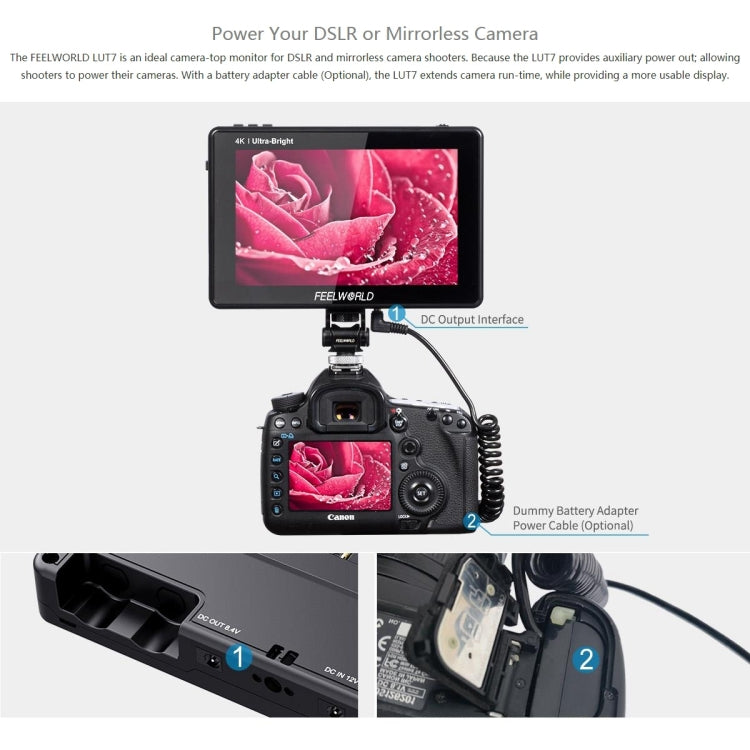

10. Input signal: HDMI, output signal: HDMI, headphone jack, DC

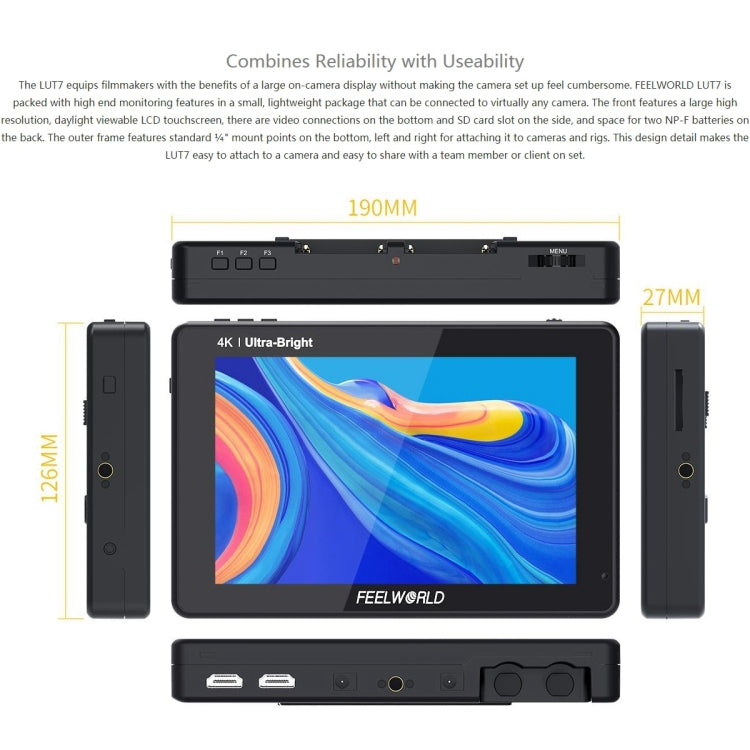

11. Single machine size: 190x126x27 (mm)
12. Accessories: 1*HDMI TypeA to Mini&Micro HDMI cable, 1*mounting bracket, 1*instruction
