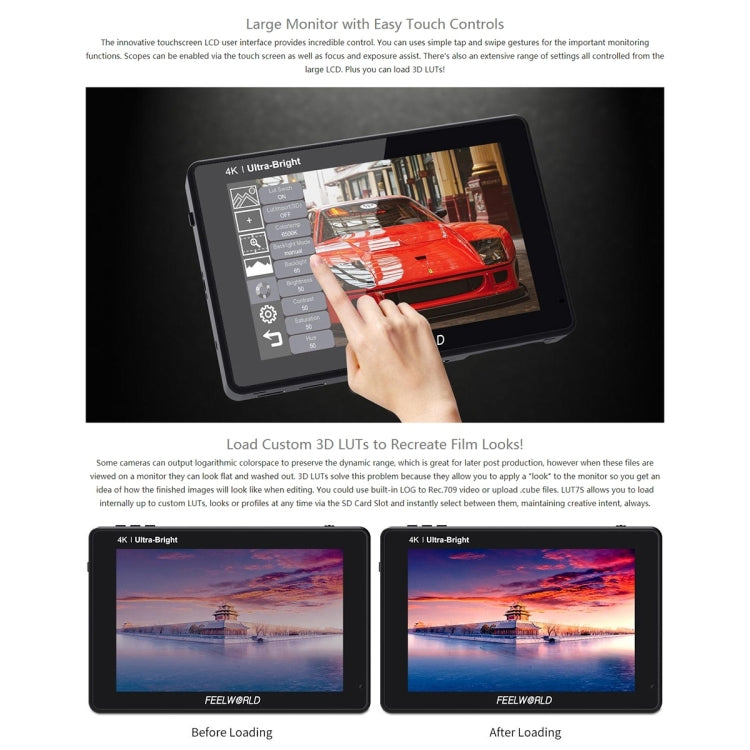

1. With a complete set of tools with simple operation and professional functions, all operations can be completed with one touch. Video assistance functions include focusing, composition and exposure tools (waveform, vector diagram, RGB histogram, brightness histogram, audio column, peak focus, zoom, zebra pattern, pseudo color, safety frame, etc.) and a flexible 3D LUT loading Tools (either using the built-in LUT or custom uploading .cube files) and anamorphic widescreen recovery function
2. It has a light sensor that can automatically adjust the screen brightness according to the ambient light. It ensures the readability of the screen in different environments and also protects your eye safety at all times. It will automatically increase the screen brightness under strong outdoor light, and automatically decrease the screen brightness in dark environments

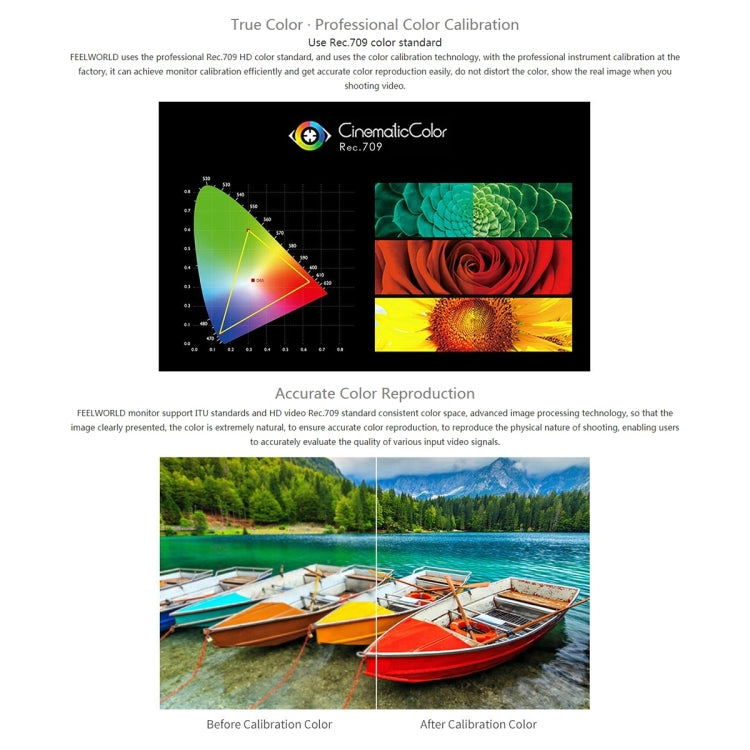

3. Support the color space that conforms to the ITU standard and the HD video Rec.709 specification. The advanced image processing technology allows the image to be displayed clearly, making the color excessively natural, ensuring accurate color reproduction, and reproducing the natural color of the shooting object. Users can accurately evaluate the quality of various input video signals

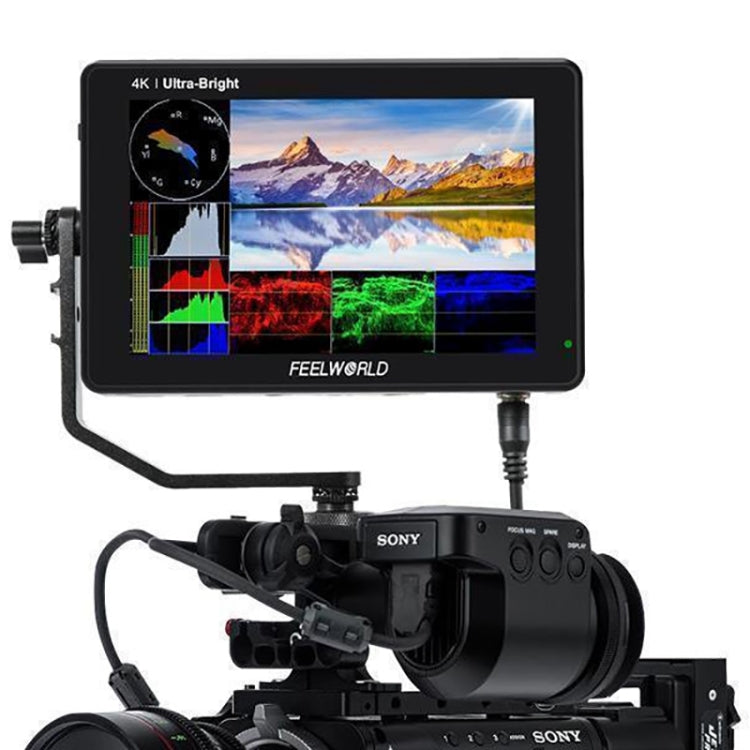

4. When you need to analyze the image quality more accurately, instead of simply watching the screen, you can use the built-in waveform monitoring function of LUT7S! You can choose waveforms (RGB/ YUV/ Y), vector diagrams, RGB histograms, brightness histograms, and audio phase and level displays, perform broadcast-level precision waveform monitoring, and get everything you need to know about professional video and audio signals Information and functions can be opened individually, and full waveform mode can also be opened with one key

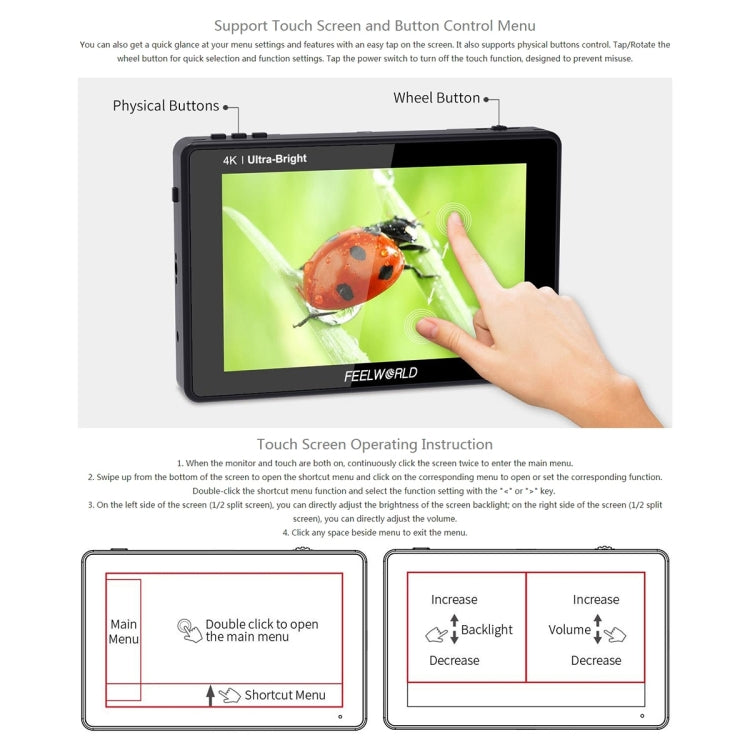

5. You can use two-finger zoom gestures to easily and intuitively zoom in and out of the shooting screen. You can also quickly browse the menu settings and functions by simply tapping the screen. Also supports physical button control menu. Quick selection and function setting can be realized by clicking/rotating the wheel button. Tap the power switch to turn off the touch function, thoughtful design to prevent misoperation

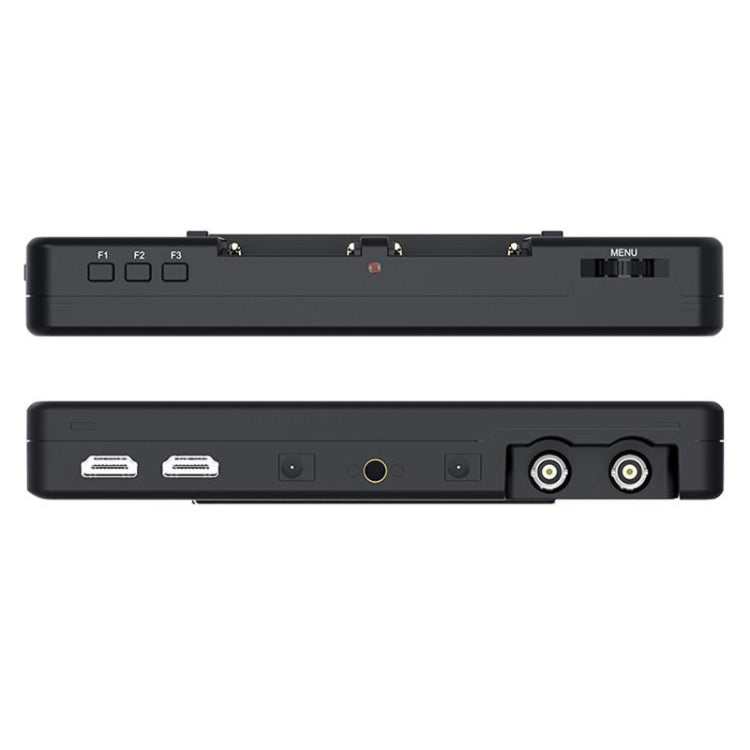

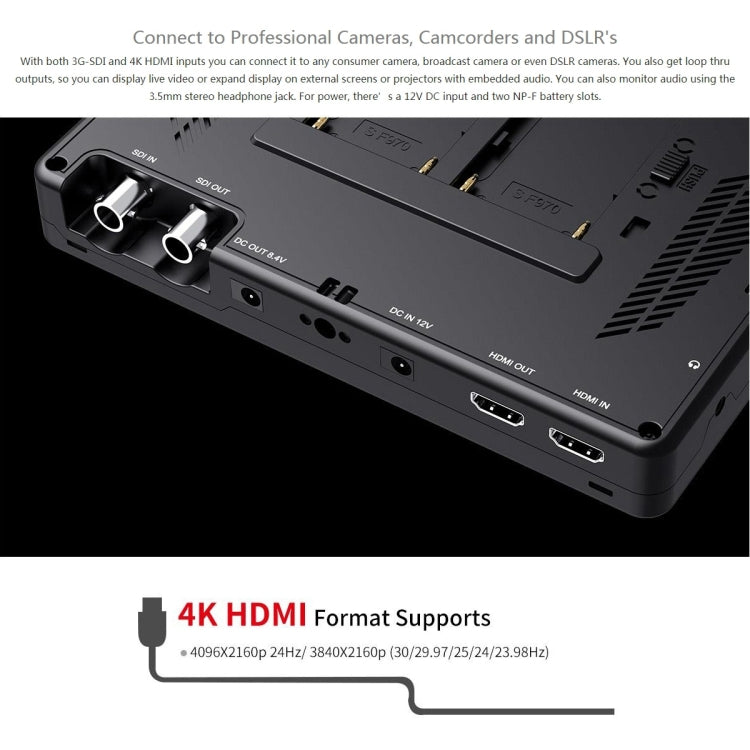

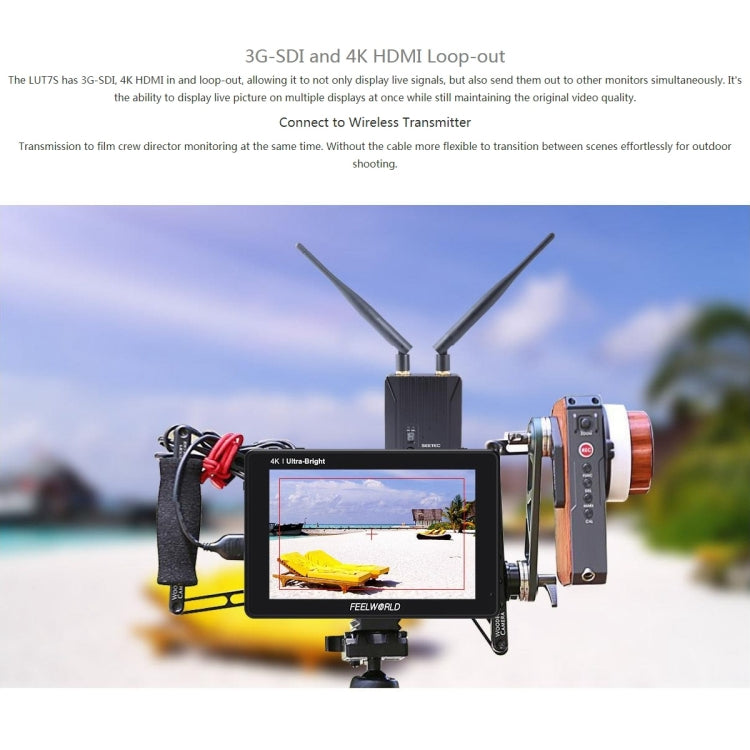

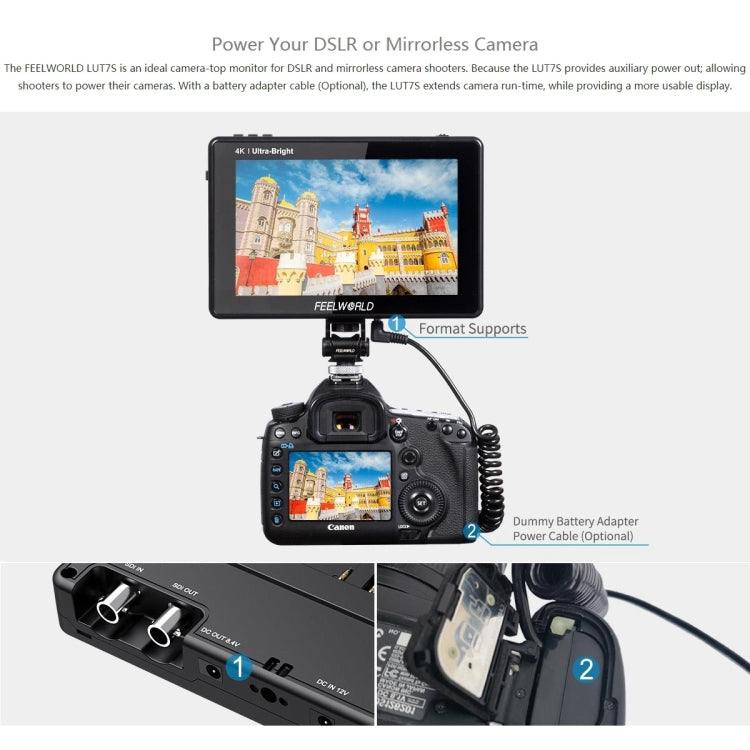

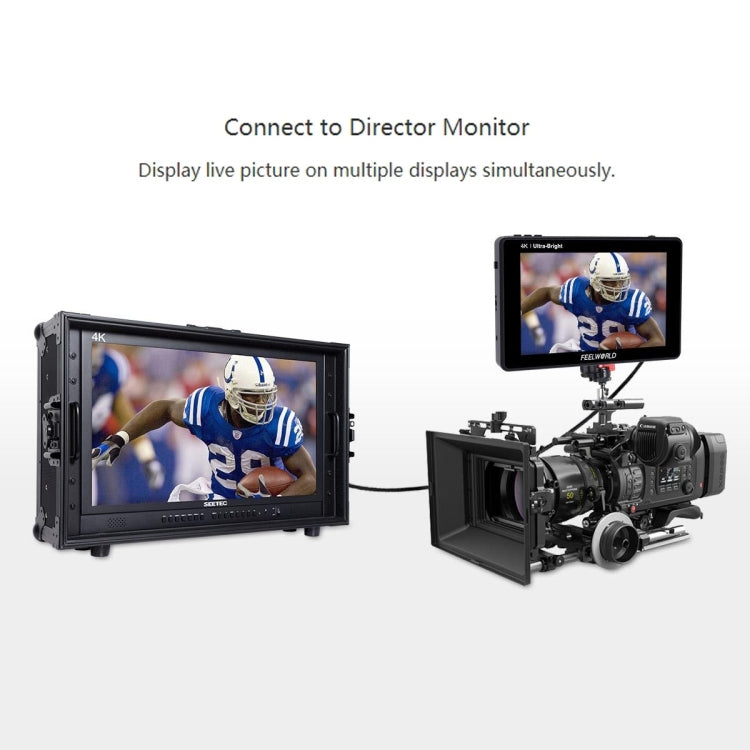

6. Through the monitor 3G-SDI and 4K HDMI inputs, it can connect to various consumer cameras, broadcast cameras and even digital SLRs. You can use its loop-through output interface to display live video or external display extensions and clips on the projector, with embedded audio. In addition, you can also monitor audio through the 3.5mm stereo headphone jack or the front panel built-in speakers

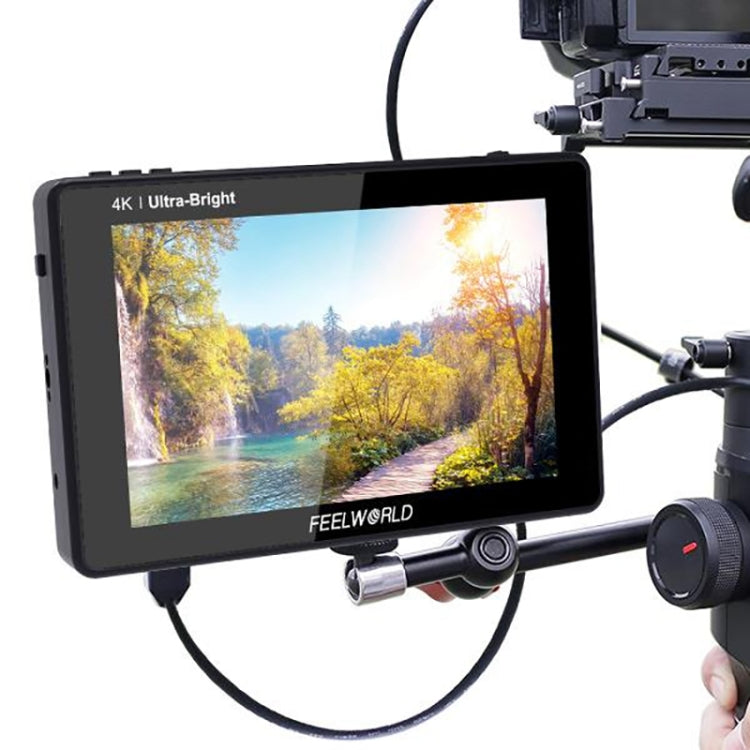

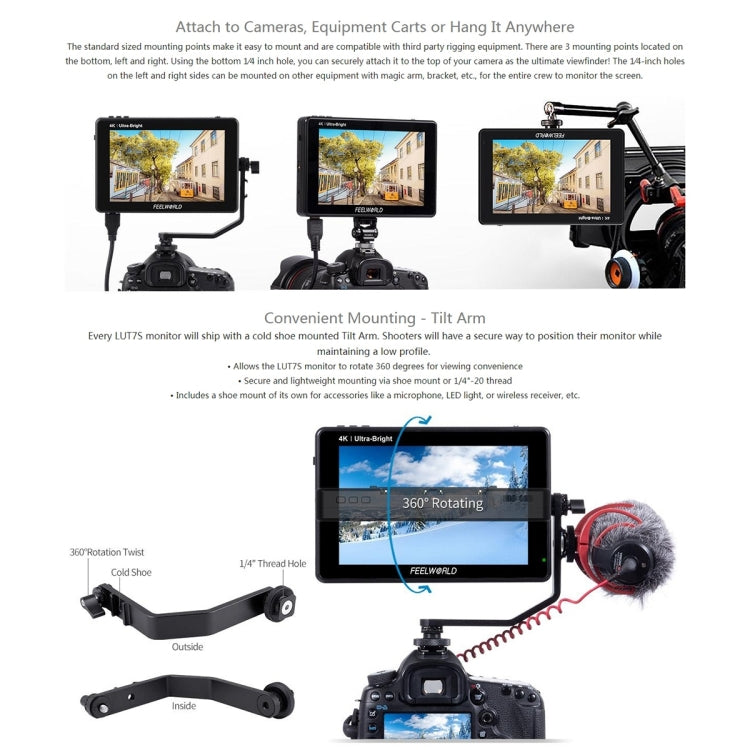

7. Its bottom and left and right sides are respectively equipped with installation points. Through the 1/4 inch mounting hole at the bottom, you can firmly mount it on the top of the camera as an ideal viewfinder! The 1/4-inch mounting holes on the left and right sides can be installed on other equipment with strange hands, brackets, etc., so as to assist the entire crew to monitor the screen
8. Dot pitch: 0.07875(H)x0.07875(W)(mm)
9. Screen ratio: 16:10

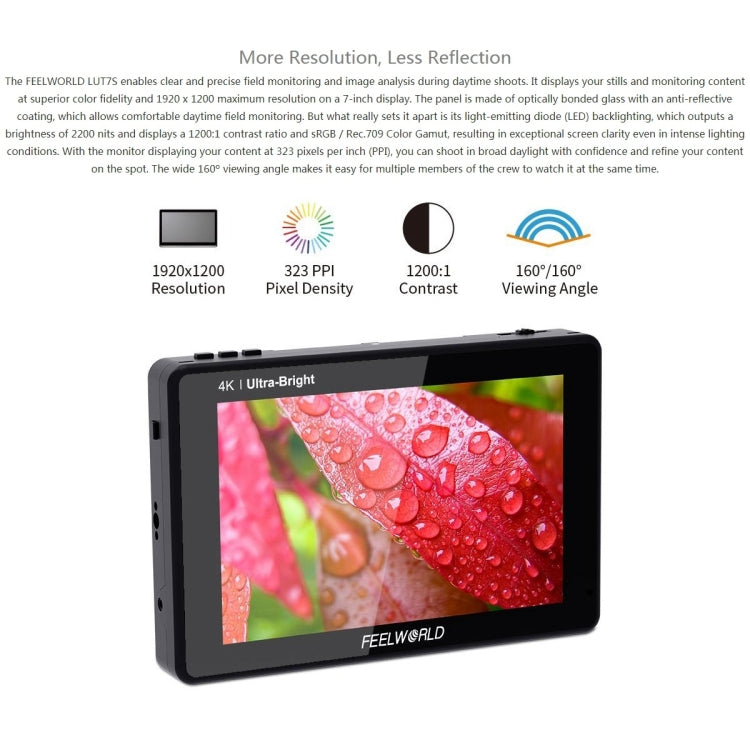

10. Brightness: 2200cd/square meter (light sensor)
11. Contrast ratio: 1200:1
12. Input signal: SDI, HDMI, output signal: SDI, HDMI, DC, headphone jack, speaker

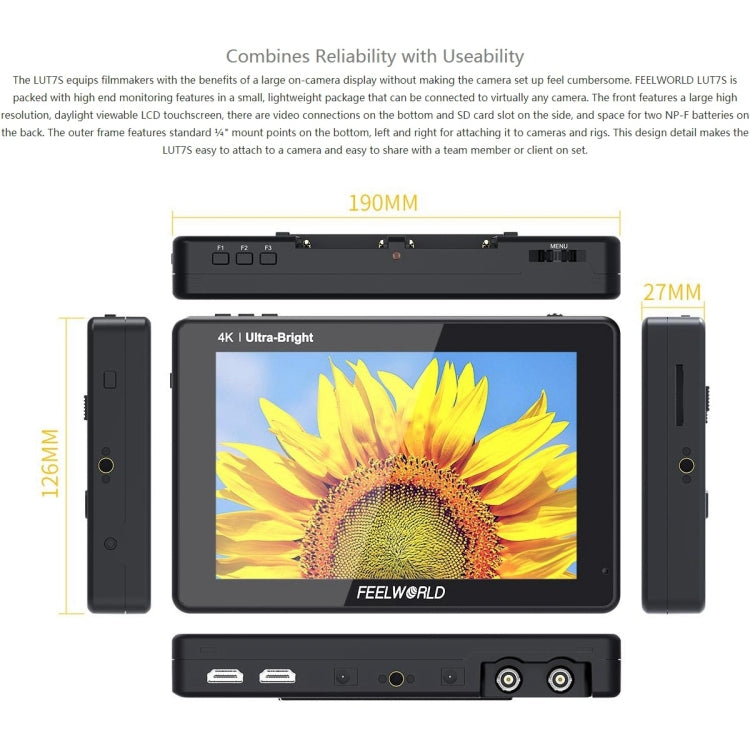

13. Dimensions: 190x126x27 (mm)
14. Accessories: 1*HDMI, 1 point 2 lines, 1* tilt bracket, 1* manual
