Features

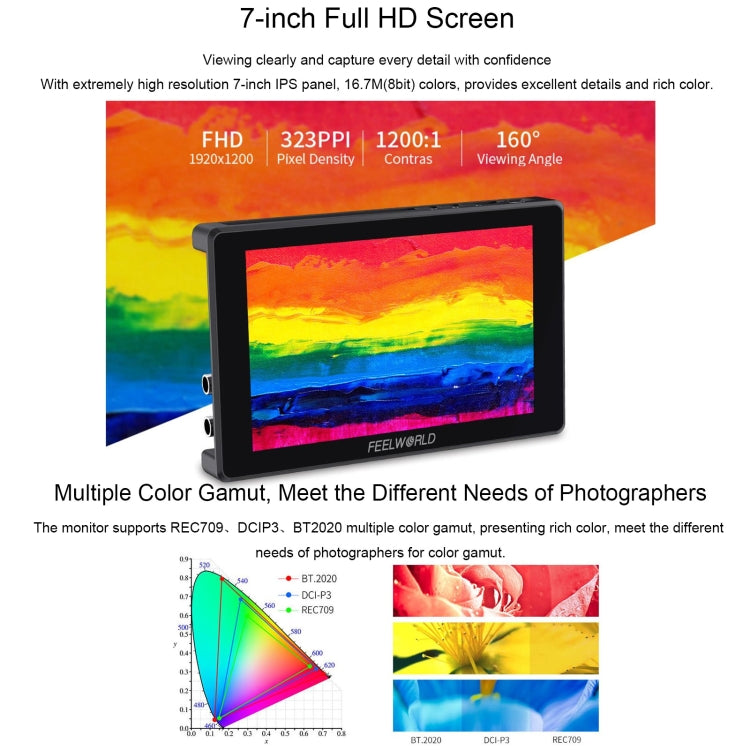

1. 7-inch 1920x1200 full HD IPS screen

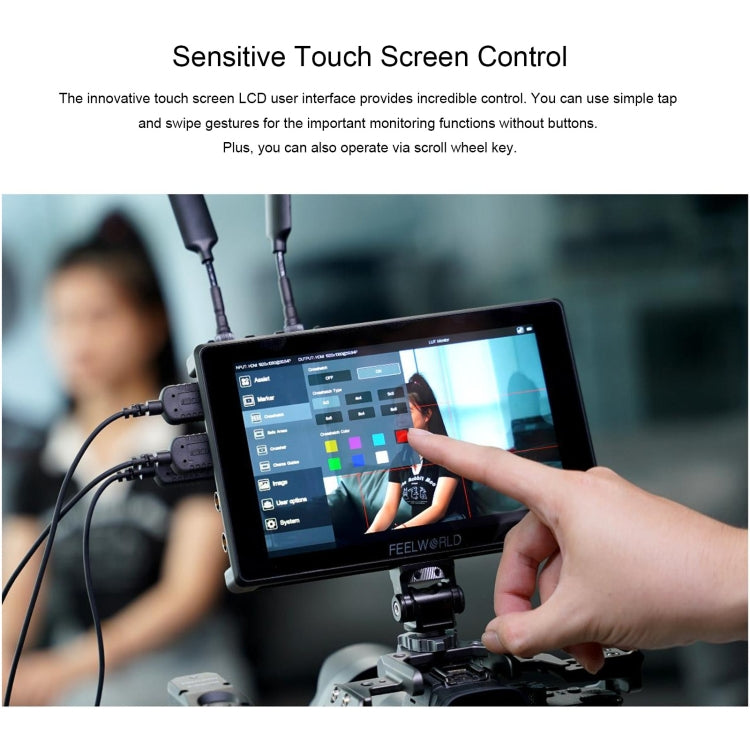

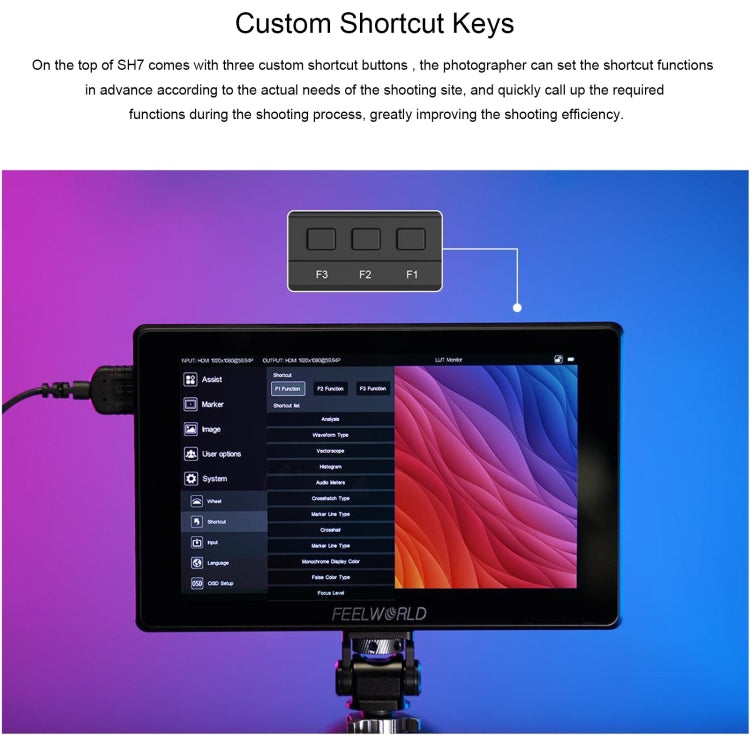

2. Touch screen menu operation, improve shooting efficiency

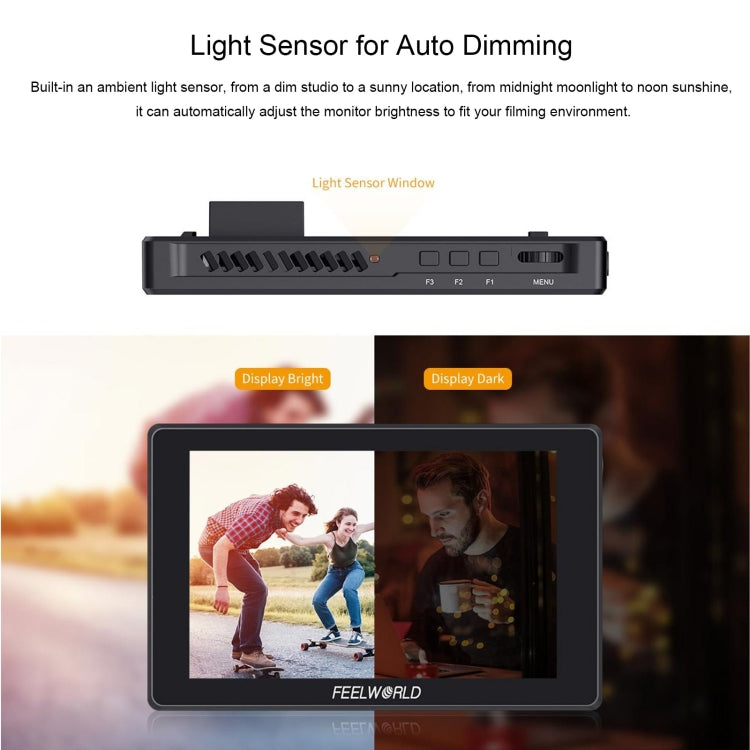

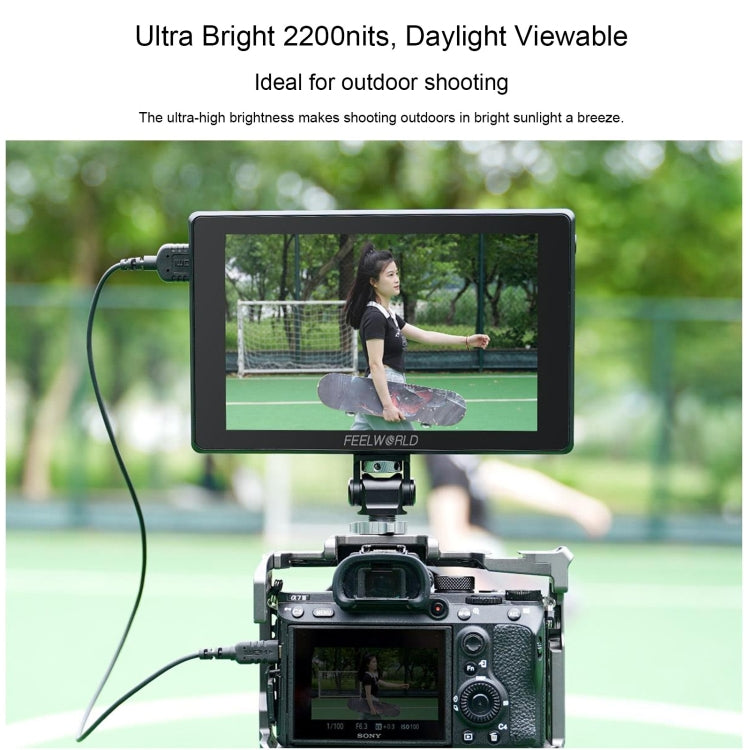

3. 2200nits daylight viewable (Light Sensor)

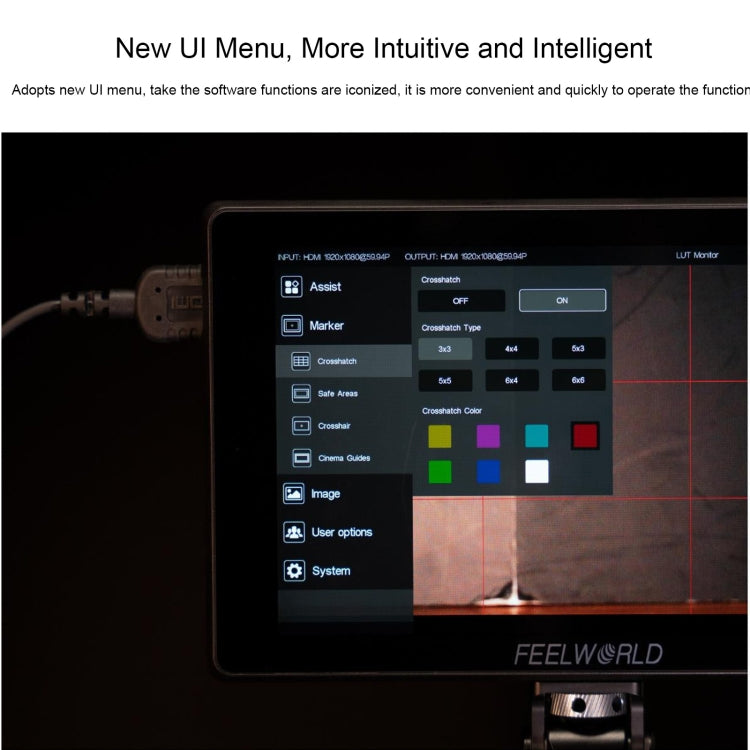

4. New menu interface, more intuitive and intelligent

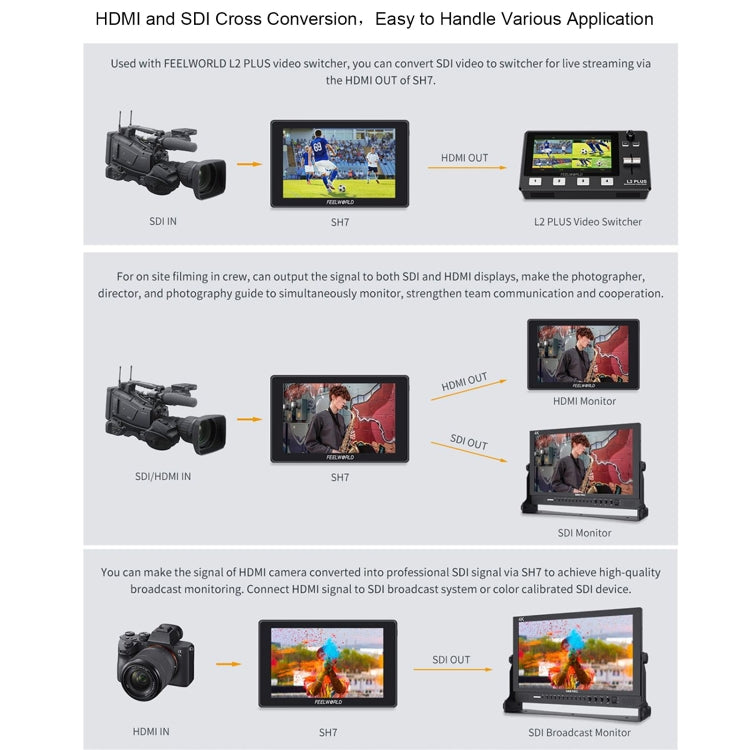

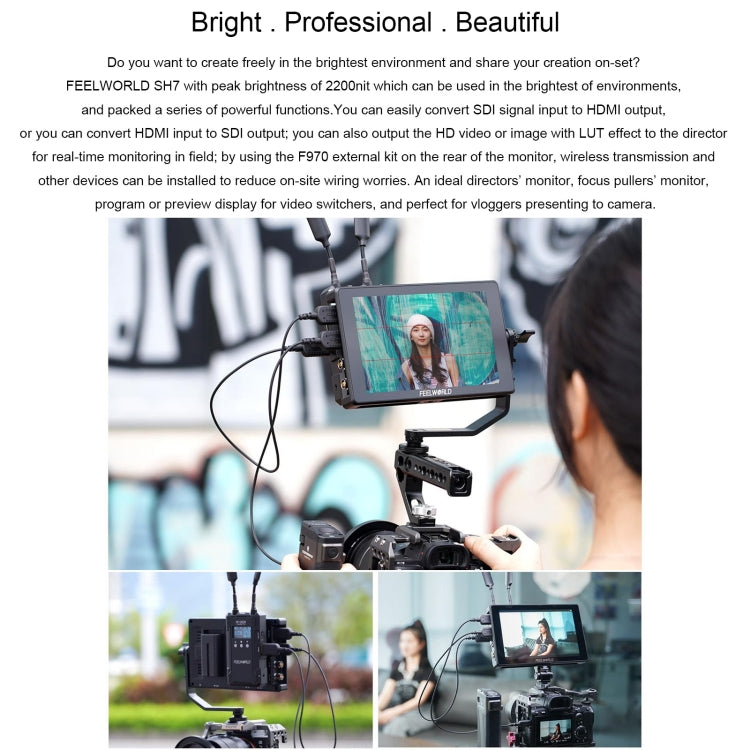

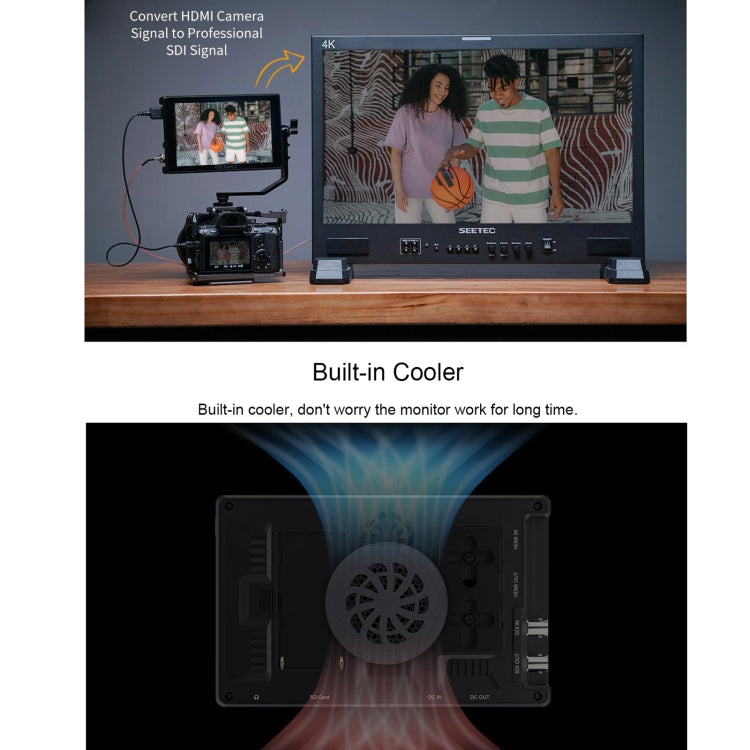

5. With SDI & HD-MI cross conversion

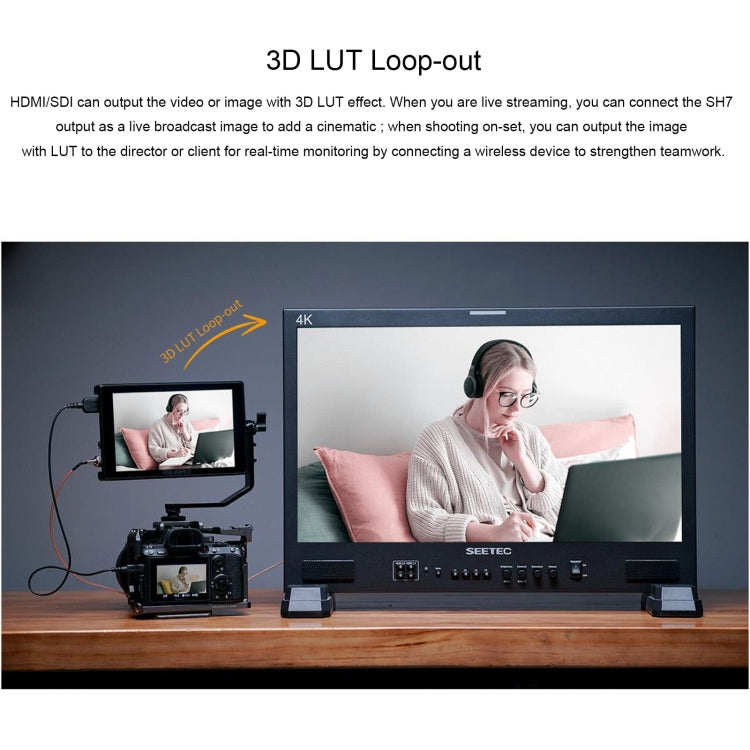

6. Both HD-MI and SDI support LUT loop-out

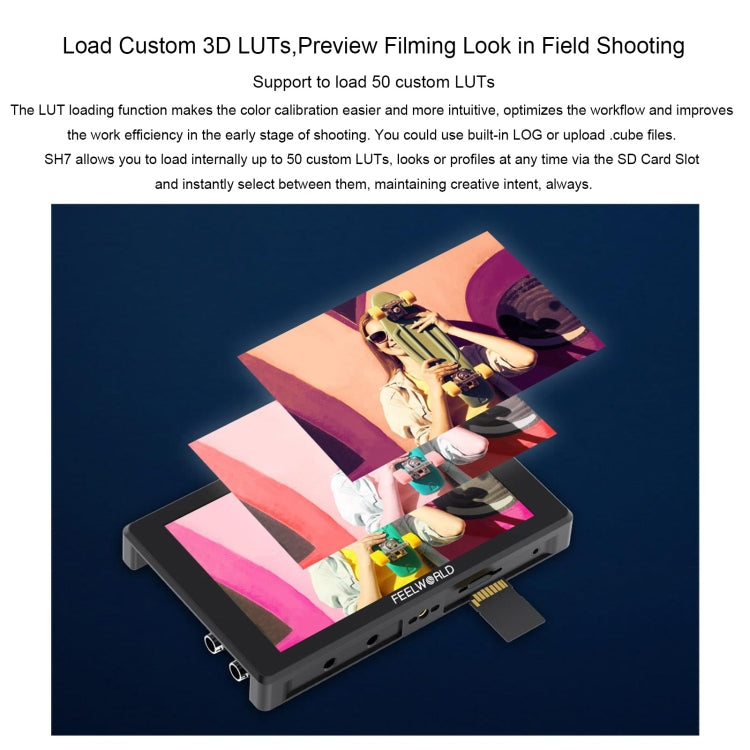

7. Support 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)

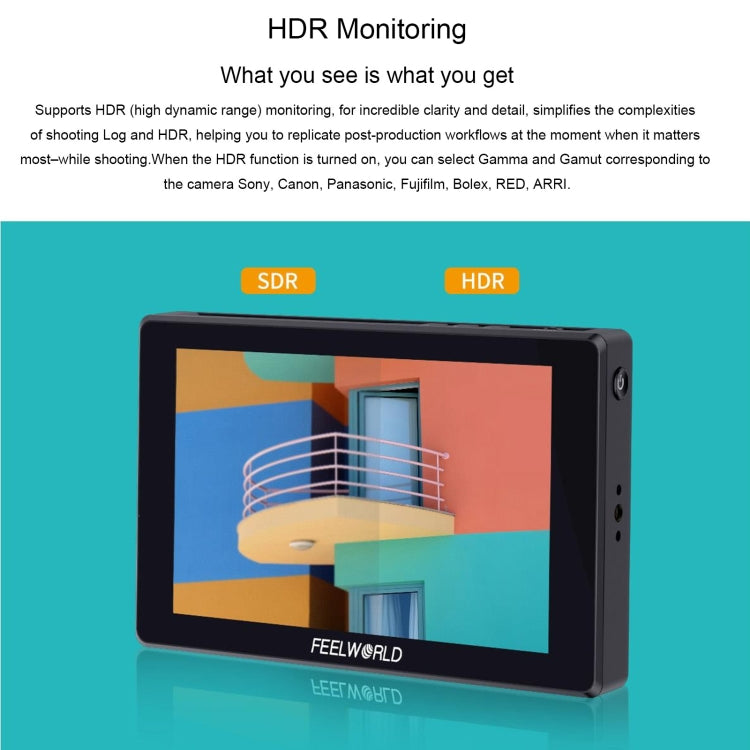

8. HDR monitoring, what you see is what you get

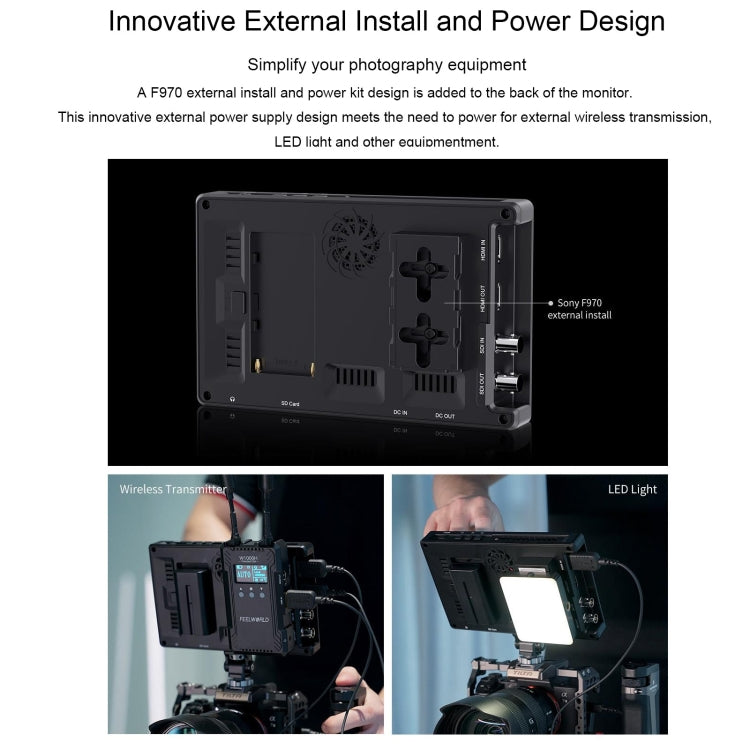

9. F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment.

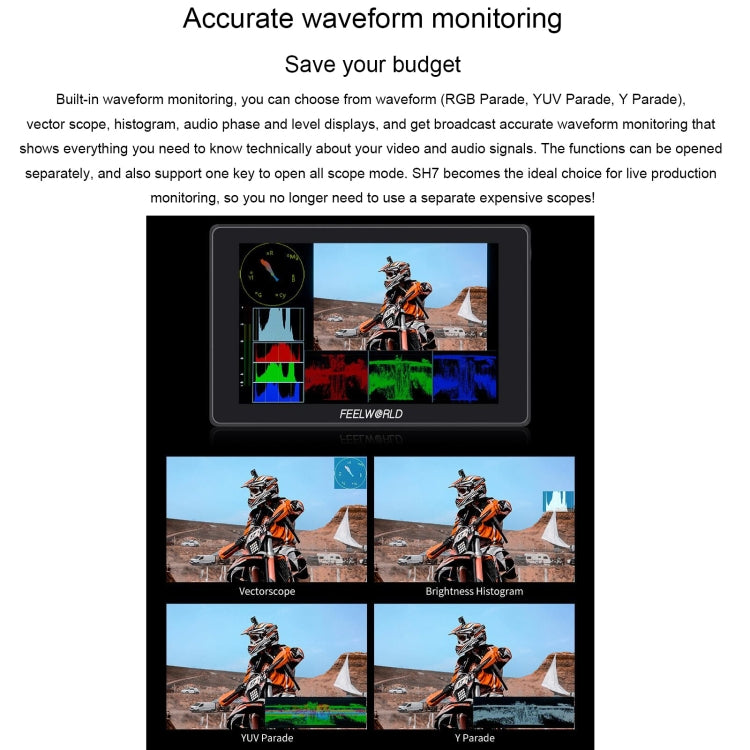

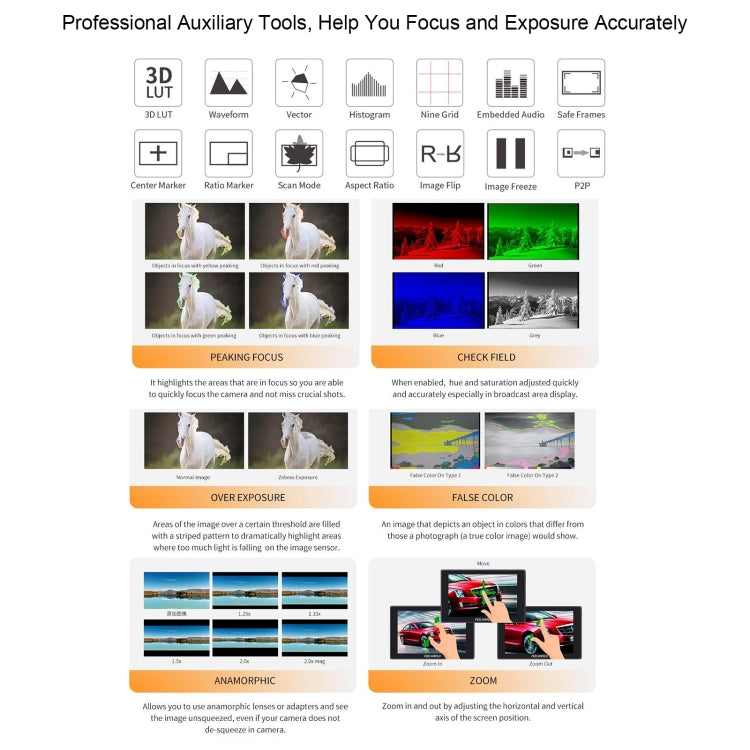

10. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot.

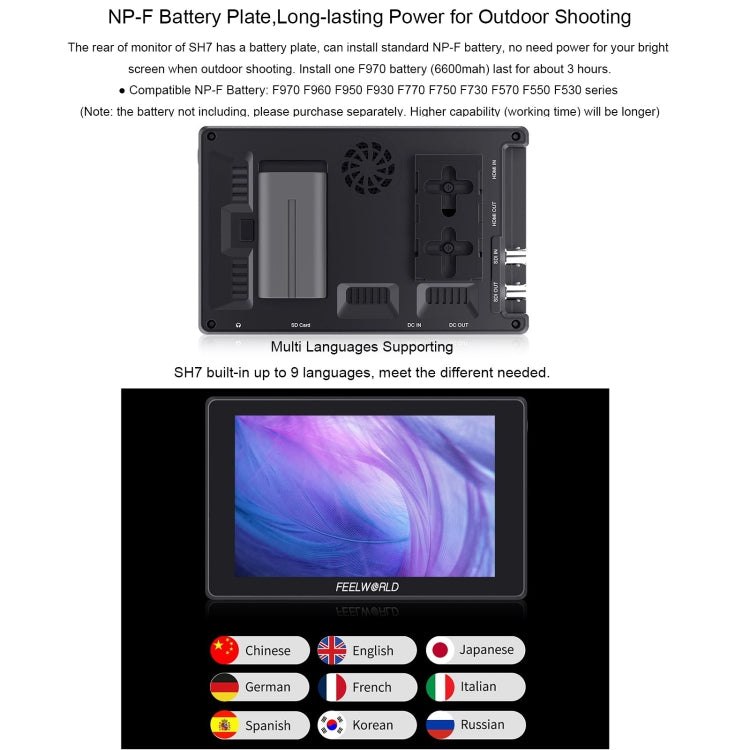

11. Flexible power supply DC IN 12V and NP-F battery slot, meet the different selection.
12. Stereo Earphone output

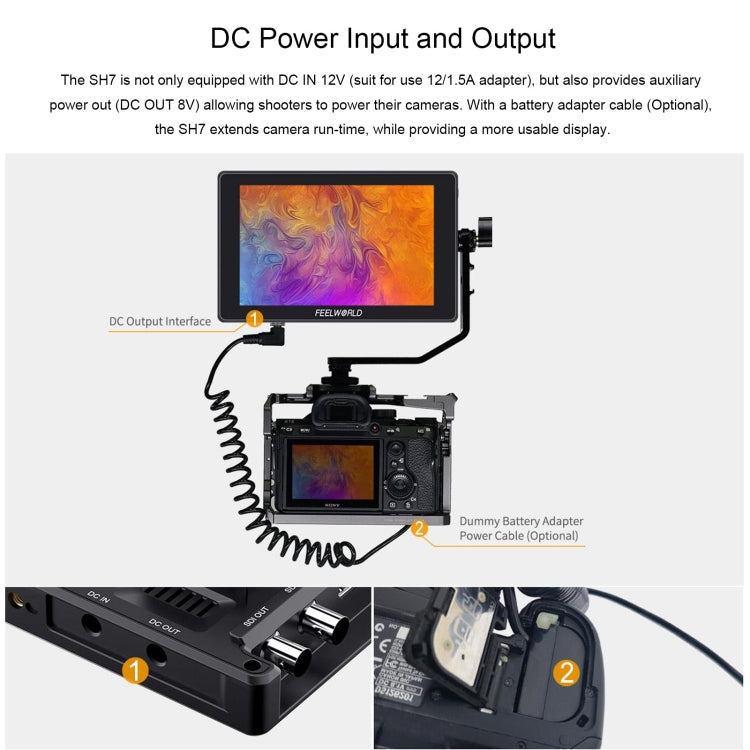

13. DC 8V power out to power your DSLR camera or mirrorless camera
Specifications
Display Spec.:
1. Model: SH7
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875(V) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 2200cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

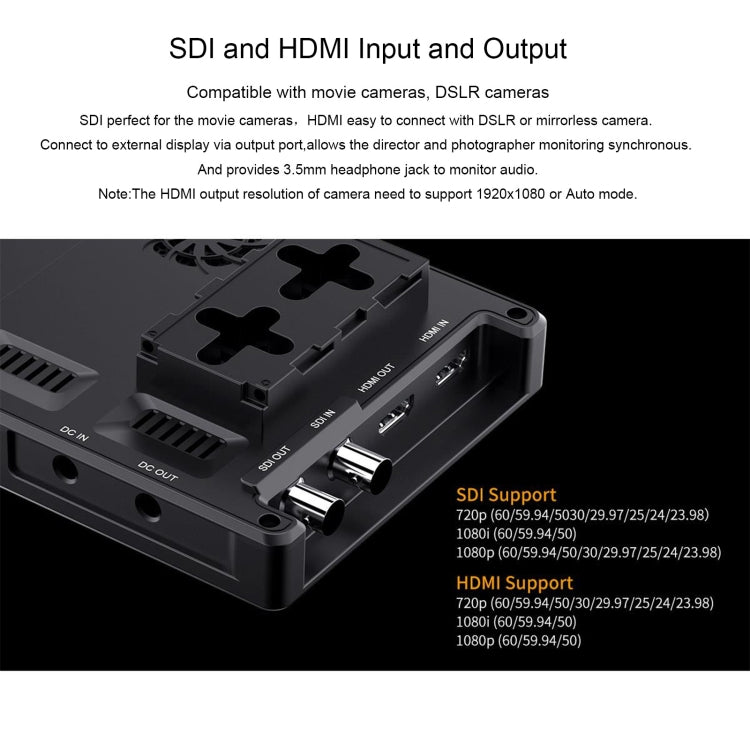

Input:
1. 1 X SDI: 3G-SDI
2. 1 X HD-MI: HD-MI 2.0
3. 1 X SD Card: SD Card Slot (LUT files and firmware update file import)
Output:
1. 1 X SDI: 3G-SDI
2. 1 X HD-MI: HD-MI1.3
3. 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Media:
1. Audio: 3.5mm Stereo Headphone
2. SDI Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50),1080p (60/59.94/50/30/29.97/25/24/23.98)
3. HDMI Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 15W

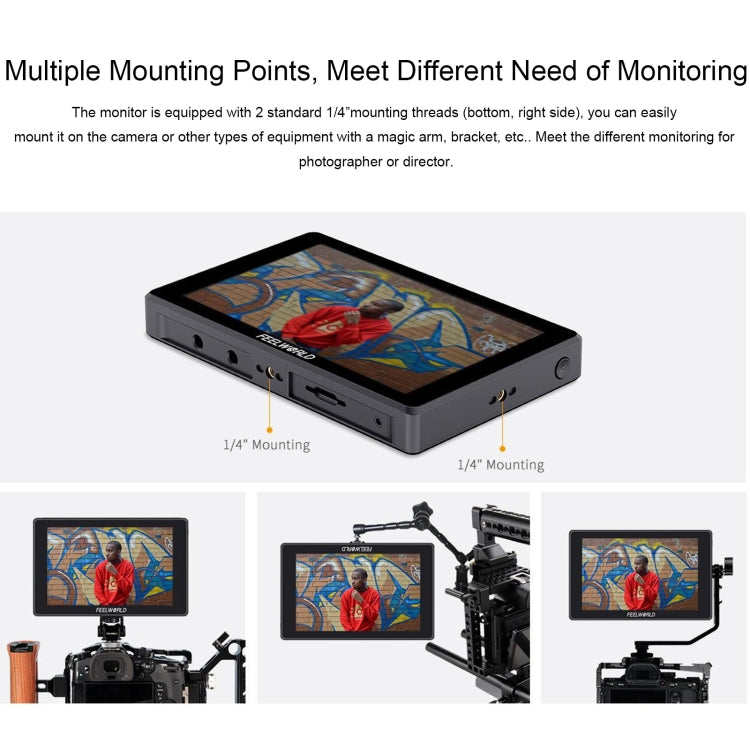

3. Install Way: 1/4 inch-20 Thread ( Right,Bottom)
4. Size: 186.8Lx118Hx23D(mm)
5. Weight: 420g
Package List
1. Monitor x 1
2. Mini/Micro HD-MI to HD-MI Cable x 1

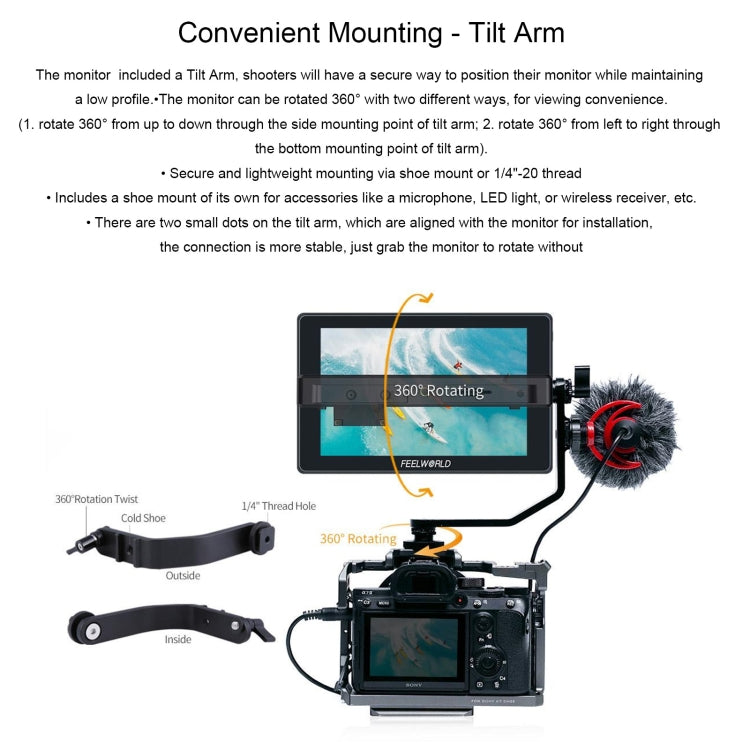

3. Tilt Arm x 1
4. Disassemble Wrench x 1
5. Manual x 1
