Display Spec.
1. Model: T6

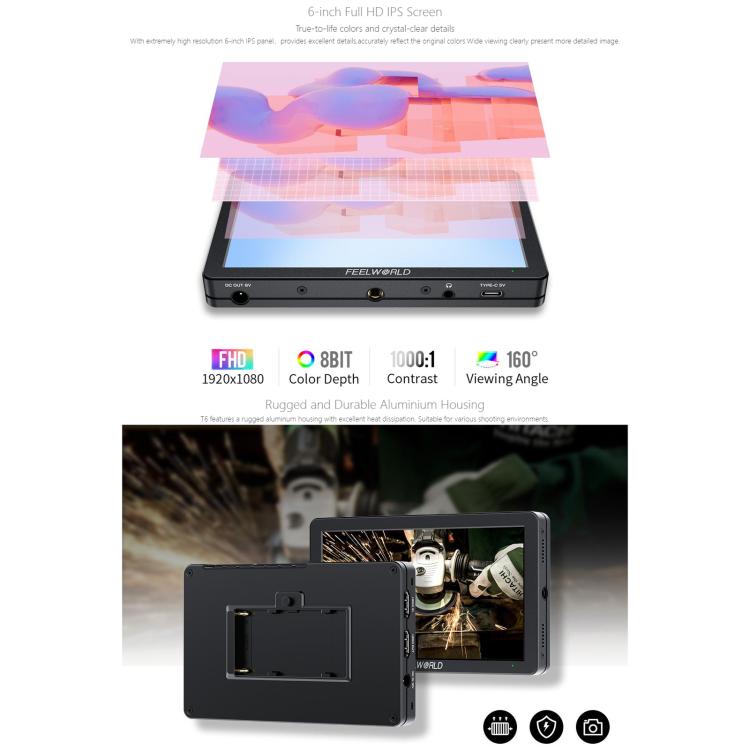

2. Screen Size: 6 inch IPS
3. Resolution: 1920 x 1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (V) (mm)
5. Color Depth: 8bit
6. Aspect Ratio: 16:9
7. Brightness: 450cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 80 degree/80 degree(L/R) 80 degree/80 degree(U/D)

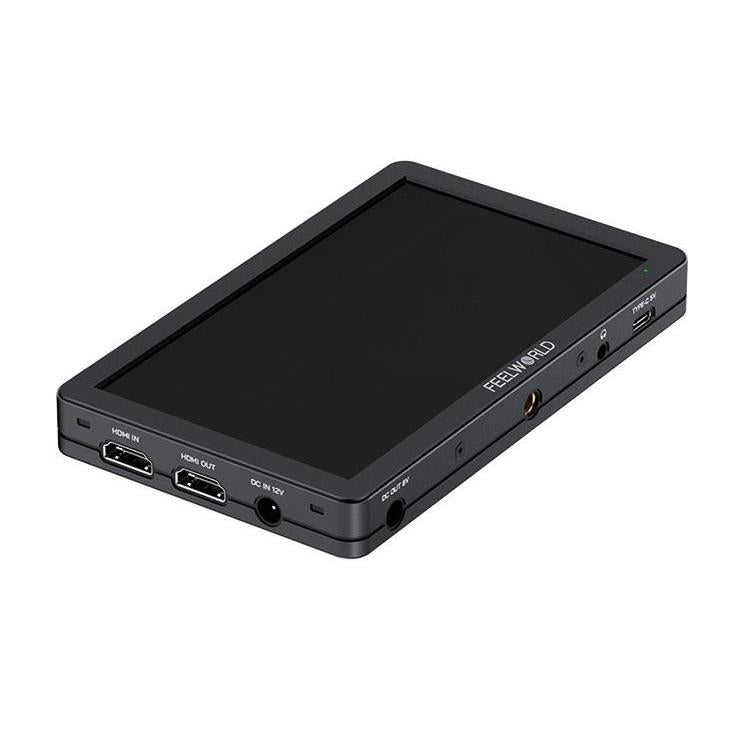

Signal Input
1 x HDMI-compatible: HDMI-compatible 2.0
Signal Output
1 x HDMI-compatible: HDMI-compatible 2.0
Audio
Audio: 3.5mm Stereo Headphone

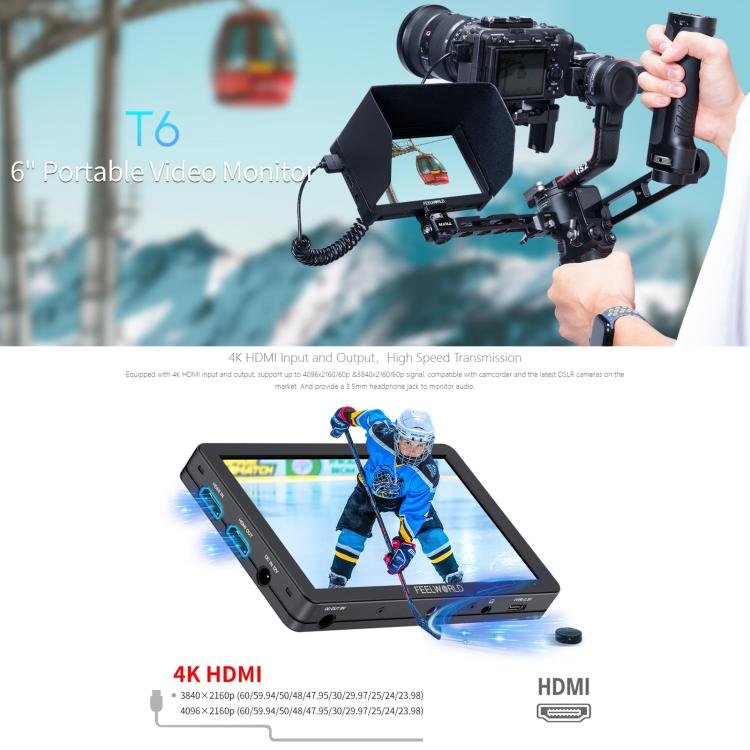

HDMI Input and Output Support Format
1. 480i/576i/480p/576p
2. 720p (60/59.94/50/30/29.97/25/24/23.98)
3. 1080i (60/59.94/50)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)
General

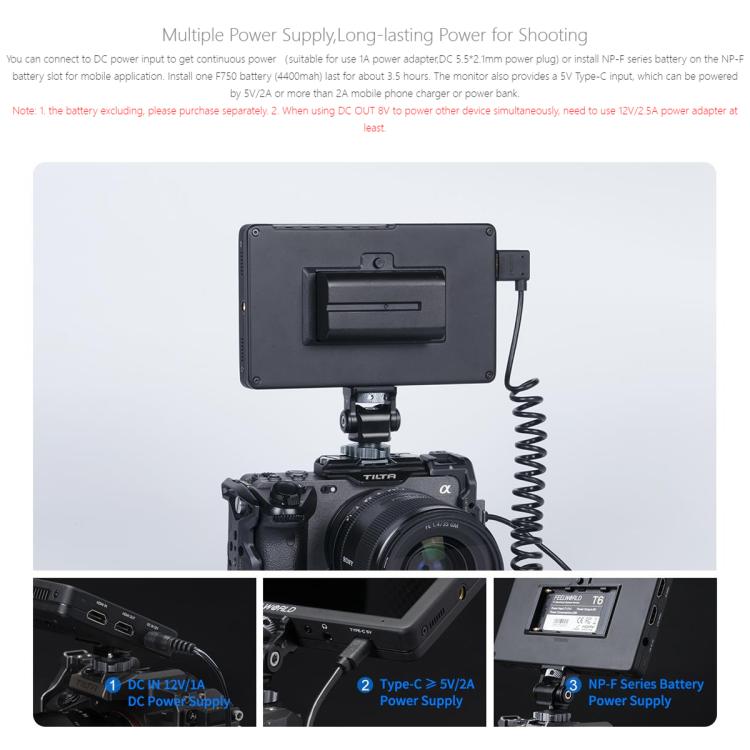

1. Power Input: DC IN 12V, Barrel (5.5mm outer, 2.1mm inner); Type-C 5V(please use 5V/2A or more than 2A Type-C power supply)

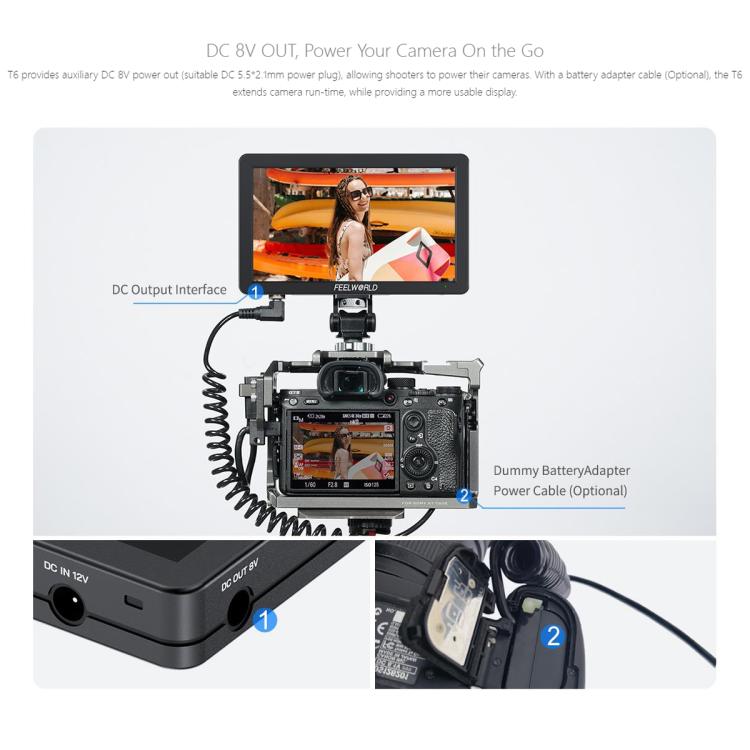

2. Power Output: DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner), can be power for DSLR or mirrorless camera
3. Power Consumption: Less than or equal to 9W
4. Working Temperature: -20 degreeC~50 degreeC
5. Storage Temperature: -30 degreeC~60 degreeC

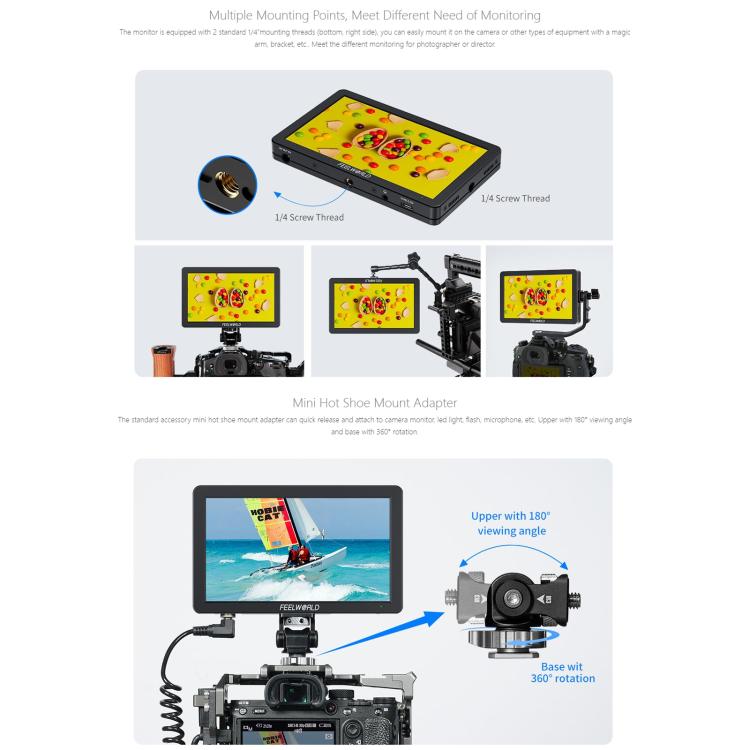

6. Install Way: 1/4-20 Thread Point (right side, bottom)

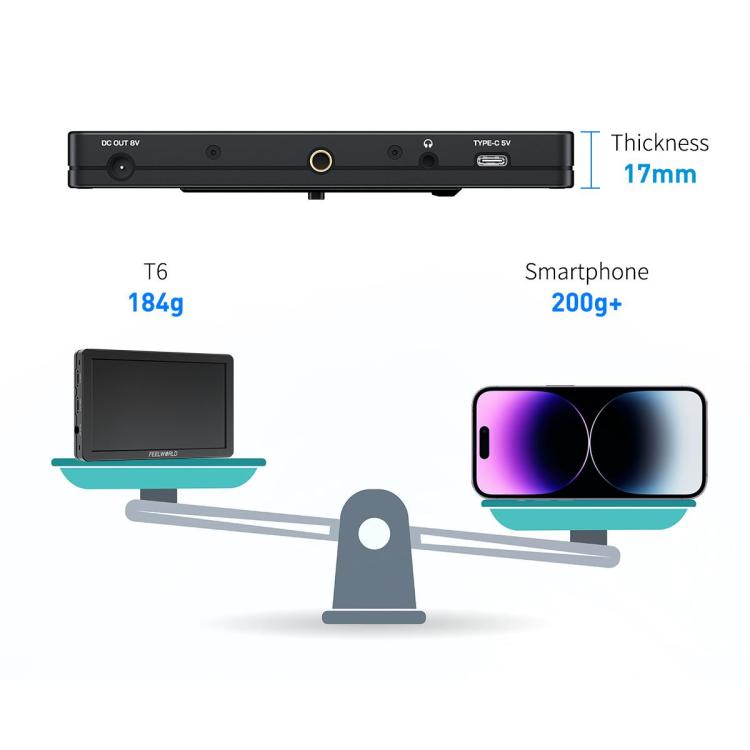

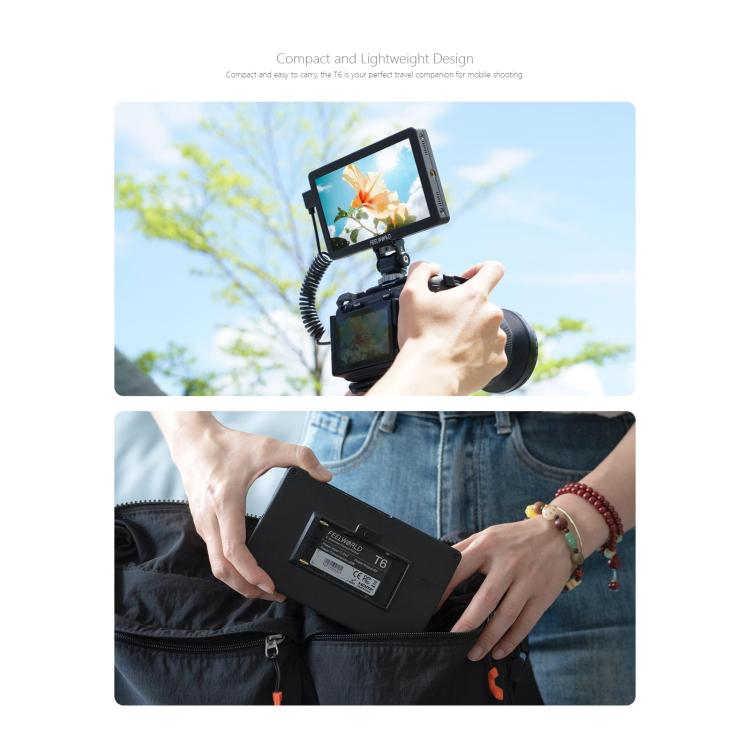

7. Unit Size: 151.8 x 92.8 x 17.1 (mm)
8. Unit Weight: 184g

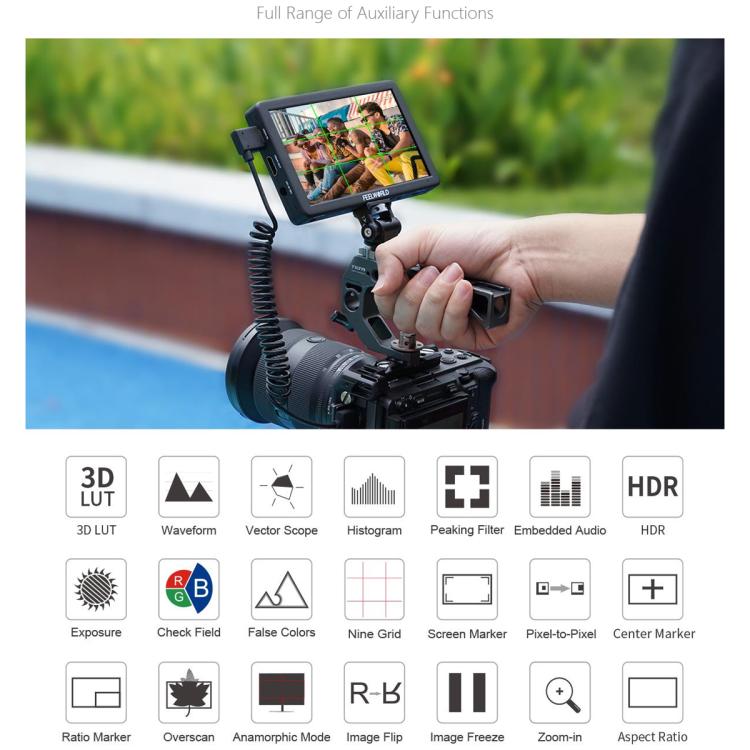

Advanced Features

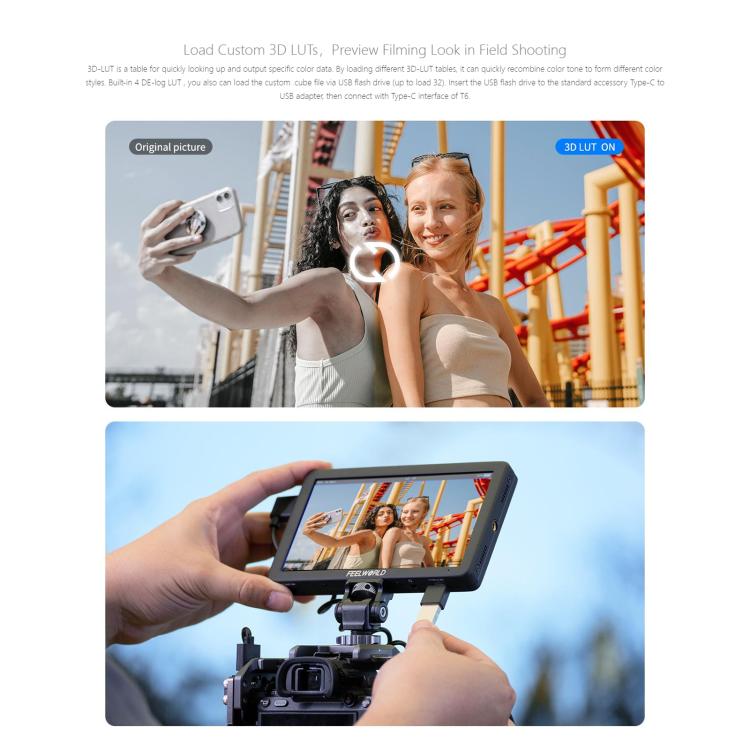

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

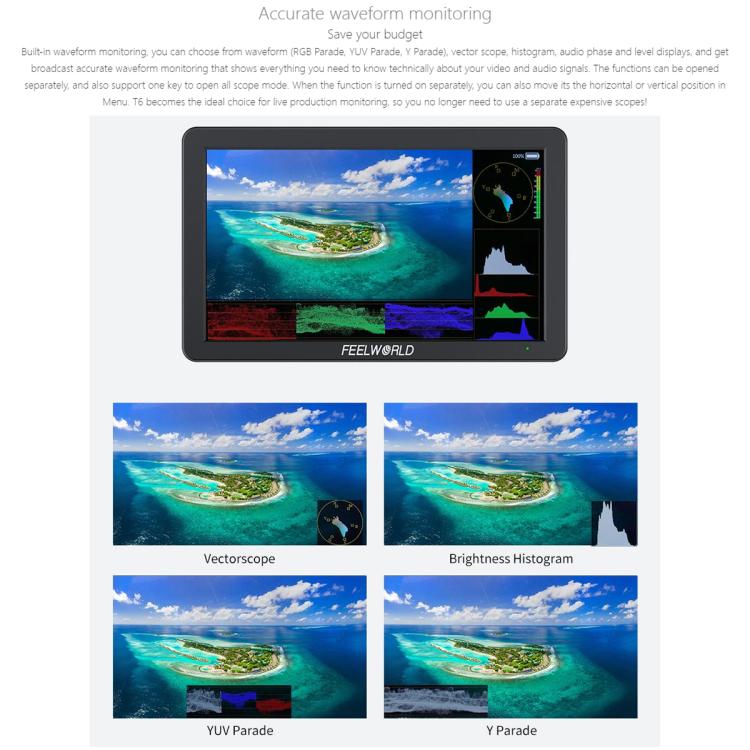

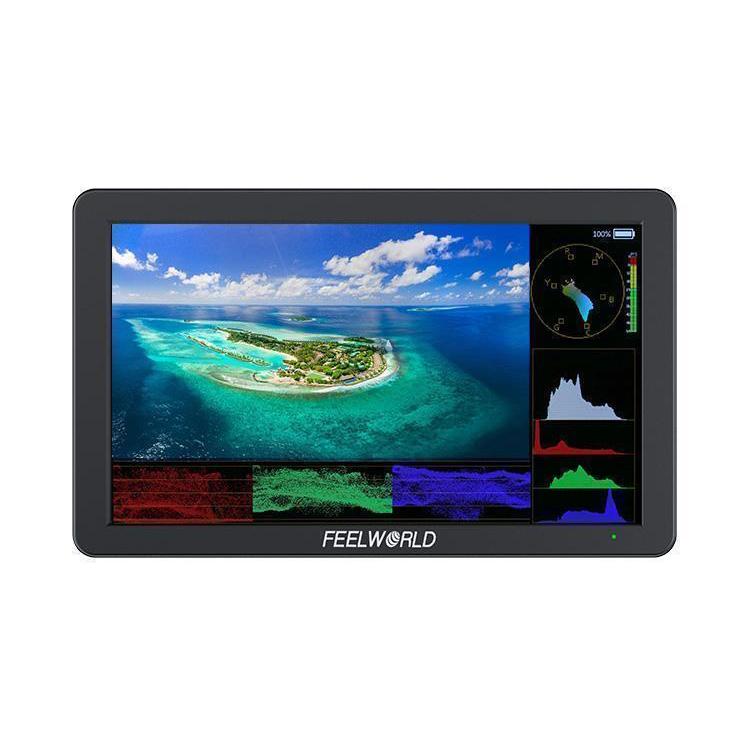

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB,Y )
6. Embedded Audio

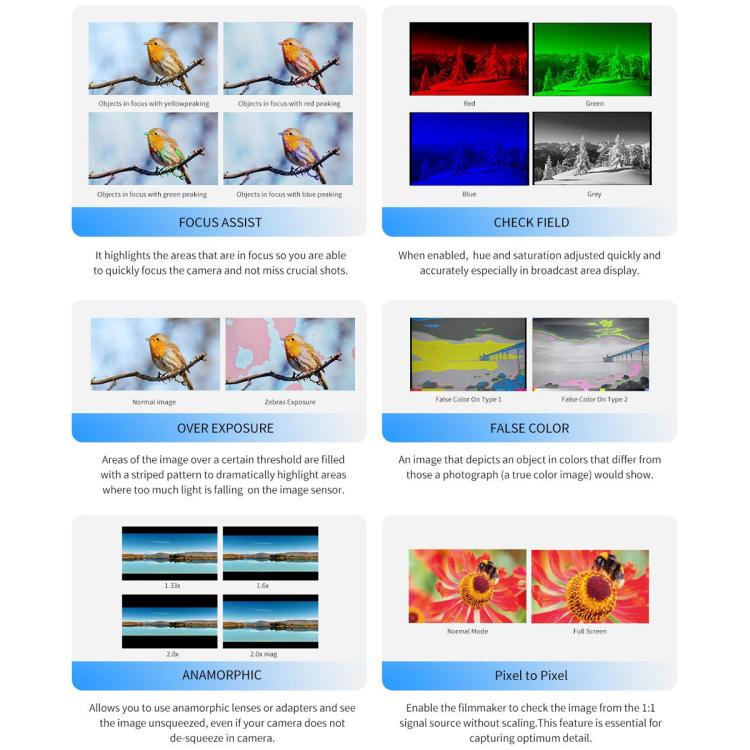

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE～100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

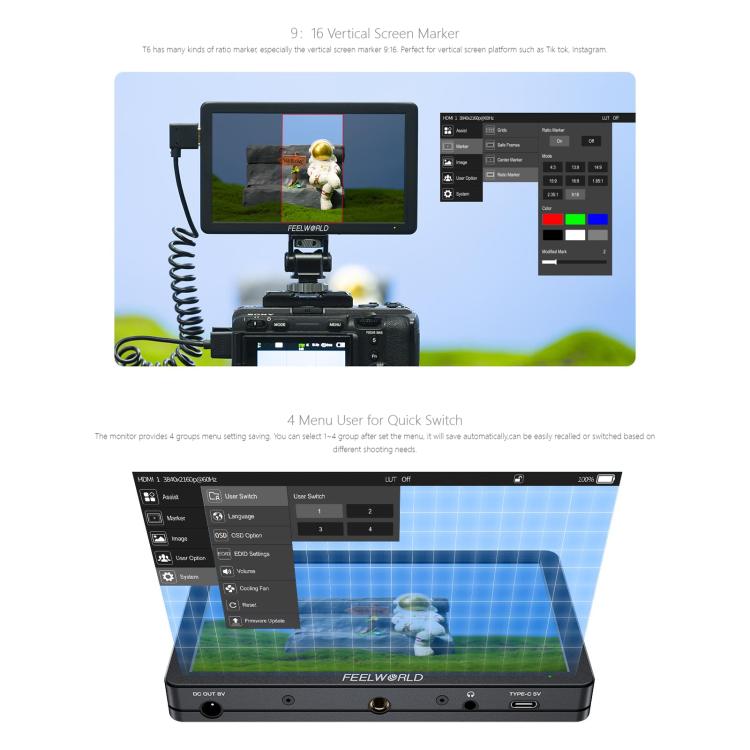

18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
21. Zoom Mode (2x, 4x, 9x, 16x, User. Under User, you can adjust 100%~200%)
22. Pixel to Pixel
23. Display Range( Auto, Limit, Full)
24. EDID Settings(2.0,1.4)
25. User Switch (1~4)
26. OSD Time(Off, 15Sec, 30Sec, 45Sec)
27. OSD Transparency (Off, 25%, 50%, 75%)
28. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
29. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)
Packaging List:
1. Monitor x 1
2. Micro HDMI-compatible Cable x 1
3. Mini Hot shoe mount + Hex Wrench x 1
4. USB-A to USB-C Adapter x 1

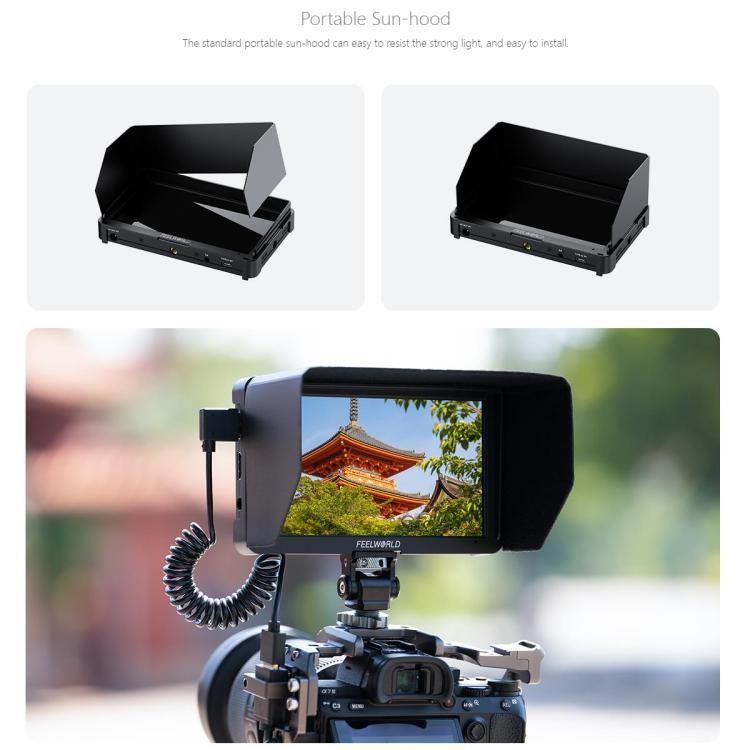

5. Sun Shade x 1
6. Manual x 1
