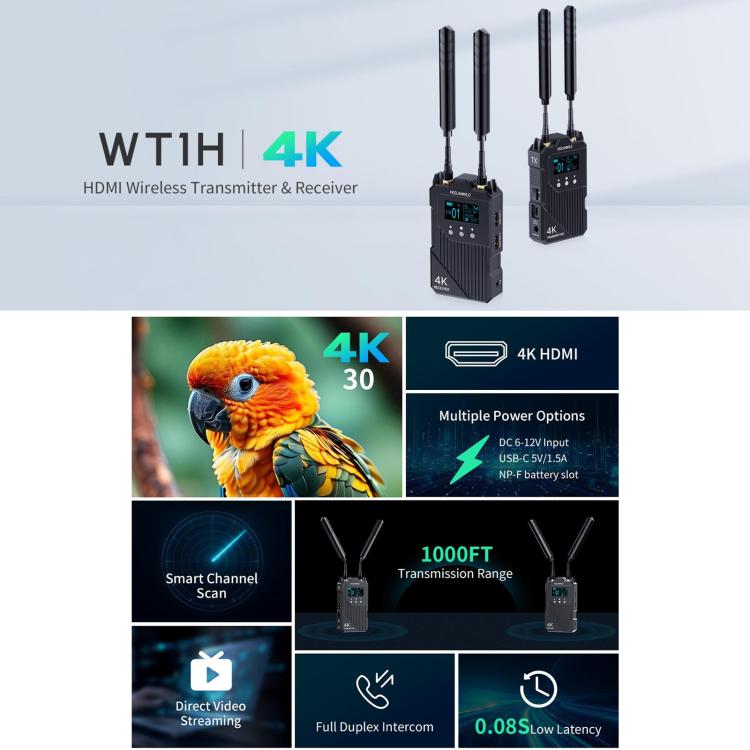

Features:

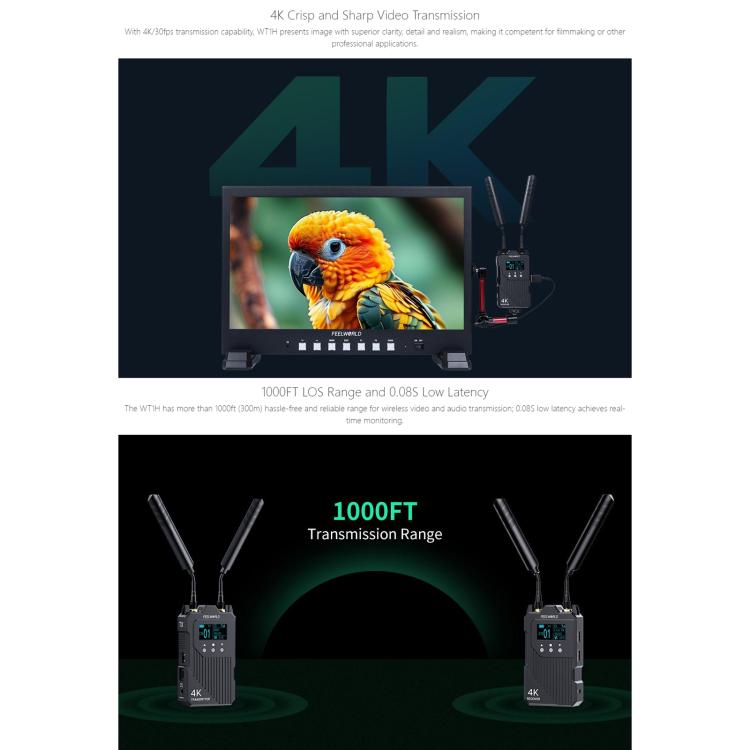

1. More than 1000ft transmission range with 0.08S ultra-low latency
2. Up to 4K 30Hz, present image with superior clarity, detail and realism
3. Wireless full-duplex talkback, real-time intercom between the director and the photographer

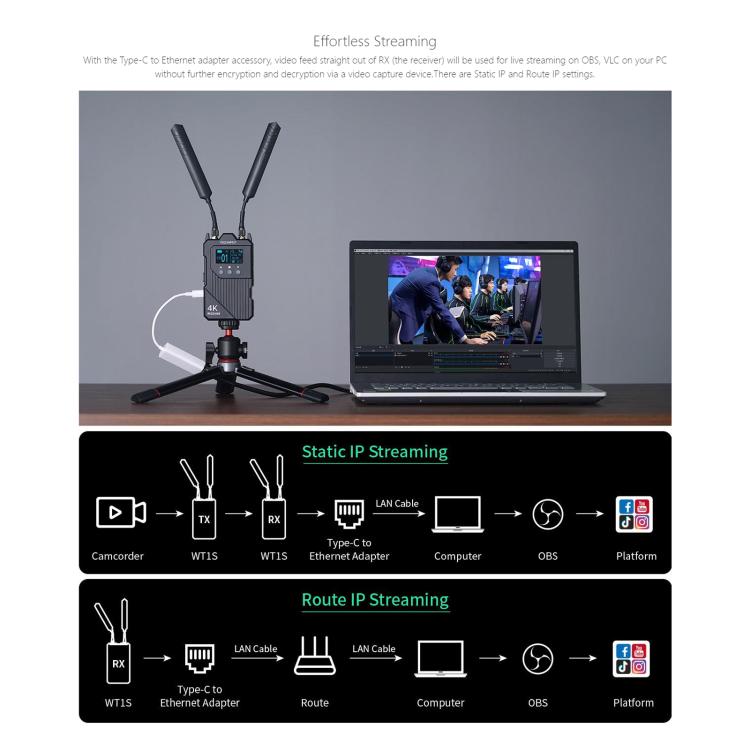

4. With type-C to Ethernet adapter accessory, achieve live streaming

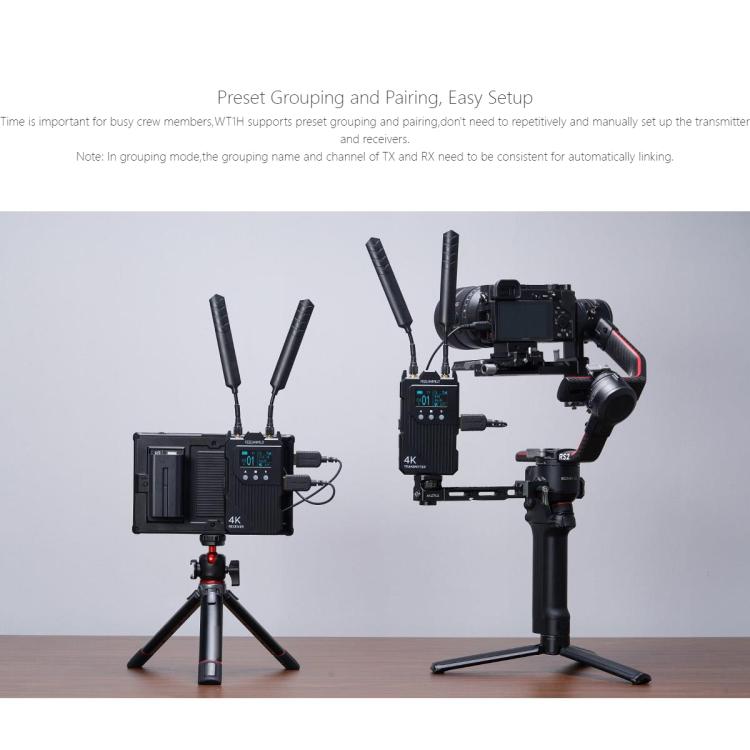

5. Under Grouping mode, TX and RX can be paired easily and quickly
6. The transmitter can be switched as a receiver at will
7. One TX to 4 RX, monitoring for everyone on set
8. Real-time APP monitoring and recording for Android/iOS system

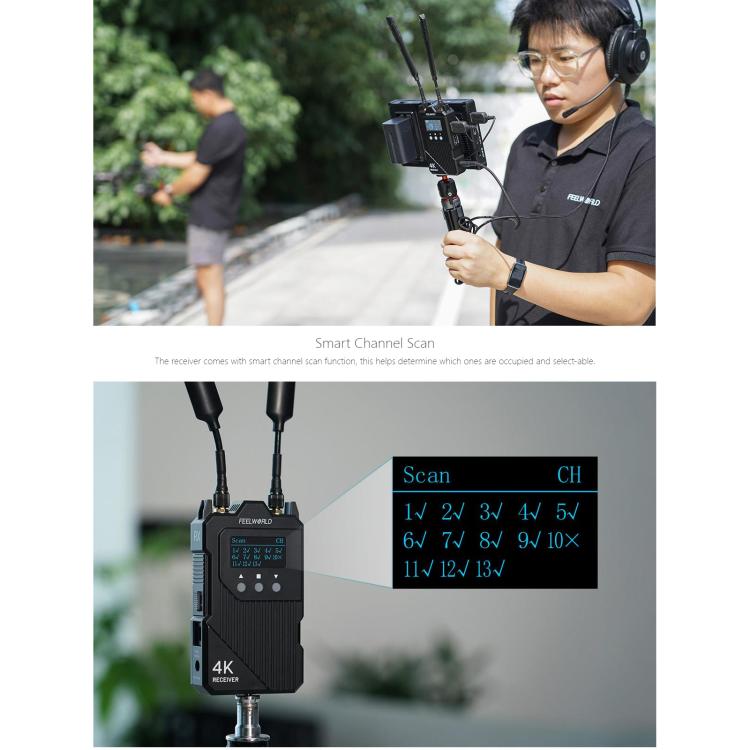

9. 13 frequency channels, AUTO channel scan
Specification:

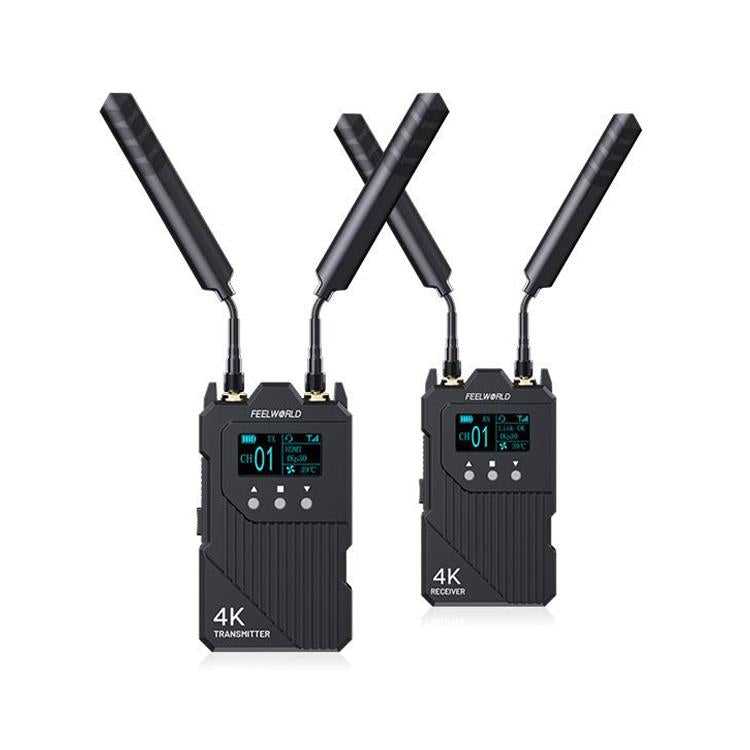

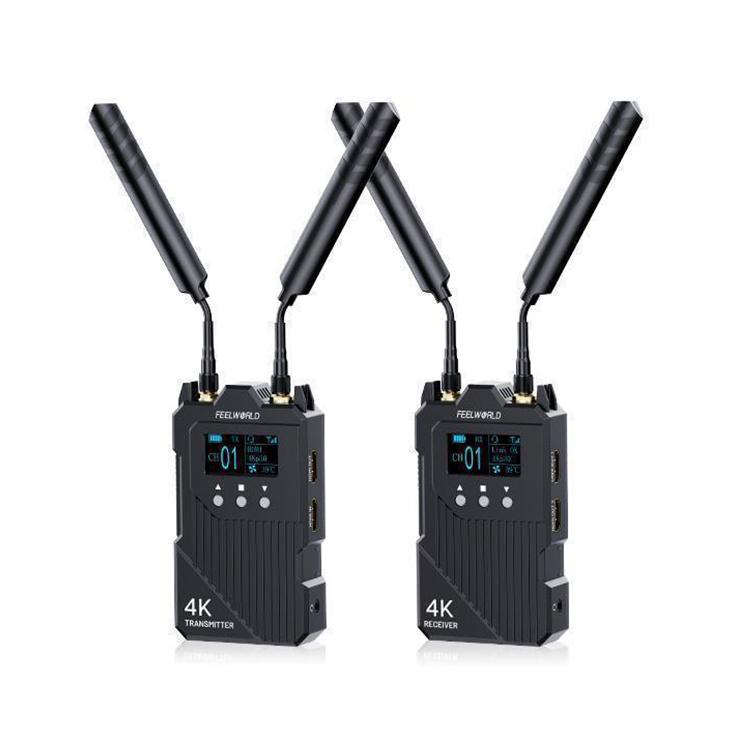

Transmitter

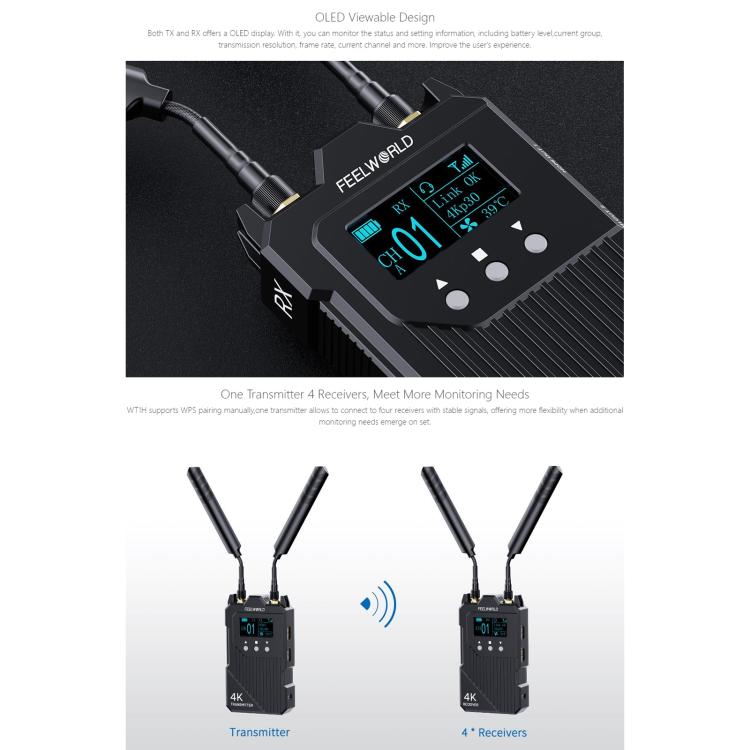

1. Screen: OLED

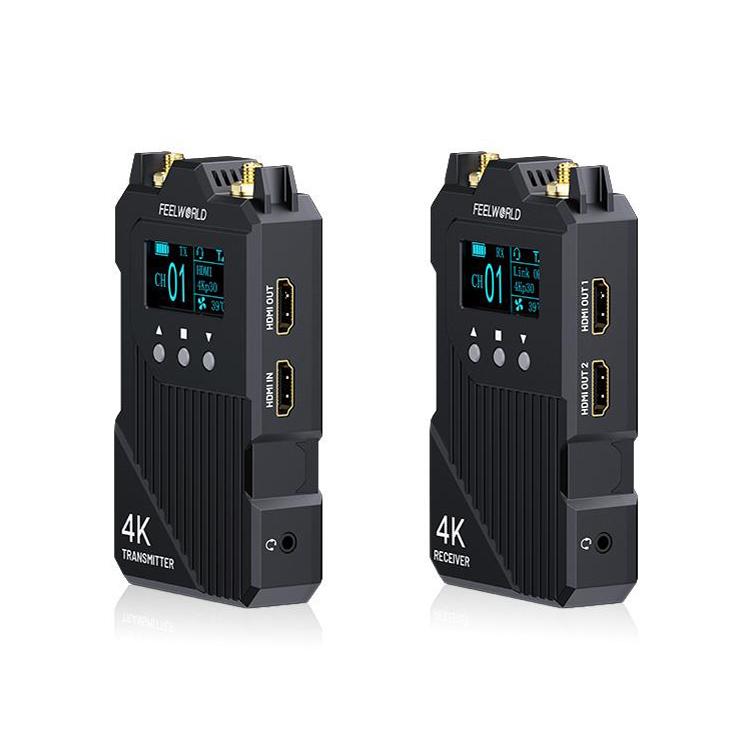

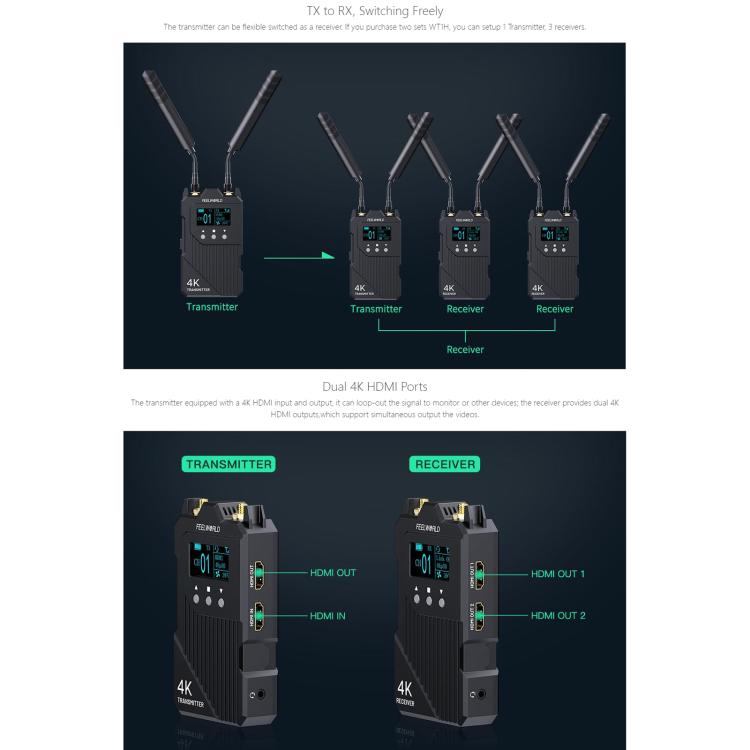

2. Interface:
1 x HDMI-compatible input
1 x HDMI-compatible output
2 x Antenna port (RP-SMA Male)
DC power input
3.5mm headphone jack
Type-C

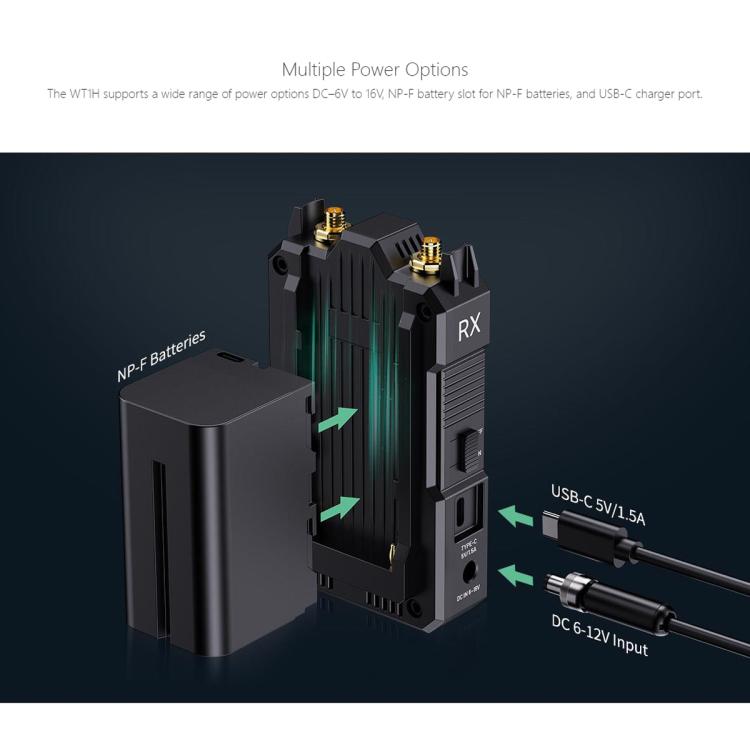

3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 5.5W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI-compatible Type A
6. Frequency: 5.1-5.9GHz
7. Modulation Mode: OFDM
8. Transmission Power: 22dBm
9. Bandwidth: 20/40MHz
10. Latency: Min 0.08S
11. Intercom Frequency Response Range: 20Hz~20KHz
12. Operating Temperature: 0 degree C ~ 40 degree C
13. Storage Temperature: -20 degree C ~ 60 degree C
14. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
15. Unit Weight: 138.8g
Receiver
1. Screen: OLED
2. Interface:
2 x HDMI-compatible output
2 x Antenna port (RP-SMA Male）
DC power input
3.5mm headphone jack
Type-C
3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 6W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI-compatible Type A
6. Frequency: 5.1-5.9GHz
7. Modulation Mode: OFDM
8. Receiving Sensitivity: -87dBm
9. Bandwidth: 20/40MHz
10. Latency: Min 0.08S
11. Intercom Frequency Response Range: 20Hz~20KHz
12. Operating Temperature: 0 degree C ~ 40 degree C
13. Storage Temperature: -20 degree C ~ 60 degree C
14. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
15. Unit Weight: 138.8g
Packaging List:
1. Transmitter x 1
2. Receiver x 1
3. Antenna x 5
4. Cold Shoe x 1
5. USB-A to USB-C Adapter x 1
6. USB-C to Ethernet Adapter x 1
7. User Manual x 1
