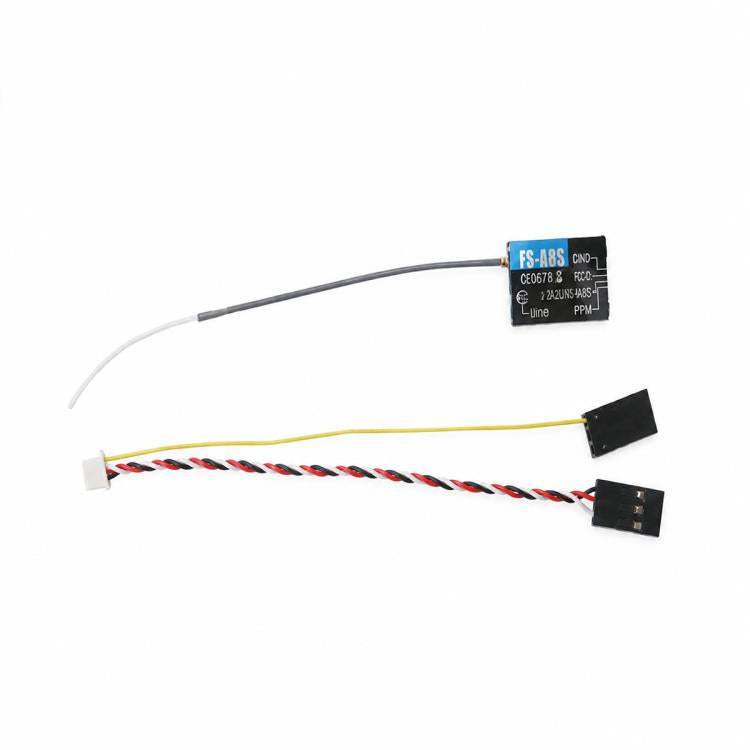

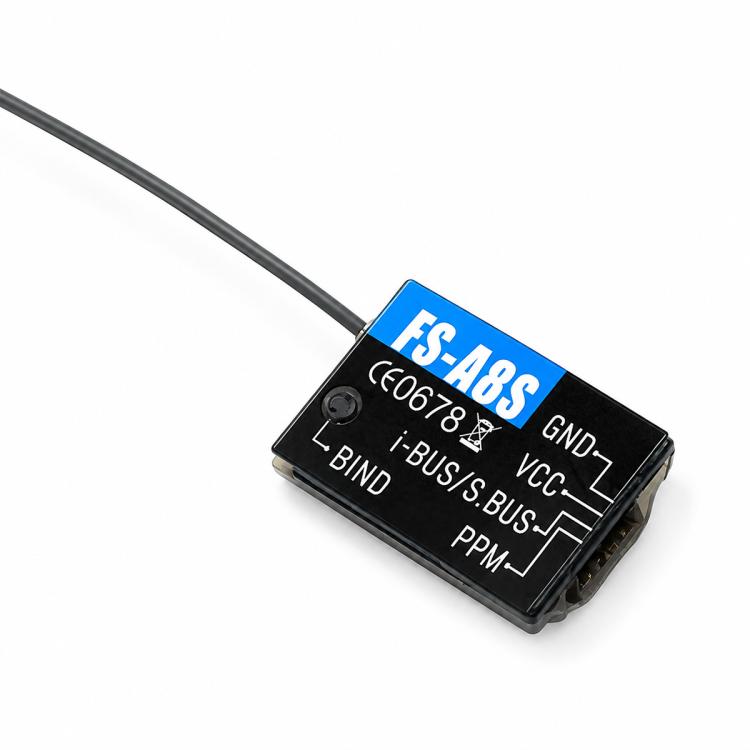

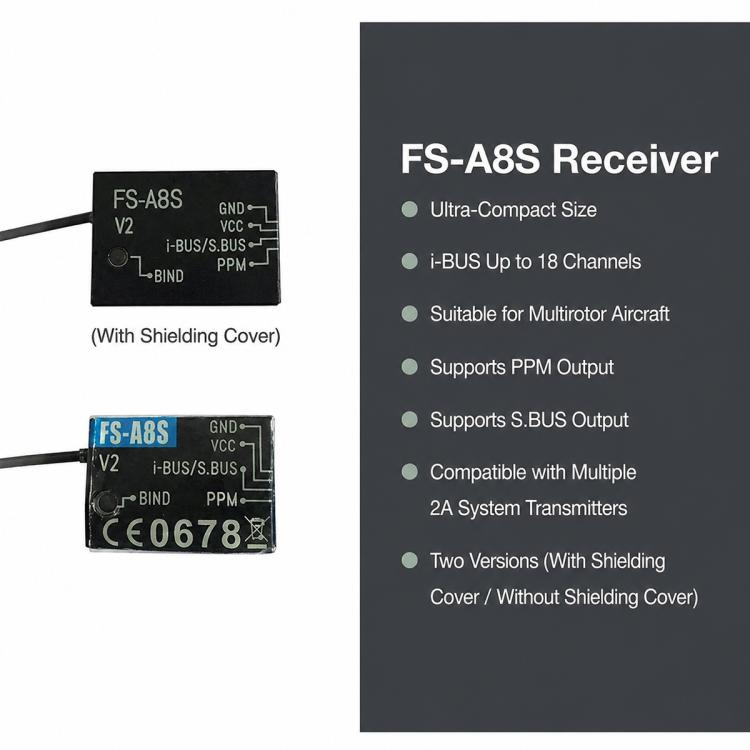

FlySky FS-A8S V2 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output(Black)

About this product:
The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels.

Specifications:
1. Brand Name: Flysky
2. Item Name: FS-A8S Receiver
3. Channels: PPM 8CH, i-BUS 18CH
4. Model type: Multi-rotor
5. Frequency range: 2.408-2.475GHz
6. Band width: 500KHz
7. Band number: 135
8. RX Sensitivity: -92 dBm
9. 2.4GHz system: AFHDS 2A
10. Modulation type: GFSK
11. DSC port: PPM/i-BUS/S.BUS
12. Transfer method: FHSS
13. Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

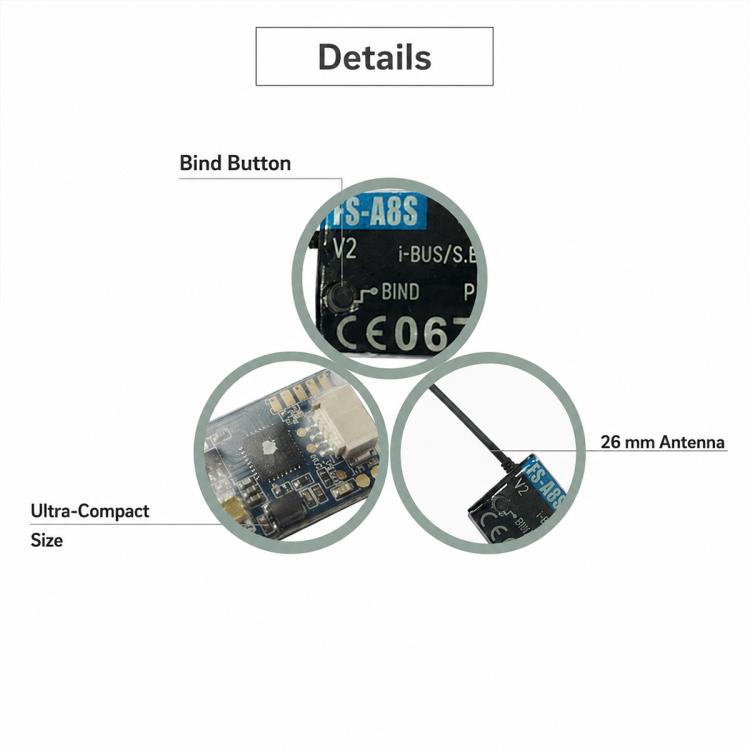

14. Antenna length: 26mm (Not including brass contacts)
15. Input power supply: 4.0-8.4V
16. Display method: LED
17. No ground interference ( Transmitting and receiving 1 m from the ground): Greatervthan 300m
18. Working current: 40mA
19. Each channel data: depend on the transmitter
20. Channel delay: Less 15mS

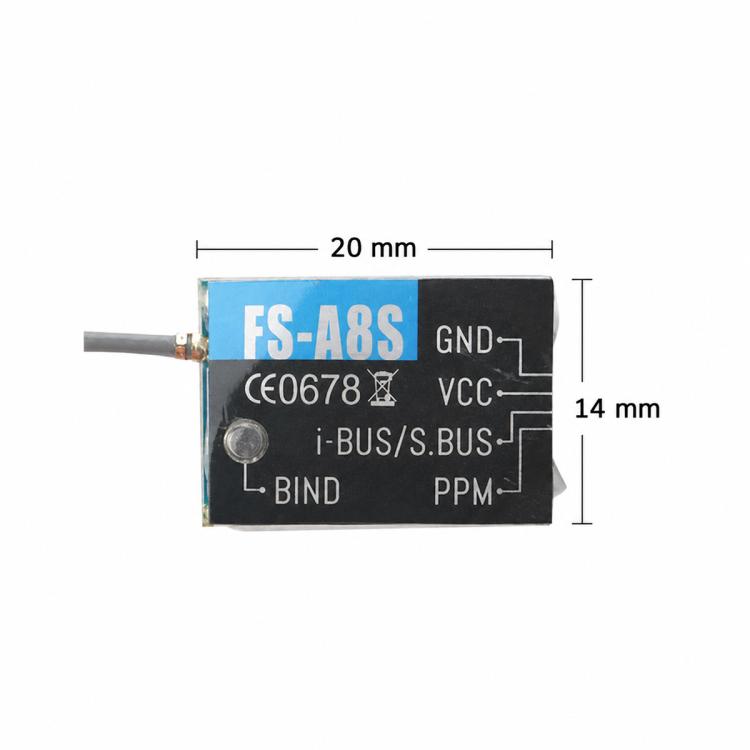

21. Size: 20x14x5.3mm
22. Weight: 1.2g

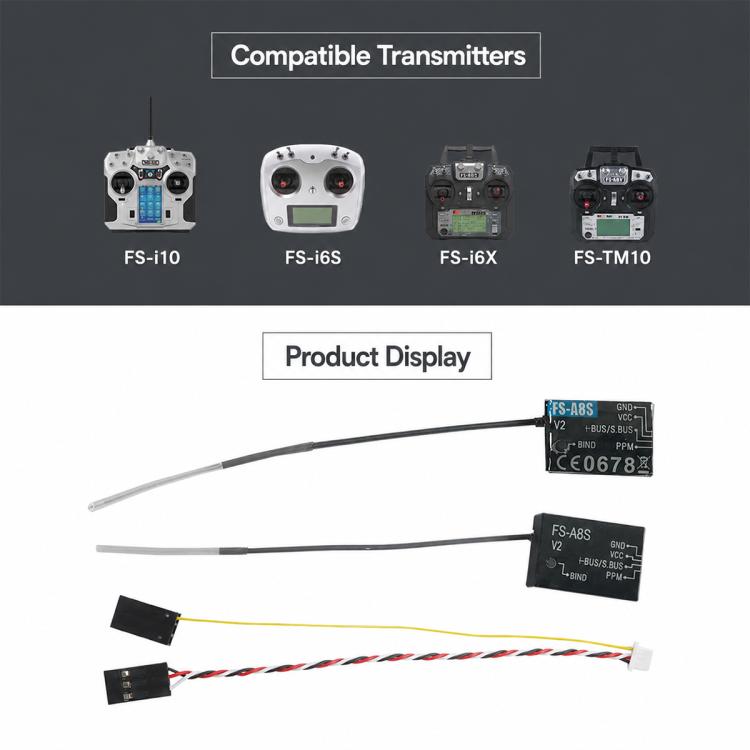

23. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
24. Note: This item doesnot support failsafe.
