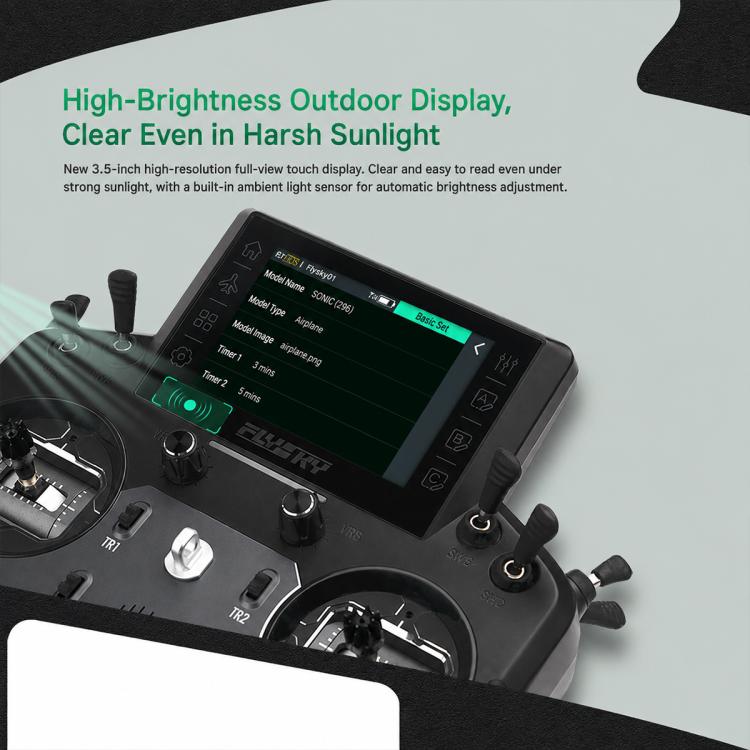

1. High-Brightness Display: 3.5 inch high-resolution full-angle visual screen, easily readable even in bright sunlight. Built-in light sensor, enabling automatic adjustment of screen brightness.

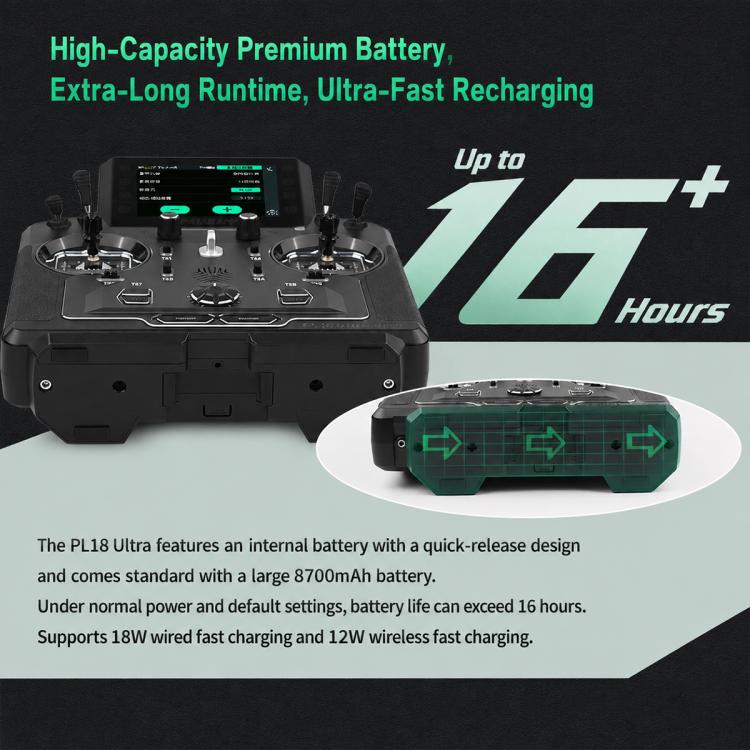

2. Large-Capacity Battery with Ultra-Long Endurance: Equipped with a quick-release 8700mAh high-capacity battery, delivering over 16 hours of continuous operation under normal usage. Supports 18W wired fast charging and 12W wireless fast charging.

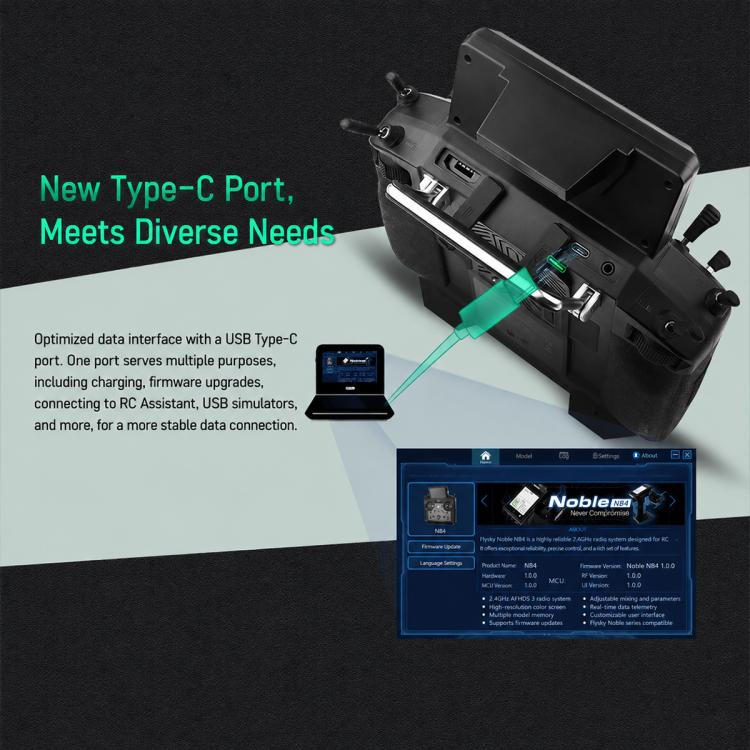

3. Type-C Interface: Optimized with USB Type-C, offering versatile functions, such as charging, firmware upgrade, remote controller assistant connection, USB emulator, with more stable data connection.
4. Powerful Data Recording Function: Data recording function, which can realize output and input feedback record analysis.
5. Easy and Accurate Measurements: Support current and voltage sensors to achieve more precise power status monitoring. Support iBus 2 sensor for convenient parameter setting.
Specifications:

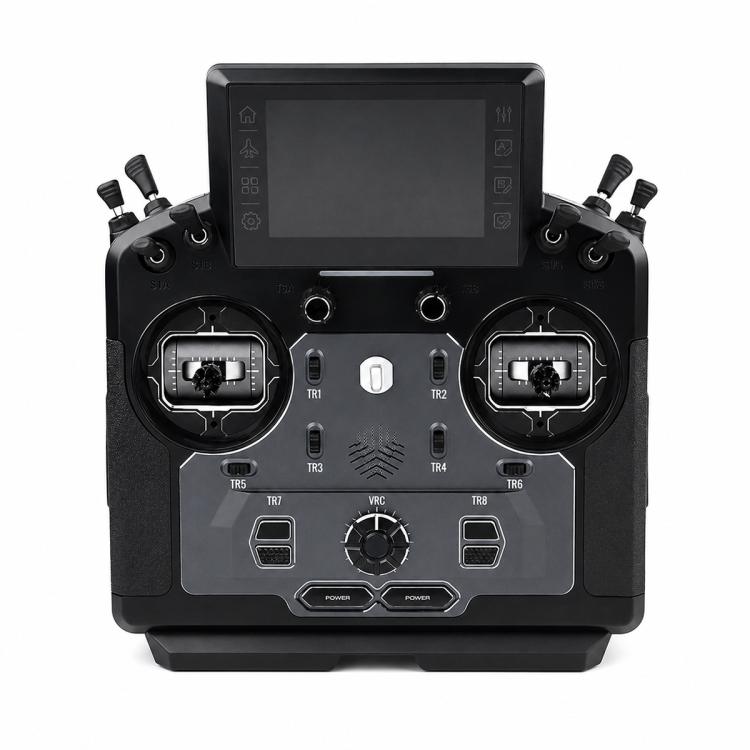

1. Product Model: PL18 Ultra
2. Compatible Receivers: Receiver with AFHDS 3 protocol, such as FTr12B, FTr8B, Tr8B, FTr10, FTr16S, FTr4, INr6-HS and TMr for RC air models, FGr8B, FGr4B, FGr12B, FGr4P, FGr4S, FGr4 and GMr for RC cars, FBr12 for RC boats, etc.
3. Number of Channels: 18
4. Number of Bands: 171
5. Model Type: Airplanes, gliders,helicopters, multicomputers, cars, boats or robots
6. RF: 2402.15MMHz-2479.85MMHz
7. Maximum Power: Less than 20 dBm (e.i.r.p.) （EU）
8. RF Protocol: AFHDS3
9. Channel Resolution: 4096
10. Input Power : 1S (3.6V) x 8700mAh
11. Charging Jack: USB Type-C/Wireless charging
12. Low Voltage Alarm: Yes
13. Antenna: Two built-in antennas (FPC antenna)

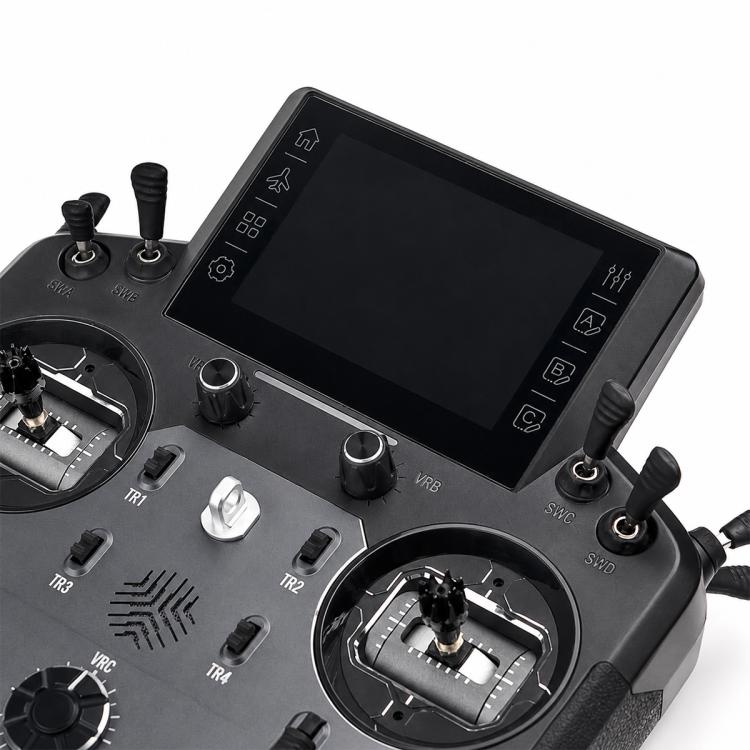

14. Display: 3.5 inch 320 x 480 resolution IPS touch color screen
15. Language : Chinese or English
16. Simulator: USB Simulator
17. Data Connector: USB Type-C, TEI expansion connector, DSC 3.5mm trainer Jack (PPM), SD card slot
18. Operating Temperature: -10 ~ +60 degree C
19. Charging Temperature: 0~45 degree C
20. Humidity Range: 20% ~ 95%
21. Firmware Update: Supported
22. Dimensions (length x width x height): 212.5 x 86.7 x 191 mm
23. Weight: 1005g
