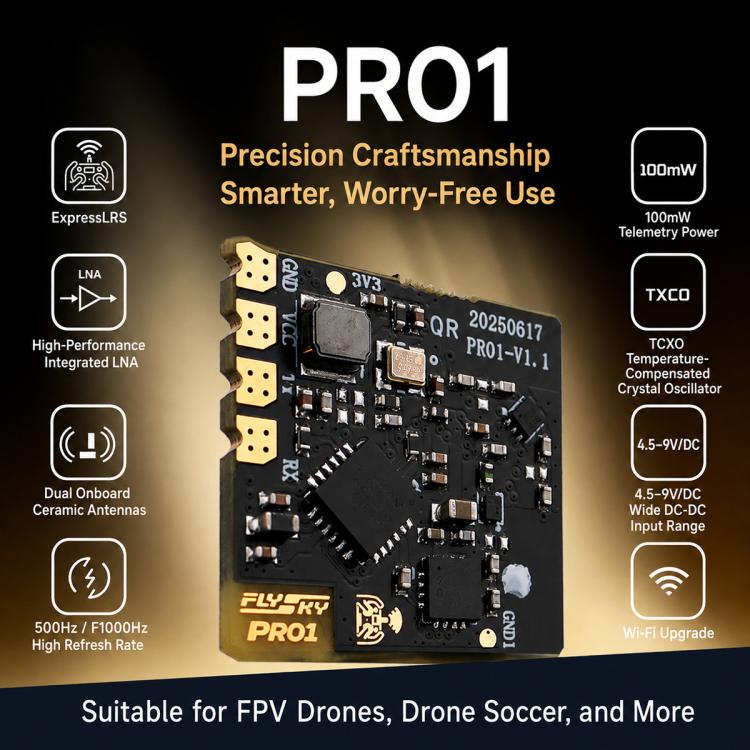

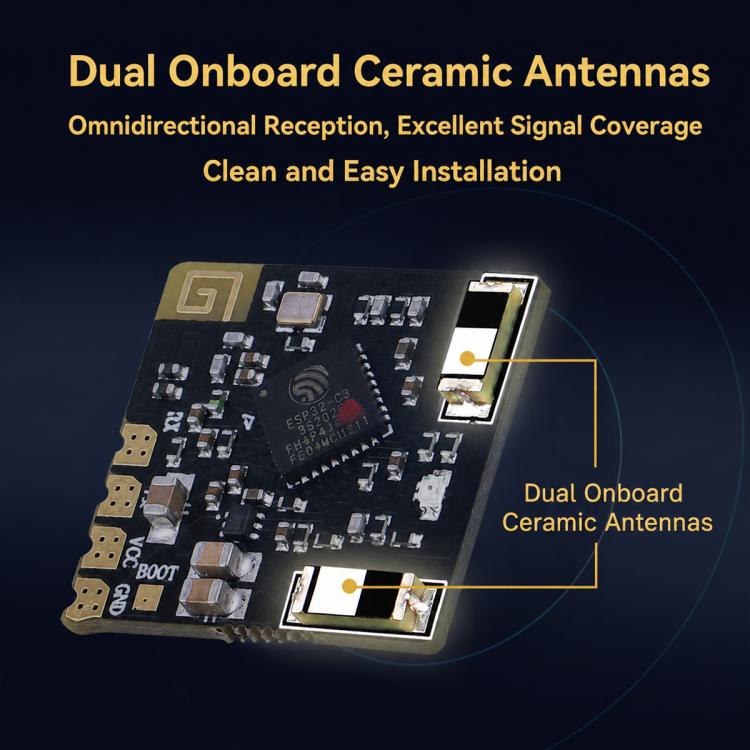

1. Ceramic Dual Antennas: Equipped with ceramic onboard dual antennas, supports antenna diversity and two-way communication, outputs CRSF/S.BUS dual signals, compatible with FPV drones, fixed-wing aircrafts, gliders, helicopters, cars, boats, robots, UAV soccer drones, etc.

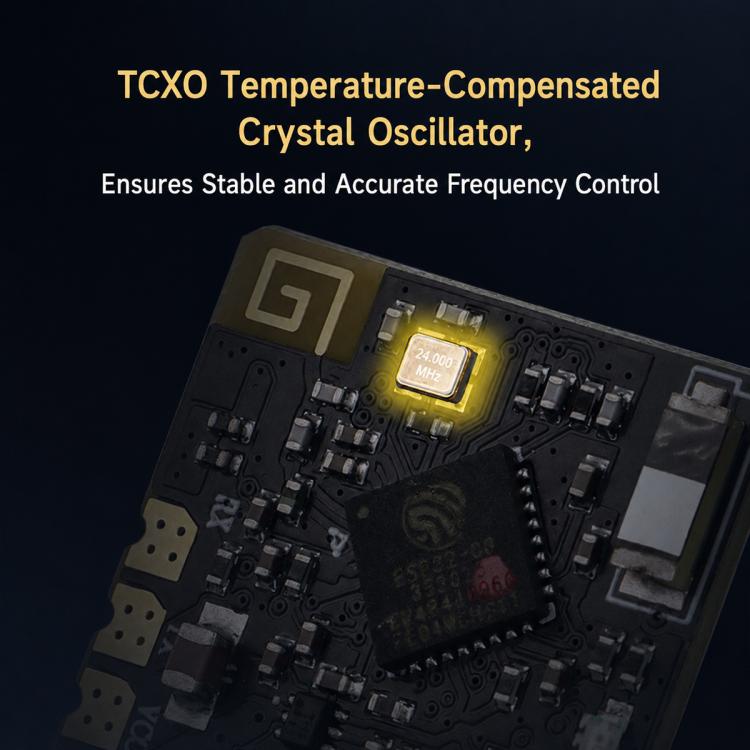

2. Built-in TCXO: Comes with a temperature-compensated crystal oscillator (TCXO) for precise signal frequency calibration.

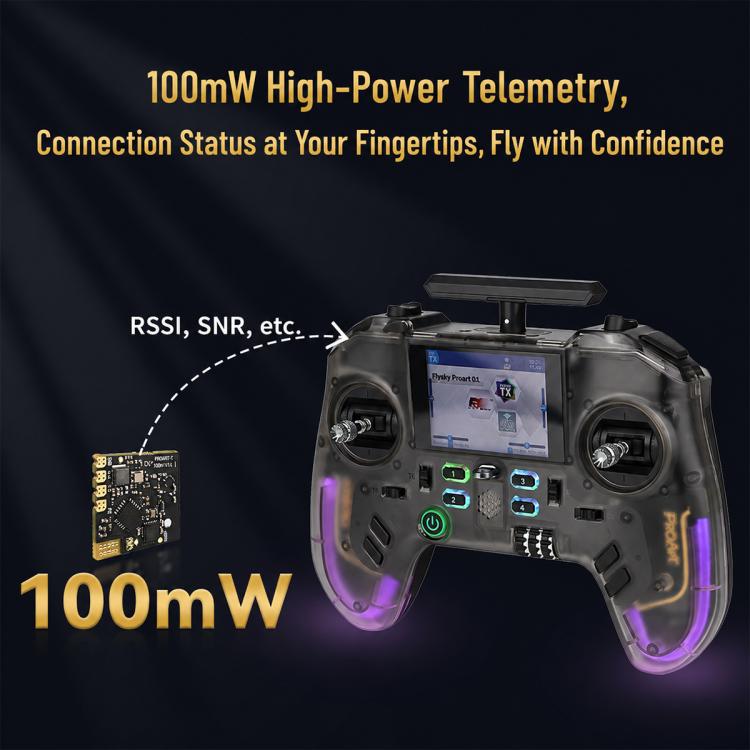

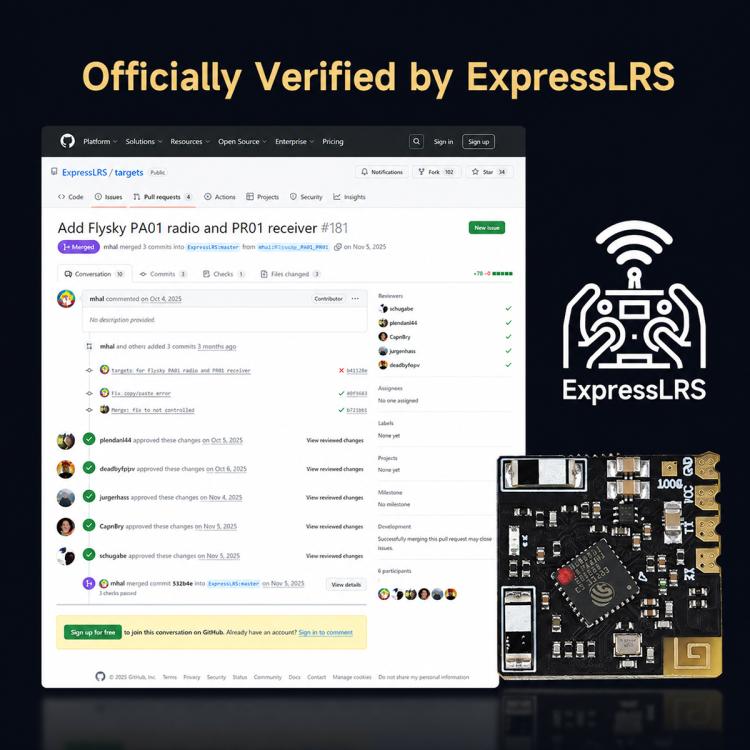

3. ELRS Protocol Compatible: Supports pairing with ELRS protocol transmitters and high-frequency heads, such as PA01 RC Transmitter.

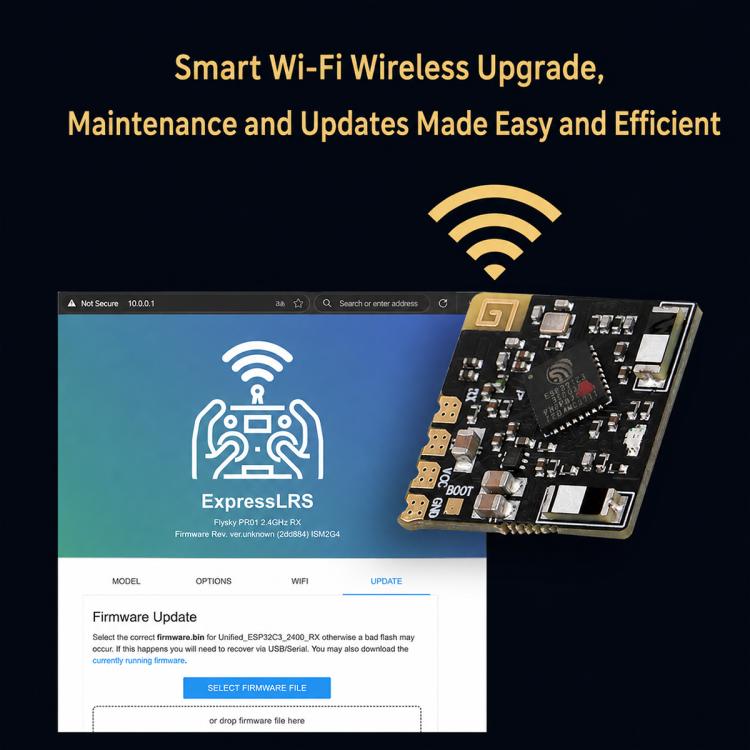

4. 2 Modes Firmware Update: Supports Wi-Fi wireless and serial port wired firmware updates.
5. Custom Parameter Adjustment: After pairing with the transmitter, configure various functional parameters via the Lua script menu on the transmitter.
Specification:

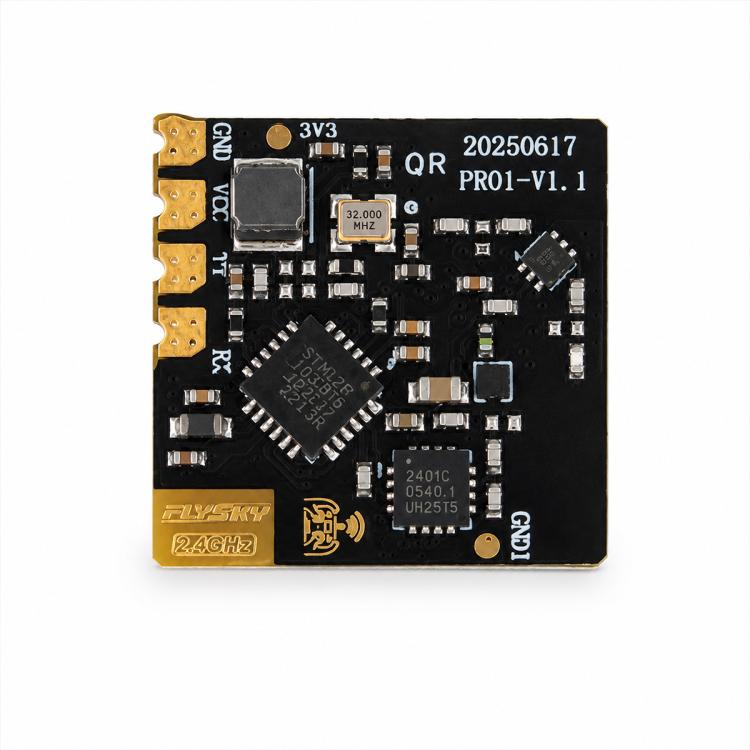

1. Product Model: PR01
2. Material: Ceramic substrate + Electronic components
3. Compatible Transmitters: Supports all transmitters and RF modules using the ELRS protocol, such as ???Flysky ProArt PA01 RC Transmitter
4. Model Type: FPV drones, fixed-wing aircrafts, gliders, helicopters, cars, boats, robots, UAV soccer drones, etc.
5. Number of Channels: 16
6. Remote Frequency: 2.4GHz ISM
7. Wireless Protocol: ELRS
8. Transmission Mode: Antenna diversity
9. Channel Resolution: 4096 steps
10. Antenna Type: Ceramic onboard dual antennas
11. Operating Voltage: 3.5~9V DC
12. Data Output: CRSF / S.BUS

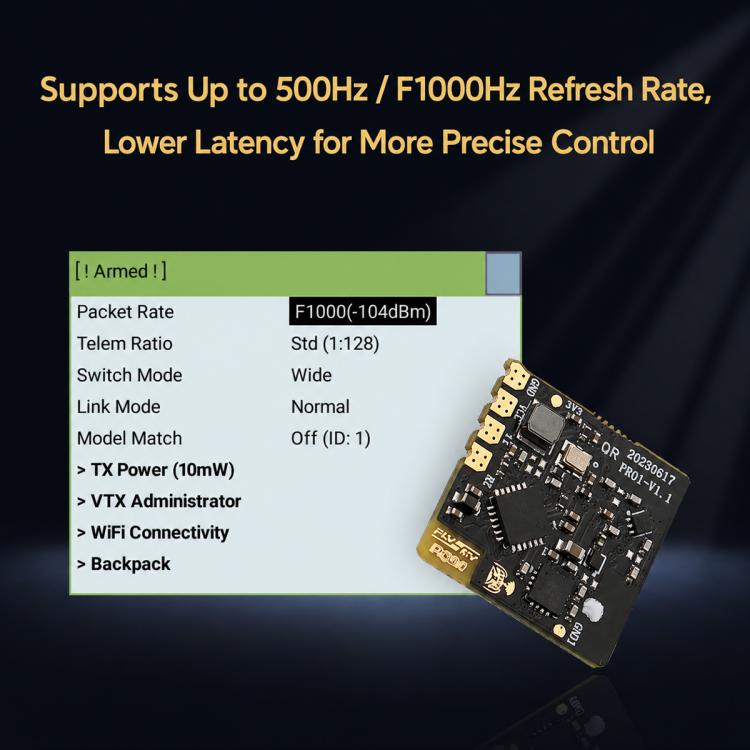

13. Maximum Supported Refresh Rate: 500Hz
14. Minimum Supported Refresh Rate: 500Hz/F1000Hz
15. Temperature Range: -10 degree C to +60 degree C
16. Humidity Range: 20% to 95%
17. Firmware Update: Supports Wi-Fi wireless update or serial wired update
18. Product Size: About 1.8 x 1.8 x 0.37cm/0.71 x 0.71 x 0.15inch
19. Weight: About 1.2g
