1. Power-on configuration: 5 preset items
2. Expansion interface: USB transmission interface

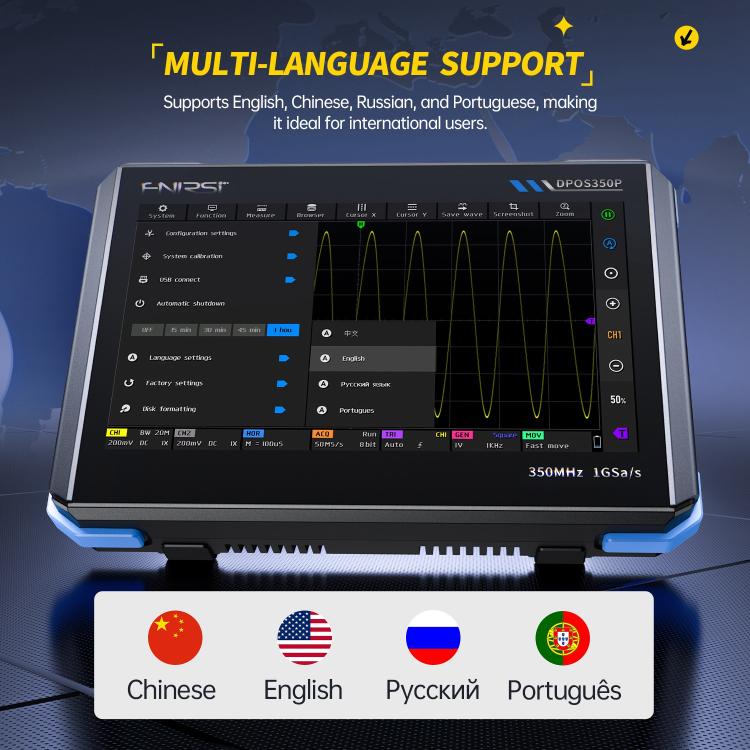

3. Language version: Chinese/English/Russian/Portuguese

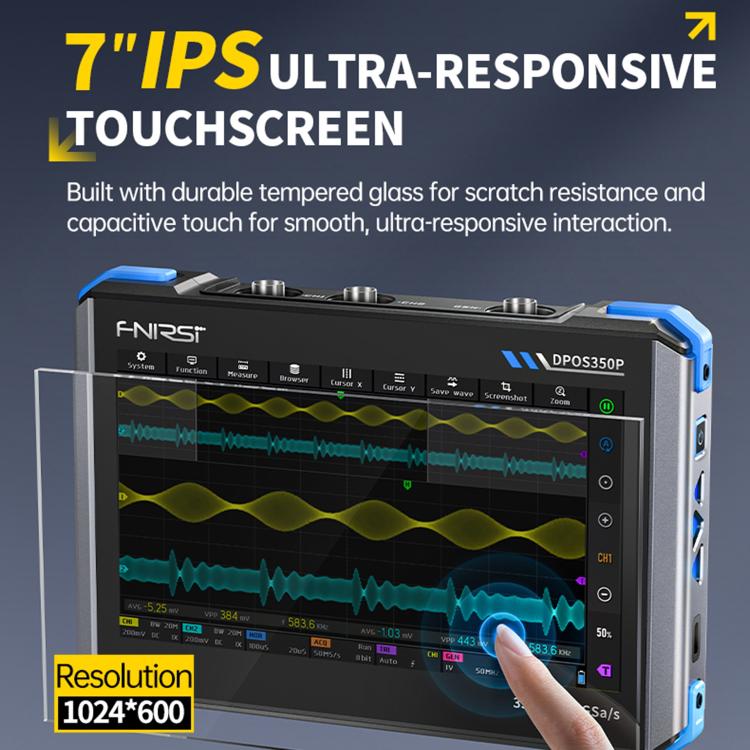

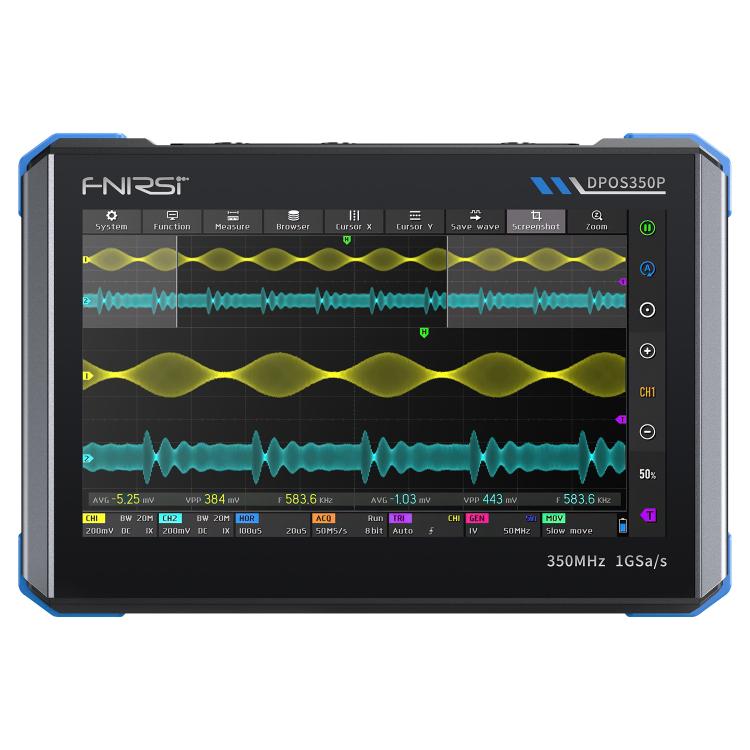

4. Screen size: 7 inches
5. Screen resolution: 1024x600 high resolution
6. Charging requirements: QC18W, 12V/1.5A
7. Screen technology: IPS full viewing angle

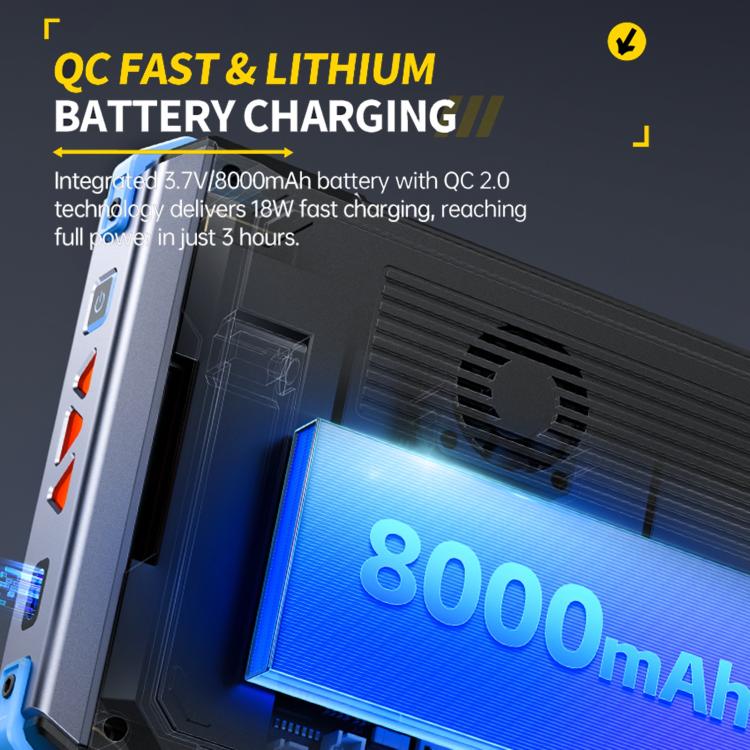

8. Battery specifications: 3.7V/8000mAh
9. Interaction mode: capacitive touch screen
10. Standby time: about 3 hours
11. Charging time: about 5 hours

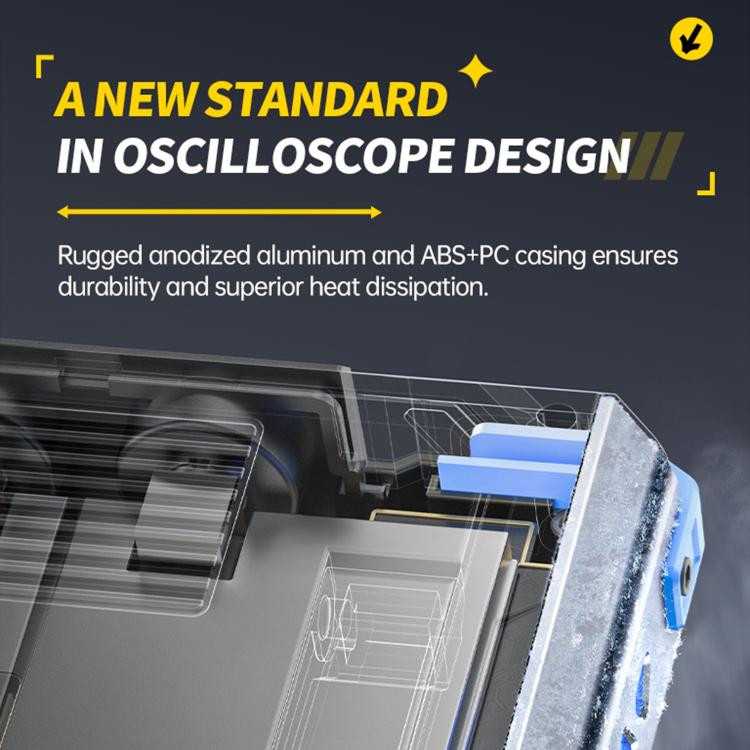

12. Heat dissipation method: air cooling
13. Power consumption of the whole machine: 10W

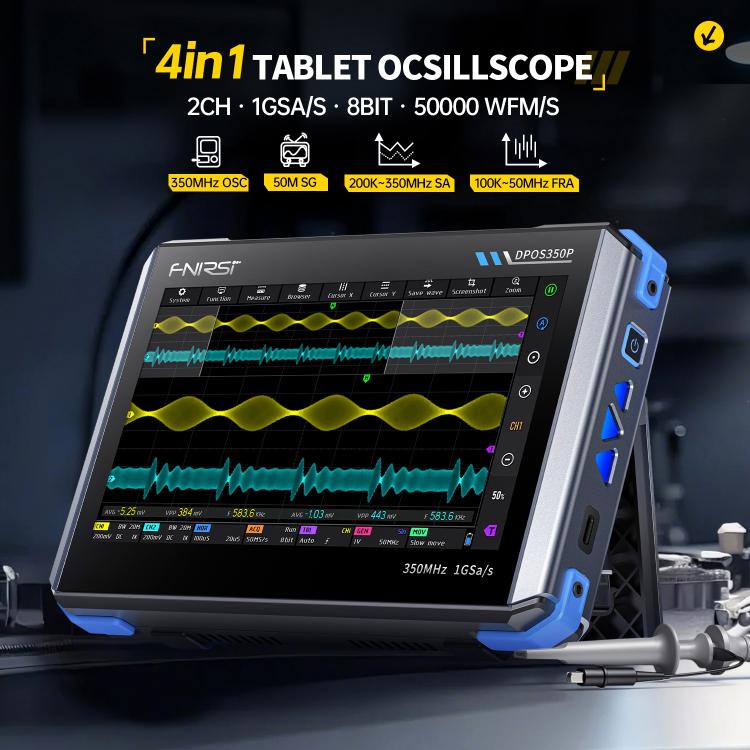

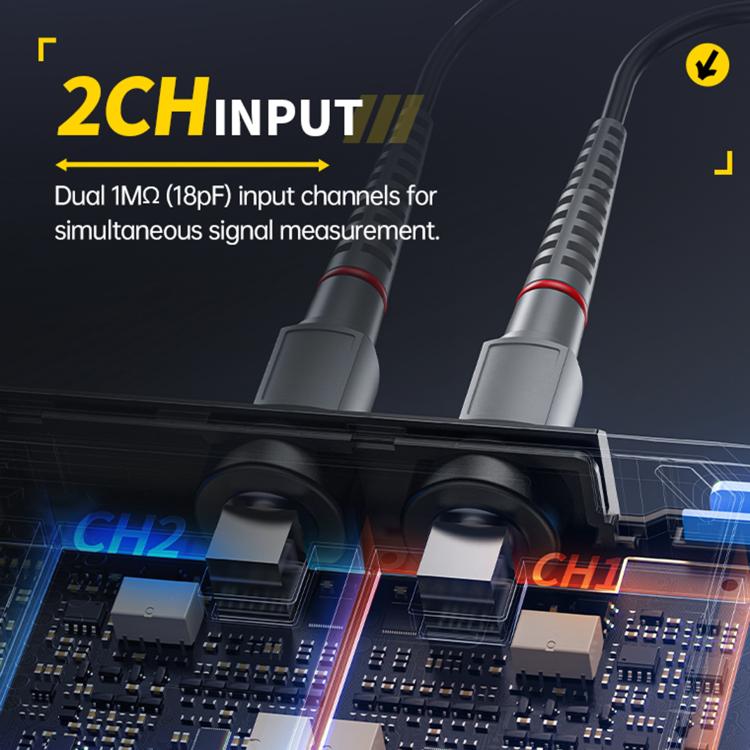

14. Number of channels: 2
15. Probe magnification: 1X/10X/100X

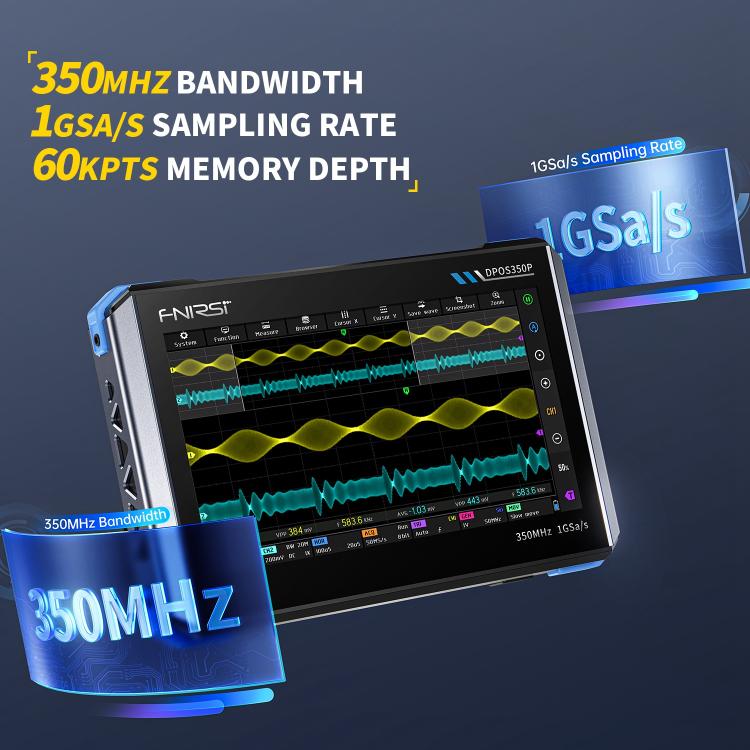

16. Analog bandwidth: 350MHz

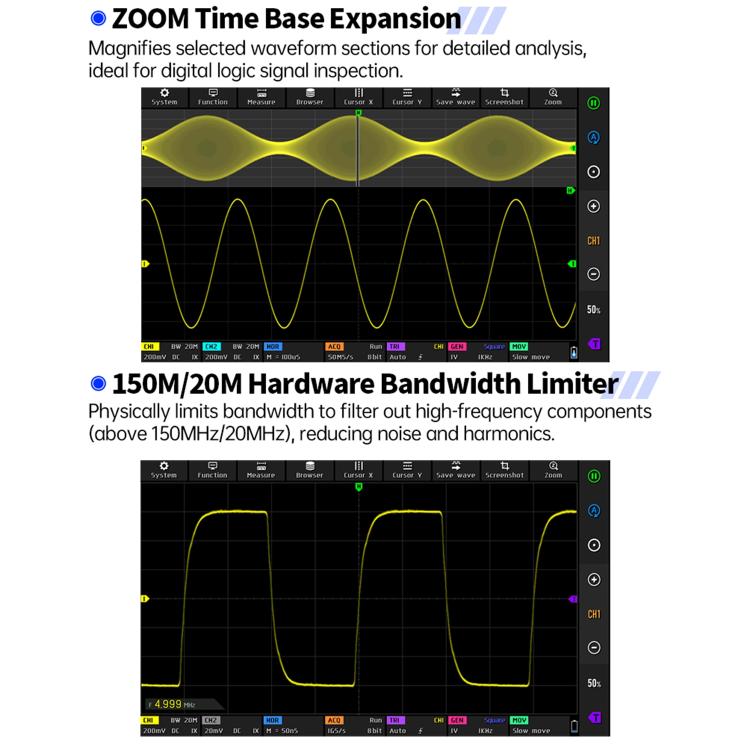

17. Hardware bandwidth limit: 150M/20M

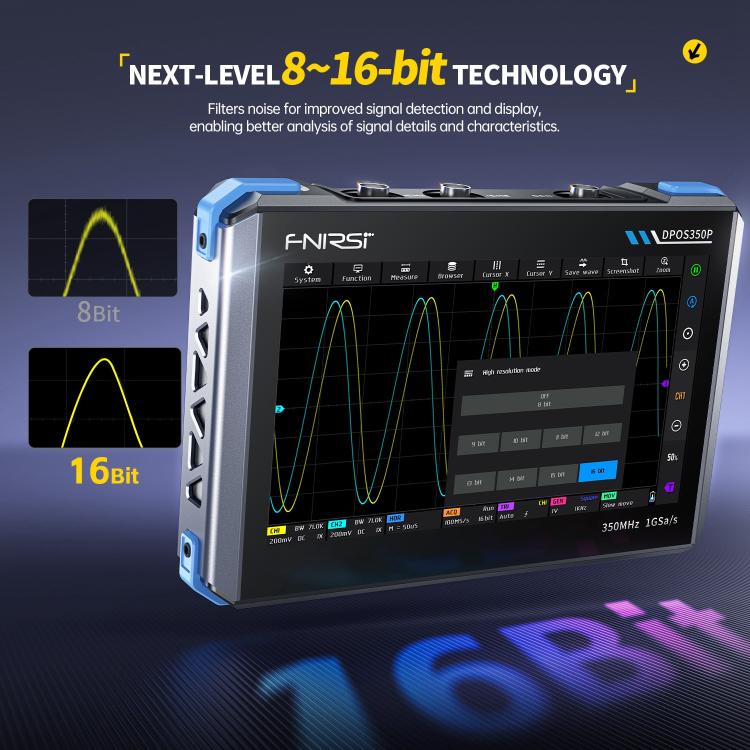

18. High resolution mode: 8bit-16bit
19. Maximum sampling rate: 1GSPS

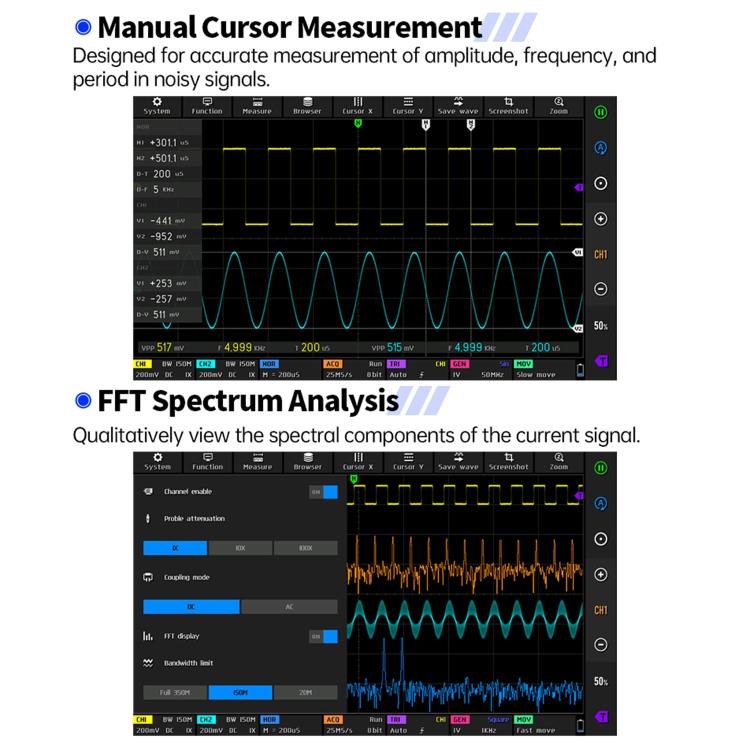

20. Parameter measurement: 12 types
21. Storage depth: 60Kpts

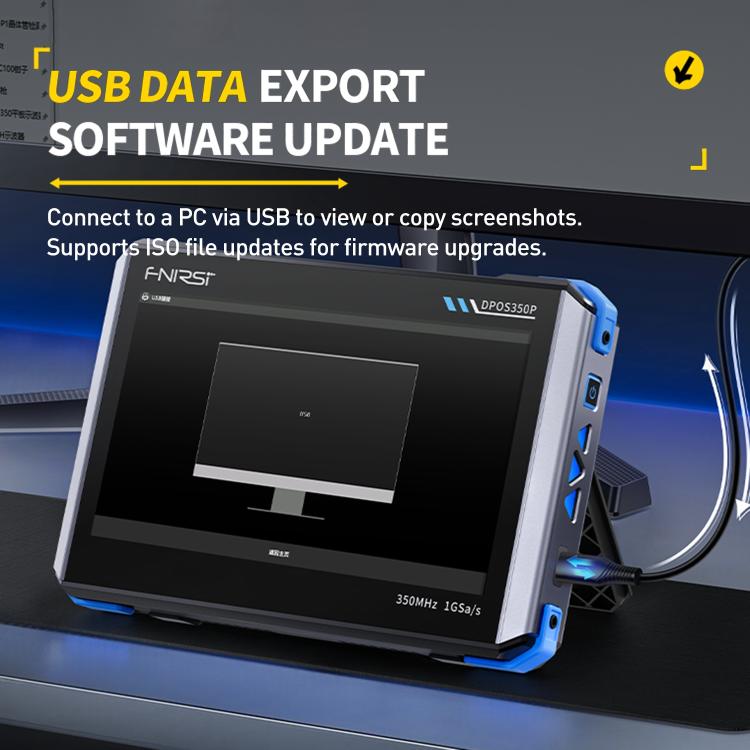

22. Data can be exported and firmware upgraded via USB

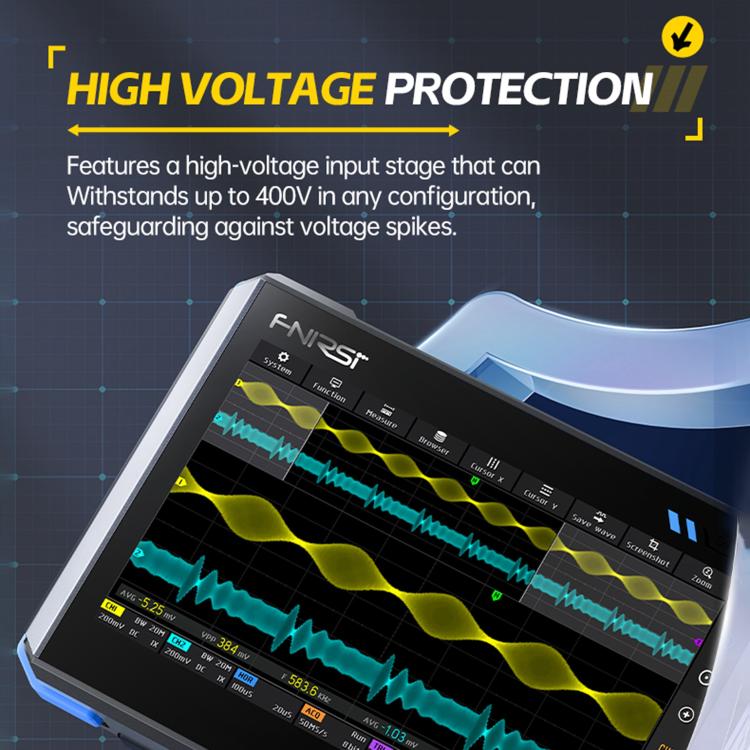

23. High-voltage design, capable of withstanding voltage of more than 400V at any gear without burning

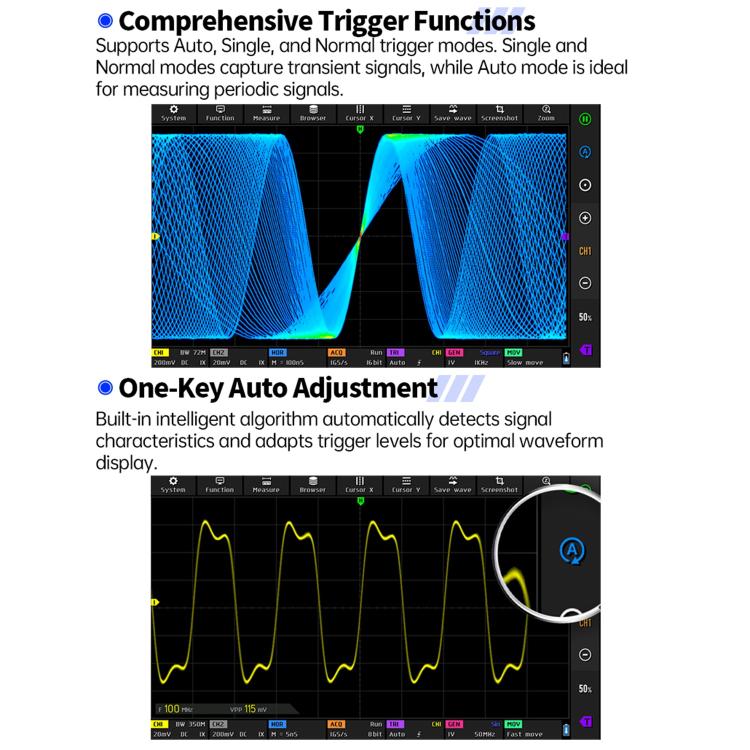

24. Three trigger modes: automatic, single, and regular. Single and regular modes can capture burst signals, and automatic mode is mainly used to measure periodic signals
25. Built-in efficient control algorithm, automatic identification of signal characteristics

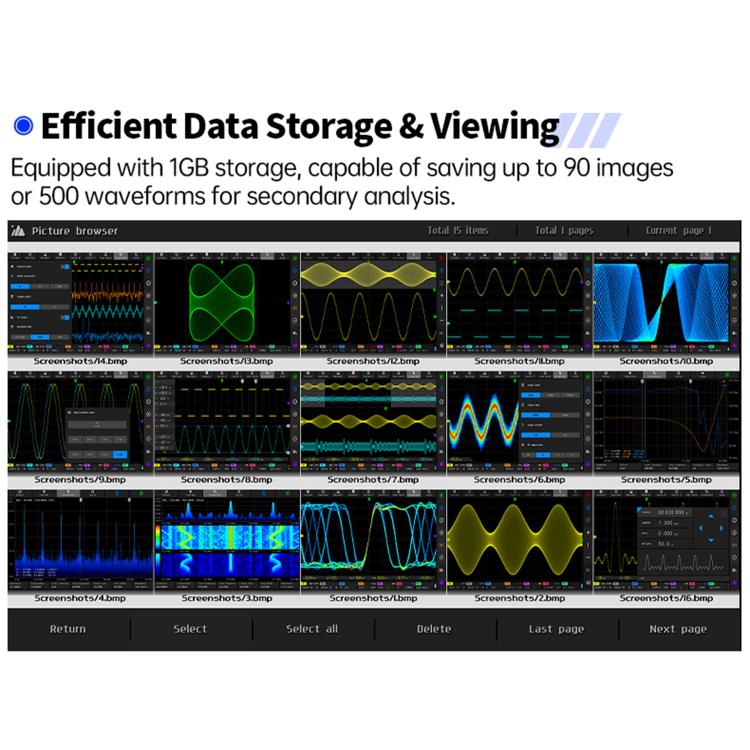

26. Built-in 1Gbit storage space, capable of secondary analysis of saved signals
