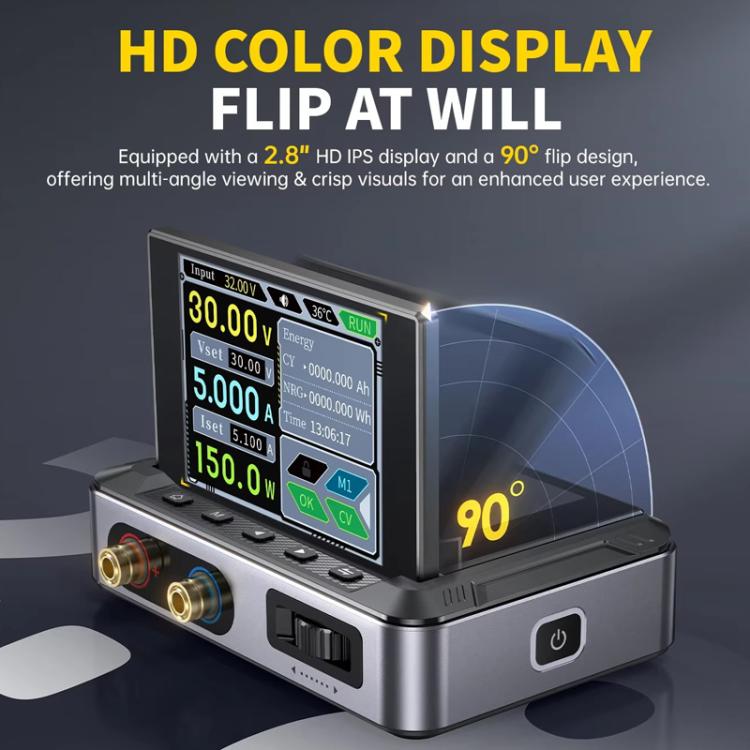

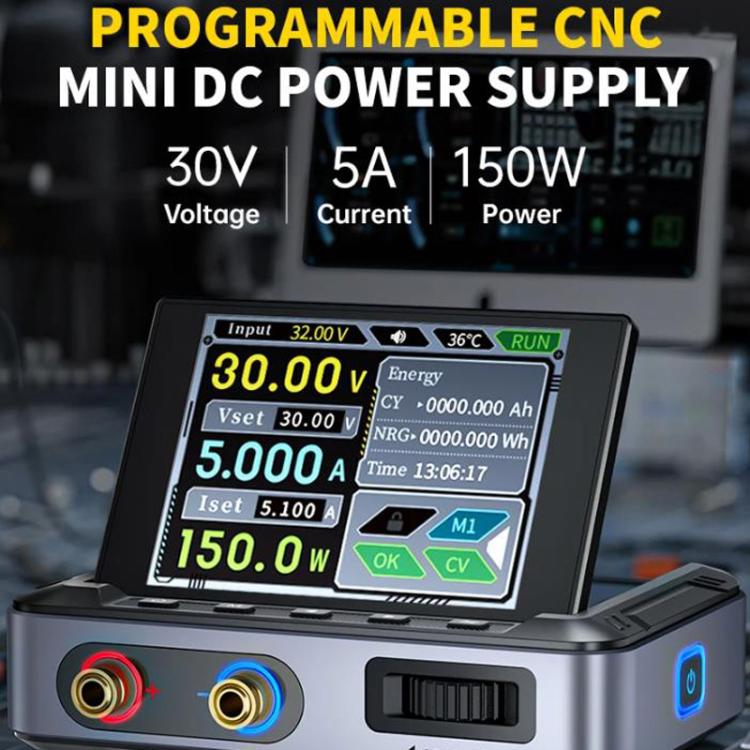

1. Equipped with a 2.8-inch high-definition IPS color screen, combined with a 90-degree flip design, it offers multi-angle viewing and high-definition display, providing you with a better usage experience

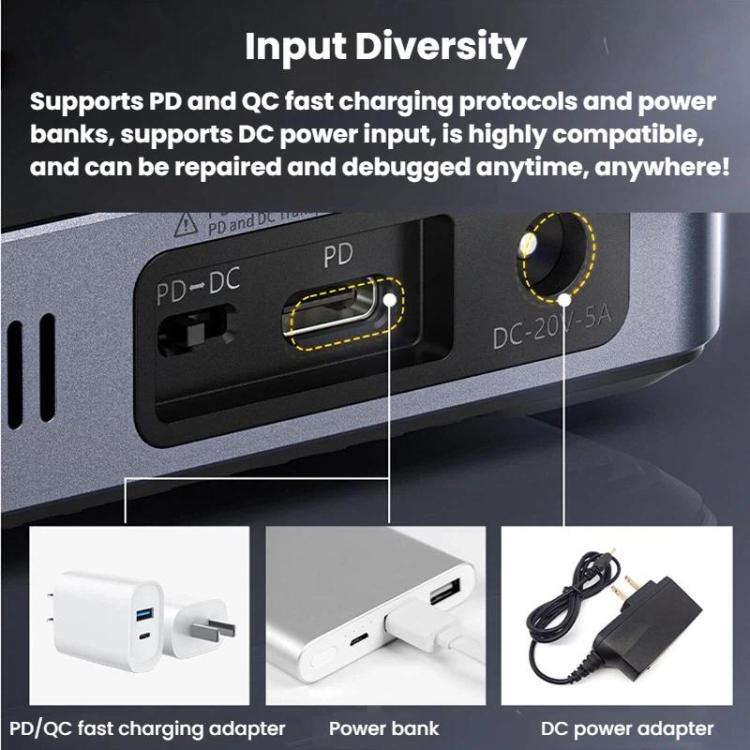

2. Diverse input options, supporting PD, OC fast charging protocols and power banks, as well as DC power input, offering multiple compatibility
3. Stable output, with ultra-low ripple. The output voltage is stable without overshoot, supporting power supply for sensitive devices; the power supply ripple is as low as 20mV, achieving efficient and stable output
4. Preset output, quick access. It can preset 6 sets of output parameters, enabling quick adjustment of output voltage and current, thereby maximizing efficiency

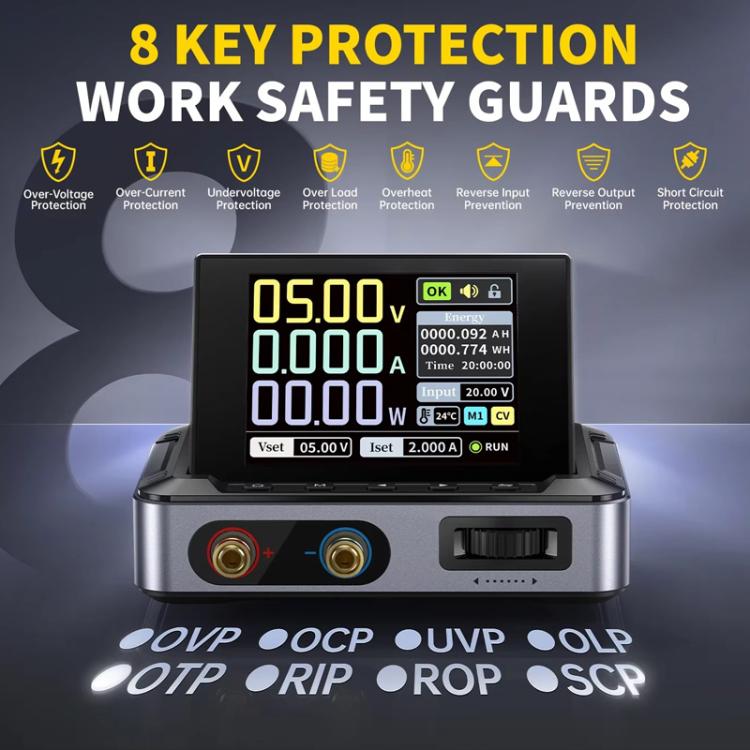

5. 8 major protection mechanisms, multiple security guarantees. Features include overvoltage protection, overtemperature protection, overcurrent protection, undervoltage protection, overpower protection, input reverse connection prevention, output reverse current prevention, and short circuit protection

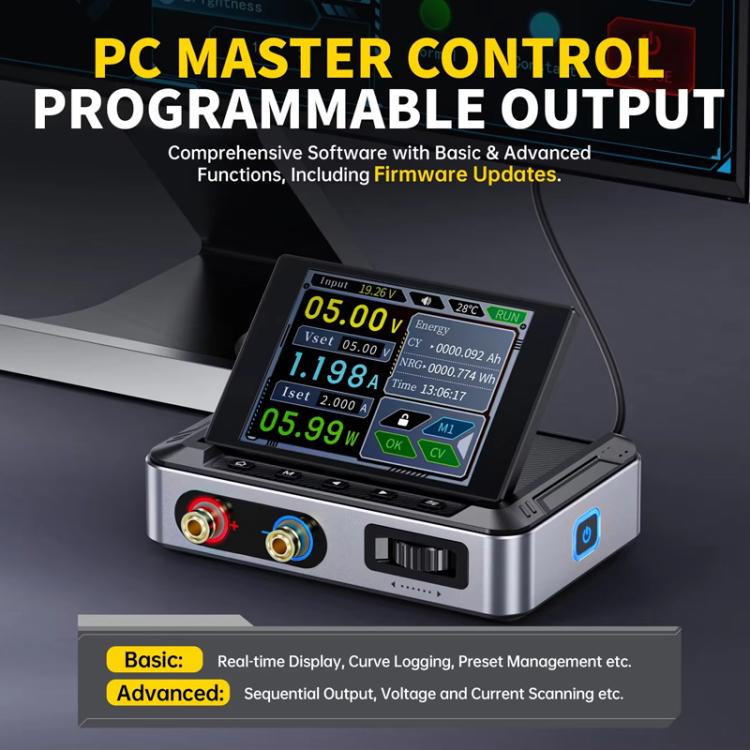

6. PC upper computer, programming output. The upper-level software includes basic functions and advanced functions, and also supports firmware upgrades

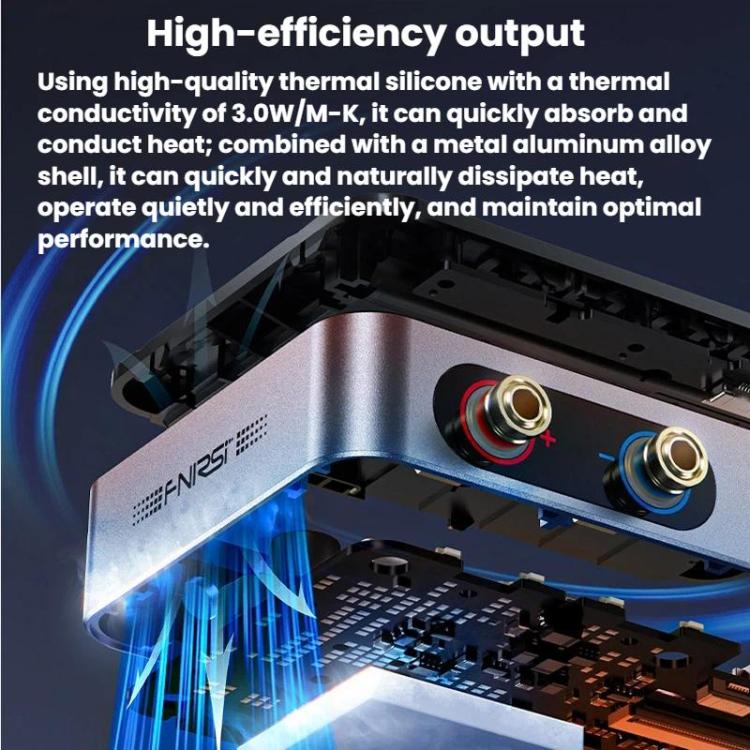

7. Utilizing high-quality heat dissipation silicone, with a thermal conductivity of 3.0W/M-K, it can quickly absorb and conduct heat; combined with a metal-aluminum alloy casing, it provides rapid and natural heat dissipation, is quiet and efficient, and ensures optimal operation

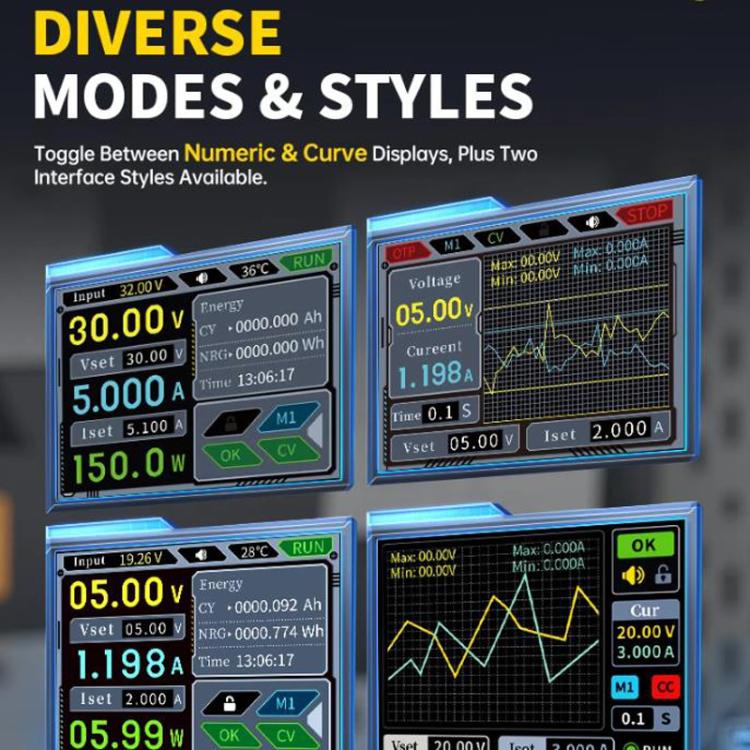

8. The display style is diverse, allowing for switching between numerical display and curve display, and supporting two styles of interface display
9. Compact and easy to carry
Parameters
1. Input voltage: DC 5.0V - 32V
2. Input current: 100mA - 5A
3. Operating environment: 0°C - 40°C, 0% - 75% RH
4. Load regulation rate: 0.49%
5. Full-load efficiency: 96.30%
6. Setting resolution voltage: 10mV; current: 1mA
7. Reading value accuracy: input voltage: less than or equal to 0.2% ± 5mV; output voltage: less than or equal to 0.1% ± 10mV; output current: less than or equal to 0.1% ± 5mA (0 - 3.5A)
8. Setting value accuracy: voltage: less than or equal to 0.1% ± 5mV; current: less than or equal to 0.1% ± 3mA
9. Output voltage: 0 - 30V
10. Output current: 0 - 5A
11. Output power: 0 - 150W
12. Supported languages: Chinese, English
13. Size: about 10.6 x 7.6 x 2.8cm
14. Weight: about 178g
High packaging list:
- Main unit x 1
- Charging head x 1
- Crocodile clip wire x 1
- Instruction manual x 1
- USB data cable x 1
- C2C data cable x 1
- Packaging box x 1
