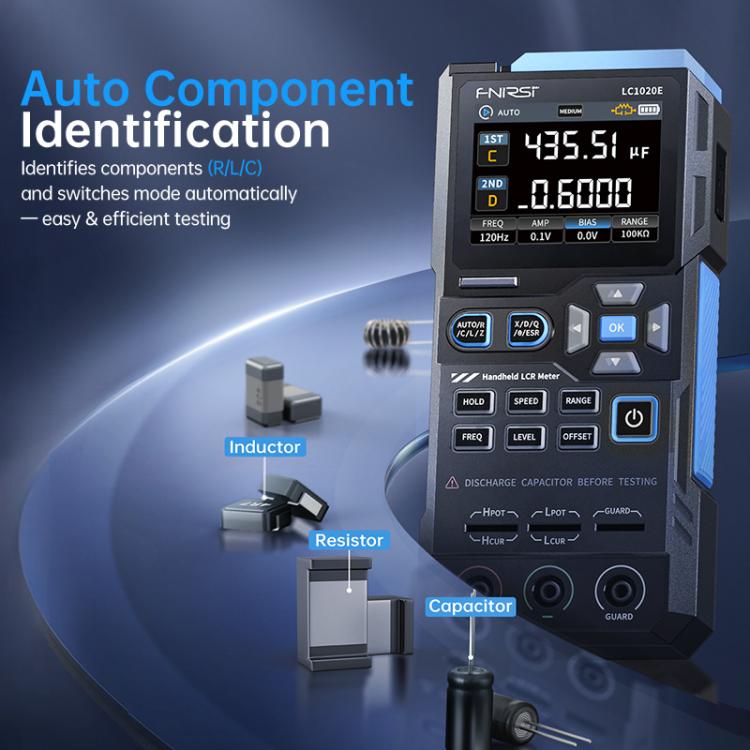

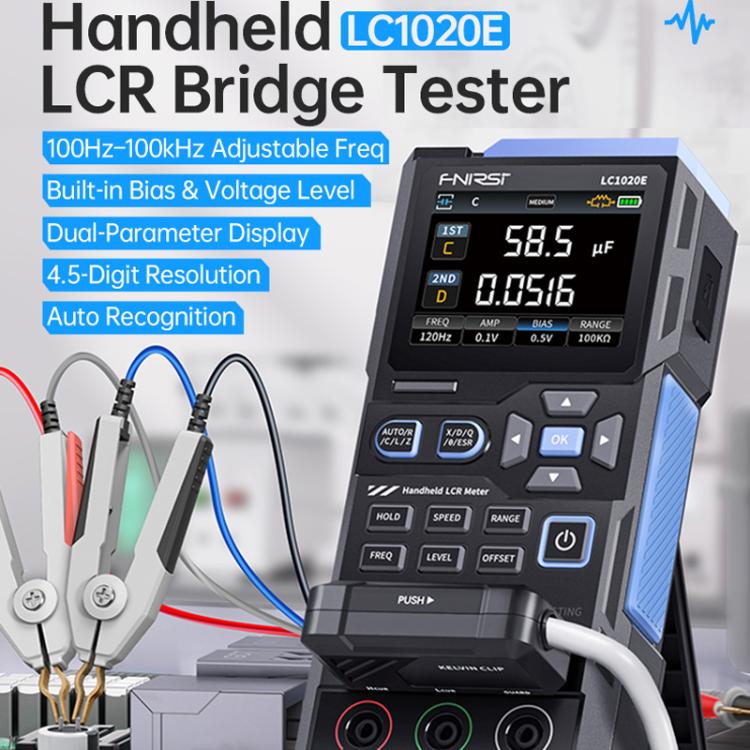

1. Automatically identify components, automatically select based on component characteristics, making the measurement process more convenient and efficient

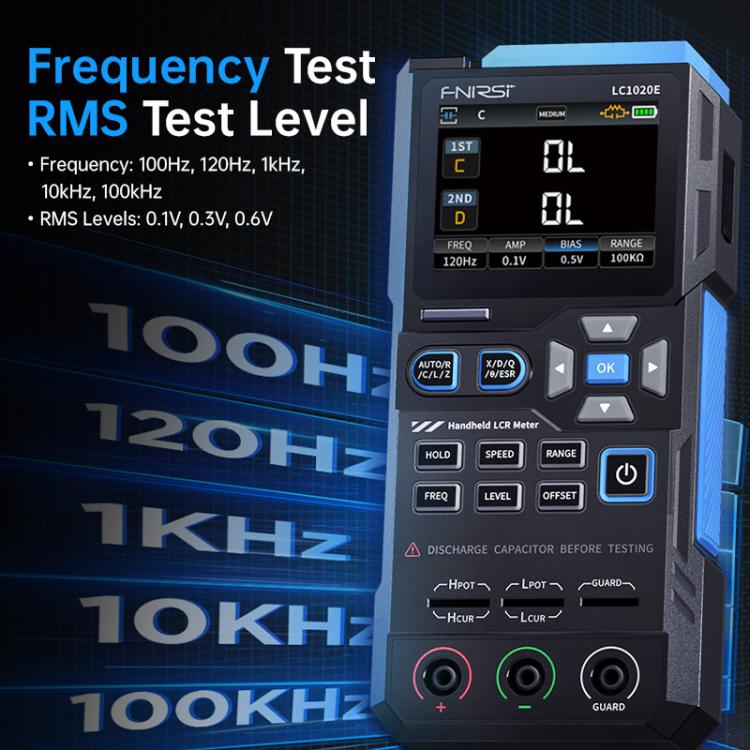

2. Multiple frequency tests, effective value test levels. Supports five test frequencies: 100Hz, 120KHz, 1kHz, 10kHz, and 100KHz. It is suitable for the measurement requirements of different application scenarios. With effective value test levels of 0.1V, 0.3V, and 0.6Vrms, the measurement results are more accurate and reliable

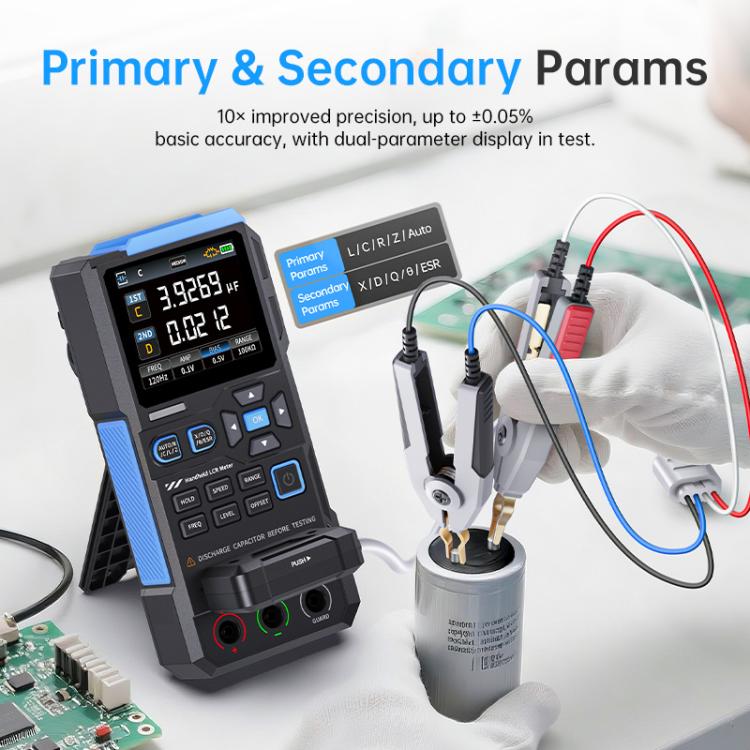

3. Four-segment digital display, with high precision, capable of simultaneously showing main and auxiliary parameters

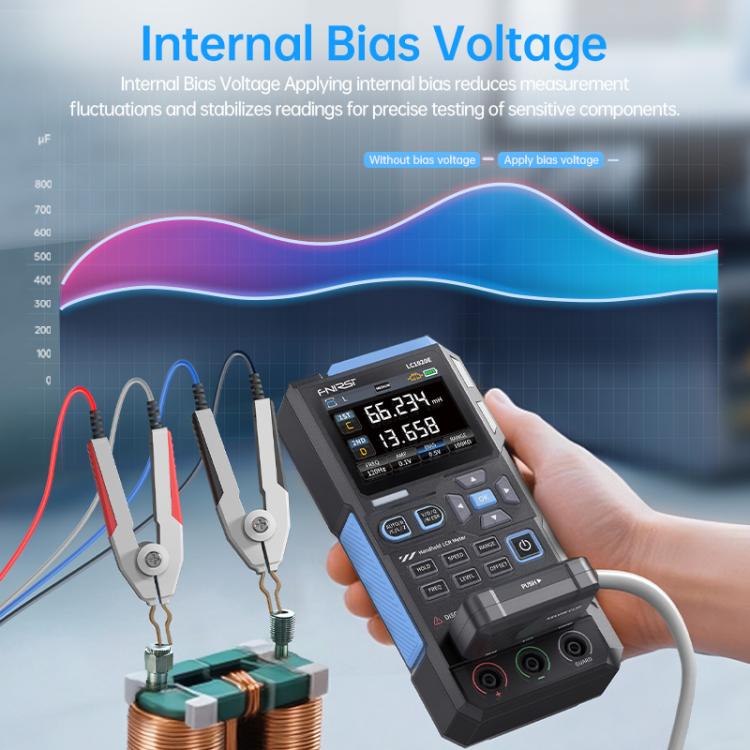

4. Internal bias function, eliminating material nonlinearity, restoring true capacity, enabling precise measurement and control of nonlinear components, weak signals, or complex environments

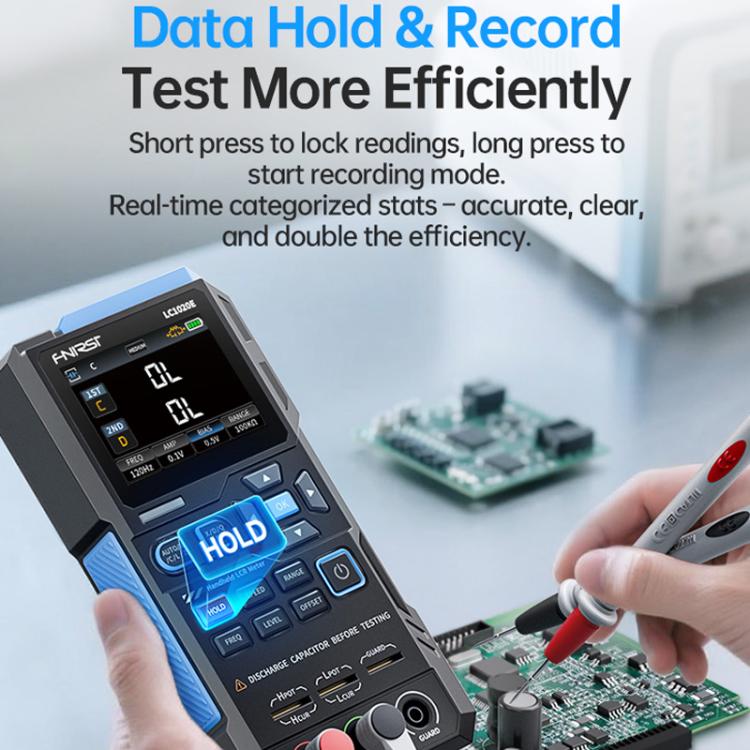

5. One-click locking and recording, making measurement more efficient. Press lightly to lock the current reading, press for a long time to activate the recording mode. The test results are classified and statistically analyzed in real time. The measurement is accurate, clear to view, and the detection efficiency is doubled. It enables you to easily control each measurement

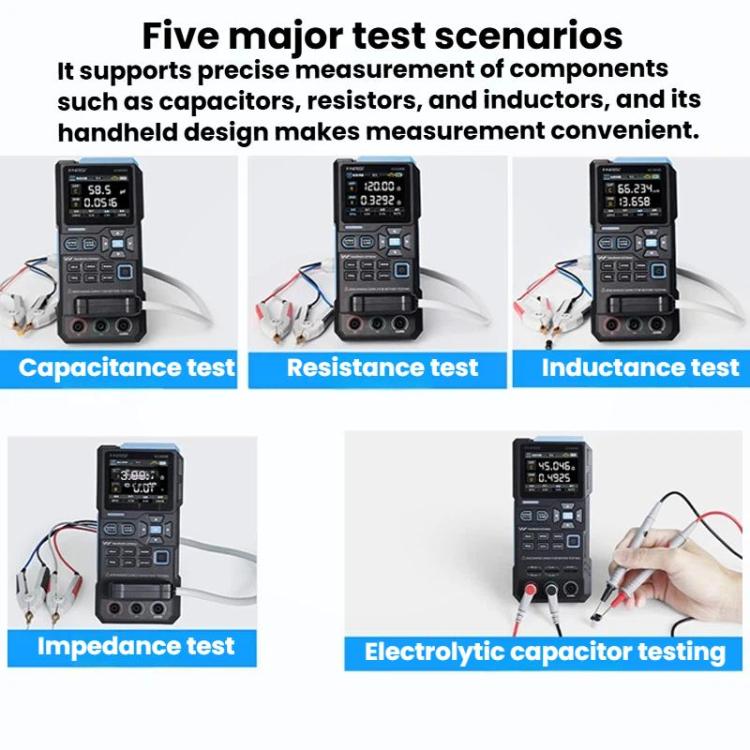

6. Five test scenarios, supporting precise measurement of capacitors, resistors, inductors impedance, electrolytic capacitors, etc
7. Compact handheld design, allowing for precise measurement anytime and anywhere

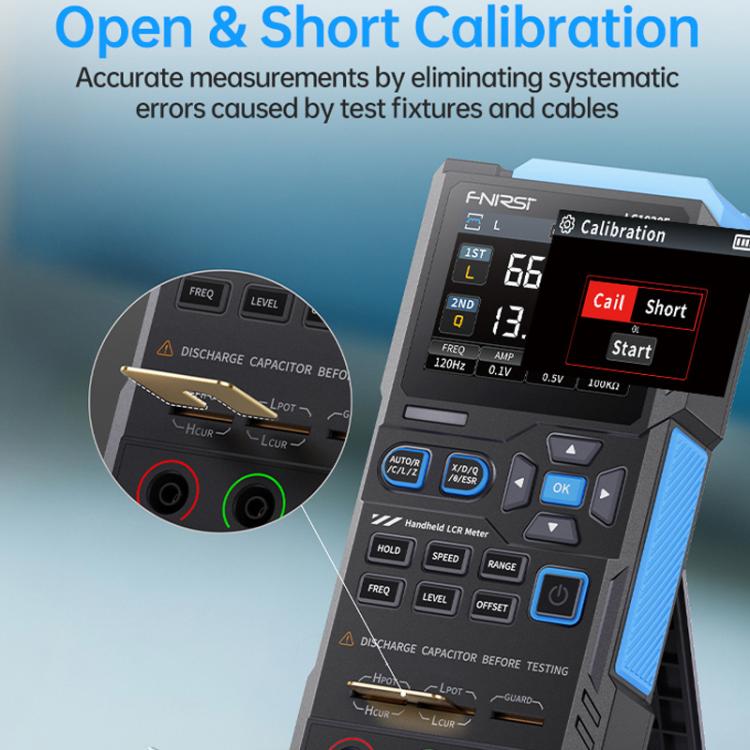

8. Open circuit/closed circuit correction function, used to eliminate systematic errors introduced by test fixtures and cables, which directly affect the accuracy of the measurement results
Parameters
1. Test frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
2. Basic accuracy: 0.3%

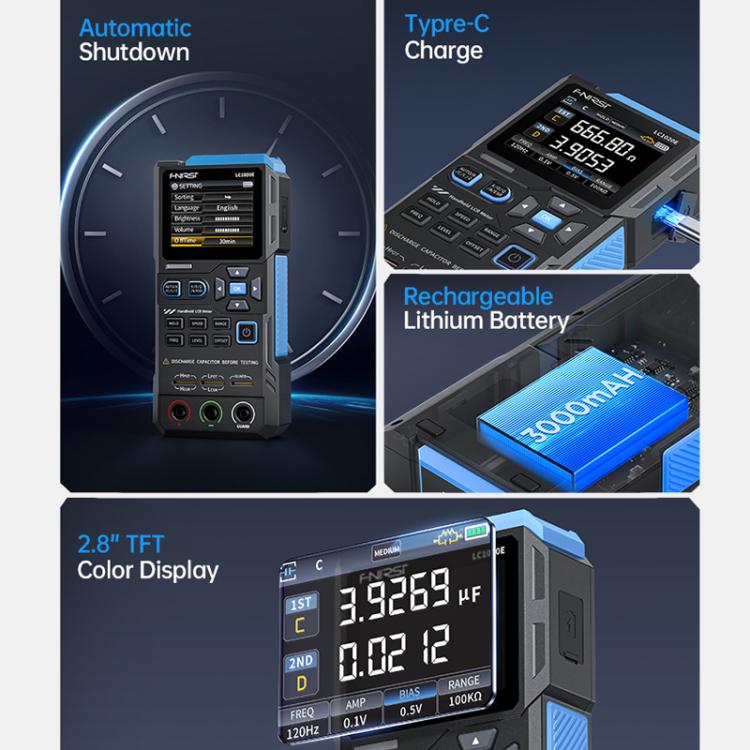

3. Display screen: 2.8 inch TFT liquid crystal display
4. Display digits: main parameter: 4 1/2 digits, secondary parameter: 4 1/2 digits
5. Test level: 0.1V, 0.3V, 0.6V
6. Calibration function: open circuit calibration, short circuit calibration
7. Internal bias: 0.0V, 0.5V
8. Test port configuration: three-terminal, five-terminal
9. Output impedance: 100Ω
10. Communication interface: USB-TypeC (virtual serial port)
11. Comparison function: used to calculate the relative error between the measured value of the component and the nominal value, displayed in percentage, and provide screening results. Nominal value and tolerance can be set, and the tolerance range can be defined from 0.1% to 99.9%
12. Recording function: check whether the data of the tested component conforms to the set nominal value and tolerance, record the number of successful and failed measurement data
13. Battery capacity: 3000mAh
14. Supported languages: Chinese, English
