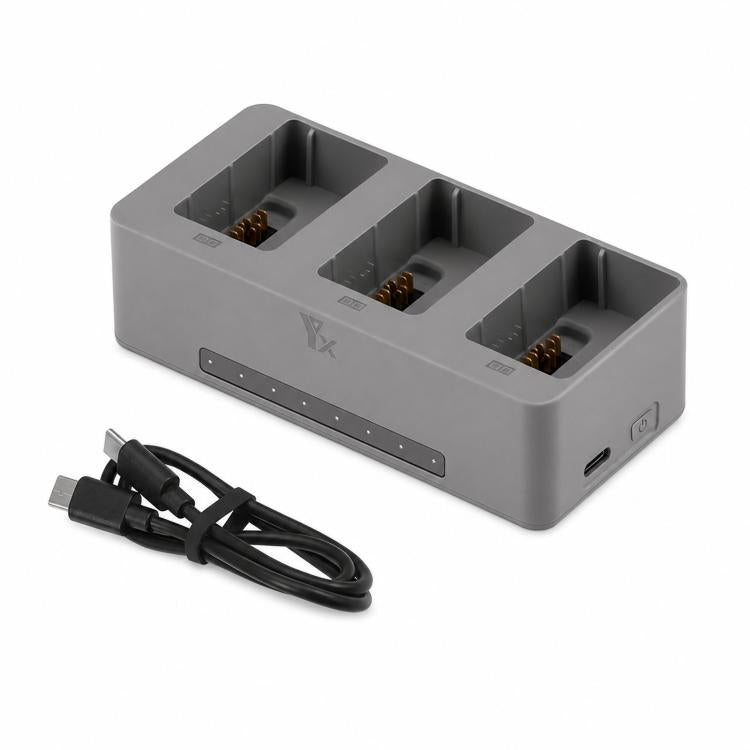

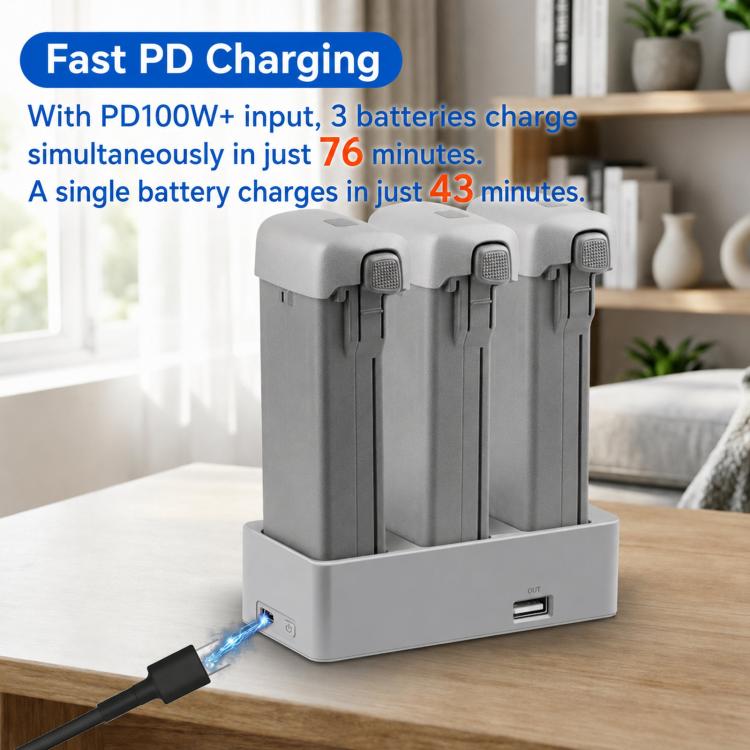

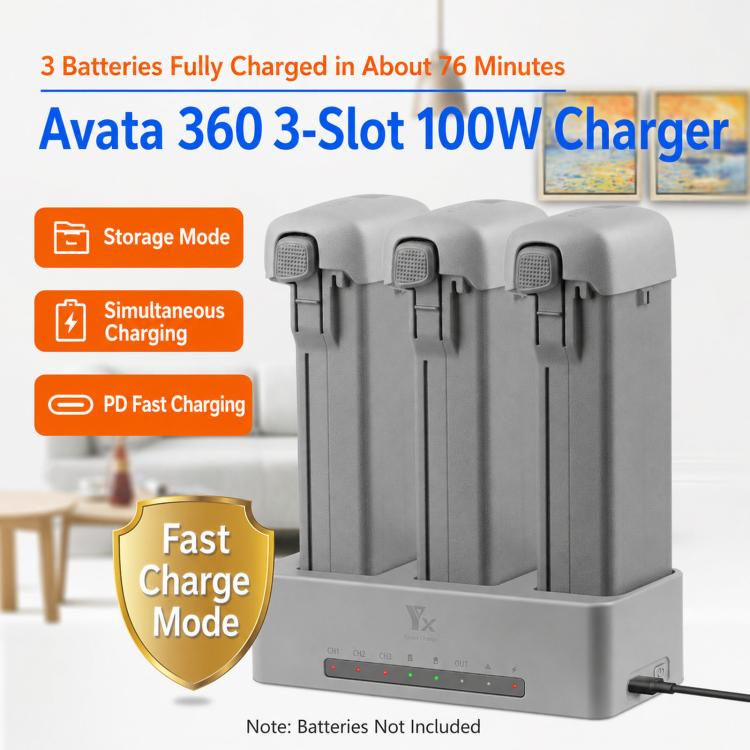

1. Engineered specifically as a high-performance 3-channel charging hub compatible with DJI Avata 360 drone batteries. Equipped with a powerful Type-C input supporting 5V-15V/3A and 20V/5A (Max). When paired with a PD 100W or higher power adapter, it can fully charge three batteries simultaneously in just 76 minutes, or a single battery in 43 minutes, dramatically cutting down wait times between flights. (Note: Charger only, batteries and power adapter are not included).

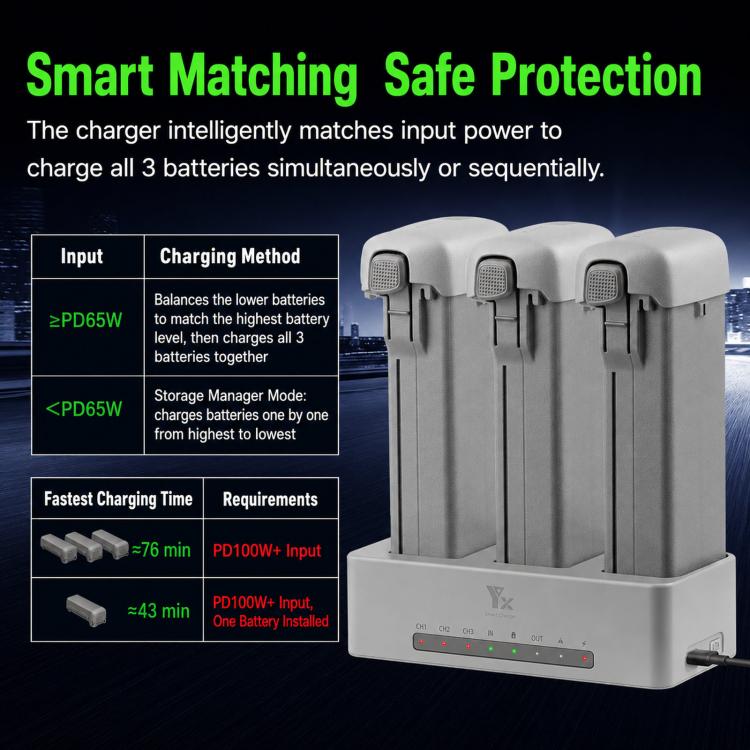

2. Features advanced charging logic to optimize safety and speed. When using an input of 65W or above, it intelligently balance-charges the two batteries with lower power first until they match the highest one, then charges all three concurrently. For inputs under 65W, it automatically switches to sequential charging mode, charging batteries one by one from the highest power level to the lowest to ensure efficient energy transfer.

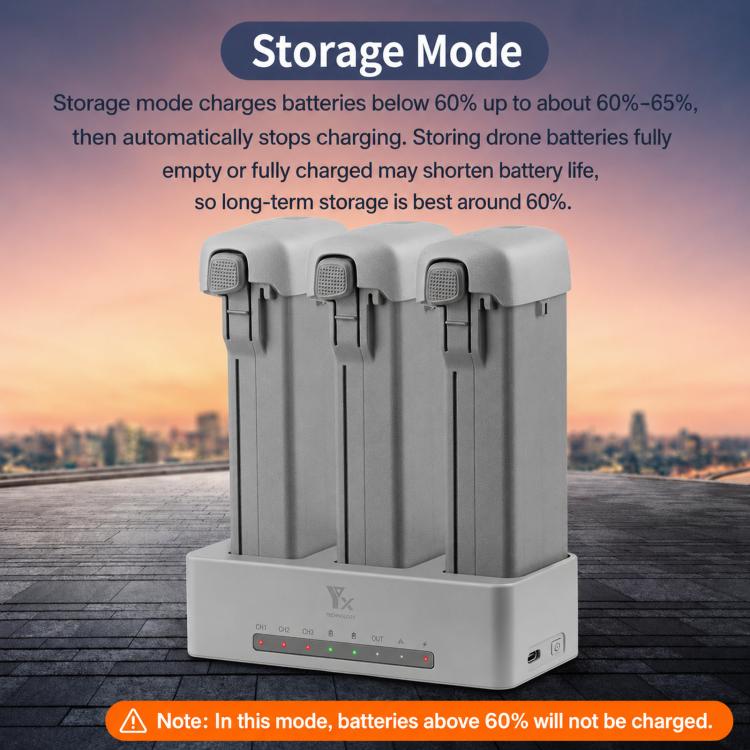

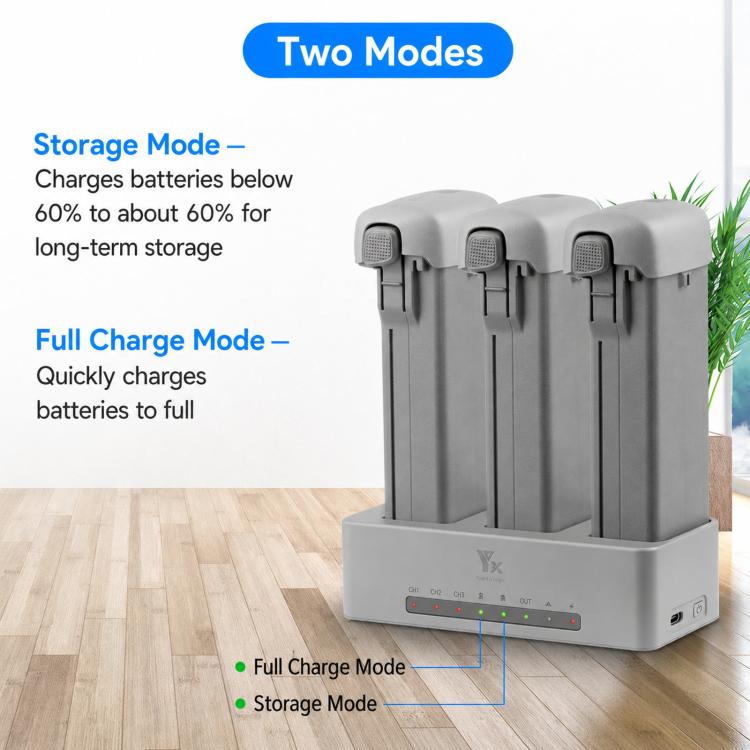

3. Switch modes effortlessly with a physical button on the side. "Full Charge Mode" gets your batteries ready for immediate action. "60% Storage Mode" automatically charges or discharges batteries below 60% power to a safe 60% to 65% capacity range. Maintaining lithium drone batteries at 60% during long-term storage effectively prevents battery swelling, cell degradation, and permanent lifespan loss. (Note: In storage mode, if the battery power is already above 60%, the charger will not charge it).

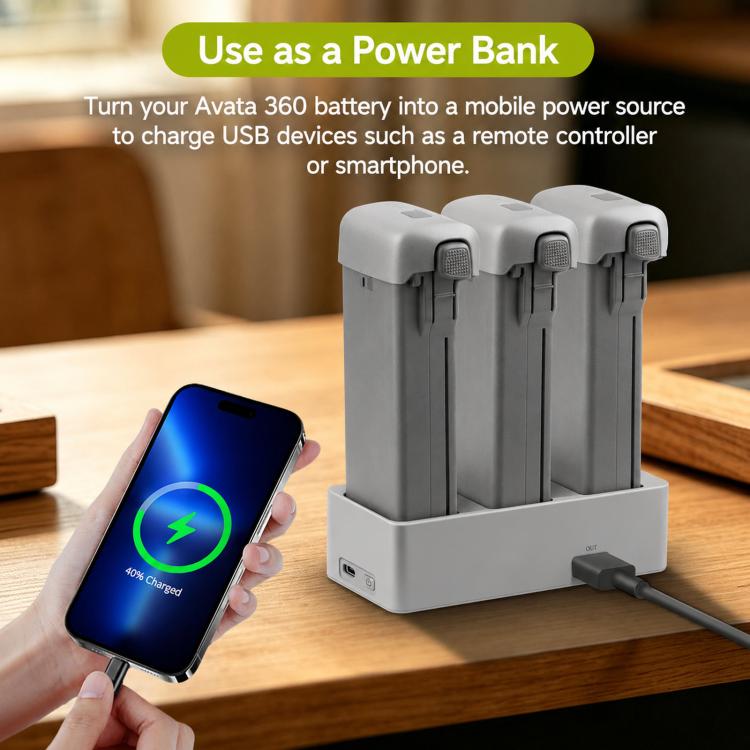

4. Turn your drone batteries into an outdoor power bank! Featuring a built-in USB-A output port, this hub can discharge your DJI Avata 360 batteries to charge external mobile devices. Easily power up your smartphones, tablets, flight remote controllers, or action cameras when you are off-grid, maximizing utility in outdoor environments.

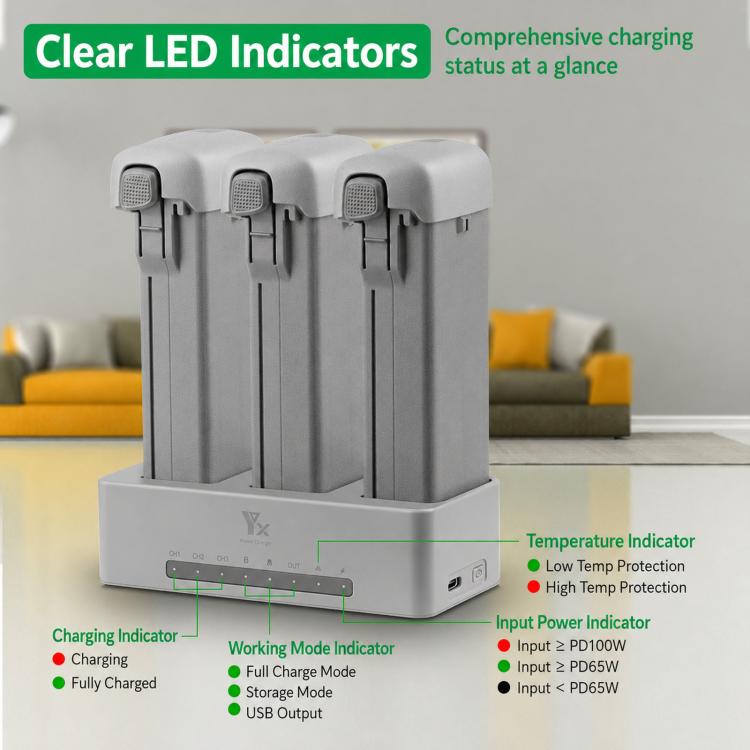

5. Keep track of every charging detail easily. The front panel features a rich sequence of LED lights that indicate: CH1/CH2/CH3 status, current active mode, Temperature Warnings, and Input Power levels (Red: input 100W or above; Green: input 65W or above; Off: input under 65W). Backed by multiple built-in guards against over-voltage, over-current, over-charge, short-circuits, and abnormal temperatures.

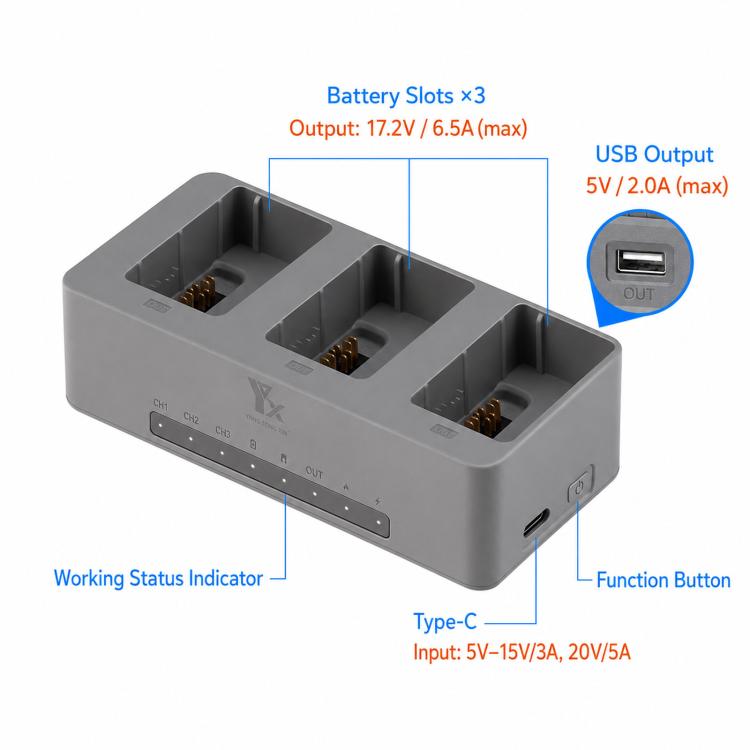

Specifications:
1. Charging Temperature: 0 to 40 degrees Celsius
2. Input Voltage: 5Vā15V/3A; 20V/5A
3. DC Output: 17.2V/6.5A (Max)
4. USB Output: 5V/2.0A (Max)

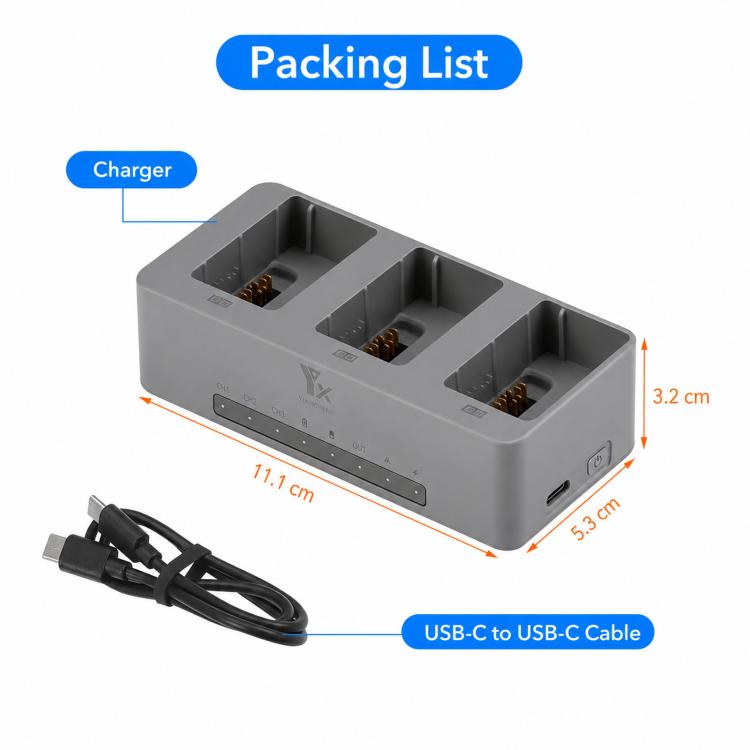

5. Product Net Weight: 88.9g (excluding cables)
