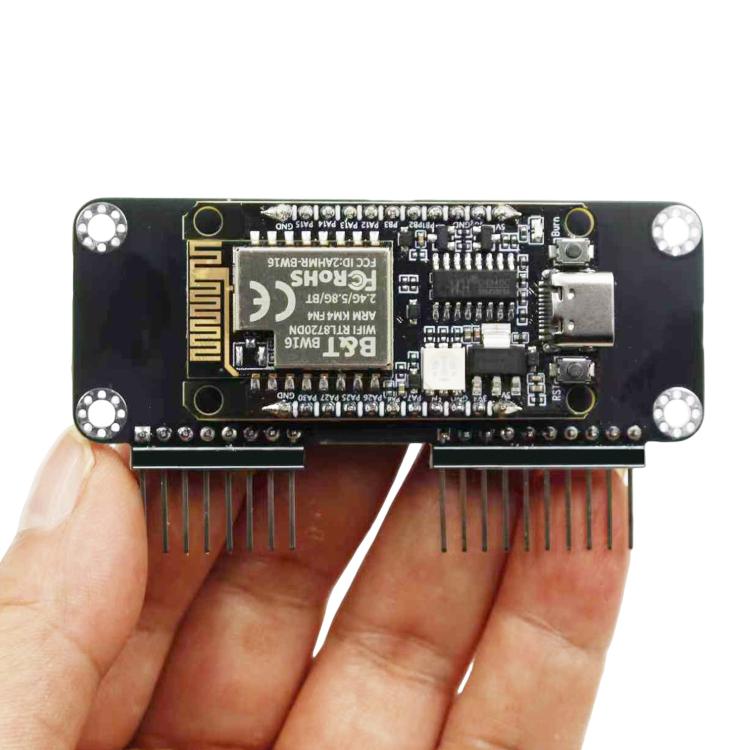

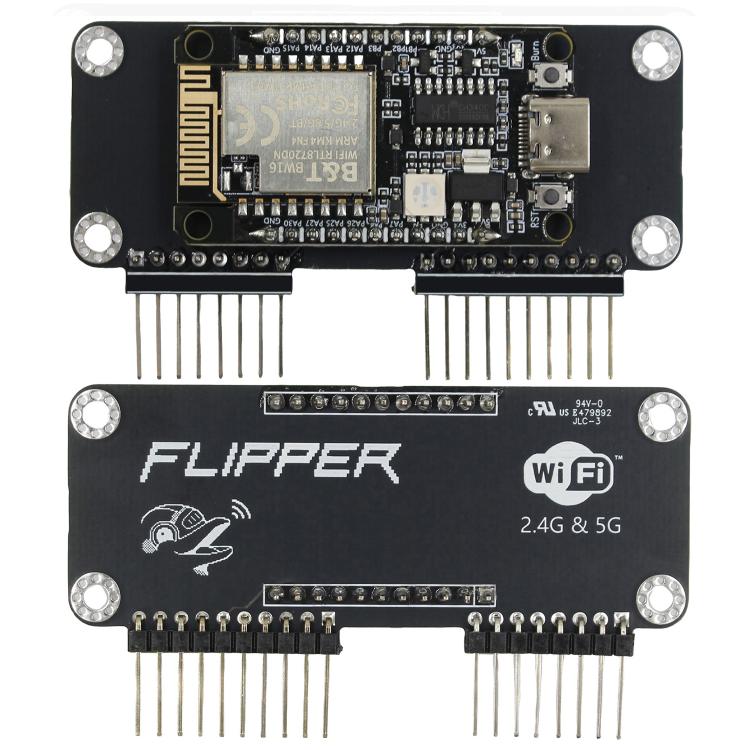

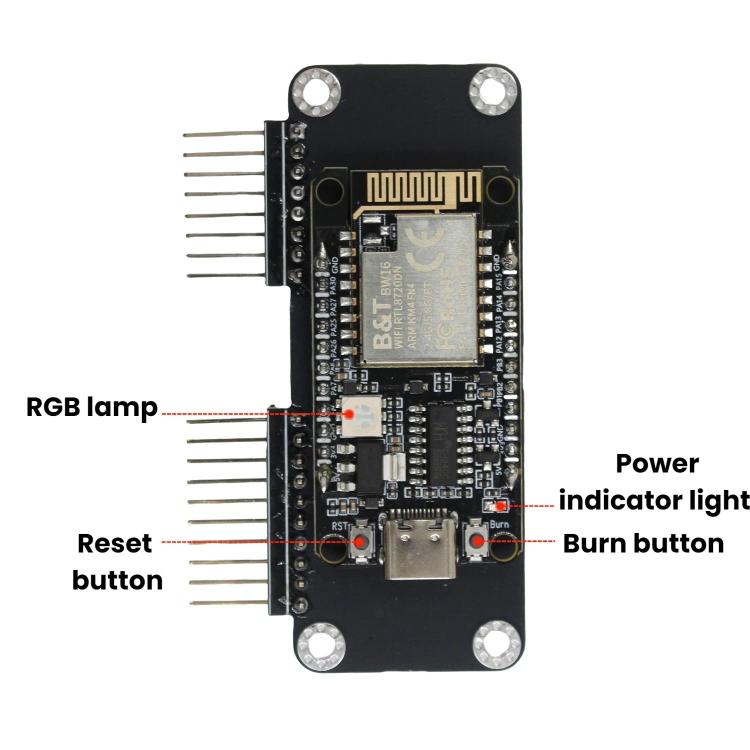

1. Suitable module: BW16
2. Antenna type: onboard PCB Antenna
3. Spectrum range: 2400-2483.5MHz or 5180-5825MHz
4. WiFi: supports 802.11a/b/g/n
5. Bluetooth: BLE 5.0
6. Power supply: 5V, Current > 500mA
7. Security: AES/DES/SHA
8. Flash memory: 4MB
9. Supported protocols: 802.11 a/b/g/n, Dual-Band (2.4GHz and 5GHz)
10. Transmit power: 2.4GHz: 16dBm (11b), 15dBm (11g), 14dBm (11n) 5GHz: 14dBm (11a), 13dBm (11n) (based on the open-source project FlipperZero-WiFi-Scanner_Module)
11. Real-time 5G channel strength scanning (dynamic display from -60dBm to -75dBm)
12. Dual-band sniffing algorithm, supporting intelligent switching between 2.4GHz and 5GHz bands
13. Compatible with WPA2 encryption protocol only (KRACK defense firmware pre-installed)
14. Open API interface, supporting Arduino/PlatformIO secondary development
15. Accompanying App supports multiple target SSIDs (including signal strength/encryption type visualization)
Package list:

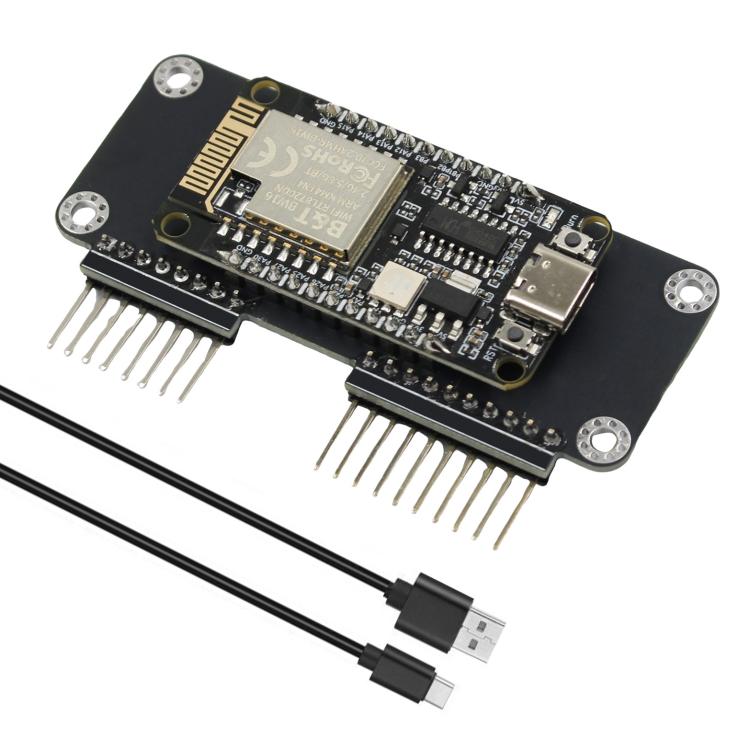

- Expansion board module x 1
- Type-C cable x 1
