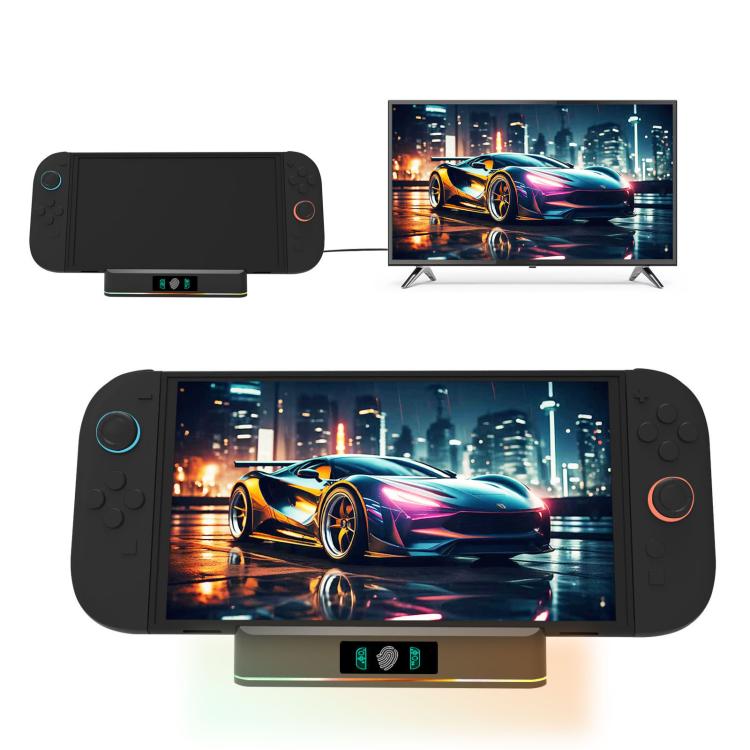

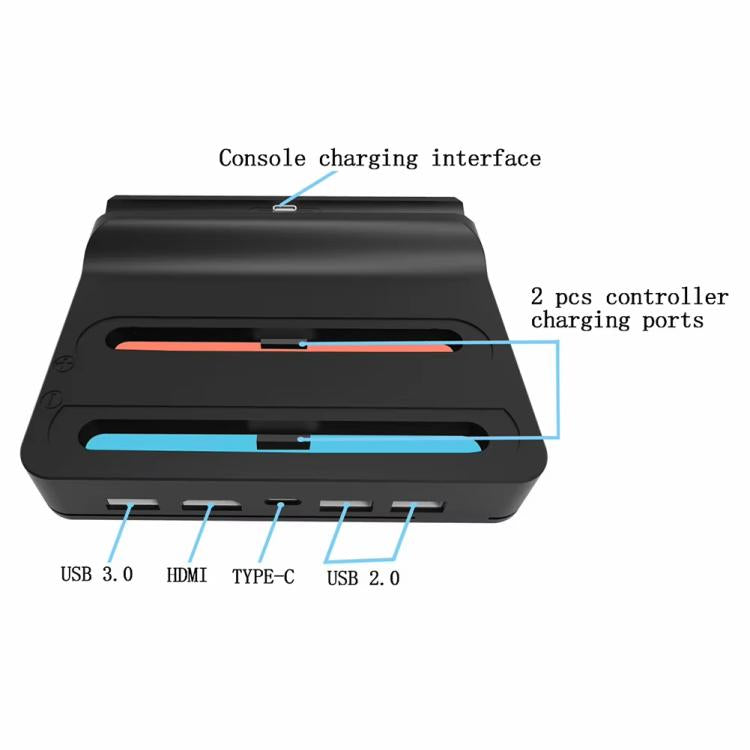

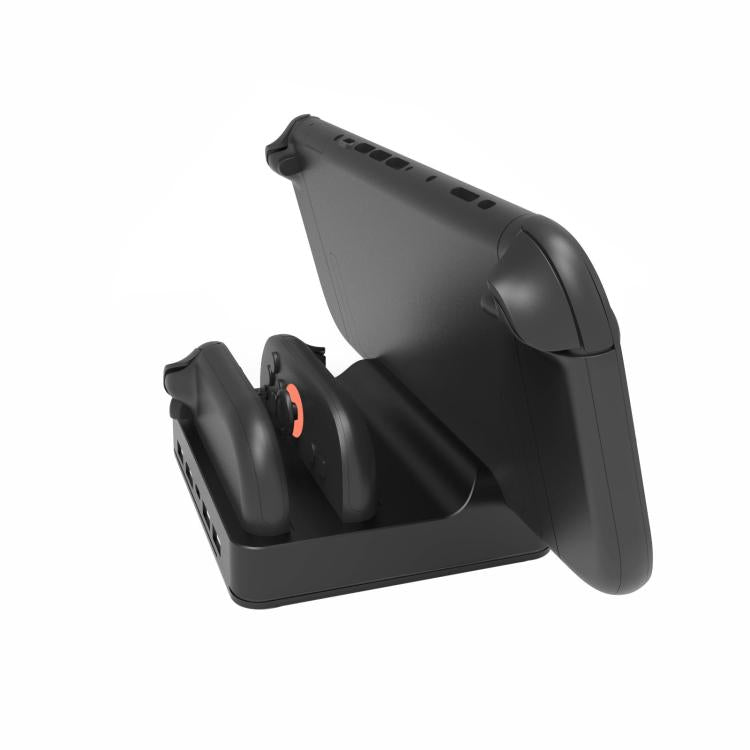

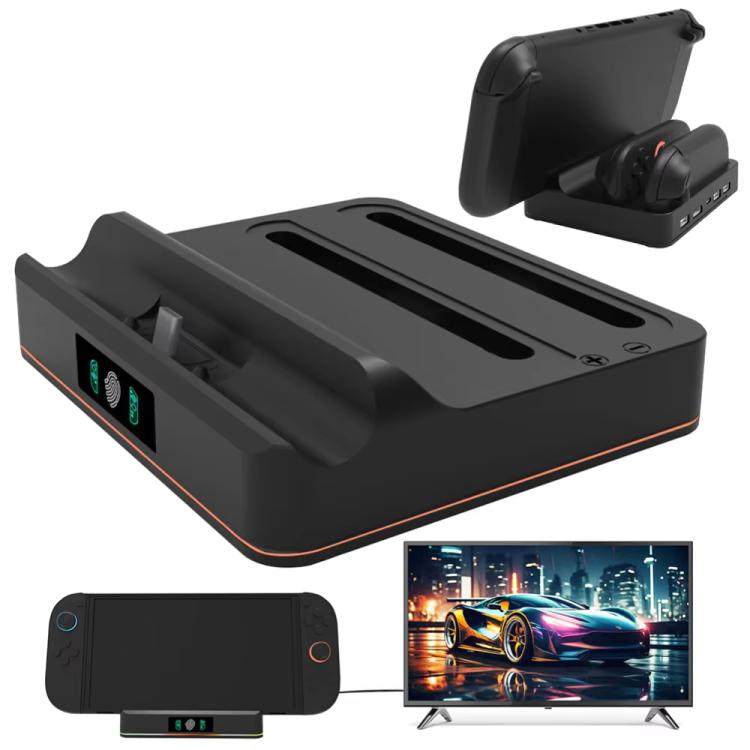

1. Designed specifically for video projection and controller charging of Switch 2/Switch/OLED consoles. Allows simultaneous video projection for the console and charging for 2 controllers. Features multiple USB 2.0 and USB 3.0 expansion ports, with charging indicators and multicolor breathing LED effects.
2. Breathing RGB lighting activates when connected to power.
3. Central touch-sensitive button controls lighting modes. Cycle through modes: Multicolor gradient, Red, Orange, Green, Blue, Purple (5 modes in loop).
4. Lighting memory function:
- Long-press (2S) touch button: Lights turn off.
- Single tap: Lights turn on, resuming the last used color (e.g., if Blue was active before shutdown, Blue reactivates).

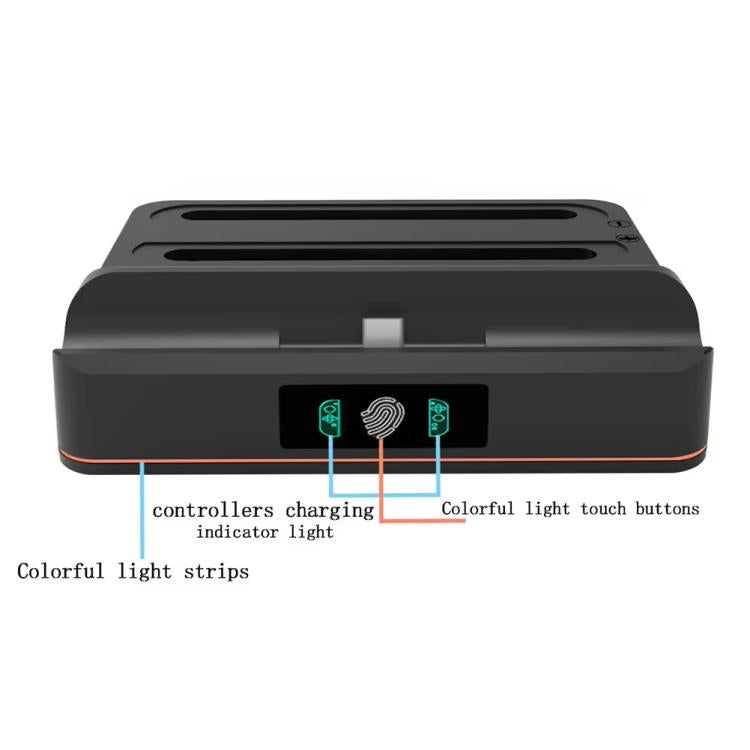

5. Charging Indicators:
- Orange: Host/controllers charging.
- Green: Fully charged.
- Off: No connection or no power.
Specifications:
1. Input Interface: PD15V, DC5V
2. Operating Voltage: DC5V, DC15V
3. Operating Current: 2000mA (Max)
4. Video Output: 1080P 60Hz
5. Output Voltage: DC5V+/-5%
6. Output Current:
- 1200mA (Console)
- 200mA x 2 (Controller ports)
7. Standby Current: 150mA

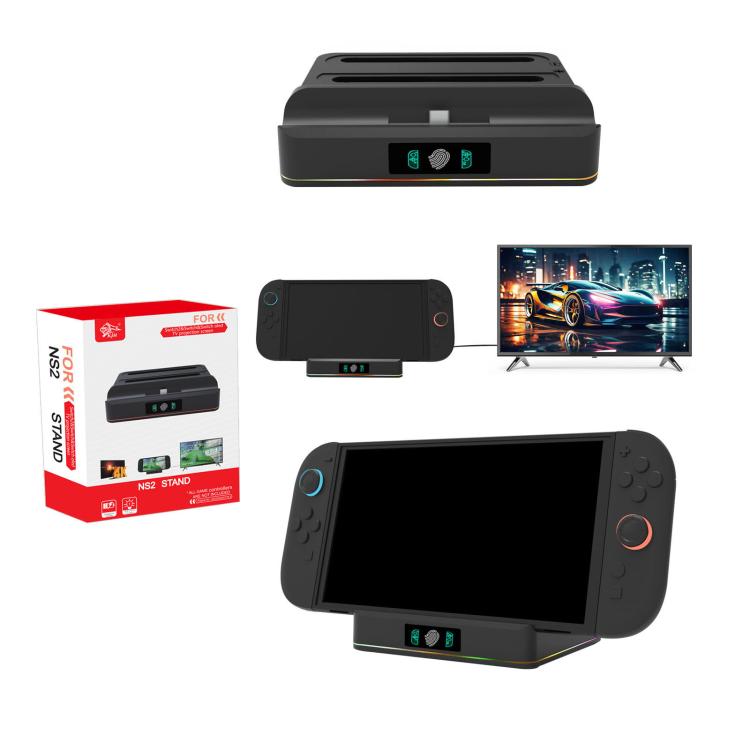

Package Contents: Charging Dock × 1, User Manual × 1
