Features:
1. The BT-705 Battery Analyzer is designed specifically for testing 6V and 12V conventional flooded batteries, AGM flat batteries, AGM spiral batteries and gel batteries as well as 12V and 24V starting and charging systems.
2. The BT-705 provides technicians with a fast, simple and affordable solution for checking battery health and detecting faults in starting and charging systems.
3. Multiple vehicle applications - passenger cars and trucks
4. Tests batteries rated from 100 to 2000CCA
5. Tests multiple battery types - conventional flooded, AGM flat plate, AGM spiral and gel
6. Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
7. Tests batteries directly on the vehicle - no need to disassemble the battery
8. Detects bad batteries
9. Quick and accurate display of test results in just 3 seconds
10. Tests 12V and 24V charging systems
11. Advanced starter/alternator testing
12. Fast starter analysis without disabling the ignition
13. No light, heat or sparking, and no discharge - safe operation for all levels of users
14. Automatic temperature compensation
15. Ripple voltage test for easy and intuitive fault checking
16. Equipped with a large backlit LCD Display and menu-driven operation, extremely easy to use
17. Optional Bluetooth printer
Product parameters:
1. Display: 2.8-inch LCD screen, 128 x 64 pixels
2. Supported languages: English/French/German/Spanish/Dutch/Russian/Italian
3. Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
4. Storage temperature: -20 to 70 degrees Celsius (-4 to 158 degrees Fahrenheit)

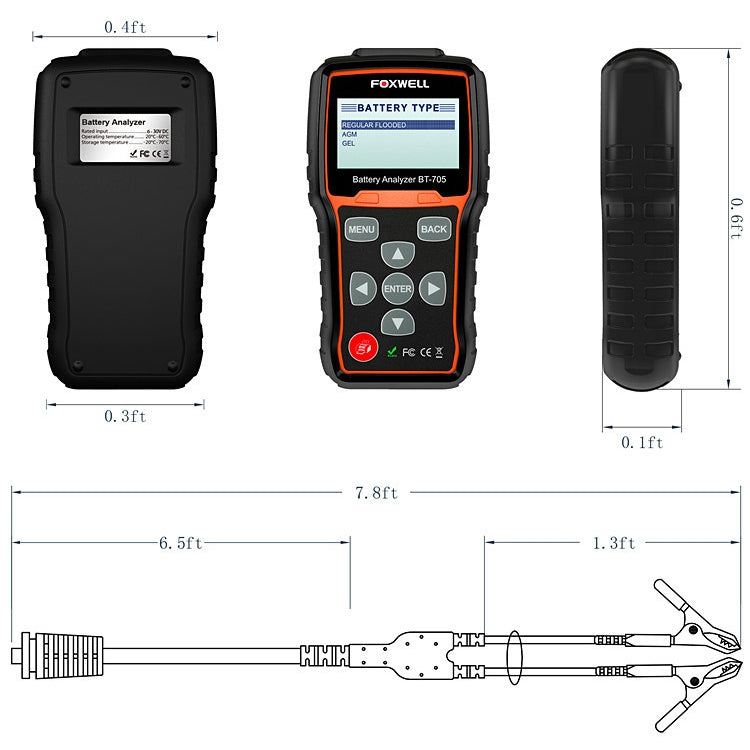

5. Dimensions: 190 x 90 x 36mm
6. Weight: 325 grams
Packing list:
BT-705 Battery Analyzer x 1
Instruction manual x 1
Storage box x 1
