1. Protection function: overcurrent protection, overheating protection, short circuit protection, reverse connection protection
2. DC power supply is widely used, many instruments can be used as long as the voltage parameters of the converter are met

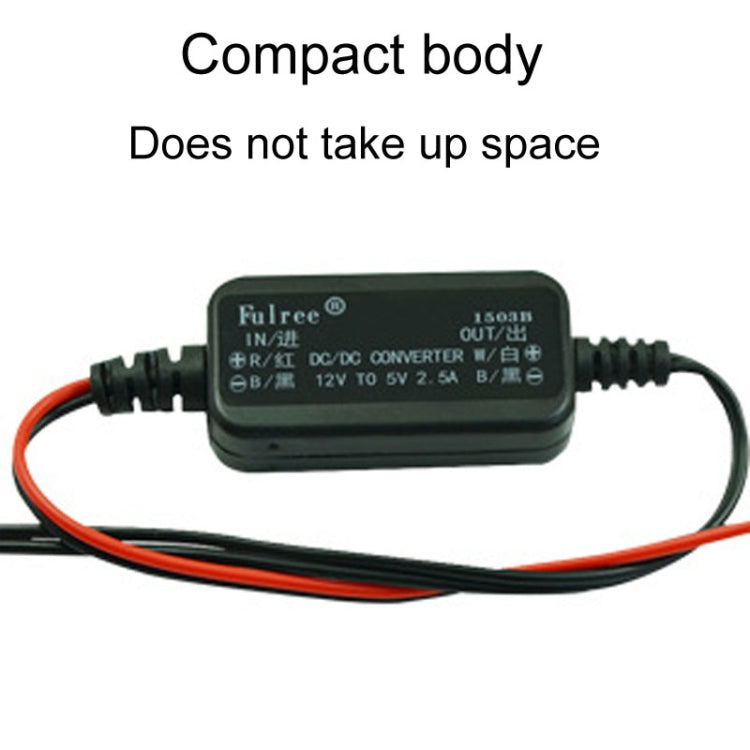

3. Mini body, does not occupy space

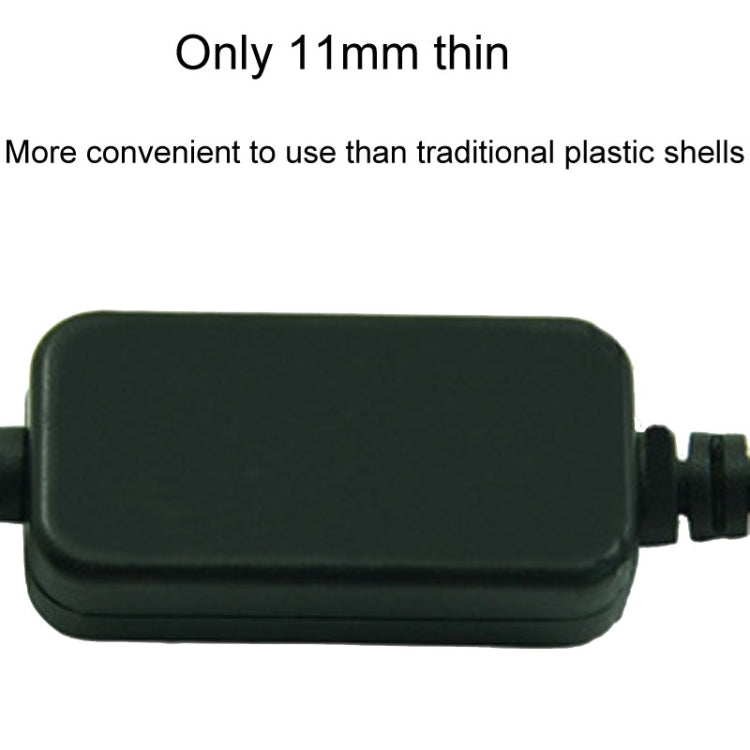

4. 11mm ultra-thin shell, more convenient to use than the traditional plastic shell
5. The product power is sufficient, stable transmission, high conversion efficiency

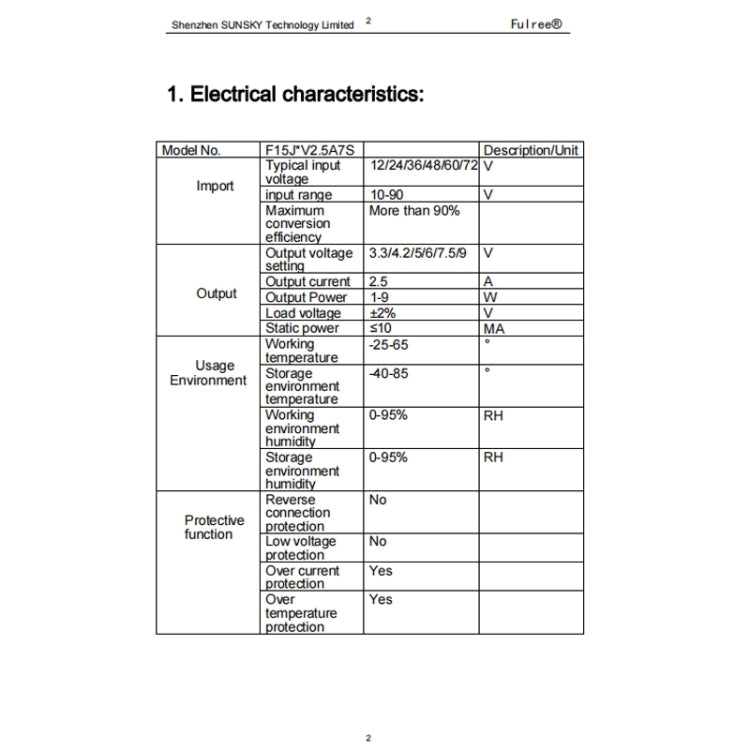

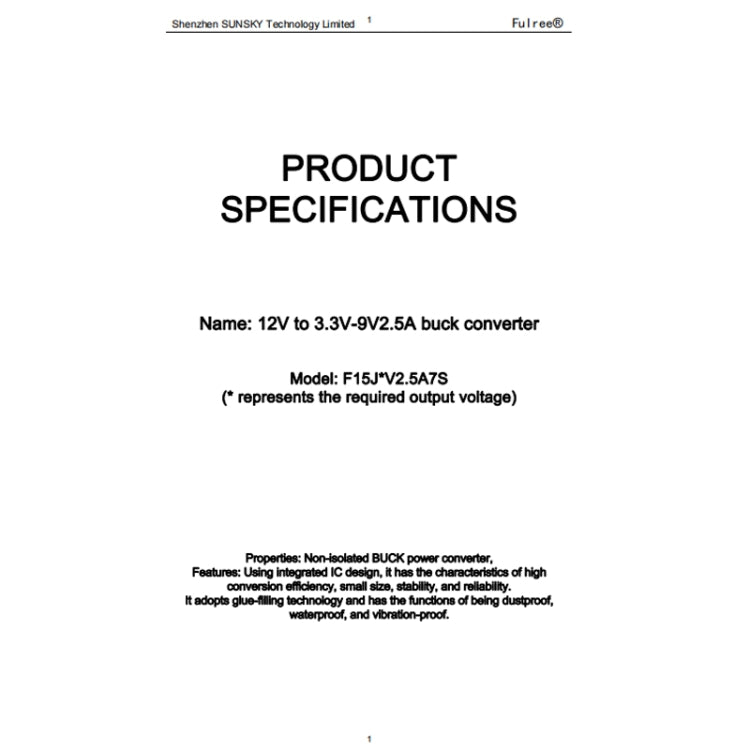

Parameters:

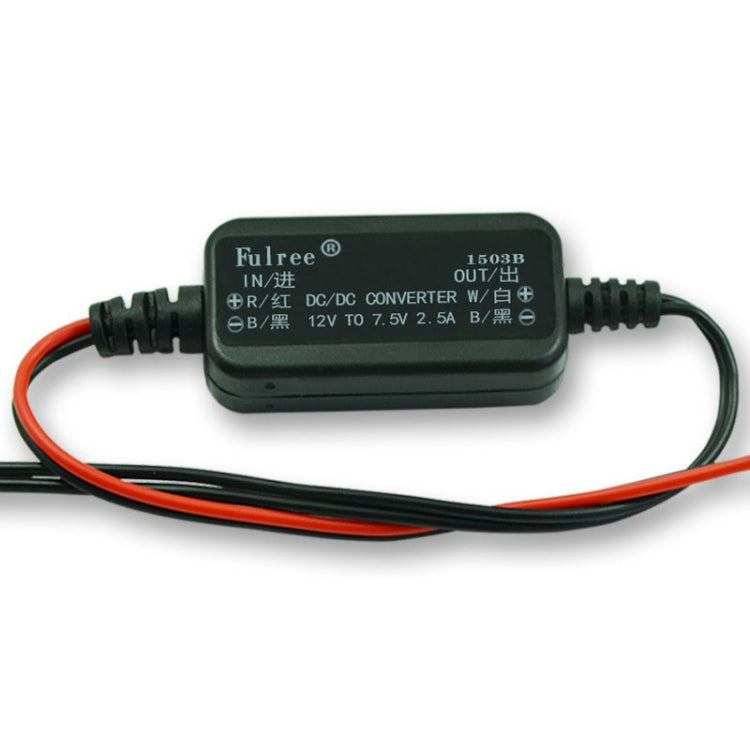

1. Nature: non-isolated buck power converter
2. Input voltage: DC8-15V
3. Output voltage: 3.3V, 4.2V, 5V, 6V, 7.5V, 9V
4. Output current: 2.5A (9V 1A)
5. Output power: 8.25W, 1.5W, 12.5W, 15W, 18.75W, 9W
6. Conversion efficiency: more than 95 percent
7. No-load power consumption: 10-12MA
8. Operating temperature: -40-80 degrees celsius
9. Installation cable length: 13cm including vika
10. Heat dissipation: natural

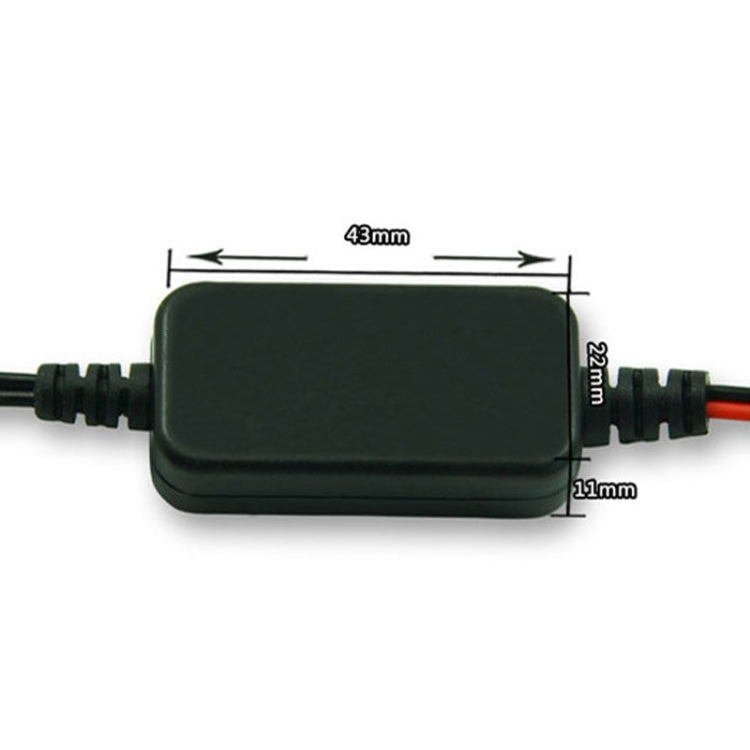

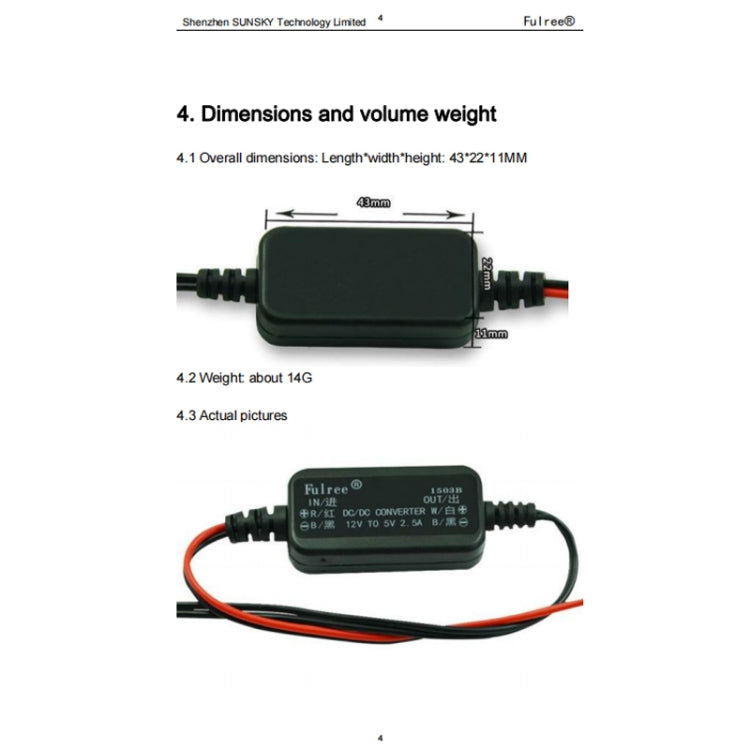

11 Overall Dimension: 43 x 22 x 11mm
12. Weight: about 14g
Note: delivery only power converter, does not include other items in the picture
