1. Signal-to-noise ratio/left-right channels (1kHz, 0dB): 90dB
2. Total harmonic distortion: 1kHz-3dB 0.03%
3. Sensitivity: MIC: 6mV/4kΩ; AUX: 280mV/30k ohm
4. Frequency response: MIC: 40Hz-15kHz +1/-6dB
5. Tone/Music:
- Bass: +10dB (100Hz)
- Center/Subwoofer channel: 87dB
- Separation: 75dB
6. Sound quality adjustment range/Music
- Bass: +/-10dB (100Hz)
- Treble: +/-10dB (10kHz)
7. Microphone:
- Bass: +/-10dB (100Hz)
- Treble: +/-5dB (10kHz)
8. Dual echo effect: output level 2.8V/k ohm
9. Microphone noise gate threshold: trigger voltage 3mV, response time 3s
10. Distortion (1kHz, 30mV): 0.03%
11. Power: 25W
12. Net weight: about 2.1kg

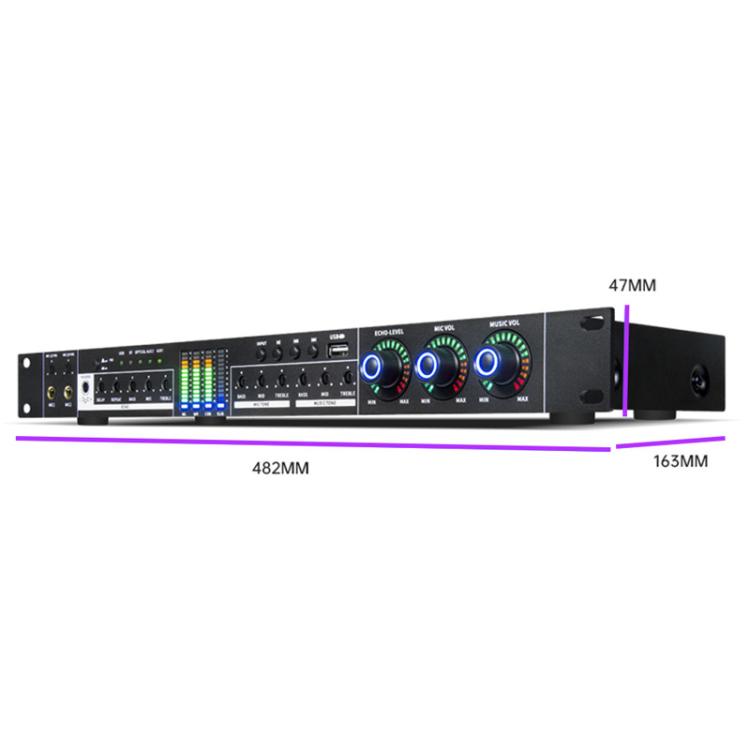

13. Size: about 48.2 x 16.3 x 4.7cm
Features:

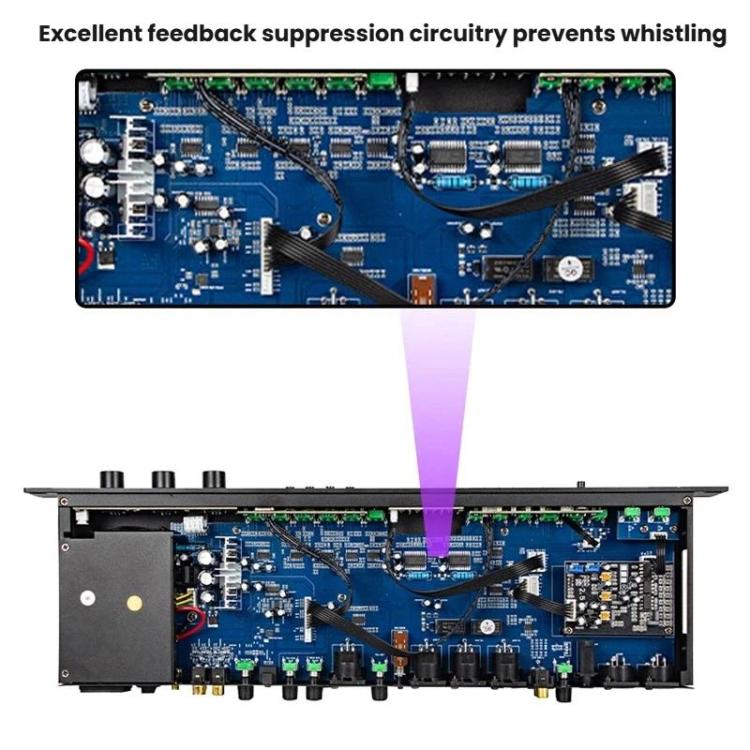

1. Superior feedback suppression circuitry prevents howling
2. Dual-mode reverb processing delivers richer, more natural, and transparent vocal effects; outputs front (rear) left/right channels, center channel, and subwoofer channel
3. Aluminum alloy panel with 1U slim design; card-style adjustment for effortless, streamlined operation
4. Microphone features six-band parametric EQ with wider adjustment range for smoother, more refined sound without compromising original tone. Enhances single-band audio quality and effectively suppresses feedback frequencies
5. Subwoofer output design with adjustable crossover point and output gain. Features comprehensive anti-feedback circuitry; when M1C mode is activated, the low-frequency signal output port automatically attenuates by half to prevent low-frequency feedback and equipment damage. Includes a function to prevent microphone signals from entering the subwoofer channel
6. Center channel output design allows selection between music/reverb ratio or pure vocal dry signal, with independent volume and high/mid/low frequency adjustment

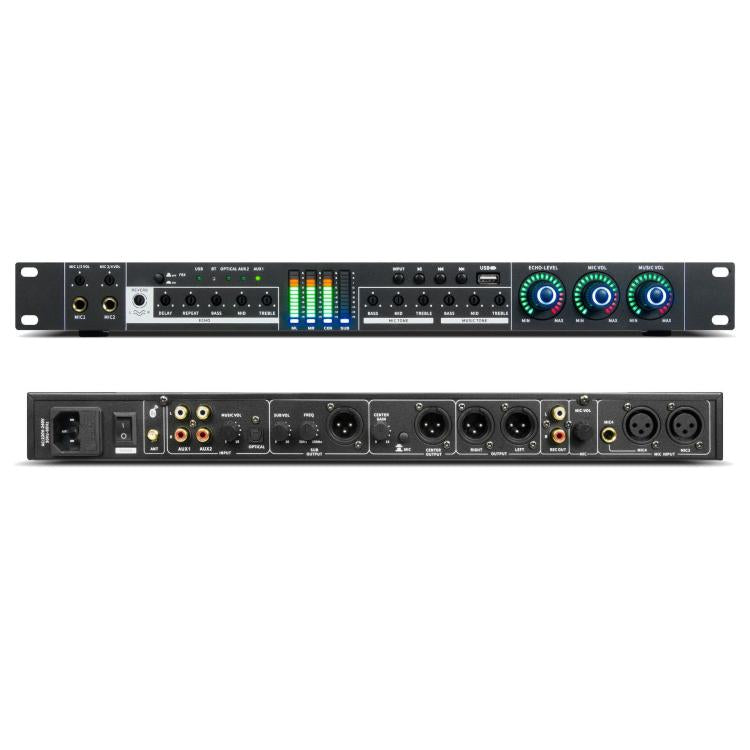

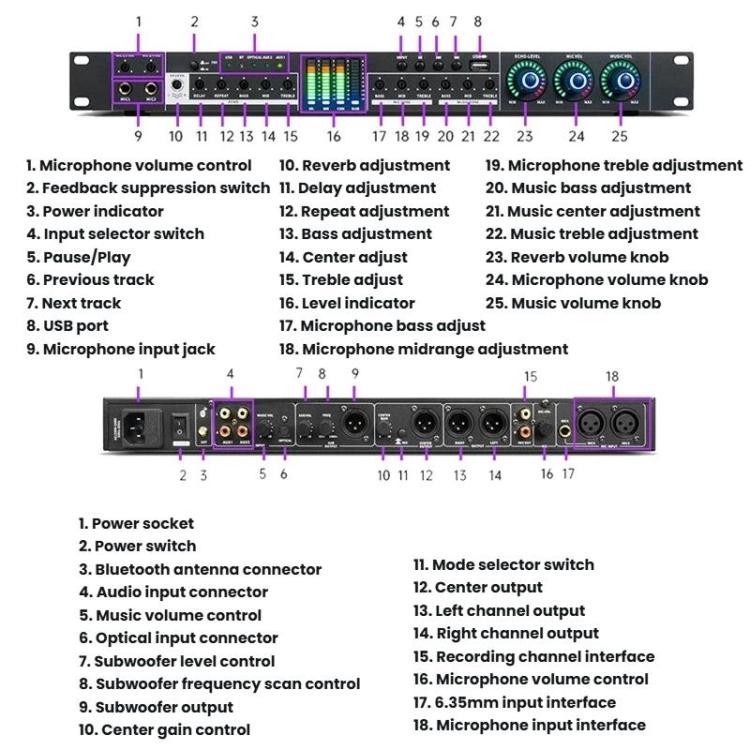

7. Five microphone input channels: two on front panel, three on rear panel
8. Features Bluetooth audio input, optical input, and USB input
