About The Protuct

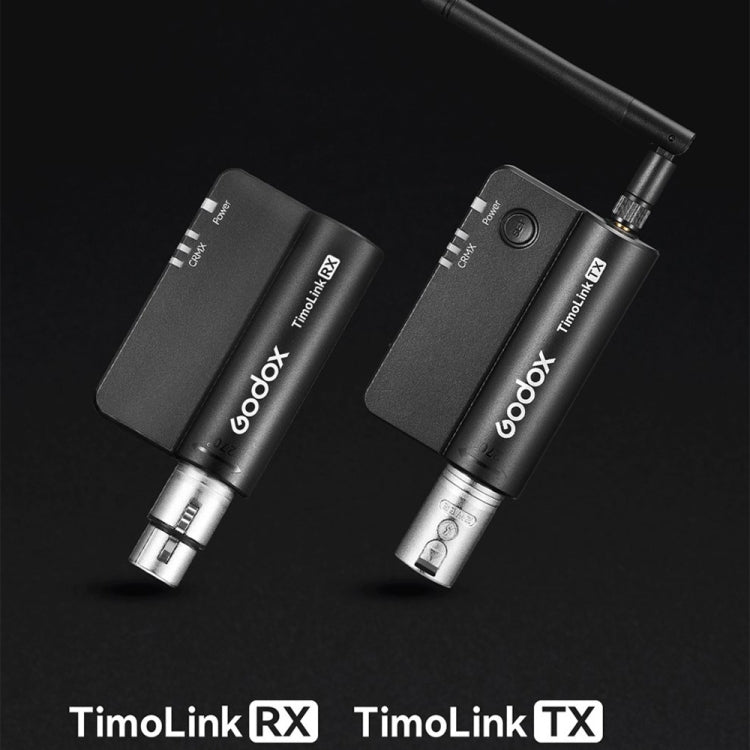

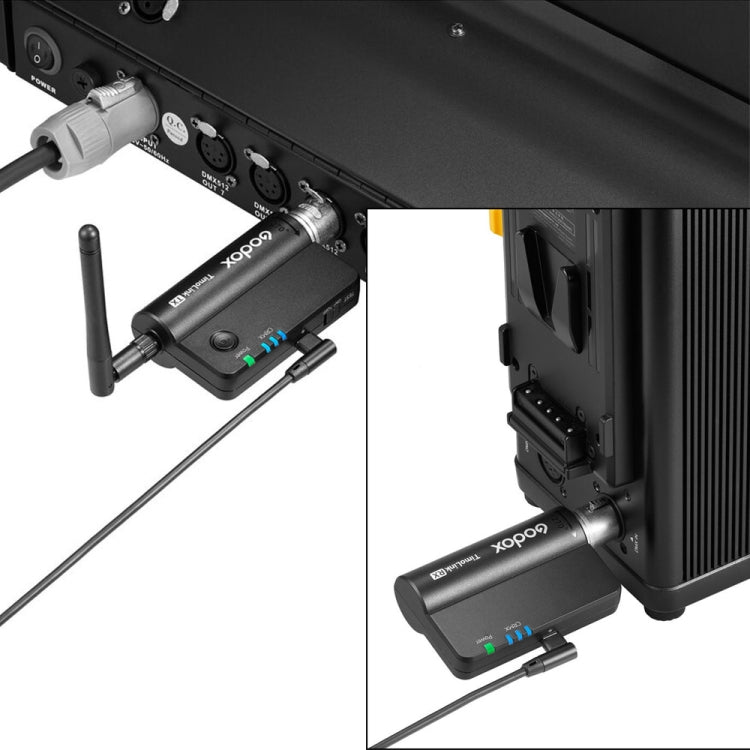

Built with CRMX modules from Lumenradio, TimoLink TX and TimoLink RX are wireless DMX transmitters and receivers compatible with Godox or other fixtures featuring DMX control capabilities. The transmitter TimoLink TX converts a wired DMX console to wireless by sending signals to CRMX-compatible fixtures (such as MG1200Bi and TP Series) or receivers. As for the receiver TimoLink RX, it works perfectly with DMX-compatible fixtures that do not include wireless modules (such as LD Series and some of UL Series, TL Series and KNOWLED M Series) and enables them to achieve wireless DMX control. TimoLink TX and TimoLink RX are ideal for filmmaking, broadcasting and other scenes where wireless DMX is needed.

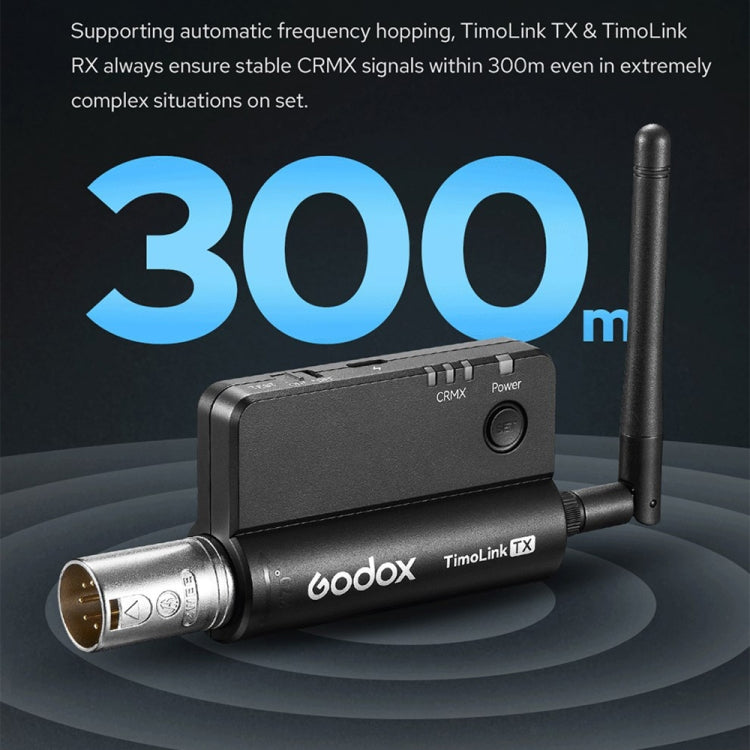

1. Automatic Frequency Hopping: Supporting automatic frequency hopping, TimoLink TX & TimoLink RX always ensure stable CRMX signals within 300m even in extremely complex situations on set.

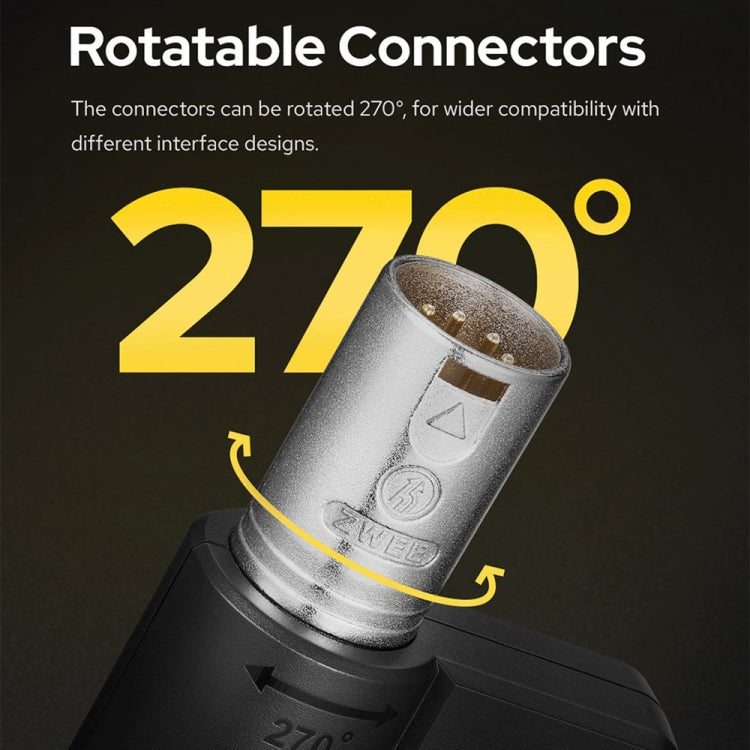

2. Rotatable Connectors: The connectors can be rotated 270 degrees, for wider compatibility with different interface designs.
3. TimoLink TX:
- The RESET button and SET button are designed separately, to simplify operation logic and enhance efficiency.
- We have designed a TEST feature for the transmitter TimoLink TX, with which you can easily check the connection status of lights even off the DMX board, greatly improving the efficiency of wireless DMX control.
4. TimoLink RX: As a wireless DMX receiver, TimoLink RX can work with fixtures that donot include a CRMX module and make it possible for them to realize wireless DMX control.
Specifications
1. Input Parameter: 5V/90mA
2. Colours of the signal indicator: 8
3. TimoLink TX Power Supply: Type-C, DMX512, DMX240
4. Controlling distance: Up to 300m
5. TimoLink RX Power Supply: Fixtures with DMX functions
6. Dimension:141 x 96 x 26mm Transmitter; 110 x 53 x 26mm Receiver
7. Net Weight: 89g Transmitter; 80g Receiver
Package List
1. Wireless DMX Transmitter x 1
2. Wireless DMX Receiver x 1
3. Charging Cable x 2
4. Manual x 1
