1. DC 0-80V output, the generator does not have a voltage stabilization circuit, the peak voltage reaches 80V, it can directly charge a 3-12V 10W LED light, and can directly charge a small battery. The peak charging current is about 220mA. Because the power generated during charging is used up in time, the voltage will automatically remain at around 14V, and maintain a suitable voltage so that all the generated power can be used to charge the small battery.
2. Output peak voltage: 80V (1.2Mpa)
3. Output peak current: greater than or equal to 220mA (12V)
4. Line resistance: 10.5+/-0.5Ω
5. Insulation resistance: 10MΩ (DC100 megohmmeter)
6. Peak withstand voltage of closed outlet: 0.6Mpa
7. Peak withstand voltage of open outlet: 1.2Mpa

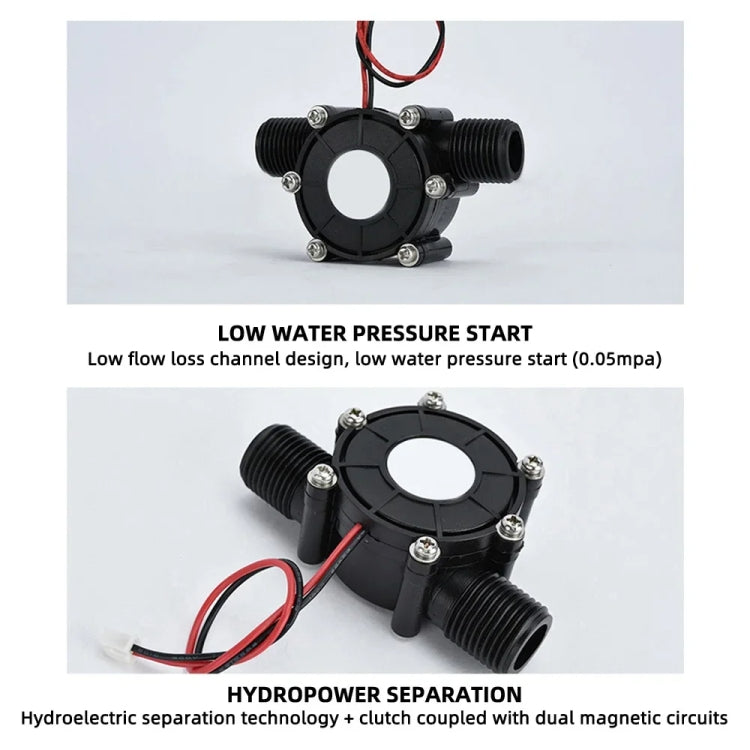

8. Starting water pressure: 0.05Mpa
Mechanical characteristics and operating environment:
1. Axial clearance: 0.2-1.0mm
2. Mechanical noise: less than or equal to 55dB
3. Generator life: greater than or equal to 3000h
