1. Rated working voltage: AC220V/110V
2. Rated power: 80W
3. Temperature range: 100-480 degrees Celsius/212-900 degrees Fahrenheit
4. Temperature accuracy: +/-5 degrees Celsius/40 degrees Fahrenheit
5. Temperature stability: +/-1 degree Celsius/30 degrees Fahrenheit
6. Supported handle types: 115/210/245
7. Temperature adjustment step: +/-5 degrees Celsius/10 degrees Fahrenheit
8. Delayed sleep: 0-180S, delayed sleep function is canceled by default
9. Display resolution: 240 x 320PX (LCD color screen)
10. System language: Chinese and English bilingual switch
11. Working conditions: 0-40 degrees Celsius, humidity less than 80%
12. Storage conditions: -20 - 80 degrees Celsius, humidity less than 80%

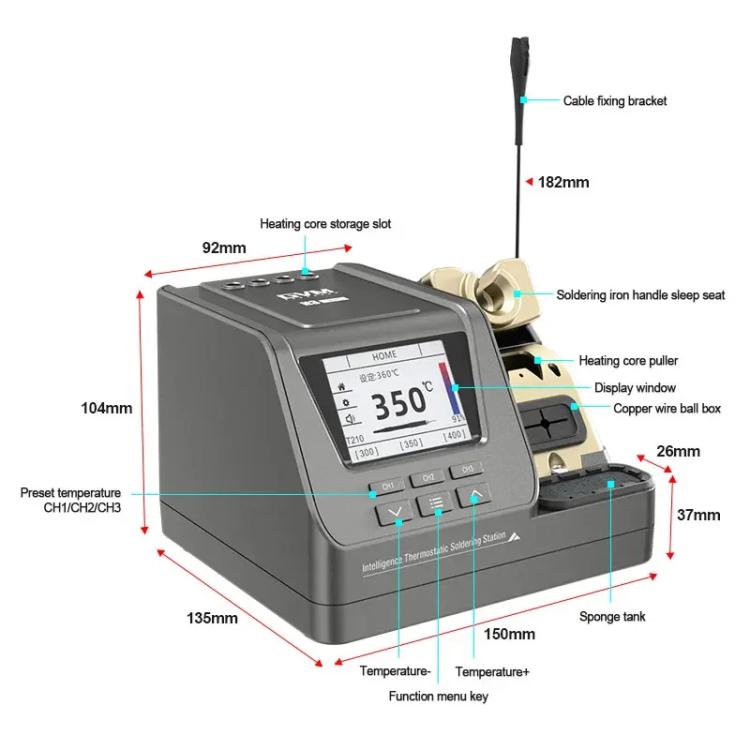

13. Size: about 15 x 13.5 x 10.4cm
14. Weight: about 1650g
Features:

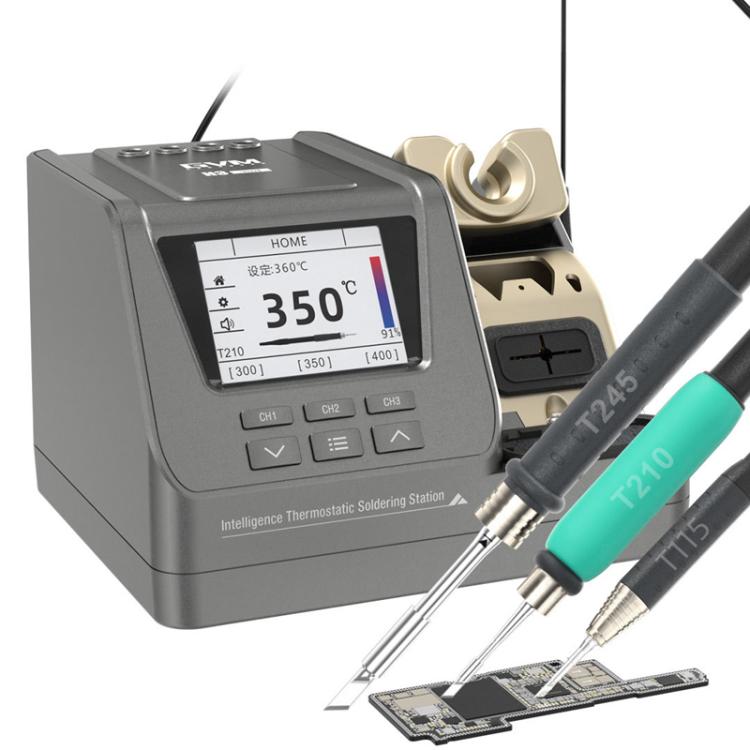

1. Support T245/T210/T115 handles, can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboard fly wire desoldering, etc.

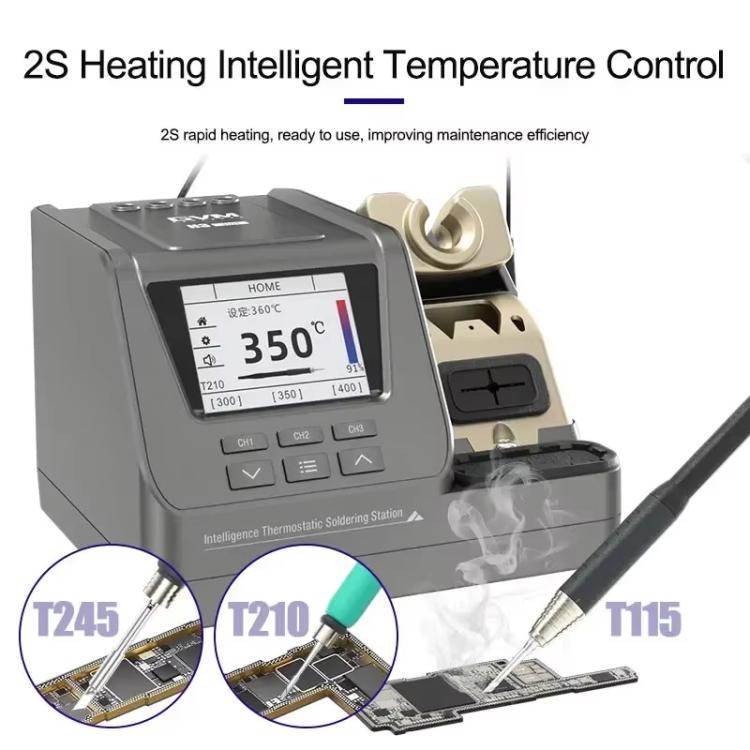

2. 2s fast heating, intelligent temperature control, ready to use, improve maintenance efficiency

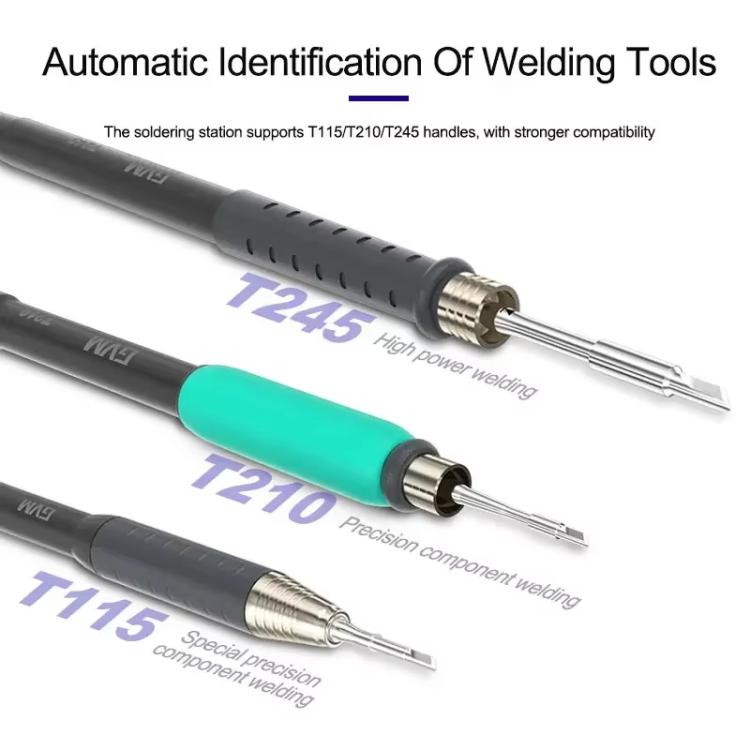

3. Automatic identification of welding tools, support T115/T210/T245 handles, stronger compatibility

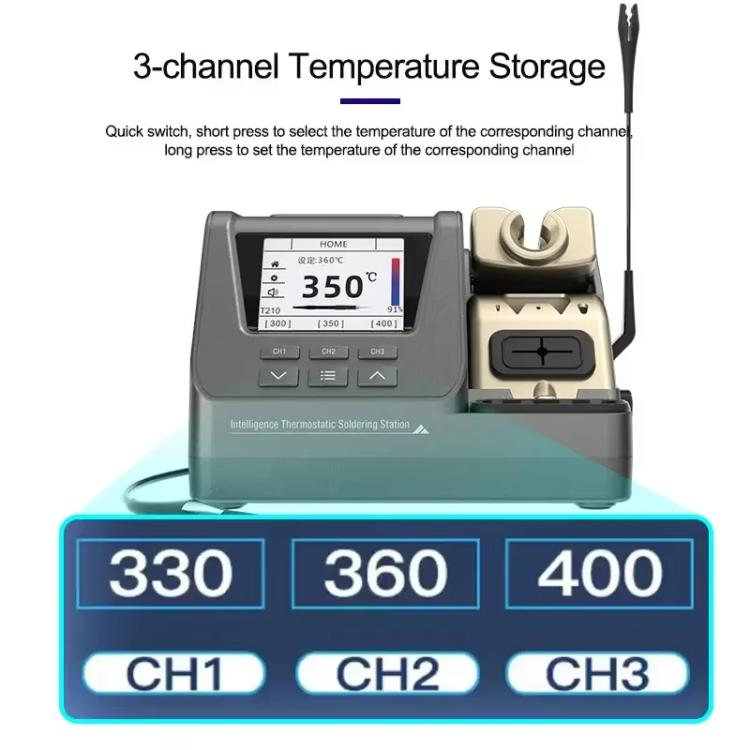

4. 3-channel temperature storage, quick switching, short press to select the temperature of the corresponding channel, long press to set the temperature of the corresponding channel
5. Intelligent induction sleep, induction handle placed soldering iron bracket, automatic sleep, extend the life of the soldering iron tip
6. LCD display, support temperature grouping, Chinese and English switching, intuitive temperature control at any time
Packing list:

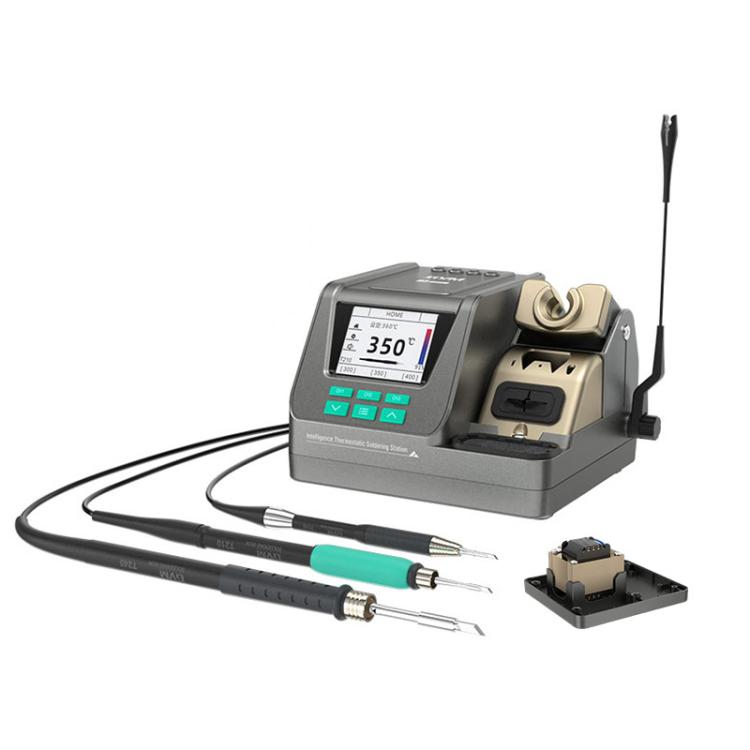

- Soldering station host x 1
- T245 heating core x 1
- T210 heating core x 1
- T115 heating core x 1
- T245 handle x 1
- T210 handle x 1
- T115 handle x 1
- Cable bracket thumb screw x 1
- Cable bracket x 1
- Anti-scalding silicone pad x 1
- Ground wire x 1
- Power cord x 1
- Instruction manual x 1
