Features
1. The product has reverse connection protection, it will not burn out if it is reversed
2. Lead-acid battery Lithium battery is universal and can be adjusted through the buttons on the back

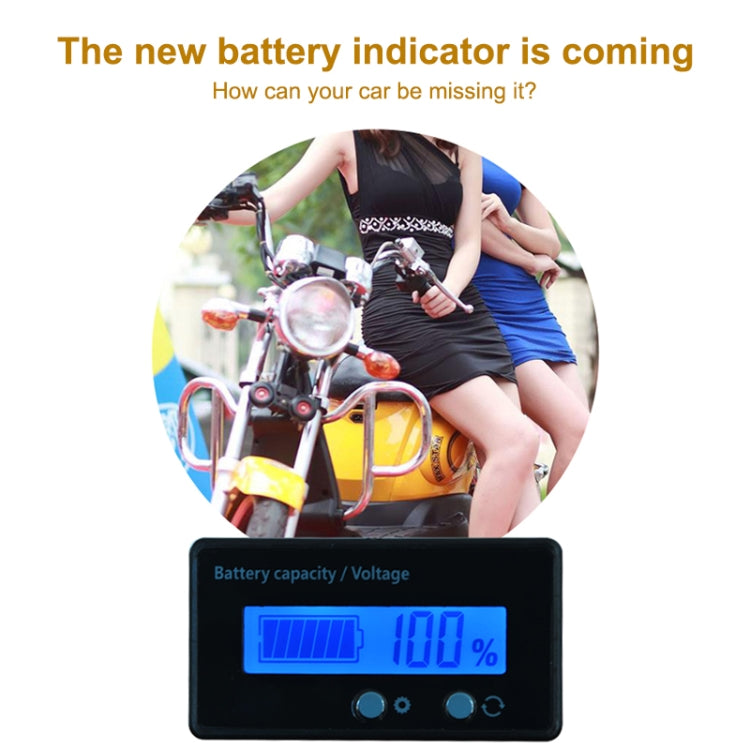

3. It can display battery symbol + percentage or battery symbol + voltmeter, the two display modes can be switched at will
4. The product has only two wires, simple wiring, equipped with a wiring socket, and the wire length is 300mm
5. All battery specifications and function selections are set through the buttons on the back, no electric soldering iron is required
Specification
1. Work voltage: 10-100V
2. Work current: Less than 5mA
3. Sleep current: 12uA (12V test)
4. Display: LCD with backlit
5. Suitable for: 3-27 x 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V, 72V, 84V
6. Dimensions: 61.3 x 33.3 x 13.5mm
7. Mounting hole Size: 58.5 x 28.5mm
8. Wire Length: 30cm
1. The product has reverse connection protection, it will not burn out if it is reversed
2. Lead-acid battery Lithium battery is universal and can be adjusted through the buttons on the back
3. It can display battery symbol + percentage or battery symbol + voltmeter, the two display modes can be switched at will
4. The product has only two wires, simple wiring, equipped with a wiring socket, and the wire length is 300mm
5. All battery specifications and function selections are set through the buttons on the back, no electric soldering iron is required
Specification
1. Work voltage: 10-100V
2. Work current: Less than 5mA
3. Sleep current: 12uA (12V test)
4. Display: LCD with backlit
5. Suitable for: 3-27 x 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V, 72V, 84V
6. Dimensions: 61.3 x 33.3 x 13.5mm
7. Mounting hole Size: 58.5 x 28.5mm
8. Wire Length: 30cm
