System Specifications:
1. CPU: Quad-core ARM Cortex-A53
2. GPU: Mali G31, supports OpenGL ES 3.2
3. RAM: 2GB
4. ROM: 8GB/16GB (optional)
5. WiFi: WiFi 6, supports IEEE 802.11a/b/g/n/ax protocols
6. Bluetooth: Supports Bluetooth remote control, does not support file transfer

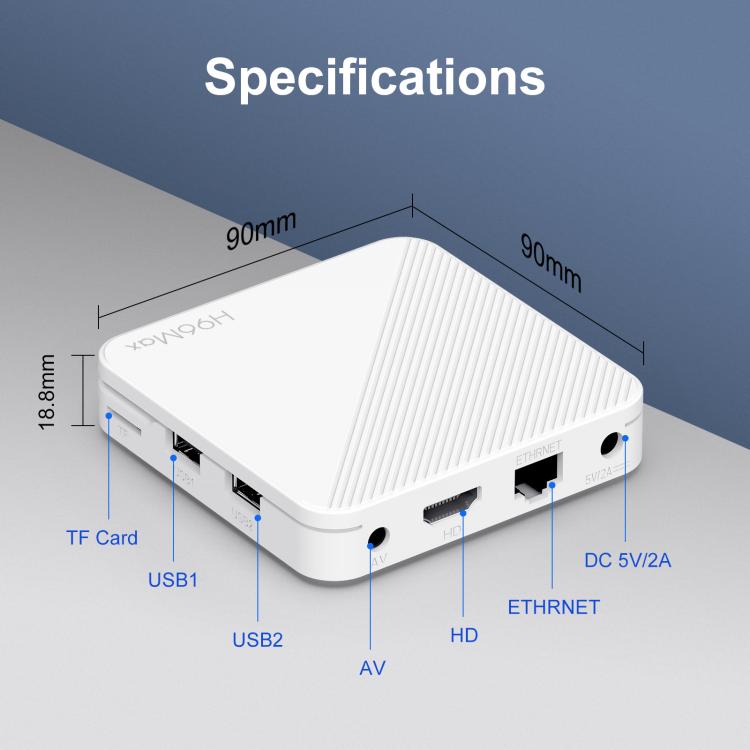

I/O Interfaces:
1. One HDMI port: Supports up to 4K output
2. Two USB ports: USB 2.0 ports
3. One DC power port: 5V/2A
4. One AV port: Audio output
5. LAN: Standard Ethernet RJ-45 port
6. One TF card slot: Supports 4GB/8GB/16GB/32GB/64GB capacity (not included)
Software Specifications:

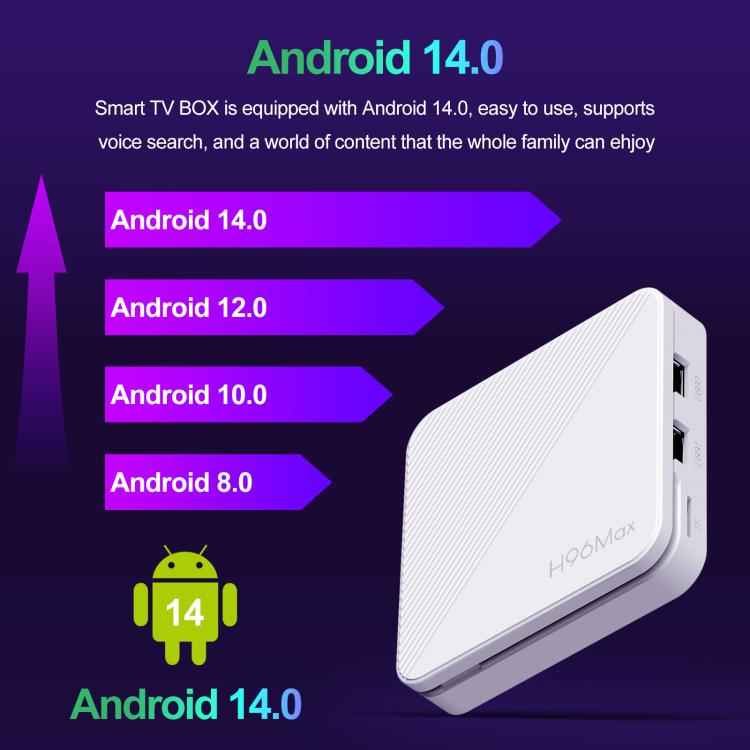

1. Operating System: Android 14.0
2. Video decoder: Supports up to 4K 60fps Video Decoding
1) Supports multiple formats:
H.265 Main10 L5.1 Up to 4K 60fps
VP9 Profile 2 Up to 4K 30fps
AVS2 Baseline 10-bit Specification Up to 4K 30fps
H.264 BP/MP/HP L4.2 Up to 4K 30fps
H.263 BP Up to 1080P 60fps
2) Video Encoder:
H.264 BP/MP/HP
H.264 supports I/P frames, only a single reference frame is supported
MJPEG/JPEG Baseline
H.264 encoding supports up to 16 megapixels (4096x4096) resolution
H.264 encoding capability: 1080P 60fps
3) JPEG Decoder
Supports JPEG encoding, performance up to 1080P 60fps
Supports configurable image resolutions
Supports configurable quantization tables for Y, Cb, and Cr components respectively.
Supports OSD (On-Screen Display) front-end overlay.
Supports color-to-grayscale conversion.
4) HDMI Functionality
Compatible with HDCP 2.2 and HDCP 1.4 copyright protection protocols.
Supports DDC (Display Data Channel) and SCDC (Status and Control Data Channel).
Integrated CEC (Consumer Electronics Control) hardware engine.
5) Video Support:
2D Video: 4K/1080P/1080i/720P/576P/480P/576i/480i, up to 4K 60fps
3D Video: 4K/1080P/720P/576P/480P, up to 4K 30fps
Supports RGB/YUV444/YUV422/YUV420 output formats.
Color Depth: 8/10-bit
HDR10: Compliant with CTA-861.3 and SMPTE ST. 2048 Standard
3. Audio Functionality: Supports MP3, AAC, WMA, RM, and FLAC audio formats.
4. Image Functionality: Supports high-definition JPEG, BMP, GIF, PNG, and TIF image formats.
5. Language Support: Supports multiple languages.
Applications:
1. Online Functionality: Browse all video websites, supporting Netflix, Hulu, Flixster, YouTube, etc.
2. App Download: Free app downloads from Android app stores, Amazon Appstore, etc.
3. Media Playback: Local media playback, supports hard drives and USB flash drives.
4. Online Calling: Supports Skype video calls, MSN, Facebook, Twitter, QQ, etc.
5. Other Features:
Supports email, office software, etc.
Supports DLNA functionality
Supports 2.4G wireless mouse/keyboard
Appearance:
1. Dimensions: 90x90x18.8mm
2. Weight: 92.2g

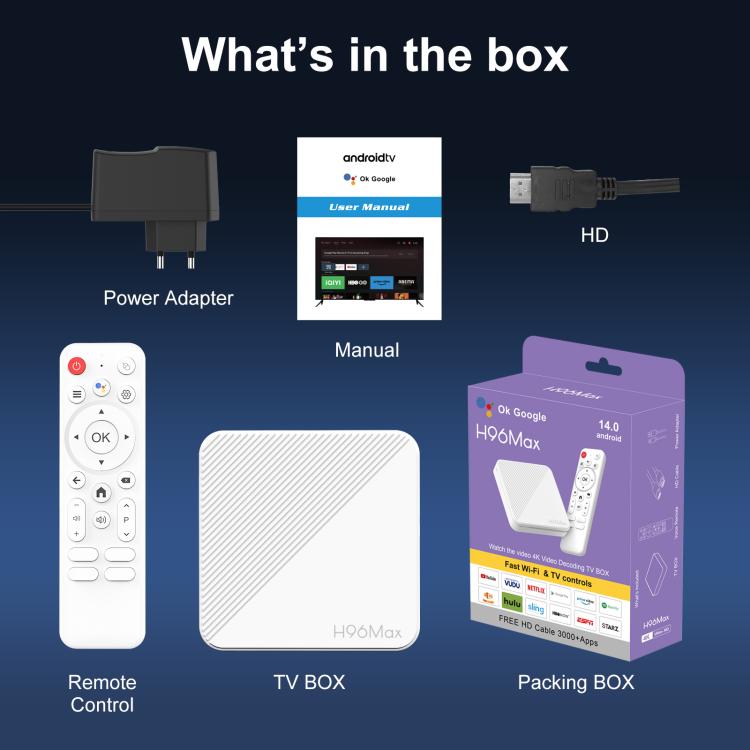

Package Contents:

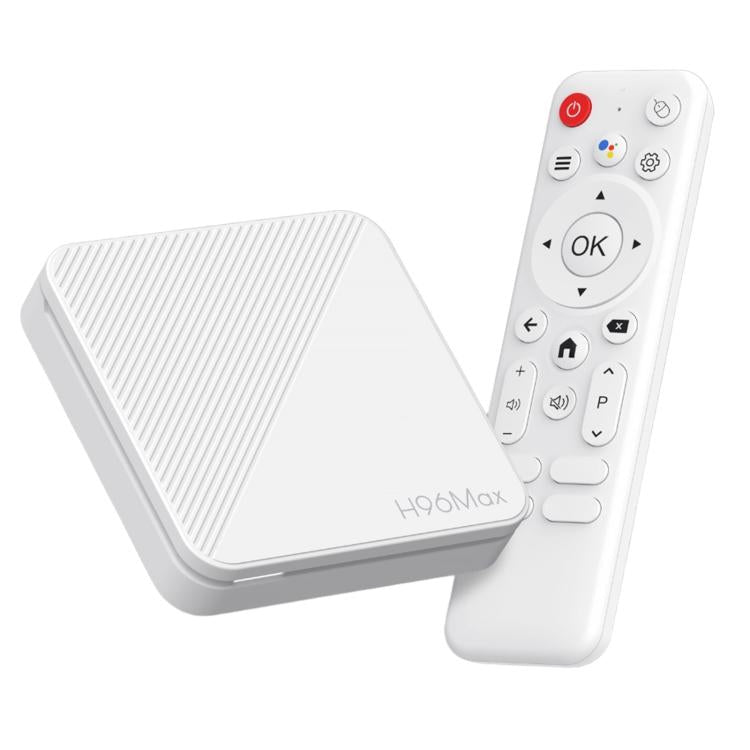

1. TV Box x 1
2. HDMI Cable x 1
3. Remote Control x 1
4. User Manual x 1
5. Power Adapter x 1
6. Packaging Box x 1
