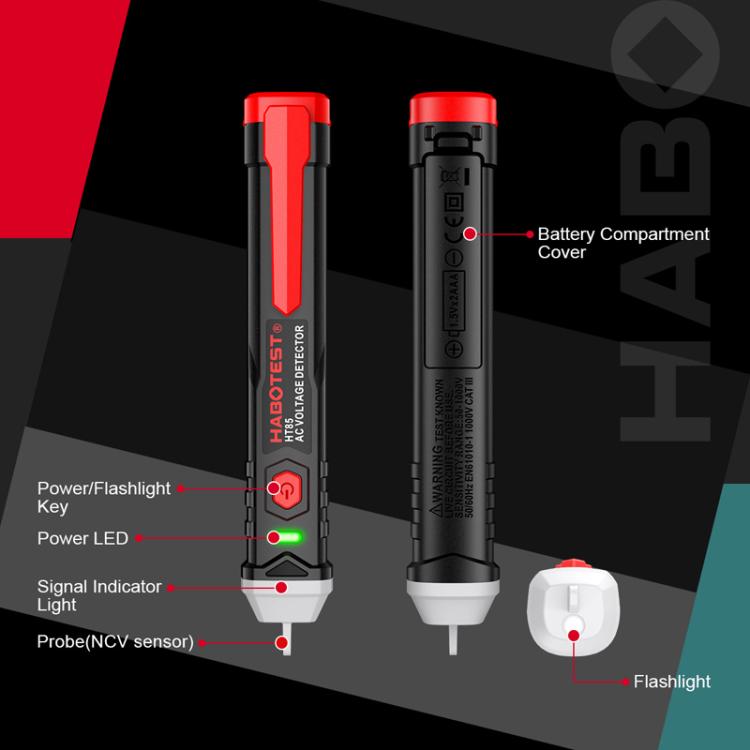

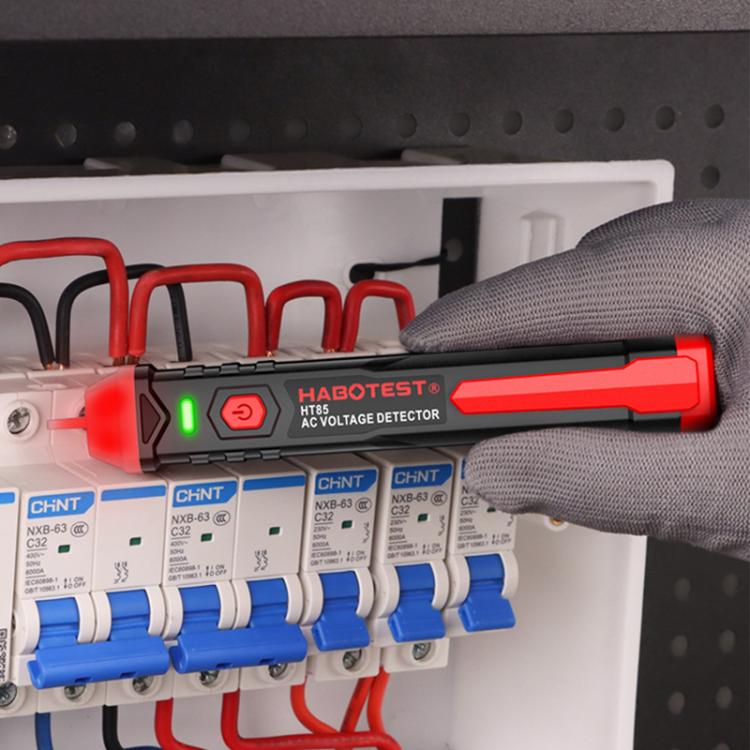

1. AC Voltage Detection: When the probe end of the voltage tester is close to the AC voltage source, the red signal indicator flashes; the stronger the signal, the faster the red light flashes; at the same time, the beeping sound of the buzzer will increase in frequency with the enhancement of the signal strength
2. Flashlight illumination: LED illumination, convenient to detect voltage in dark environment

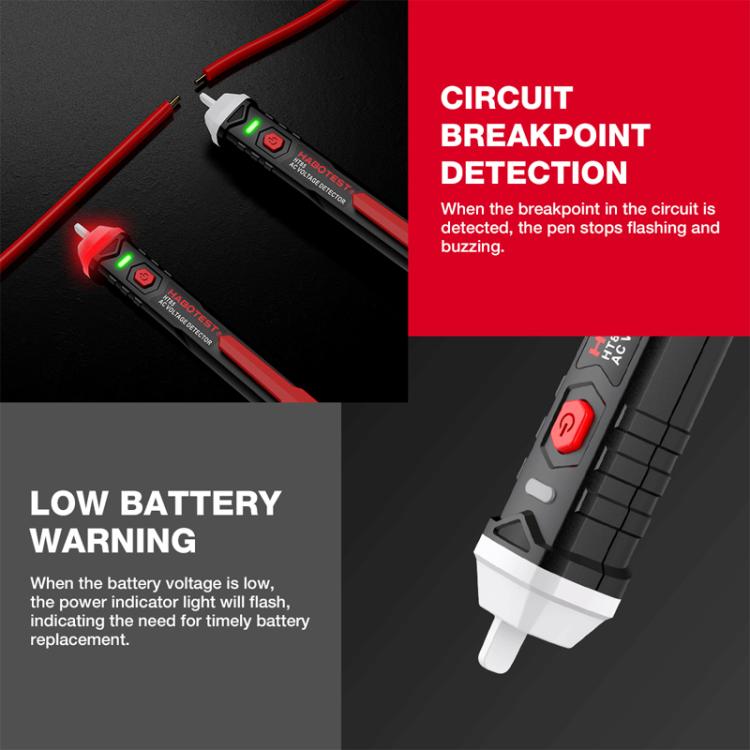

3. Circuit breakpoint detection: the pen stops flashing and buzzing when a breakpoint in the circuit is detected
4. Low battery warning: when the battery voltage is too low, the power indicator flashes, suggesting that the battery needs to be replaced in time
5. Auto Power Off: The voltage tester will automatically turn off after about 5 minutes of no signal detection or inactivity to prolong battery life
6. Portable pen clip design: portable and convenient for mobile measurement

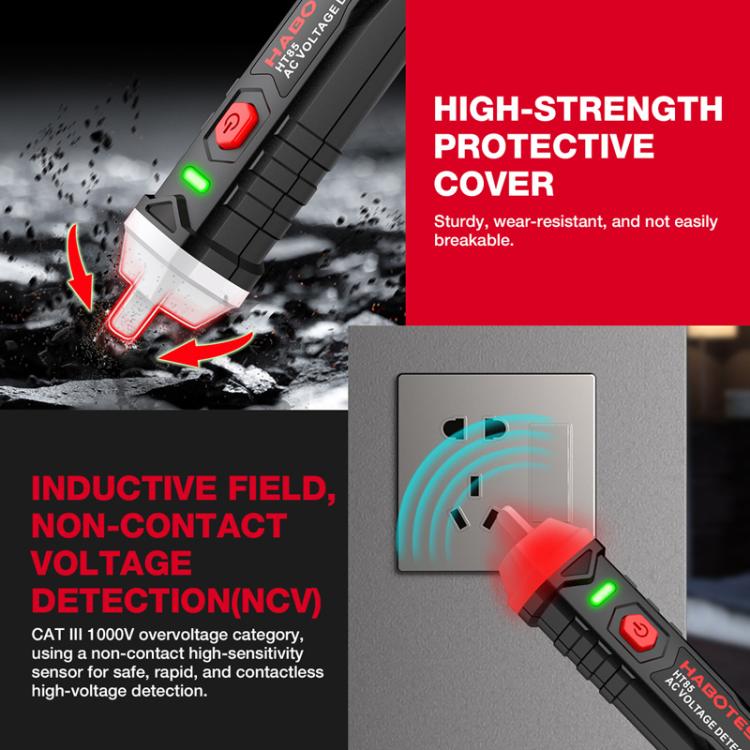

7. High-strength shield: sturdy, wear-resistant, unbreakable
8. Inductive field, non-contact voltage detection (NCV): CAT-III 1000V overvoltage category, using non-contact high-sensitivity sensor for safe, fast and non-contact high-voltage detection
Parameters:
1. Display: LED
2. Voltage detection range: AC70-1000V
3. Frequency: 50/ 60Hz
4. Alarm mode: sound and light alarm
5. Probe shape: extended shape
6. Charged and neutral: according to the signal strength indication, the test signal on the firewire is stronger than the neutral
7. Signal strength display: LED from low to high, green to red
8. Signal strength indication method: sound from slow to fast
9. Automatic power-off: no operation, no inductive signal, 5 minutes or so automatic shutdown

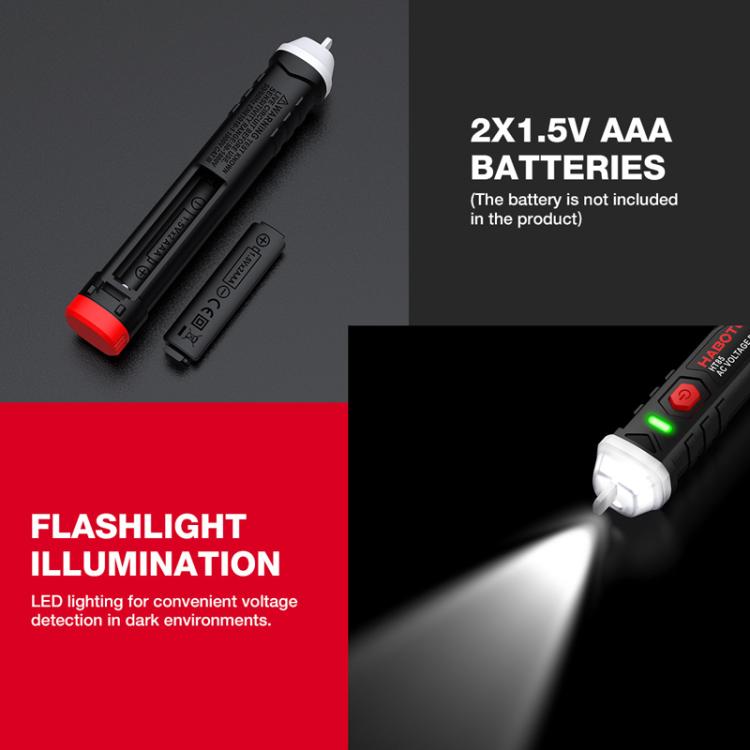

10. Power supply: 2 x 1.5V AAA batteries (not included in shipment)
11. Safety level: EN61010-1, -2-030; EN61326-1, CAT-III class 1000V

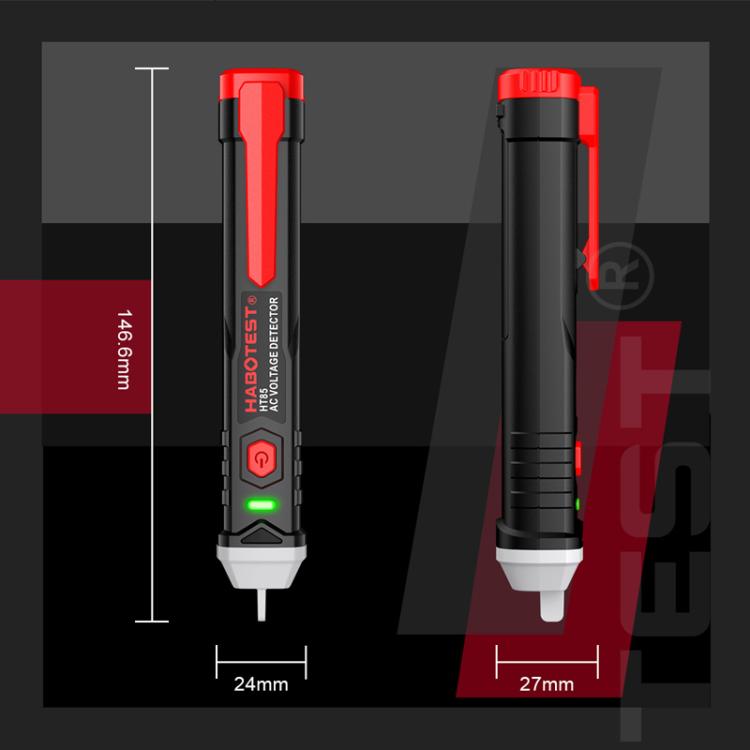

12. Dimensions: about 146.6 x 24 x 27mm
13. Weight: about 28.7g
