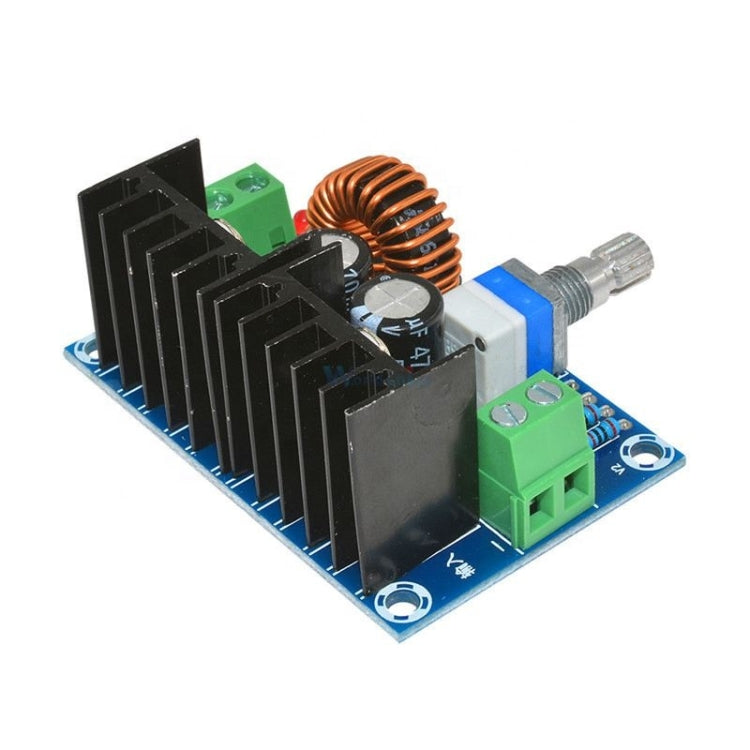

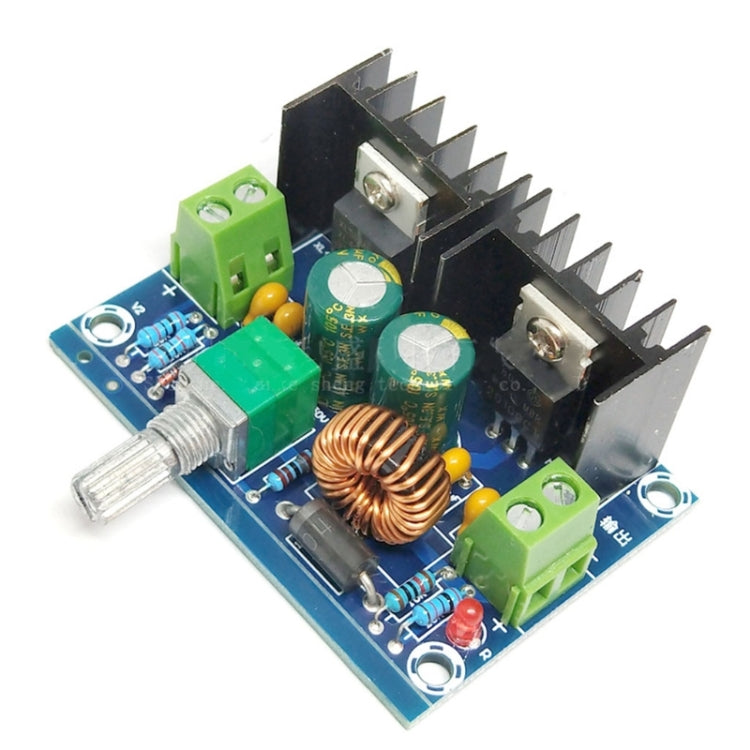

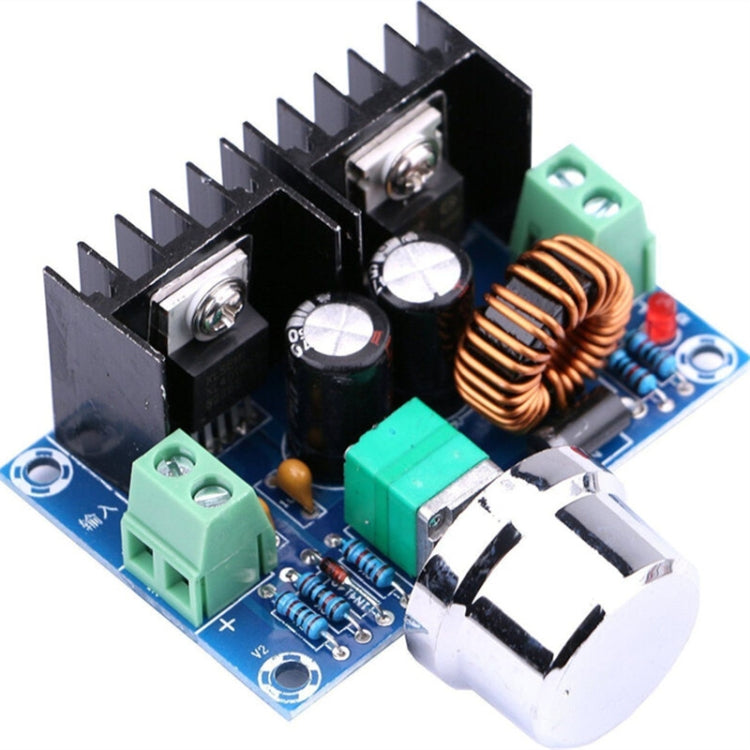

1. Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable
2. 180KHz fixed frequency PWE step-down (step-down) DC/DC converter
3. High efficiency and up to 8A load driving capacity
4. Low ripple and excellent line and load regulation ability
5. Built-in frequency compensation and fixed frequency oscillator
6. Built-in over-current and short-circuit protection functions
7. Built-in thermal shutdown function, output protection function, output overvoltage protection
8. Voltage regulation method: PWM modulation

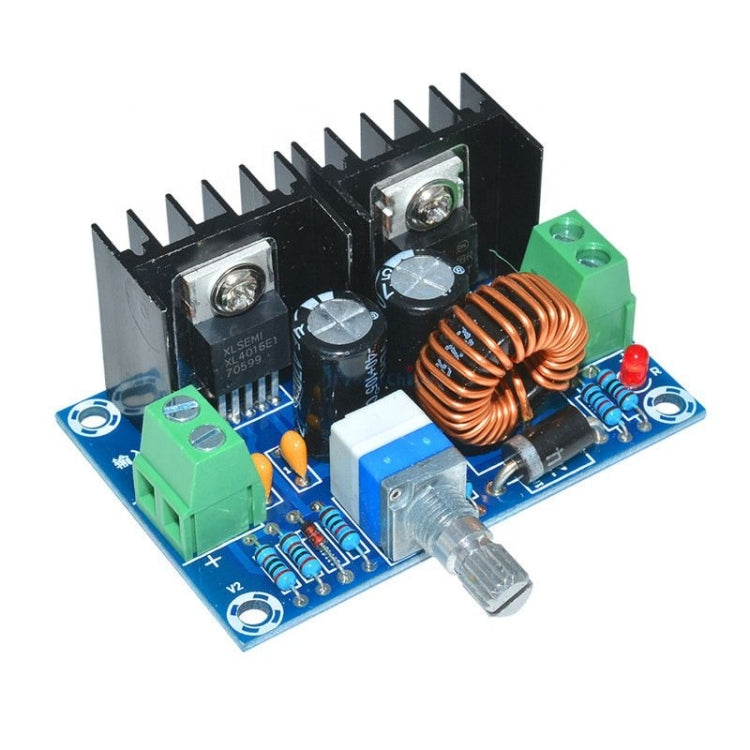

9. Chip model: XL4016E1
10. Type: DC/DC power supply module
11. Input voltage: DC4-40v
12. Output range: DC1.25-36v
13. Rated current: 8A
14. Rated power: 200w
15. Conversion efficiency: 94%
16. Switching efficiency: 180Khz

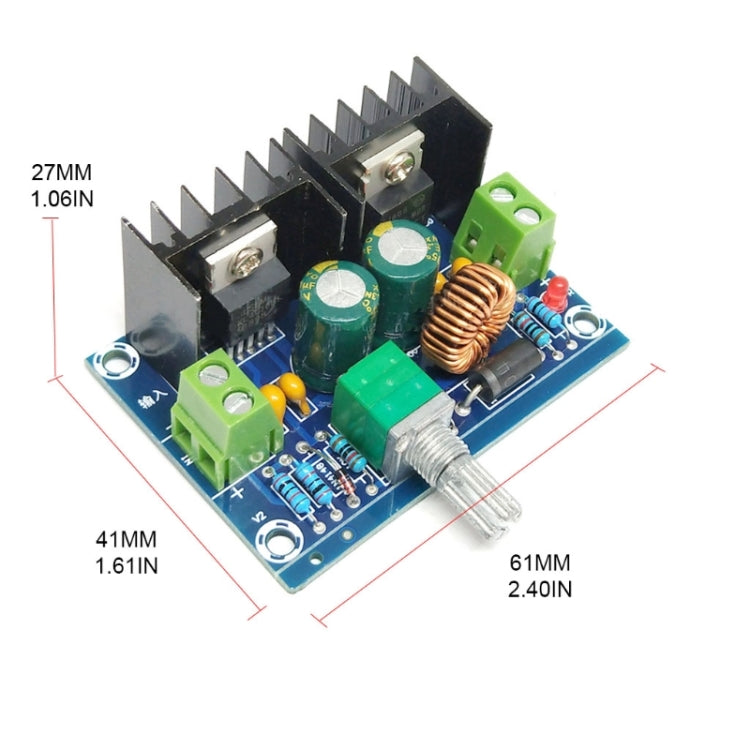

17. Size: 61x41x27mm
