1.Versatile Connectivity:1 Optical to 4 Electrical ports configuration, enabling connection of up to 4 electrical devices through a single fiber optic line.
2.Long-Distance Transmission:Utilizes wavelength division multiplexing technology for single-mode single-fiber transmission up to 20 kilometers.
3.High-Speed Performance:Supports gigabit transmission with 1.25Gbps SC fiber optic interface and 1000Mbps Ethernet interface for efficient data and video signal transmission.
4.Bi-Directional Communication:Employs 1550nm transmitting and 1310nm receiving wavelengths for simultaneous data transmission and reception through a single fiber.
5.Wide Compatibility:Adheres to IEEE 802.3, 802.3U, 802.3ab, 802.3Z, and 802.3x standards, ensuring broad network compatibility.
6.Robust Design:Operates in extreme temperatures from -40 to 70 degree centigrade, suitable for various environmental conditions.
Specifications:
1.Model: HW6
2.Interface: 1 1.25Gbps fiber interface, 4 100Mbps/1000Mbps adaptive RJ45 ports
3.Transmission wavelength: TX: 1310nm, RX: 1550nm
4.Power supply: 5V/0.5A
5.Packet forwarding rate: 7Mpps

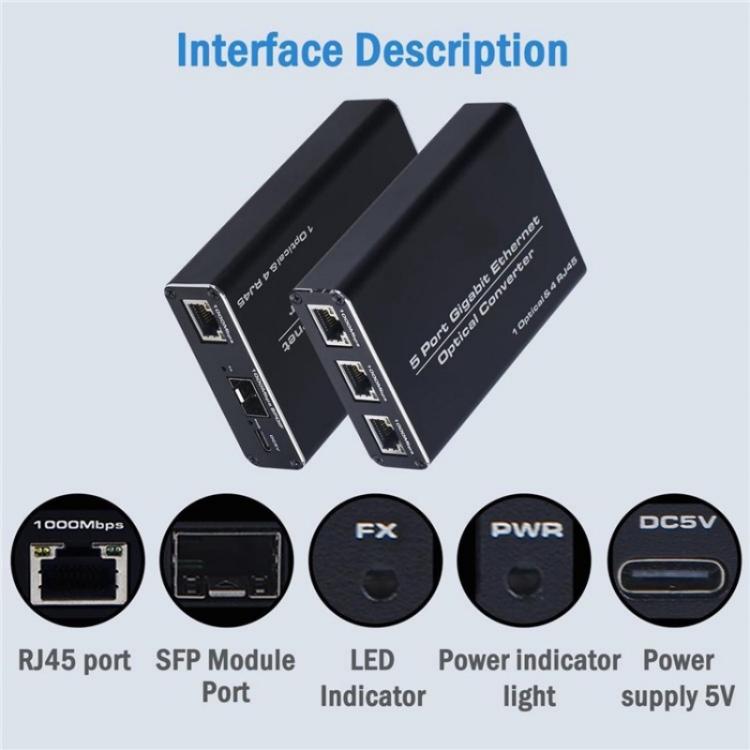

6.Indicator light: Optical port and electrical port Link/Act, PWR
7.Average transmitted optical power: -9~-1dBm
8.Receiver sensitivity: -22dBm
9.Data transmission rate per port: 2Gbps full-duplex
10.MAC address depth: 2K
11.Interface: 1 1.25GbpsSC fiber interface, 1 100Mbps/1000Mbps adaptive RJ45 port
12.Transmission wavelength: TX:1550nm, RX:1310nm
13.Power supply: DC5V 0.6A
14.Packet forwarding rate: 3Mpps
2.Long-Distance Transmission:Utilizes wavelength division multiplexing technology for single-mode single-fiber transmission up to 20 kilometers.
3.High-Speed Performance:Supports gigabit transmission with 1.25Gbps SC fiber optic interface and 1000Mbps Ethernet interface for efficient data and video signal transmission.
4.Bi-Directional Communication:Employs 1550nm transmitting and 1310nm receiving wavelengths for simultaneous data transmission and reception through a single fiber.
5.Wide Compatibility:Adheres to IEEE 802.3, 802.3U, 802.3ab, 802.3Z, and 802.3x standards, ensuring broad network compatibility.
6.Robust Design:Operates in extreme temperatures from -40 to 70 degree centigrade, suitable for various environmental conditions.
Specifications:
1.Model: HW6
2.Interface: 1 1.25Gbps fiber interface, 4 100Mbps/1000Mbps adaptive RJ45 ports
3.Transmission wavelength: TX: 1310nm, RX: 1550nm
4.Power supply: 5V/0.5A
5.Packet forwarding rate: 7Mpps
6.Indicator light: Optical port and electrical port Link/Act, PWR
7.Average transmitted optical power: -9~-1dBm
8.Receiver sensitivity: -22dBm
9.Data transmission rate per port: 2Gbps full-duplex
10.MAC address depth: 2K
11.Interface: 1 1.25GbpsSC fiber interface, 1 100Mbps/1000Mbps adaptive RJ45 port
12.Transmission wavelength: TX:1550nm, RX:1310nm
13.Power supply: DC5V 0.6A
14.Packet forwarding rate: 3Mpps
