1. Reliable Quad Core Processor: Powered by an Intel Celeron J6412 quad-core processor (up to 2.6 GHz) built on Elkhart Lake architecture, delivering stable and efficient computing for industrial and networking applications.
2. High Speed Memory And Storage Expansion: Supports up to 32 GB DDR4 3200MHz SODIMM memory along with dual storage options, including one M.2 2280 SATA slot and one 2.5-inch drive bay.
3. Quad 2.5G LAN Ports: Equipped with four Intel i225-V 2.5G Ethernet ports, making it an ideal hardware platform for soft routers, firewalls, VPN gateways, and network security appliances.
4. Dual 4K Display Output: Features HD and DP interfaces supporting dual-display synchronous or asynchronous output at resolutions up to 4096x2160 60Hz.
5. Compact And Durable Design: Built with a premium all-aluminum alloy chassis weighing only 780g, offering excellent heat dissipation and versatile industrial feature support like Auto Power On and PXE.
Specifications:

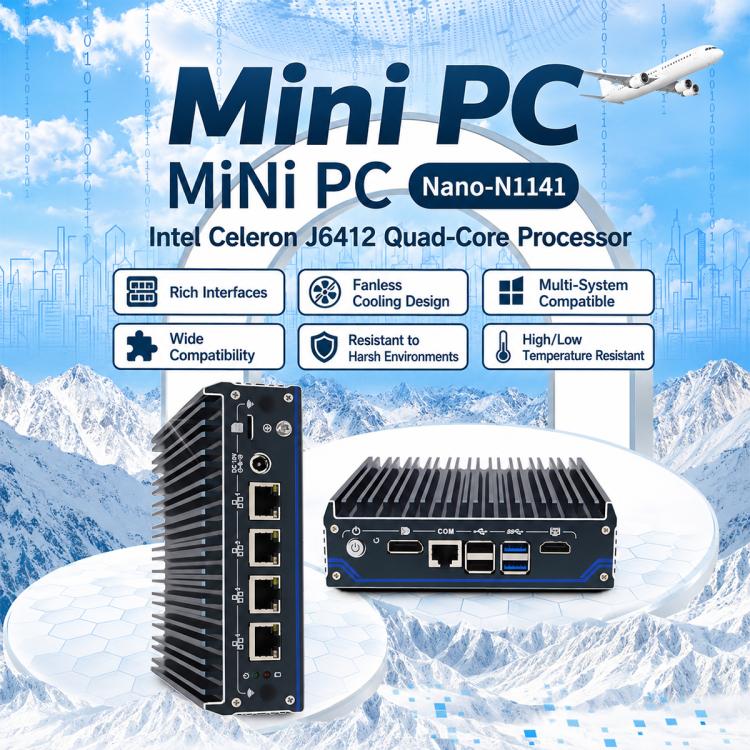

1. Model: Nano-N1141
2. Chassis Color: Metallic Grey
3. Chassis Material: Aluminum Alloy
4. Processor: Onboard Intel Celeron J6412 (4 cores, 4 threads; base frequency 2.0 GHz, burst frequency 2.6 GHz)
5. Architecture: Elkhart Lake
6. Memory: Supports 1 x DDR4 3200MHz SODIMM slot (up to 32 GB)
7. BIOS: AMI UEFI BIOS
8. Graphics: Intel(R) UHD Graphics
9. Display Interfaces: 1 x HDMI, 1 x DP (supports synchronous/asynchronous dual display; resolution up to 4096x2160 @ 60Hz)

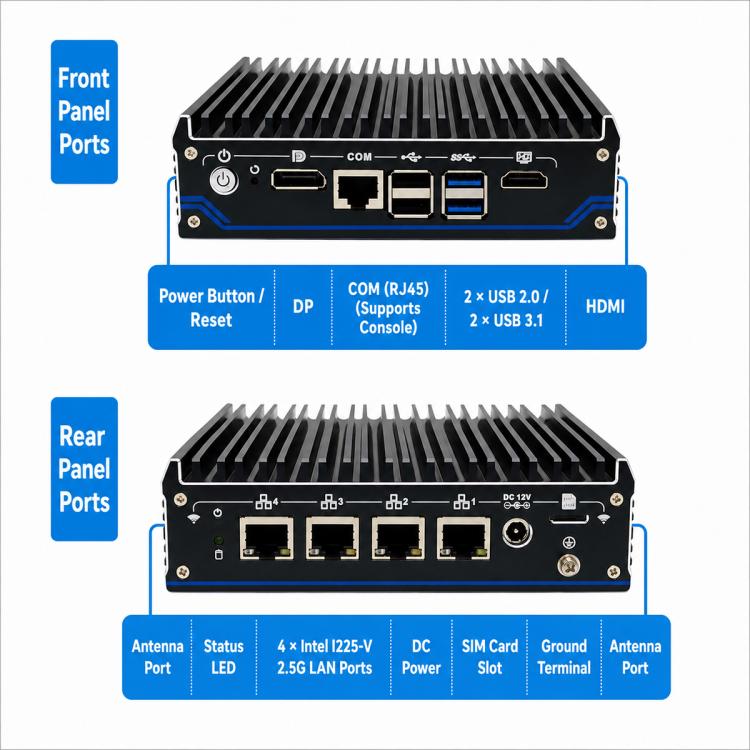

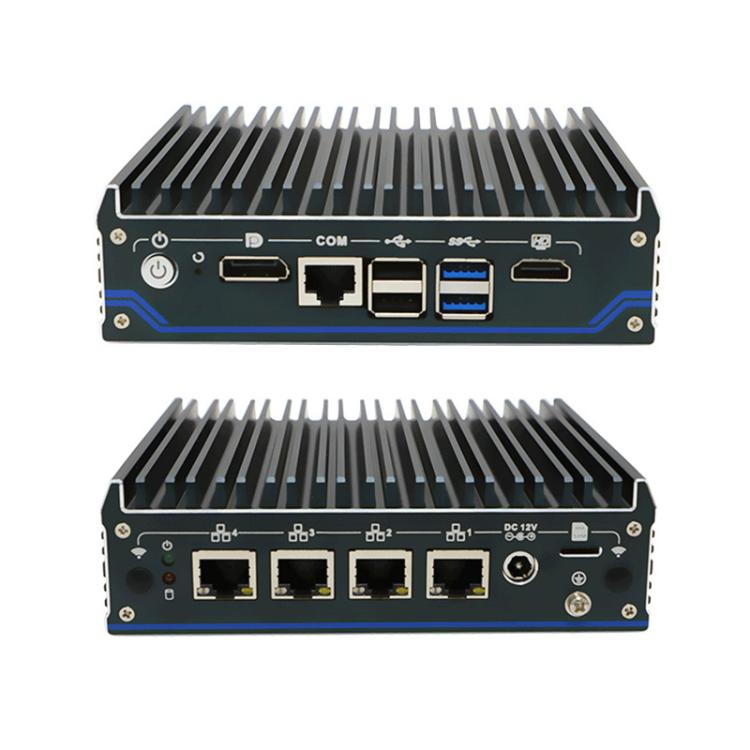

10. Front Panel I/O: 1 x Power button, 1 x DP port, 1 x RJ45 serial port (supports Console function), 2 x USB 2.0, 2 x USB 3.1, 1 x HDMI port, 1 x Reset button
11. Rear Panel I/O: 4 x RJ45 LAN ports, 1 x DC input port, 1 x SIM card slot
12. Expansion Slots:
Supports 1 x M.2 2280 M-key slot (SATA protocol)
Supports 1 x M.2 2230 E-key slot (WiFi, Bluetooth)

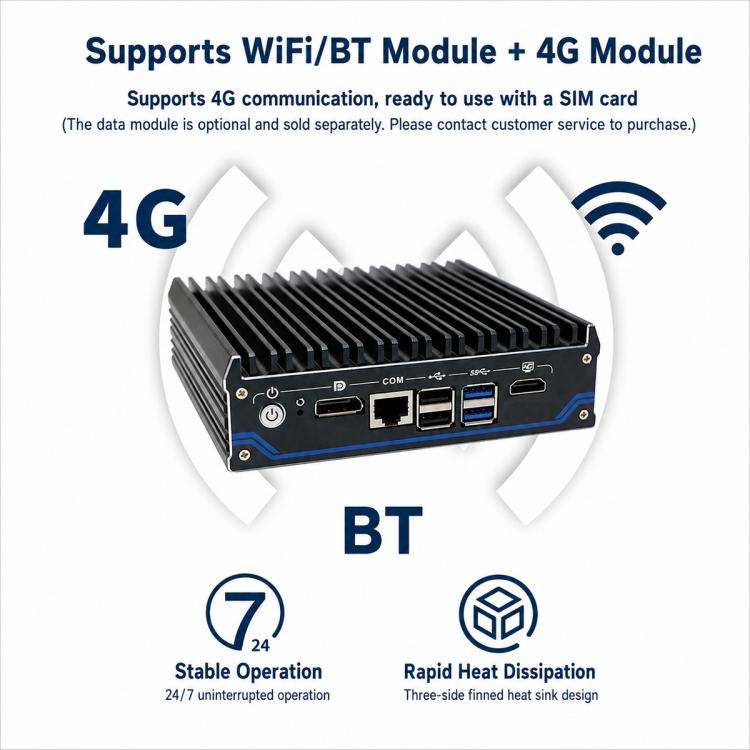

Supports 1 x Mini PCIe slot (4G support, external SIM slot, supports USB-based WiFi/Bluetooth)
13. Network Interfaces: 4 x Intel i225-V 2.5G Ethernet ports
14. Storage Interfaces: 1 x M.2 2280 slot, 1 x 2.5-inch drive bay
15. Input Voltage: Supports DC 12V input
16. Other Features: Auto power-on, scheduled power-on, Wake-on-LAN (WoL), PXE boot, Watchdog timer (0~255 levels), TPM 2.0 Secure Encryption

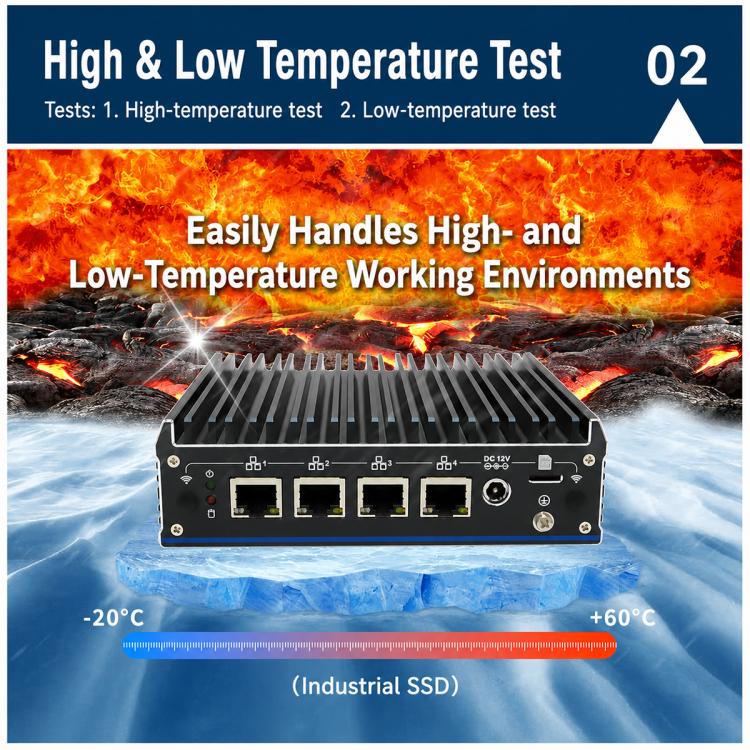

17. Operating temperature: 0 to +40°C (commercial HDD), -20 to +60°C (industrial SSD); with surface airflow
18. Operating humidity: 0% to 95% (non-condensing)

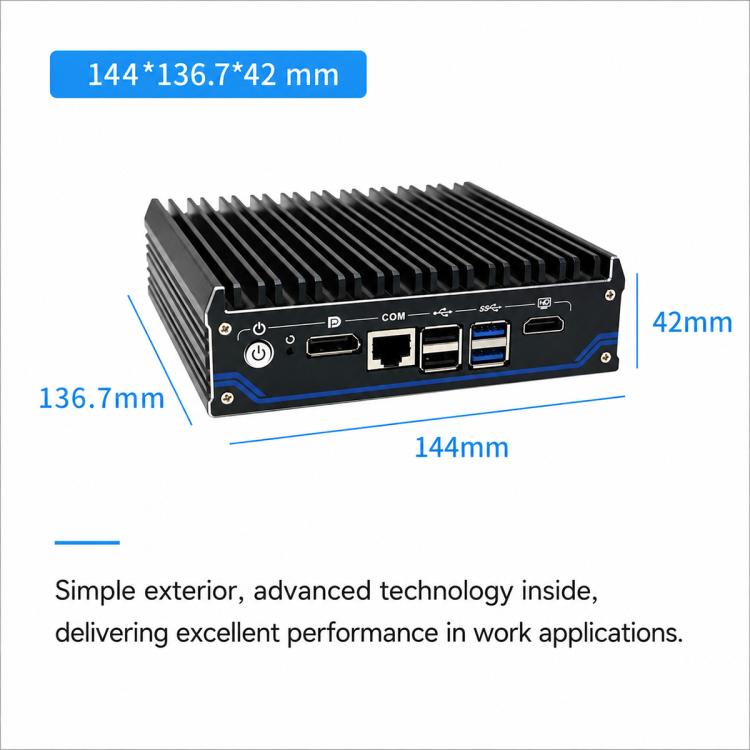

19. Product dimensions: 144 x 136.7 x 42 mm
20. Unit weight: 0.78 kg
21. Application areas: Firewalls, VPNs, network servers, network security, routers, etc.
