1. For when you have got your hands full Combined with the Keyless-Go function and working with the Automotive Electronic Tailgate, the trunk can be opened simply by waving a foot under a sensor, making it enormously convenient when carrying a load of shopping.
2. Closing the trunk is as easy as pressing a button or waving a foot again to shut the tailgate automatically. We call it STO system (Smart Trunk Opener).
3. People who take the car keys in a short distance can kick off the tailbox.

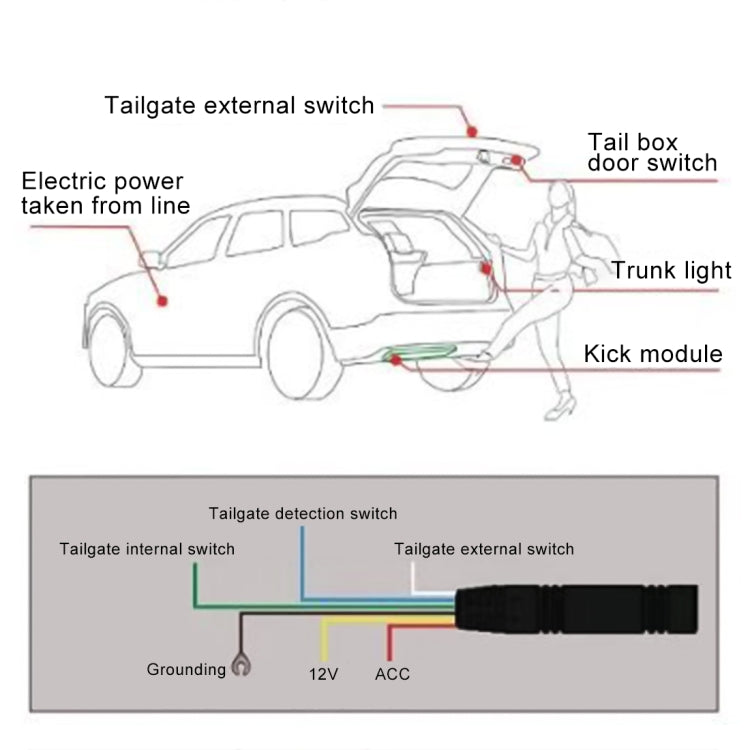

4. Harness:
Yellow +
Red ACC
Black GND-
White OUT-
5. Wiring method:
Green connect to the open door button
Blue connect to the tail light
Any vehicle model is suitable for installation as long as it meets the following three requirements:
1. Has an external handle or push-button switch on the trunk (remote controls are not included)
2. Has a power tailgate (either stock or retrofitted) or a spring-loaded tailgate
3. Has keyless entry (PKE) (PKE automatically unlocks the door when the key approaches it)
If criterion 1 is not met: Wiring to the driver''s seat switch is required.
If criterion 2 is not met: Powered tailgates can be kicked open and closed, while spring-loaded tailgates can only be kicked open.
If criterion 3 is not met: The tailgate must be unlocked using the remote control before it can be opened.
