1. Strong waterproof, low loss, good heat dissipation, high efficiency
2. The dual power supply isolator uses a power management chip, which is a relatively new type of intelligent automatic management of electronic circuits

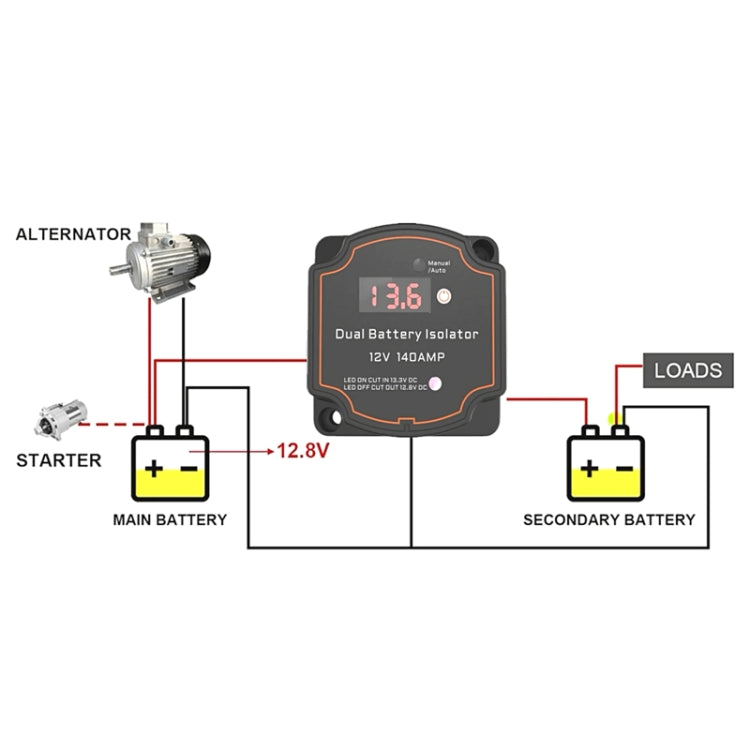

3. When the voltage of the main battery is greater than 13.3V, the main battery charges the auxiliary battery; when the voltage of the main battery is lower than 12.7V, the main battery is disconnected from the auxiliary battery
4. This product is suitable for ATV, UTV, boat, RV, watercraft, truck, caravan
5. Parameters:
- Material: ABS+Metal
- Continuous current: 80-100A
- Instantaneous current: 125A
- Current consumption - charging: 240mA
- Current Consumption - Standby: 8mA
- Escape delay: 5-10 seconds
- Recommended Fuse: 80Amp
- Power stud: M6 brass screw nut
- Surge Protection: Built-in
- Waterproof grade: IP68
- Dimensions: 68x52x68mm
2. The dual power supply isolator uses a power management chip, which is a relatively new type of intelligent automatic management of electronic circuits
3. When the voltage of the main battery is greater than 13.3V, the main battery charges the auxiliary battery; when the voltage of the main battery is lower than 12.7V, the main battery is disconnected from the auxiliary battery
4. This product is suitable for ATV, UTV, boat, RV, watercraft, truck, caravan
5. Parameters:
- Material: ABS+Metal
- Continuous current: 80-100A
- Instantaneous current: 125A
- Current consumption - charging: 240mA
- Current Consumption - Standby: 8mA
- Escape delay: 5-10 seconds
- Recommended Fuse: 80Amp
- Power stud: M6 brass screw nut
- Surge Protection: Built-in
- Waterproof grade: IP68
- Dimensions: 68x52x68mm
