Features
1. The high-definition video source and USB interface achieve freely switching;
2. Displayport 1.4 Compatible input and output ports (Interface refers to the purchased version)
3. Support video resolutions up to 8K 30Hz
4. Support Deep Color
5. Adaptive EDID, can be able to adapt a variety of complex environments
6. Support USB device such as HUB, U-disk, printer, etc.

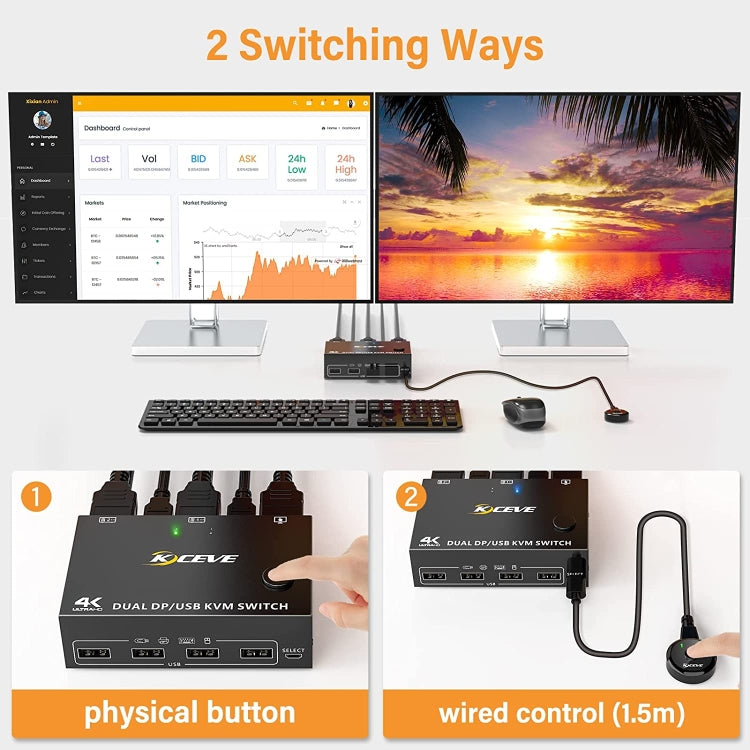

7. Switching modes: Physical button and wired remote control
8. High compatibility, can auto-match source and display device
9. Built-in automatic adjustment system, make the image smooth, clear and stable
10. Built-in ESD protection system
Specifications
Video:
1. Standards: DP1.4???
2. Resolution range: 7680X4320 30Hz; 3840*2160 120Hz/60Hz, 3440*1440 144Hz/120Hz???2560*1440 144Hz/120Hz???1920*1080 60Hz/120hz (Depending on the system and the connected hardware)
3. Connector Displayport Interface
USB:
1. Interface protocols: USB 3.0 or USB 2.0
2. PC input: USB-A (or USB-B)
3. Output: USB-A
Others:
1. Power supply: USB Power (DC 5V optional)
2. Power dissipation: MAX 4W
3. Temperature Operating: -5 degree C ~ +70 degree C
4. Humidity Operating: 5% ~ 90%
5. Dimension 10x6.5x3cm

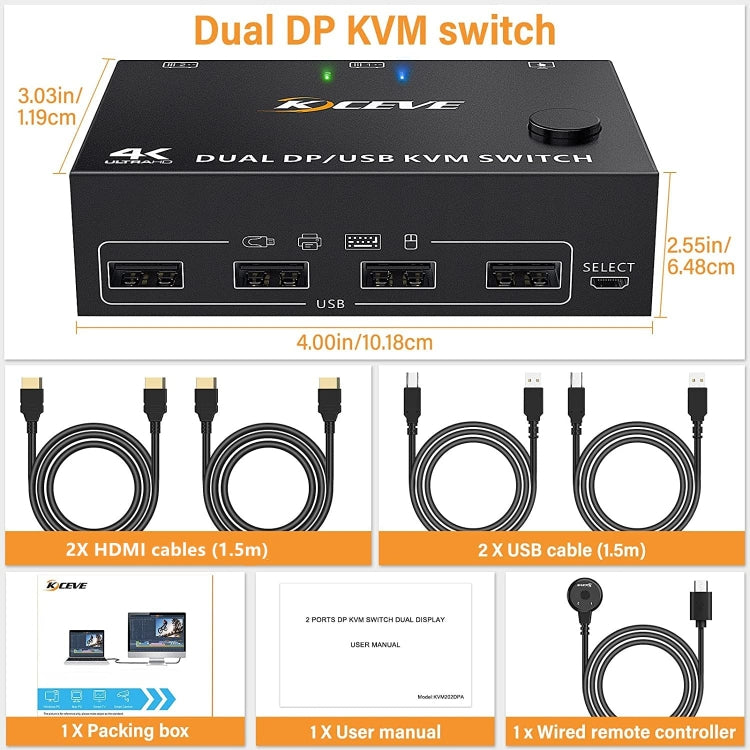

Package List
1. DP KVM Switch x 1
2. USB cable x 2
3. User manual x 1
